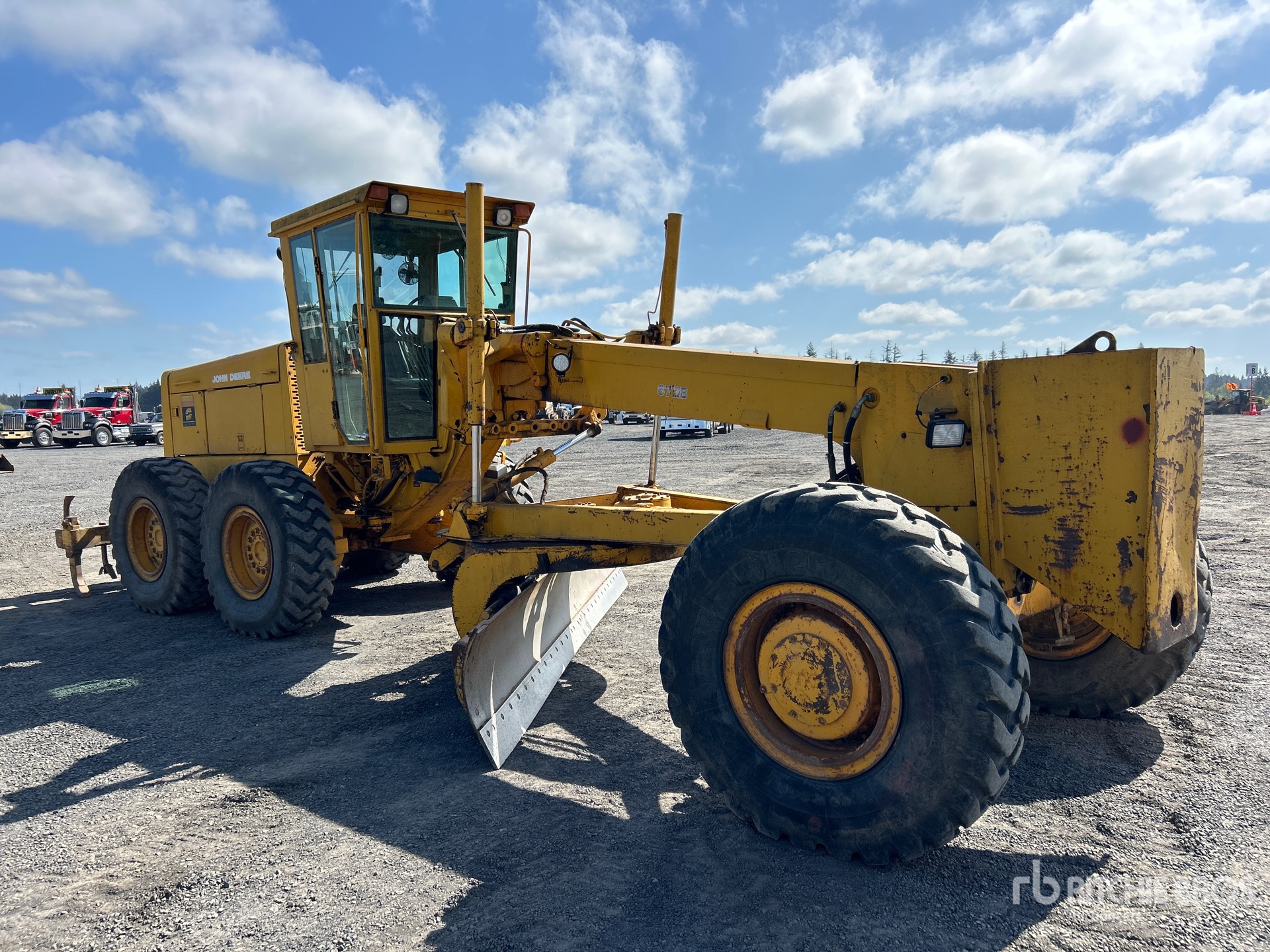

1986 John Deere 672B For Sale in Chehalis, Wa

Name: 1986 John Deere 672B
Brand: John Deere
SKU: 87408083
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

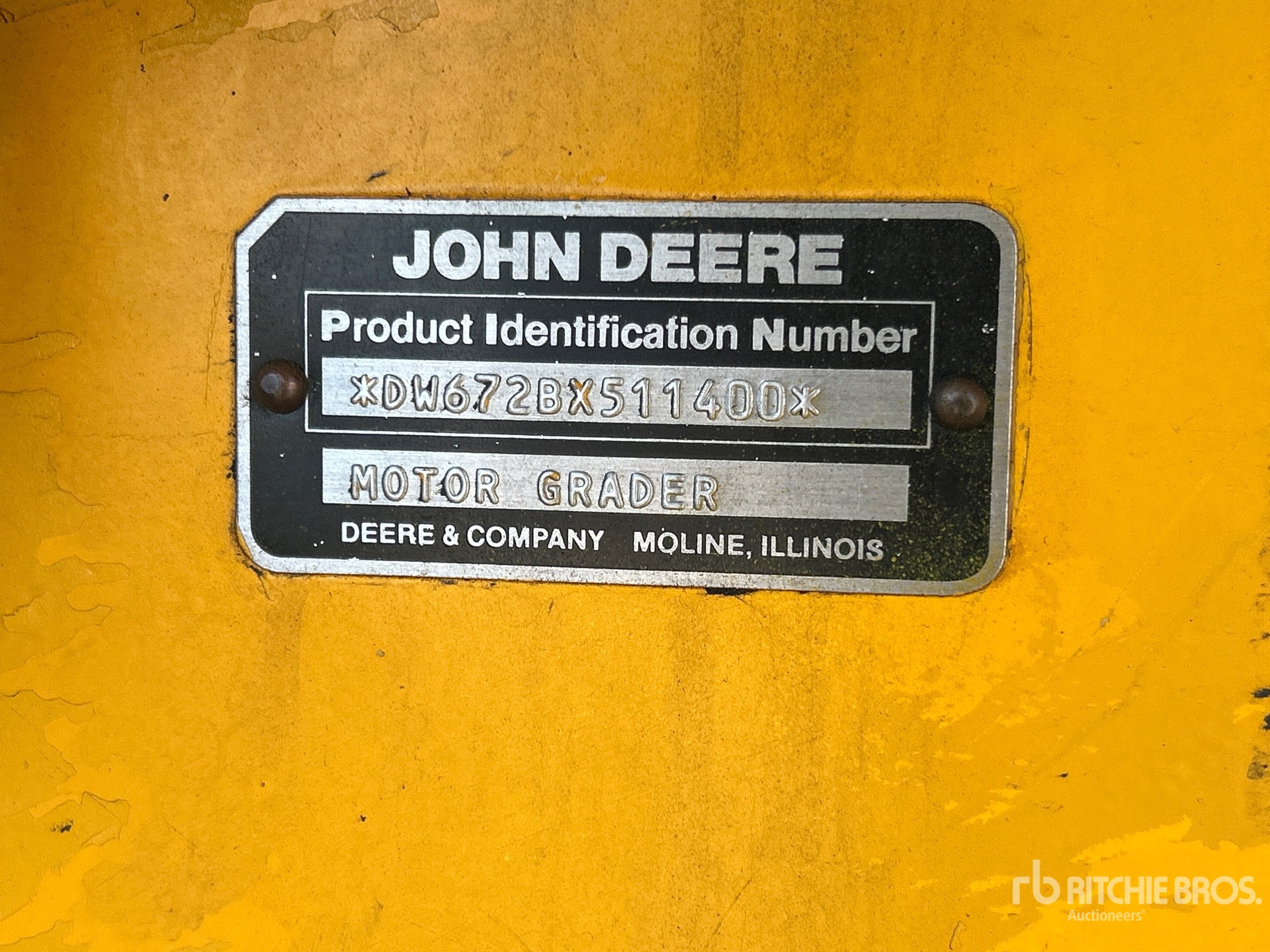

Serial Number:	DW672BX511400
Machine Location:	CHEHALIS, WA

Description:

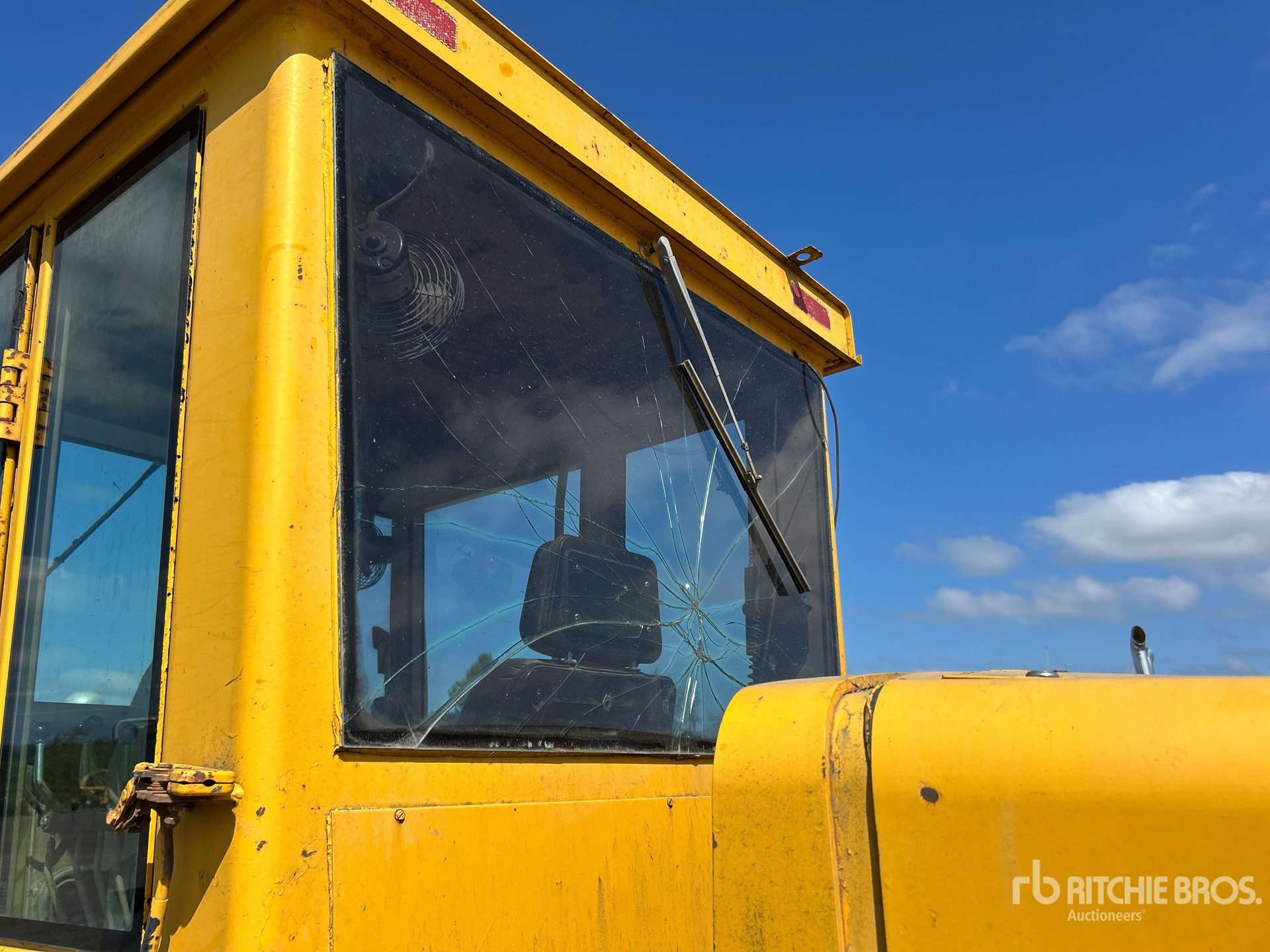

Located in Lane 6 Spot 5, Enclosed Cab, 14 ft / 4.27 m Moldboard w/ Extension, Combination Ripper/Scarifier, 14.00-24 Tires Closing Time: 2026-05-07 09:31:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	44 degrees
Blade Tip Angle - Rear	10 degrees
Diameter	58 in (147 cm)
Max Lift Above Ground	19 in (49 cm)
Max Reach Outside Tires - Left	82 in (208 cm)
Max Reach Outside Tires - Right	83 in (211 cm)
Rotation	360 degrees
Shift Left	29 in (73 cm)
Shift Right	27 in (69 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	27 ft (8 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Model	6414 T
Max Power	135 hp (101 kw)
Net Power Gears 7-8	135 hp (101 kw)
Net Torque Gears 7-8	400 lbs ft (542 nm)
Number of Cylinders	6
Power Measured @	2,300 rpm
Torque Measured @	1,300 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	38 gpm (142 lpm)
Pump Type	Closed Center variable Displacement
Moldboard
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	42 amps
Circle Gearbox Fluid Capacity	3 gal (11 l)
Cooling System Fluid Capacity	7 gal (27 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Max Operation Weight - Front Axle	9,910 lbs (4,495 kg)
Max Operation Weight - Rear Axle	22,420 lbs (10,170 kg)
Max Operation Weight - Total	32,330 lbs (14,665 kg)
Oil System Fluid Capacity	5 gal (19 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	8,700 lbs (3,946 kg)
Std Operation Weight - Rear Axle	19,400 lbs (8,800 kg)
Std Operation Weight - Total	28,100 lbs (12,746 kg)
Tandem Case Fluid Capacity (each)	5 gal (19 l)
Tire Size	13.00-24
Steering System
Articulation Angle	25 degrees
Turning Radius	23 ft (7 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	8 mph (13 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Power Shift
