Equipment ↠ John Deere ↠ Motor Graders ↠ 2005 John Deere 770D

2005 John Deere 770D For Sale in Edmonton, Ab

Name: 2005 John Deere 770D
Brand: John Deere
SKU: 86807800
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

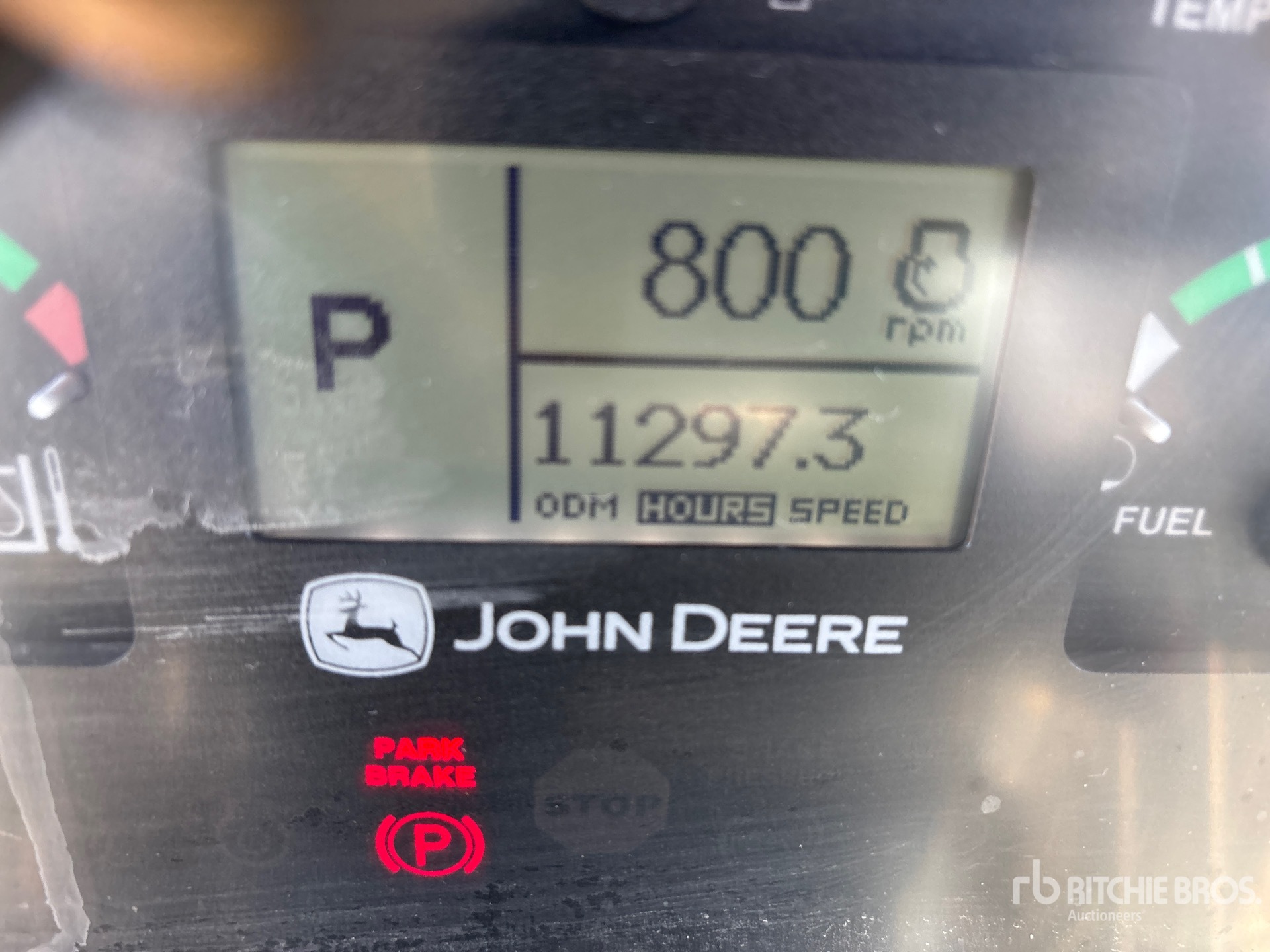

Hours:	11297

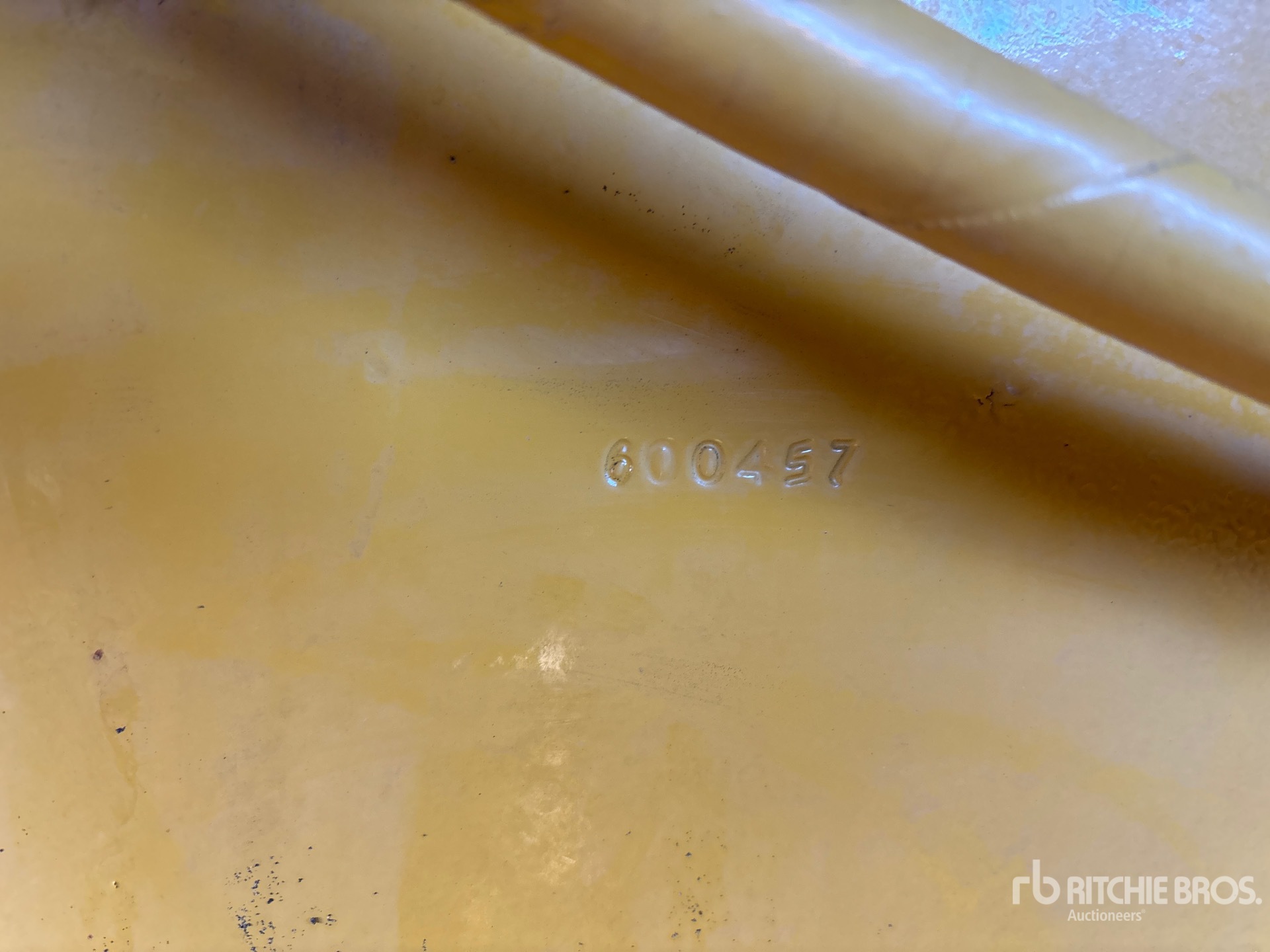

Serial Number:	600457
Machine Location:	EDMONTON, AB

Description:

Located in Lane 57 Spot 39, Enclosed Cab, Air Conditioner, Differential Lock, 14 ft / 4.27 m Moldboard, 17.5R25 Tires Closing Time: 2026-05-11 11:13:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	42 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	19 in (47 cm)
Max Reach Outside Tires - Left	83 in (210 cm)
Max Reach Outside Tires - Right	82 in (208 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	29 ft (9 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged with air-to-air aftercooler
Displacement	494 cu in (8,095 cu cm)
Engine Model	6081H
Max Power	215 hp (160 kw)
Net Power Gear 1-2	165 hp (123 kw)
Net Power Gear 4-6	170 hp (127 kw)
Net Power Gear 5-6	185 hp (138 kw)
Net Power Gears 7-8	215 hp (160 kw)
Net Torque Gears 1-2	691 lbs ft (937 nm)
Net Torque Gears 3-4	738 lbs ft (1,001 nm)
Net Torque Gears 5-6	778 lbs ft (1,055 nm)
Net Torque Gears 7-8	902 lbs ft (1,223 nm)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	55 gpm (207 lpm)
Pump Type	Variable-displacement piston
Relief Valve Pressure	2,750 psi
Moldboard
Blade Pull at Max Weight	28,990 lbs (13,150 kg)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	100 amps
Circle Gearbox Fluid Capacity	2 gal (6 l)
Cooling System Fluid Capacity	13 gal (49 l)
Fuel Capacity	106 gal (401 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Max Operation Weight - Front Axle	15,840 lbs (7,185 kg)
Max Operation Weight - Rear Axle	32,159 lbs (14,587 kg)
Max Operation Weight - Total	47,999 lbs (21,772 kg)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	10 gal (36 l)
Std Operation Weight - Front Axle	8,510 lbs (3,860 kg)
Std Operation Weight - Rear Axle	24,160 lbs (10,959 kg)
Std Operation Weight - Total	32,670 lbs (14,819 kg)
Tandem Case Fluid Capacity (each)	20 gal (76 l)
Tire Size	14.00R24 Radial PR
Transmission Fluid Capacity	6 gal (23 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	23 ft (7 m)
Transmission
Max Speed - Forward	26 mph (42 kph)
Max Speed - Reverse	26 mph (42 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	Powershift with direct drive
