    Equipment ↠ John Deere ↠ Motor Graders ↠ 2007 John Deere 872D

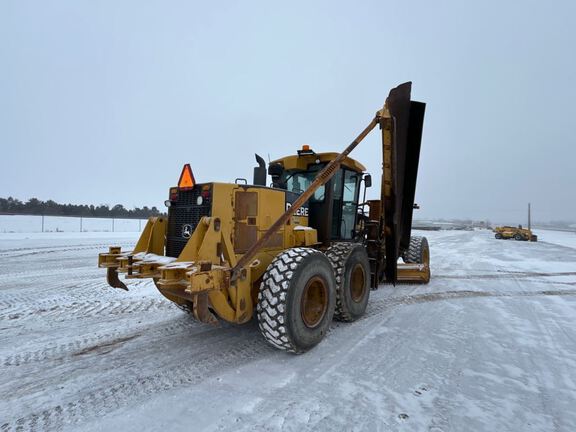

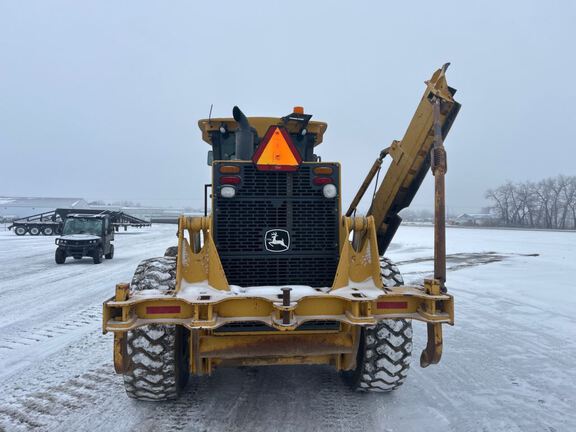

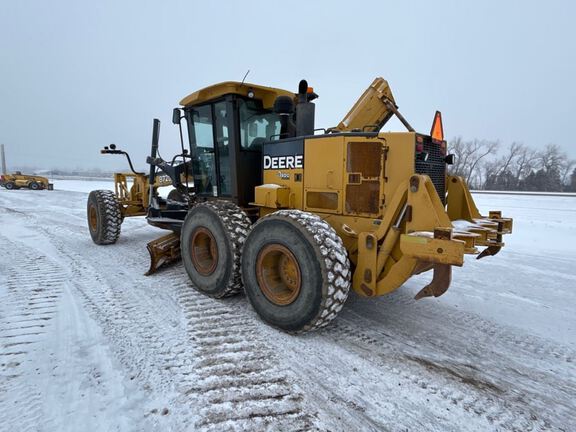

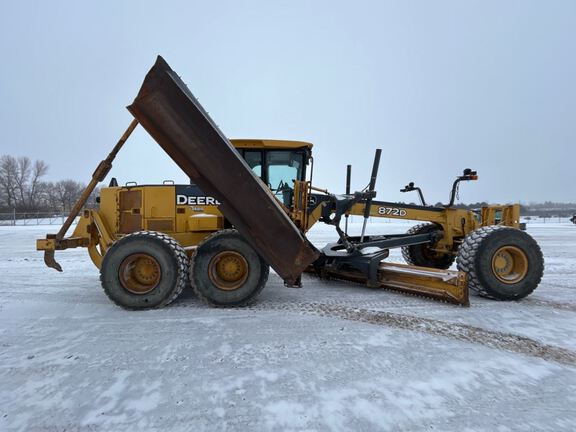

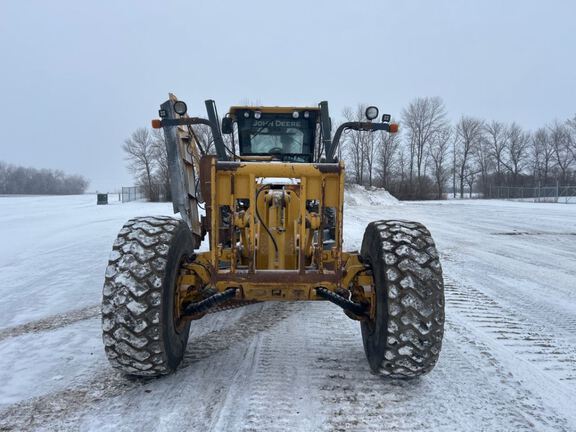

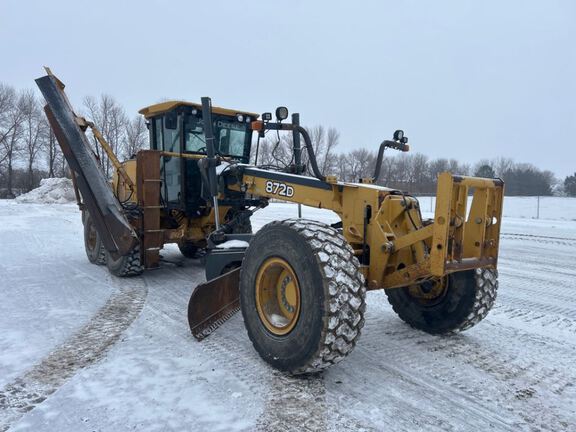

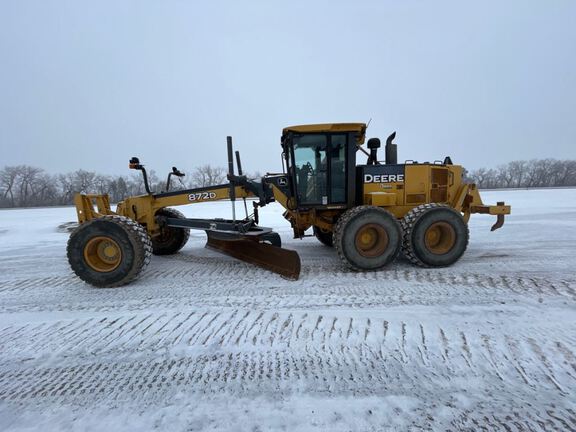

    2007 John Deere 872D For Sale in MINOT, ND


    / Save to Watch List

    For Sale: $77,980.00 USD

    Apply for Financing

    RDO Equipment Company

    RDO Equipment Company Dealer Info
    RDO Equipment Company Website
    Click here to email RDO Equipment Company.


    Contact: Sales Team

    Click for Phone Number


    Machine Info:

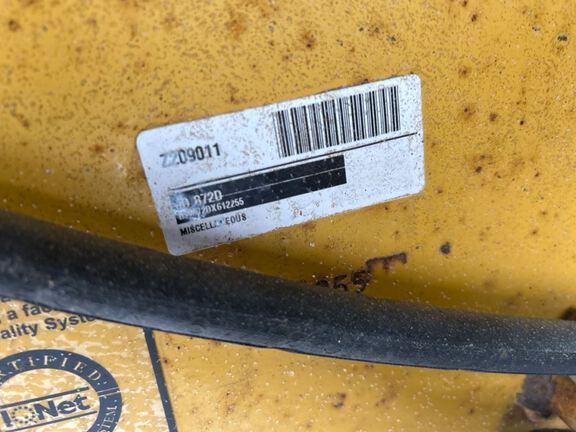

    Serial Number:DW872DX612255
    Stock Number:Z209011
    Machine Location:MINOT, ND

    Description:

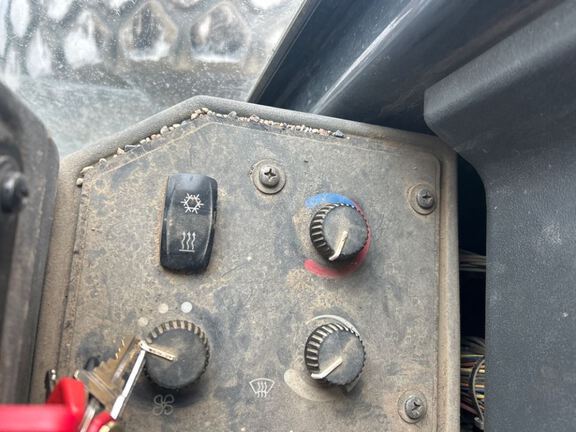

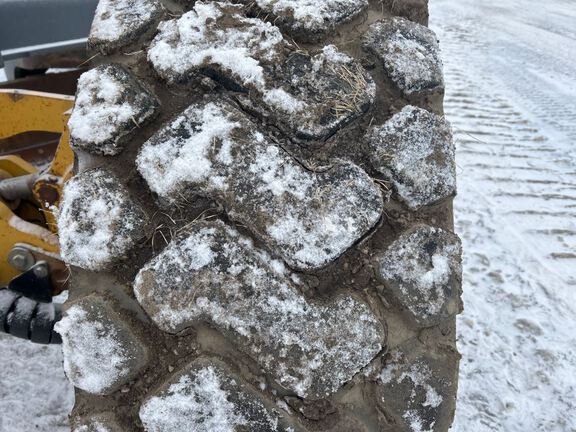

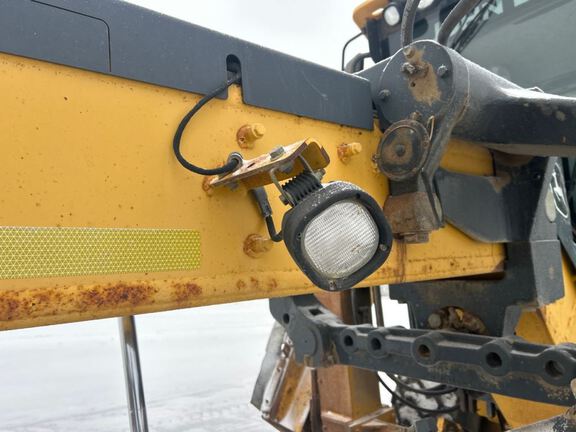

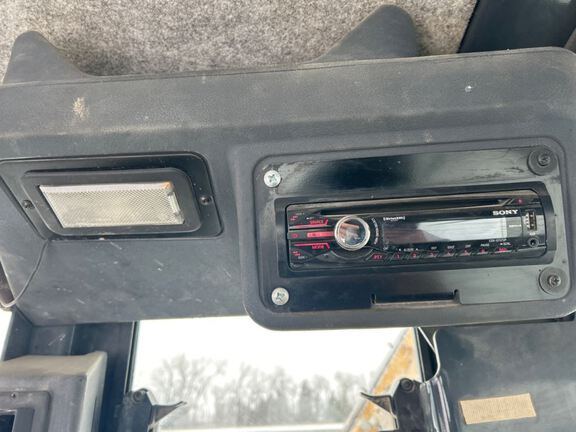

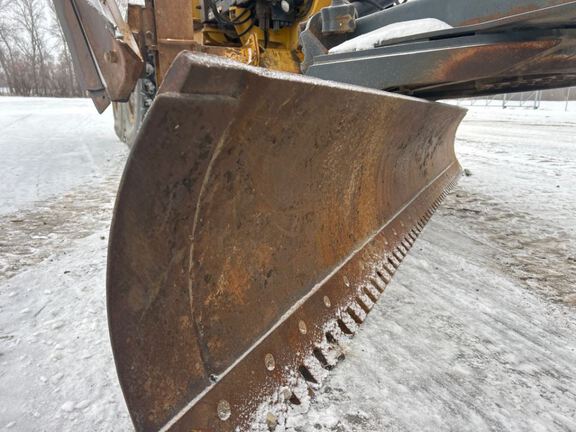

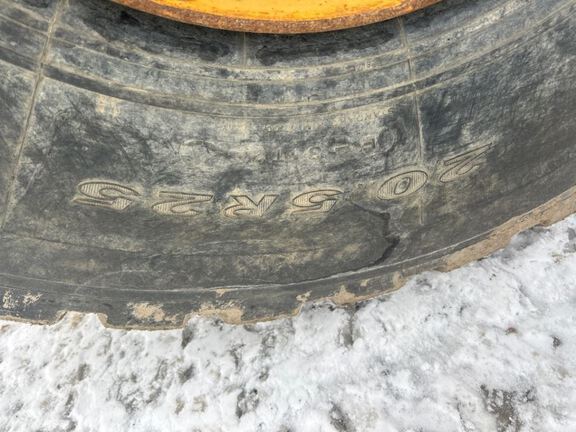

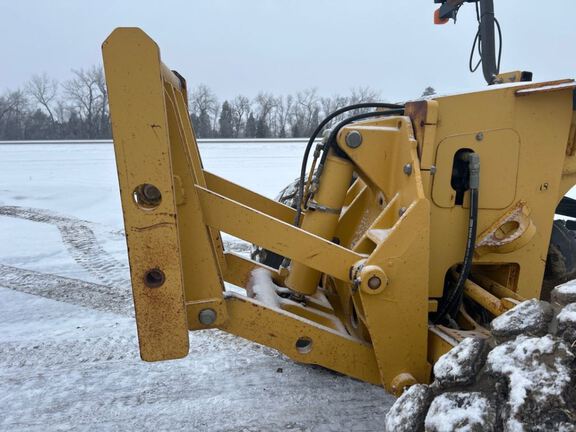

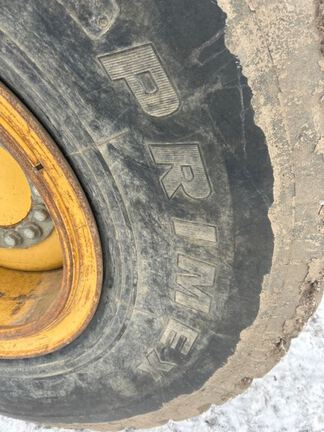

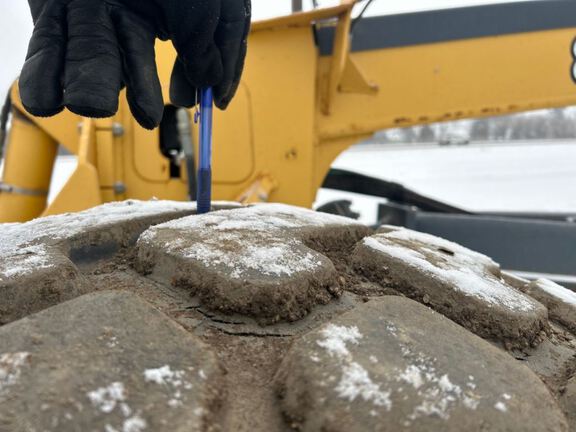

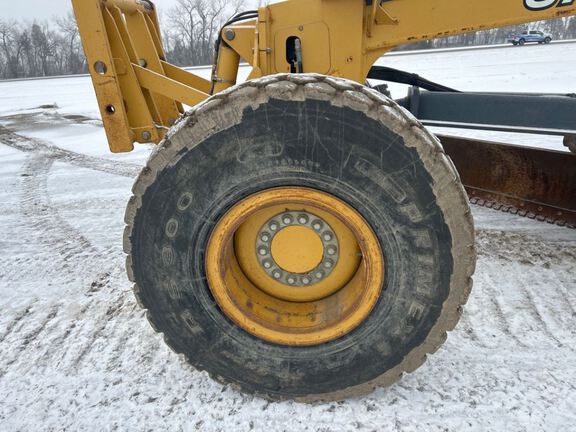

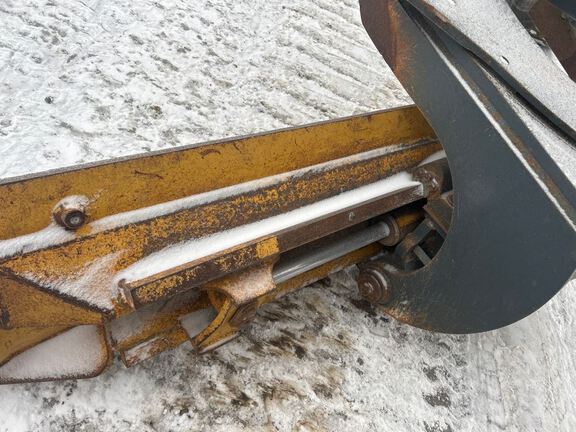

    14' 27" MOLDBOARD - 20.5X 25 RADIAL RUBBERS - FRONT WHEEL DRIVE - CAB, AC and HEATER - AUTO SHIFT TRANSMISSION - PRECLEANER - AIR SEAT - LED LITES - SLIP CLUTCH - REAR RIPPER/SCARIFIER - BOTTOM GUARDS FOR TRANSMISSION

    Machine Details:

    General Specifications

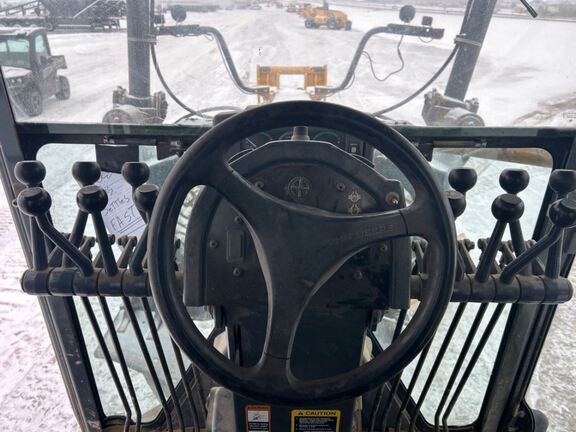

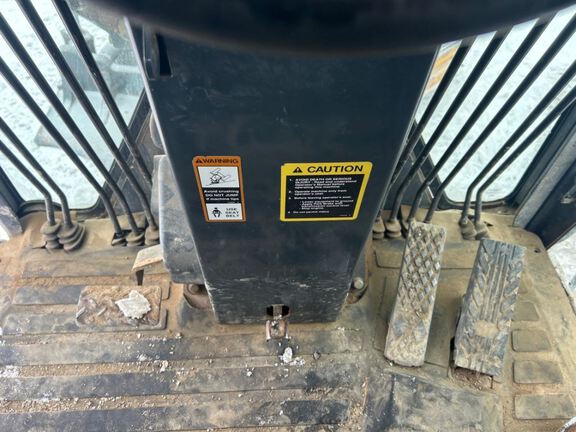

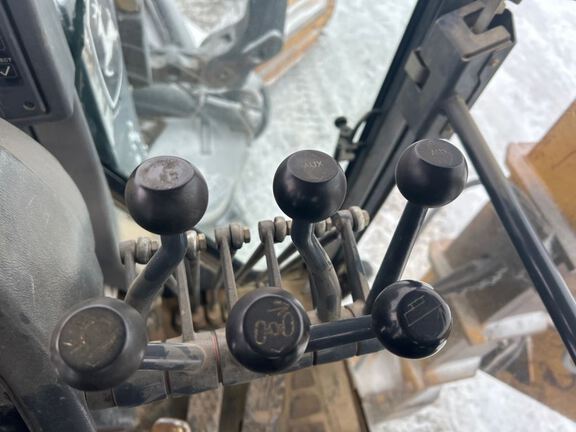

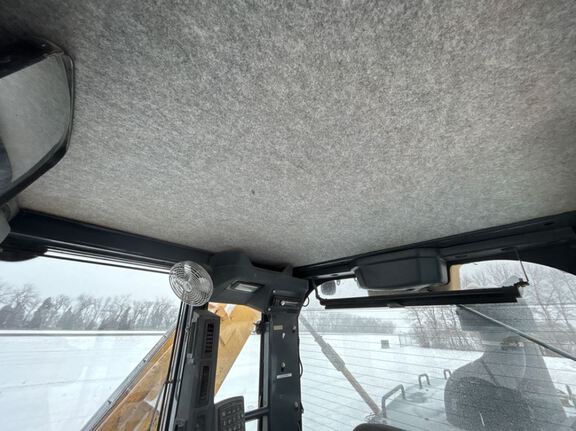

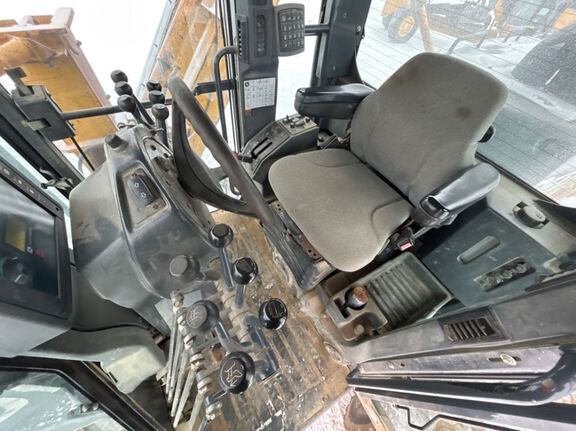

    Operators StationCab w/ AC
    Blades4.27 m (14 ft.) Blade

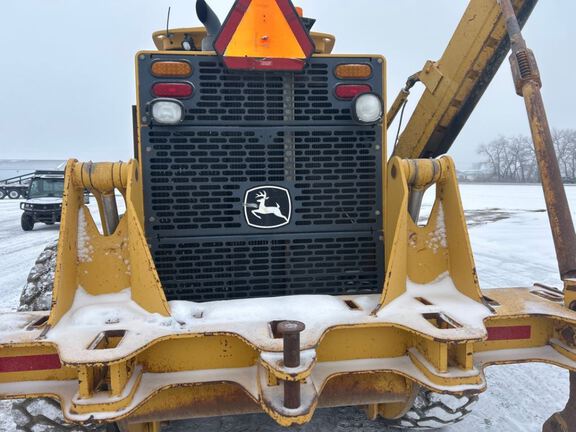

    AttachmentsRipper/Scarifier


    From the manufacturer:

    Supplied by HeavyEquipmentData.com →

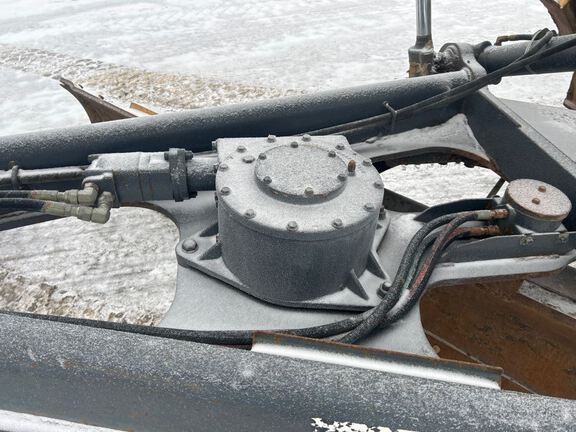

    Circle
    Blade Tip Angle - Front 42 degrees
    Blade Tip Angle - Rear 5 degrees
    Diameter 60 in (152 cm)
    Max Lift Above Ground 17 in (44 cm)
    Max Reach Outside Tires - Left 91 in (232 cm)
    Max Reach Outside Tires - Right 91 in (231 cm)
    Rotation 360 degrees
    Shift Left 31 in (79 cm)
    Shift Right 29 in (73 cm)
    Dimensions
    Blade Base 8 ft (3 m)
    Front Ground Clearance 2 ft (1 m)
    Height to Top of Isomount Cab 11 ft (3 m)
    Overall Length 29 ft (9 m)
    Tandem Axle Wheelbase 5 ft (2 m)
    Wheelbase 20 ft (6 m)
    Width Over Tires 9 ft (3 m)

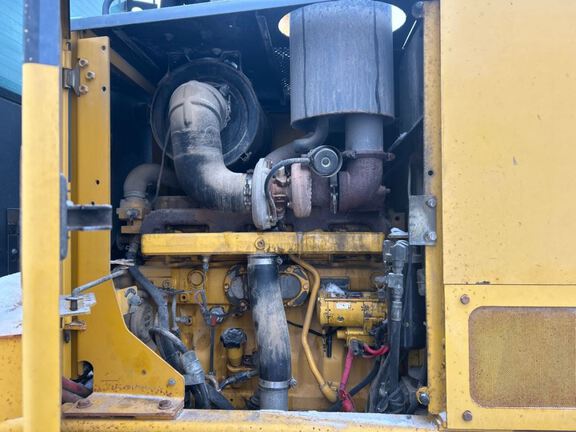

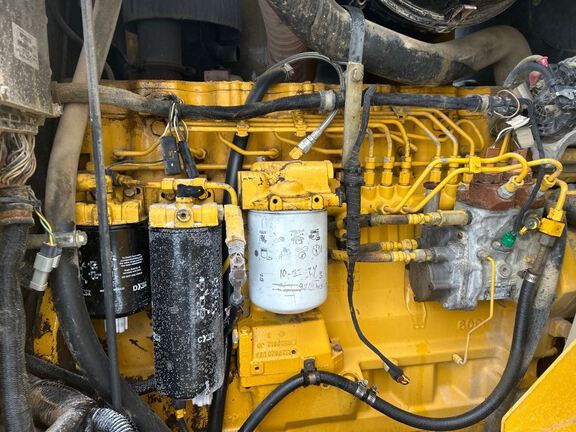

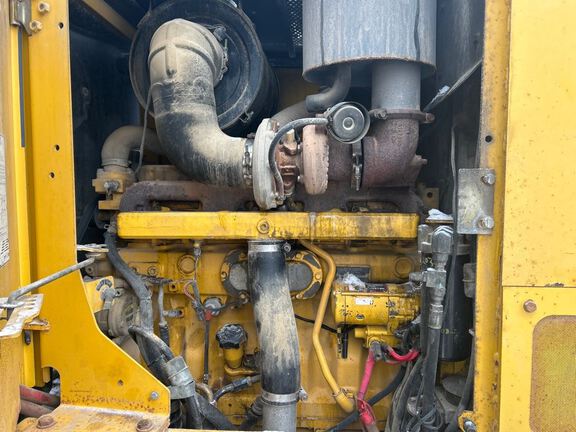

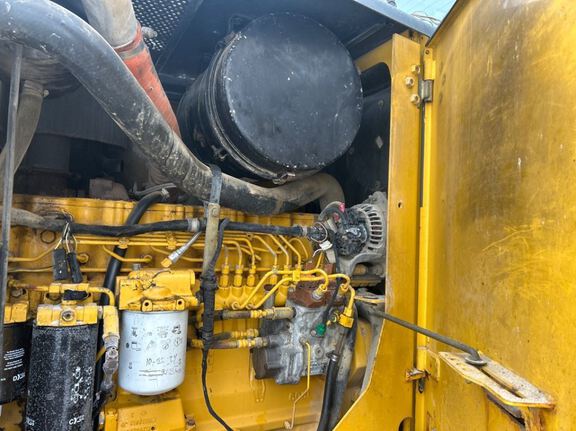

    Engine
    Aspiration Turbocharged with air-to-air after cooler
    Displacement 494 cu in (8,095 cu cm)
    Engine Model 6081H
    Max Power 245 hp (183 kw)
    Net Power Gear 1-2 205 hp (153 kw)
    Net Power Gear 4-6 230 hp (172 kw)
    Net Power Gear 5-6 245 hp (183 kw)
    Net Power Gears 7-8 235 hp (175 kw)
    Net Torque Gears 1-2 793 lbs ft (1,075 nm)
    Net Torque Gears 3-4 835 lbs ft (1,132 nm)
    Net Torque Gears 5-6 872 lbs ft (1,182 nm)
    Net Torque Gears 7-8 942 lbs ft (1,277 nm)
    Number of Cylinders 6
    Power Measured @ 2,000 rpm
    Torque Measured @ 1,000 rpm

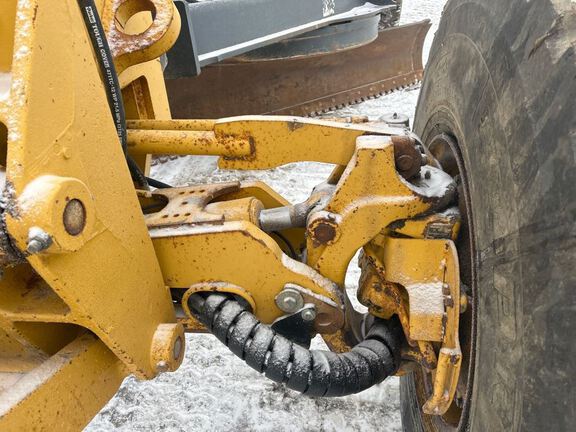

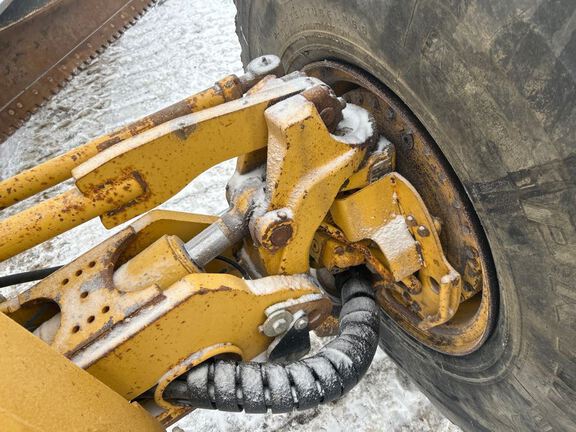

    Front Axle
    Ground Clearance 2 ft (1 m)
    Oscillation - Total 32 degrees
    Wheel Lean 20 degrees

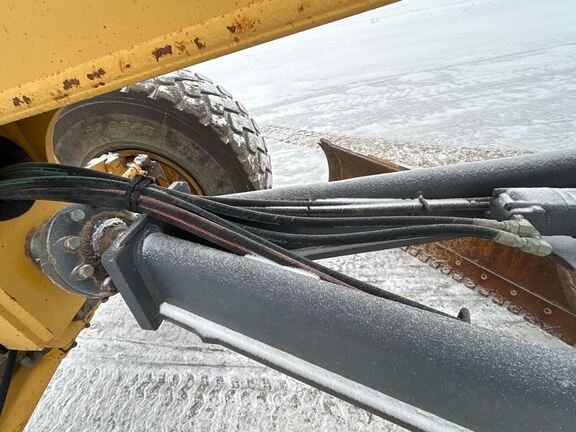

    Hydraulic System
    Pump Flow 55 gpm (207 lpm)
    Pump Type Variable-displacement piston
    Relief Valve Pressure 2,750 psi

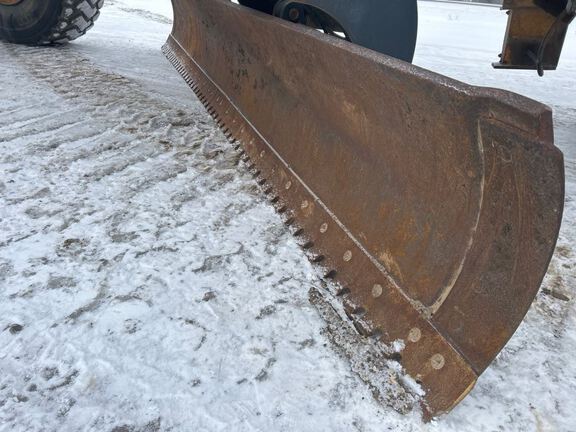

    Moldboard
    Blade Pull at Max Weight 43,760 lbs (19,849 kg)
    Moldboard Height 27 in (69 cm)
    Moldboard Thickness 1 in (3 cm)
    Moldboard Width 14 ft (4 m)
    Side Shift Left 27 in (68 cm)
    Side Shift Right 27 in (68 cm)
    Operating Specifications
    Alternator Supplied Amperage 100 amps
    Circle Gearbox Fluid Capacity 2 gal (6 l)
    Cooling System Fluid Capacity 13 gal (49 l)
    Fuel Capacity 106 gal (401 l)
    Hydraulic System Fluid Capacity 14 gal (53 l)
    Max Operation Weight - Front Axle 16,023 lbs (7,268 kg)
    Max Operation Weight - Rear Axle 32,578 lbs (14,777 kg)
    Max Operation Weight - Total 48,601 lbs (22,045 kg)
    Operating Voltage 24 volts
    Rear Diff/Final Drive Fluid Capacity 10 gal (36 l)
    Std Operation Weight - Front Axle 10,170 lbs (4,613 kg)
    Std Operation Weight - Rear Axle 26,040 lbs (11,812 kg)
    Std Operation Weight - Total 36,210 lbs (16,425 kg)
    Tandem Case Fluid Capacity (each) 20 gal (76 l)
    Tire Size 17.5R25 Radial PR
    Transmission Fluid Capacity 6 gal (23 l)
    Steering System
    Articulation Angle 22 degrees
    Turning Radius 24 ft (7 m)

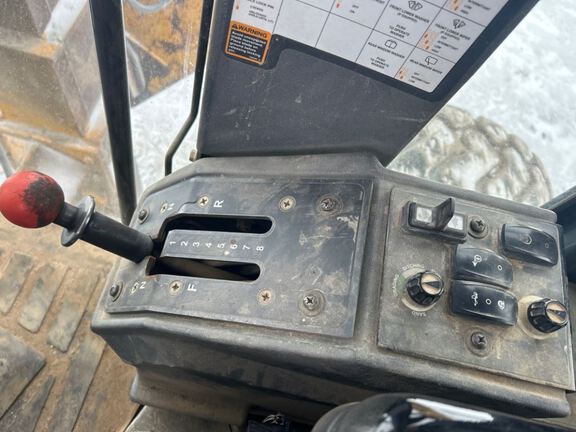

    Transmission
    Max Speed - Forward 26 mph (41 kph)
    Max Speed - Reverse 26 mph (41 kph)
    Number of Gears - Forward 8
    Number of Gears - Reverse 8
    Transmission Type Powershift with direct drive
