Auction Pricing
Auction Info: Starting on 2026-05-20 Click here to place a bid

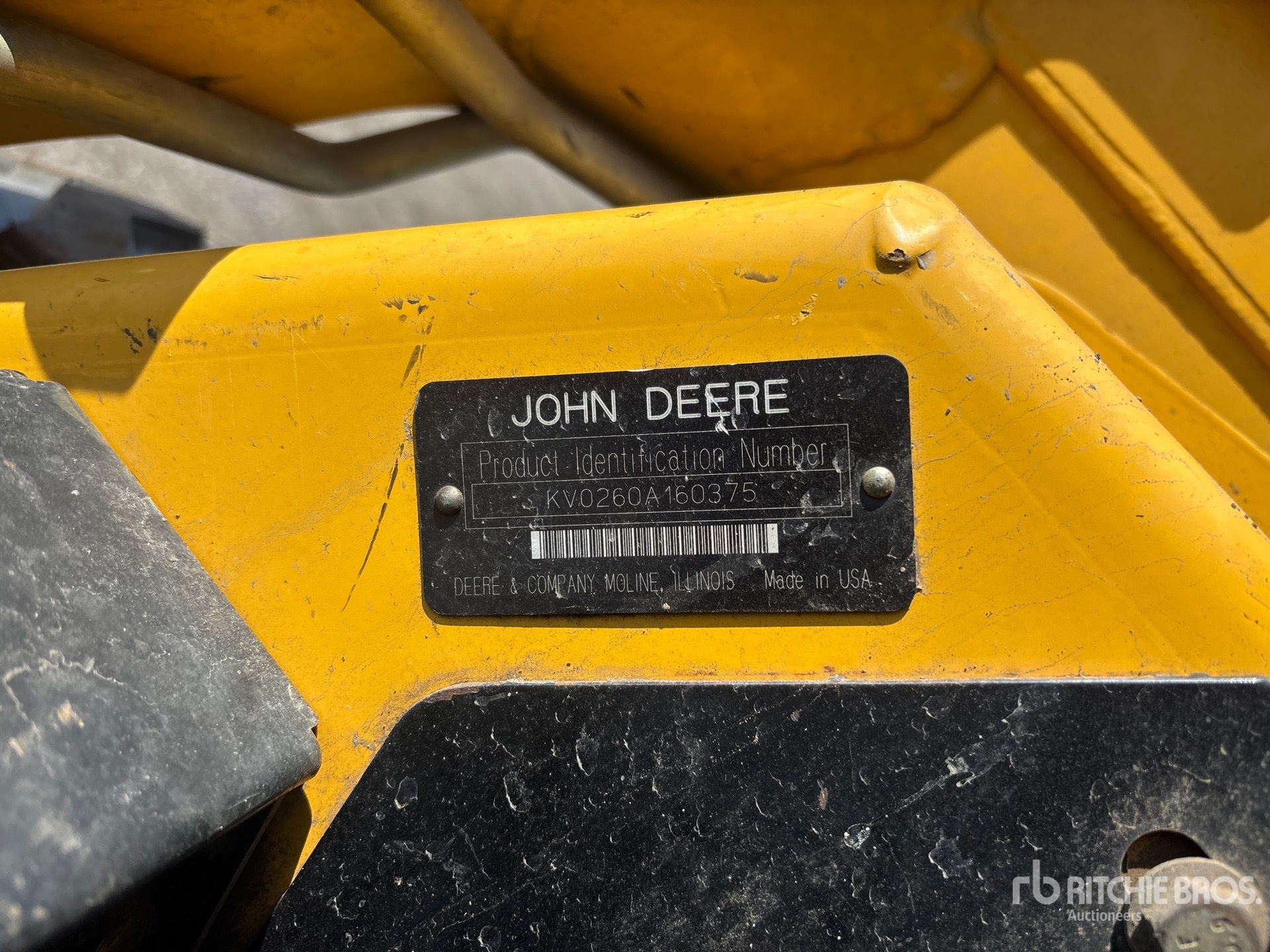

| Serial Number: | KV0260A160375 |
| Machine Location: | TORONTO, ON |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Clearance at Max Lift and Dump | 9 ft (3 m) |
| Ground Clearance | 11 in (28 cm) |
| Height - Top of Cab | 7 ft (2 m) |
| Length w/o Bucket | 10 ft (3 m) |
| Length with Bucket | 12 ft (4 m) |
| Reach at Max Lift and Dump | 32 in (81 cm) |
| Turning Radius from Center - inc bucket | 84 in (213 cm) |
| Turning Radius from Center - machine rear | 69 in (175 cm) |
| Wheelbase | 4 ft (1 m) |
| Width Over Tires | 6 ft (2 m) |
| Engine | |
| Displacement | 179 cu in (2,933 cu cm) |
| Engine Model | 3029T |
| Number of Cylinders | 3 |
| Power Measured @ | 2,400 rpm |
| Hydraulic System | |
| Pump Flow Capacity | 33 gpm (125 lpm) |
| Pump Type | 3-spoon open center |
| Relief Valve Pressure | 3,100 psi |
| Loader | |
| Breakout Force | 7,500 psi |
| Operating Load Rating | 2,400 lbs (1,089 kg) |
| Tipping Angle | 5,000 degrees |
| Operating Specifications | |
| Alternator Supplied Amperage | 55 amps |
| Cooling System Fluid Capacity | 3 gal (11 l) |
| Fuel Capacity | 20 gal (76 l) |
| Hydraulic System Fluid Capacity | 9 gal (34 l) |
| Max Speed | 12 mph (19 kph) |
| Operating Speed | 7 mph (11 kph) |
| Operating Voltage | 12 volts |
| Operational Weight | 8,250 lbs (3,742 kg) |
| Tire Size | 14x17.5 SKS. 12PR |
