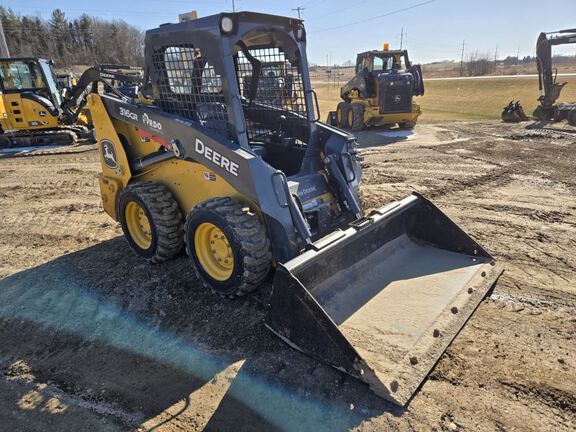

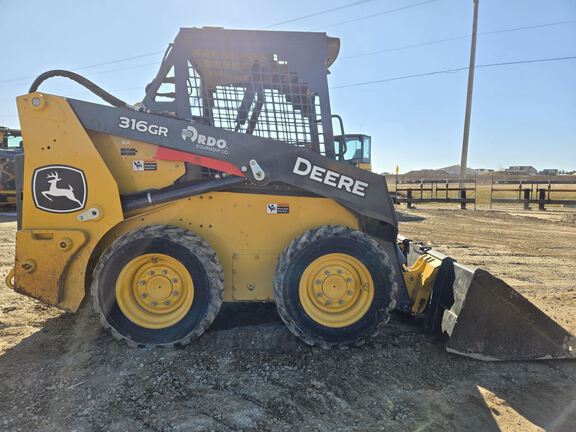

2023 John Deere 316GR For Sale in ROCHESTER, MN

Name: 2023 John Deere 316GR
Brand: John Deere
SKU: 85990543
Price: 39430 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $39,430.00 USD

Apply for Financing

RDO Equipment Company

RDO Equipment Company Dealer Info

RDO Equipment Company Website

Click here to email RDO Equipment Company.

Contact: Sales Team

Click for Phone Number

Machine Info:

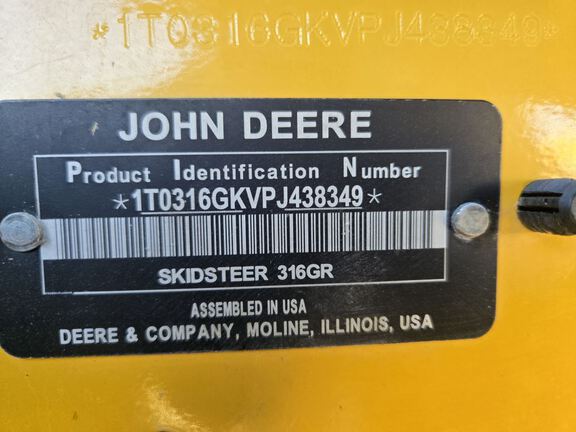

Serial Number:	1T0316GKVPJ438349
Stock Number:	Z238462
Machine Location:	ROCHESTER, MN

Description:

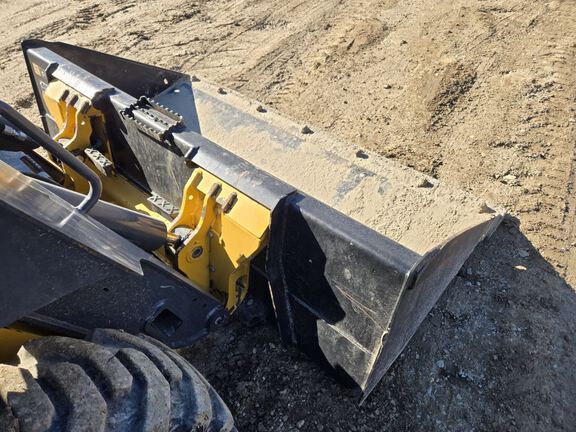

ROPS - SUS SEAT - VINYL SEAT - DIESEL - FLOTATION TIRES - PILOT CRTLS - 2SP'D - STD FLOW - QUICK TACH - R WGTS - GP BKT

Machine Details:

General Specifications

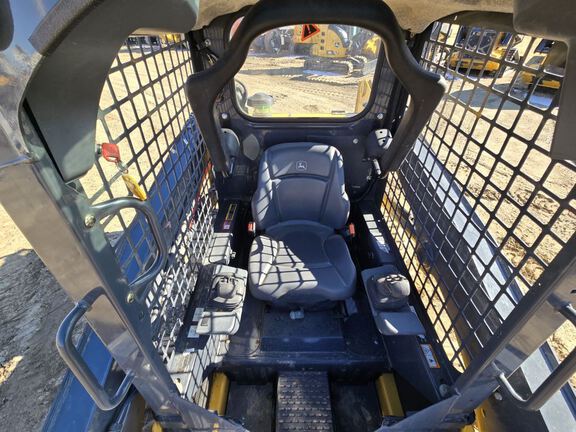

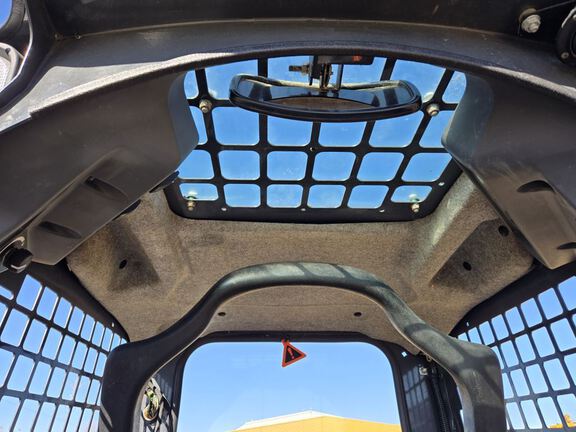

Operators Station	ROPS
Powertrain	2 Speed

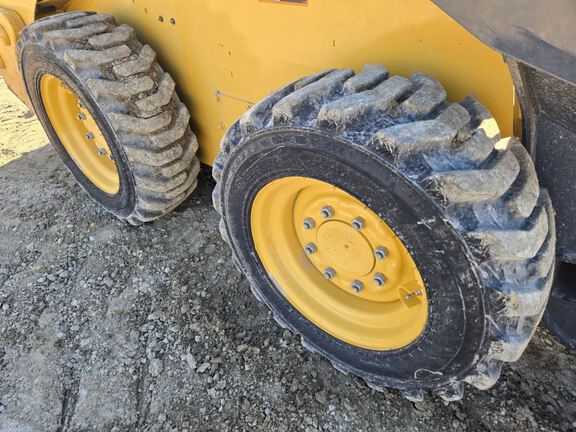

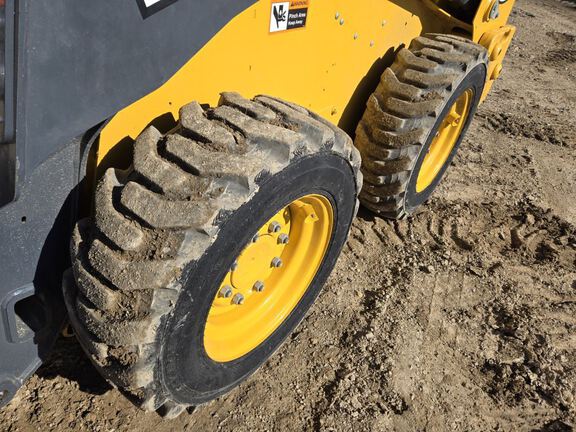

Tires	Flotation Tires

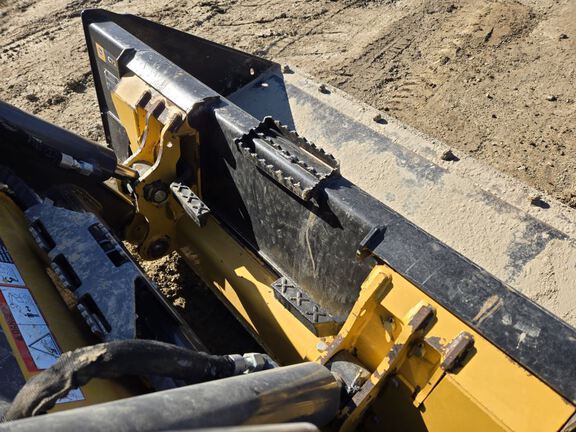

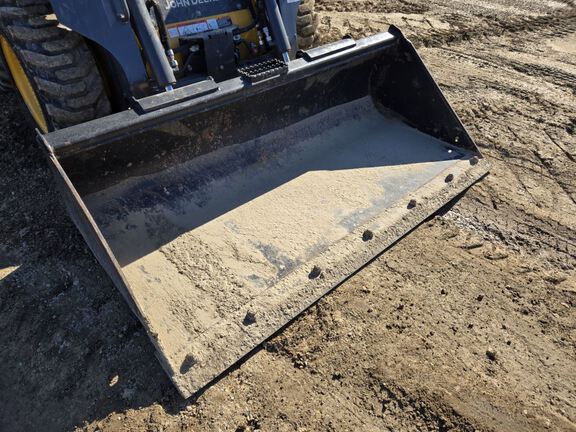

Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 316GR is a compact skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It features a radial-lift boom, compact frame, and high maneuverability for work in confined spaces. The 316GR is commonly used for loading, grading, digging, and attachment operation with buckets, forks, augers, and other hydraulic tools. John Deere built the 316GR with operator visibility, service access, and attachment compatibility in mind. As part of the 300R series, it is suited for general-purpose jobsite tasks where a small footprint, responsive controls, and reliable performance are required.

Dimensions
Ground Clearance	7 in (18 cm)
Hinge pin height - fully raised	115 in (292 cm)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	11 ft (3 m)
Overall height	7 ft (2 m)
Wheelbase	4 ft (1 m)

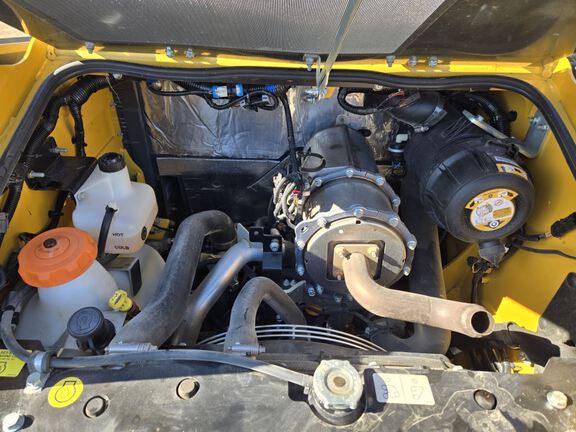

Engine
Aspiration	Turbo
Displacement	128 cu in (2,101 cu cm)
Emissions Certification	Tier 4
Engine Make	Yanmar
Engine Model	4TNV86CHT
Max Torque	153 lbs ft (207 nm)
Power Measured @	2,600 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2016)	61 (45.6)
ENGINE POWER HP (KW) (2017)	61 (45.6)
ENGINE POWER HP (KW) (Since 2019)	65 (48.5)
ENGINE POWER HP (KW) (2020)	65 (48.5)
Engine Power HP (KW) (Since 2021)	65 (48.5)
Engine Power HP (KW) (2022)	65 (48.5)
Engine Power HP (KW) (2023)	65 (48.5)
Engine Power HP (KW) (2024)	65 (48.5)
MODEL (Since 2016)	316GR
MODEL (2017)	316GR
MODEL (2019)	316GR
MODEL (2020)	316GR
OPERATING LOAD LBS. (KG) (Since 2016)	1,750 (795)
OPERATING LOAD LBS. (KG) (2017)	1,750 (795)
OPERATING WIDTH IN. (CM) (Since 2016)	62.9 (160)
OPERATING WIDTH IN. (CM) (2017)	62.9 (160)
Operating Width IN. (CM) (Since 2021)	62.9 (1.60)
Operating Width IN. (CM) (2022)	62.9 (1.60)
Operating Width IN. (CM) (Since 2023)	62.9 (160)
Operating Width IN. (CM) (2024)	62.9 (160)
OPERATING WIDTH IN. (M) (Since 2019)	62.9 (1.60)
OPERATING WIDTH IN. (M) (2020)	62.9 (1.60)
Rated Operating Capacity LBS. (KG) 50% (Since 2021)	1,750 (795)
Rated Operating Capacity LBS. (KG) 50% (2022)	1,750 (795)
Rated Operating Capacity LBS. (KG) 50% (2023)	1,750 (795)
Rated Operating Capacity LBS. (KG) 50% (2024)	1,750 (795)
SAE RATED OPERATING CAPACITY LBS. (KG) (Since 2019)	1,750 (795)
SAE RATED OPERATING CAPACITY LBS. (KG) (2020)	1,750 (795)
Loader
Operating Load Rating	1,750 lbs (794 kg)
Operating Width	63 in (160 cm)
Width without Bucket	5,249 ft (1,600 m)
Operating Specifications
Fuel Capacity	19 gal (71 l)
Max Speed	7 mph (11 kph)
Operational Weight	6,380 lbs (2,894 kg)
Tire Size	10 x 16.5
