Auction Pricing
Auction Info: Starting on 2026-05-11 Click here to place a bid

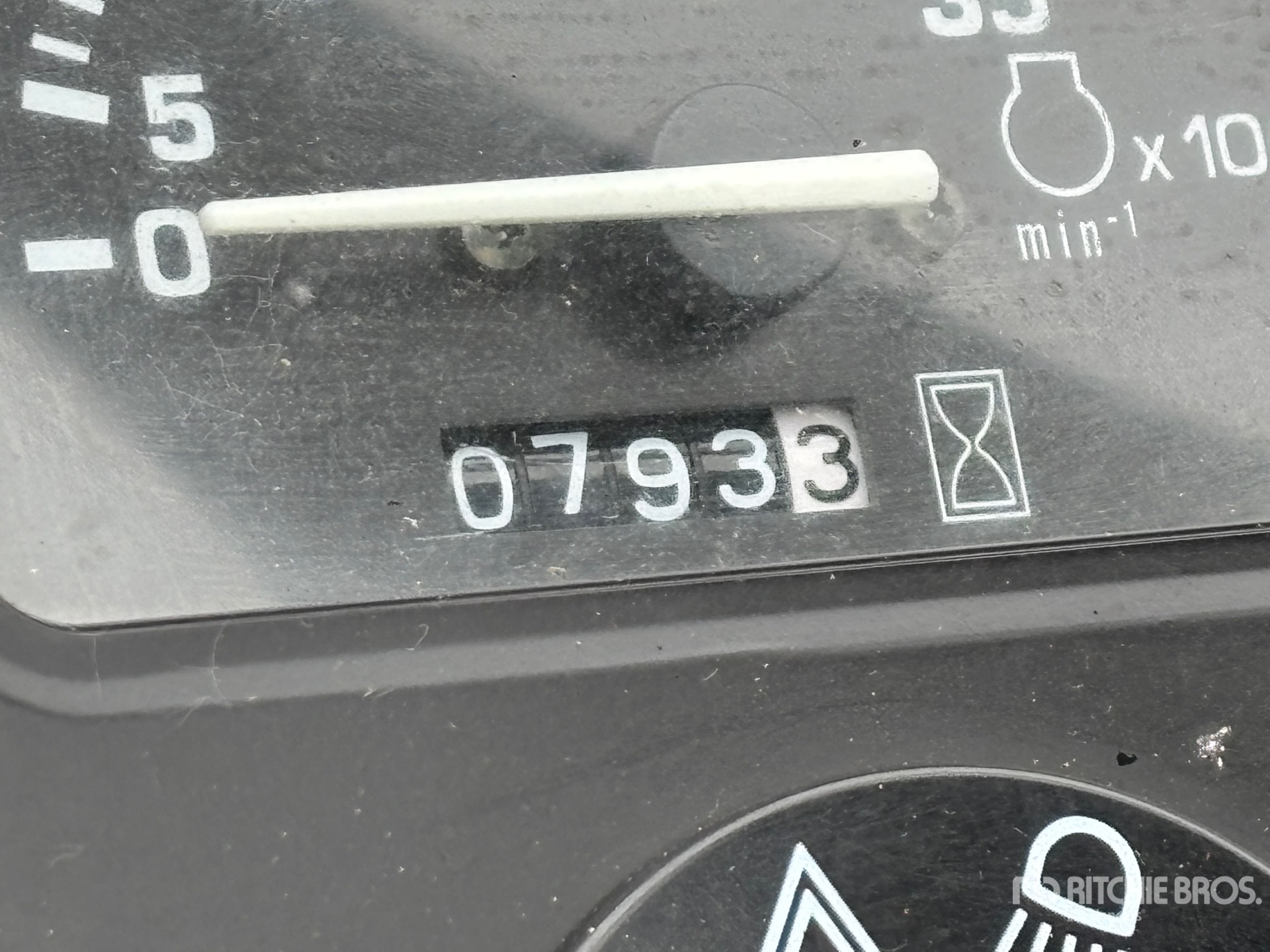

| Hours: | 793 |

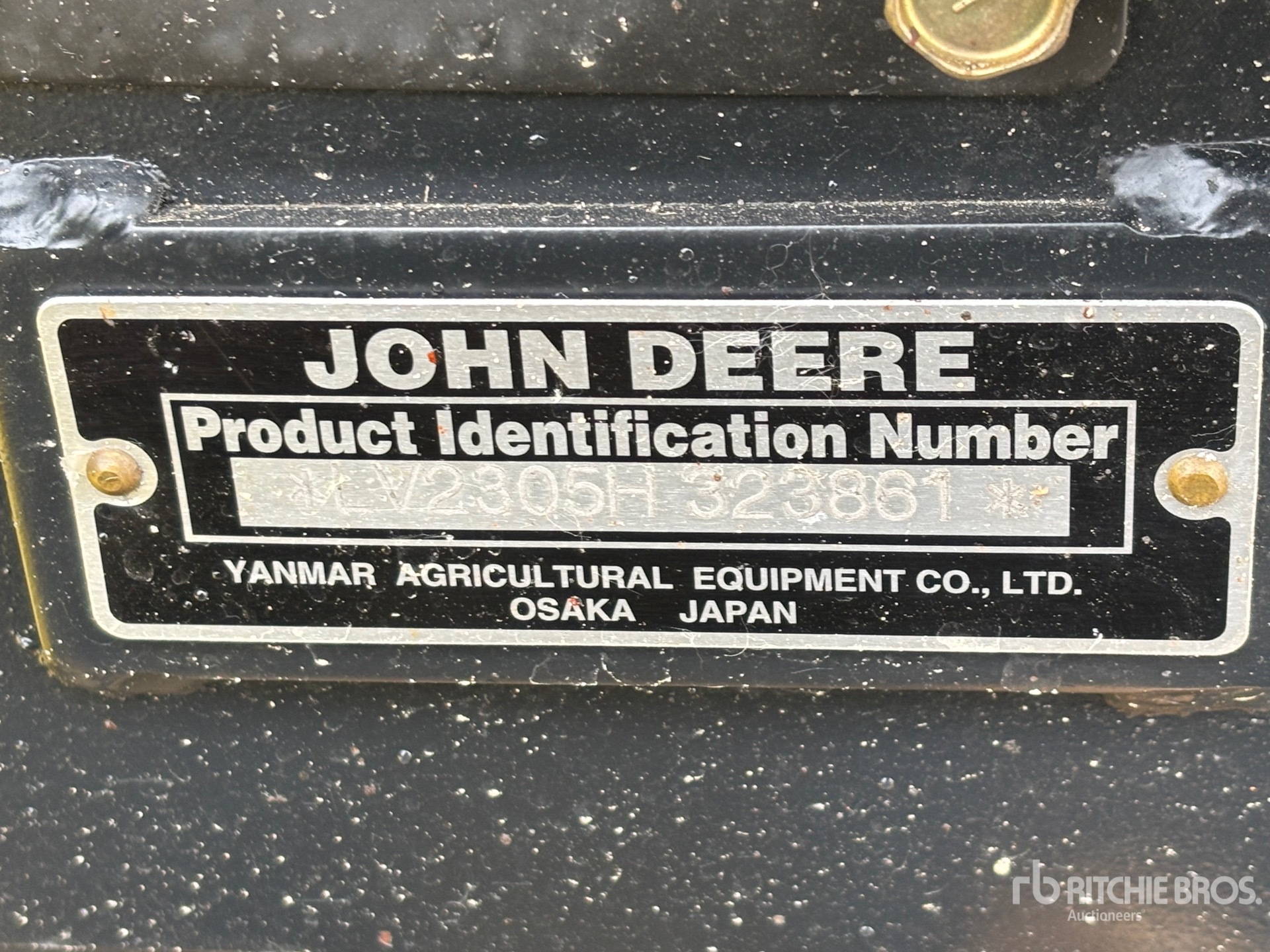

| Serial Number: | LV2305H323861 |
| Machine Location: | EDMONTON, AB |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Wheelbase | 5 ft (1 m) |
| Engine | |
| Aspiration | natural |
| Displacement | 68 cu in (1,116 cu cm) |
| Engine Model | 3TNV76 |
| Gross Power | 24 hp (18 kw) |
| Max Torque | 42 lbs ft (57 nm) |
| Number of Cylinders | 3 |
| Power Measured @ | 3,000 rpm |
| PTO Power | 18 hp (13 kw) |
| Torque Measured @ | 3,000 rpm |
| Hydraulic System | |
| Number of Remote Control Valves | 2 |
| Pump Flow Capacity | 5 gpm (20 lpm) |
| Relief Valve Setting | 1,987 psi |
| Operating Specifications | |
| 3 Point Hitch Lift Capacity @ 24 inches | 681 lbs (309 kg) |
| Alternator Supplied Amperage | 20 amps |
| Cooling System Fluid Capacity | 1 gal (3 l) |
| Engine Oil Capacity | 1 gal (3 l) |
| Fuel Capacity | 6 gal (21 l) |
| Operating Voltage | 12 volts |
| Tire Size Front - 2wd / 4wd | 18x8.5-10R4 |
| Turning Radius | 7 ft (2 m) |
| Tires | |
| Rear Tires Size | 26x12-12R4 |
| Transmission | |
| Transmission Type | hydrostatic- 2 range |
