2023 John Deere 3039R For Sale in Melfort, SK

Name: 2023 John Deere 3039R
Brand: John Deere
SKU: 86199575
Price: 60000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $43,936.00 USD
Converted From: 60,000.00 CAD

Apply for Financing

Brandt Agriculture

Brandt Agriculture Dealer Info

Brandt Agriculture Website

Click here to email Brandt Agriculture.

Contact: Don Schultz

Click for Phone Number

Machine Info:

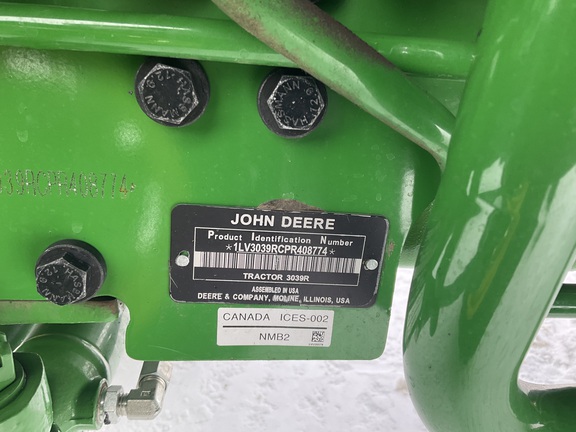

Serial Number:	1LV3039RCPR408774
Stock Number:	1AU08774
Machine Location:	MELFORT, SK

Description:

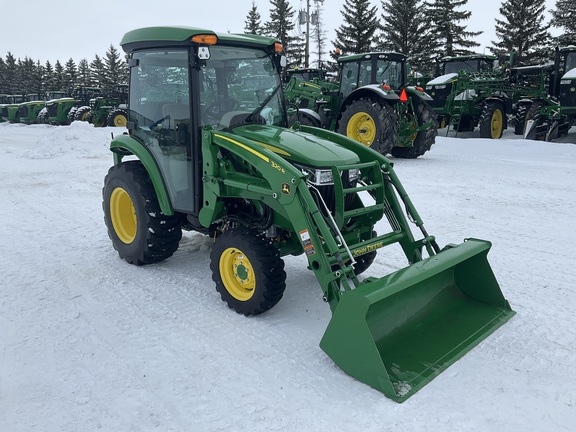

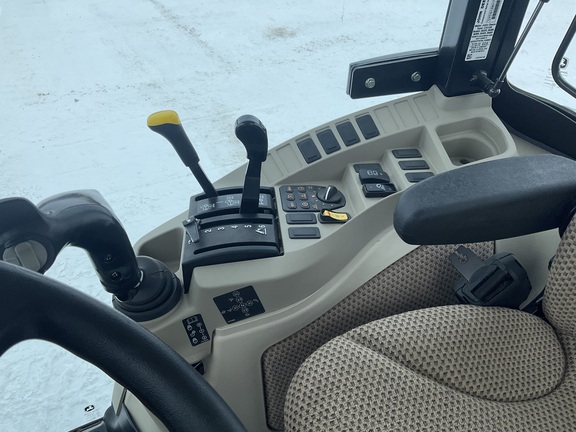

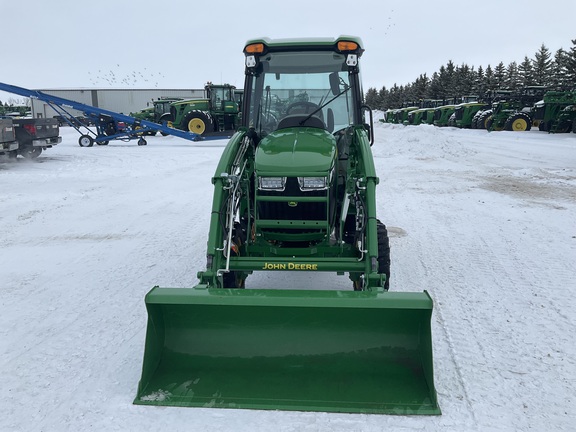

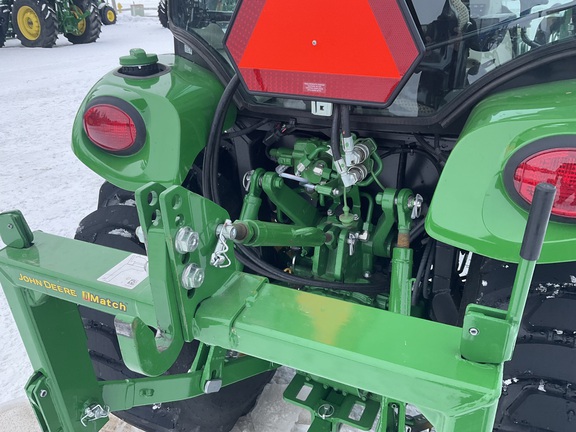

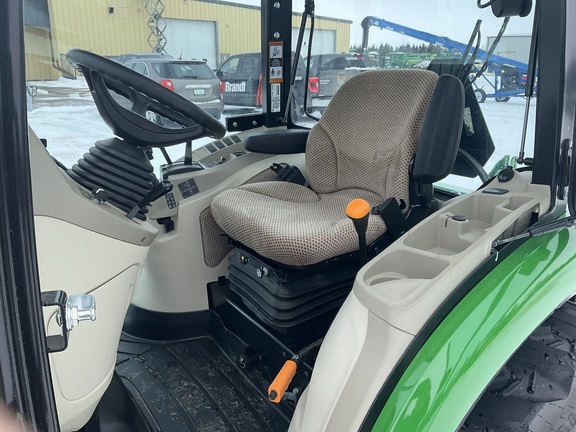

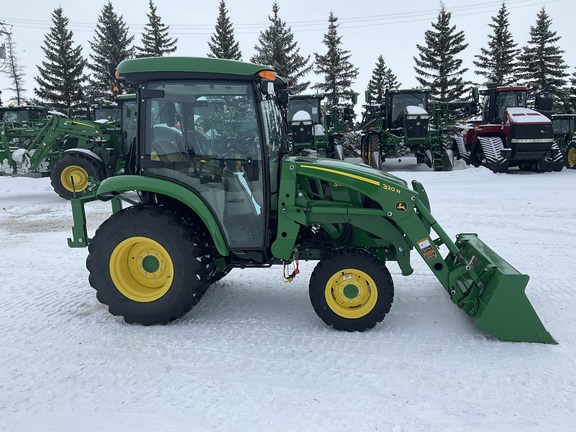

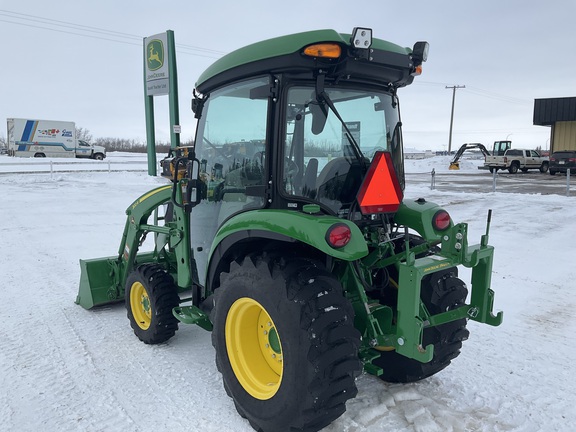

2023 John Deere 3039R e-hydro transmission, 3R loader, deluxe cab with air ride seat, radio, a/c, Dual Mid, SINGLE rear scv valves, mid pto. rear i match hitch, 43X16-20 r4 rear tires, 27X8.50-15 r4 front tires

Machine Details:

General Specifications
Cab	Cab
Transmission	Hydro
Front Axle	MFWD
Loader	Yes
Mid Mount Mower	No
Backhoe	No

From the manufacturer:

Supplied by HeavyEquipmentData.com →

3-Point Hitch
Lift capacity (24-in. behind link arms)	998 kg (2,200 lbs)
Dimensions
Approximate shipping weight (open-station; cab)	Rollover protective structure (ROPS) - 1315.4 kg Cab - 1619.3 kg
Front Axle Clearance	12 in (31 cm)
Turning radius with brakes	3 m (9 ft)
Turning radius without brakes	9 ft (3 m)
Wheelbase	68 ft (21 m)
Electrical System
Alternator (12-V)	75 amp
Battery size	500 CCA
Starter size	2 hp (1 kw)
Engine
Air cleaner	Dry-type two-stage dual element
Aspiration	Turbocharged
Bore	3 in (9 cm)
Compression ratio	19.1:1
Cooling system	Water pump
Cylinder liners	Cast-In-Block
Displacement	96 cu in (1,572 cu cm)
Emissions compliance	Final Tier 4
Engine Manufacturer	Yanmar
Engine Model	3TNV86CT-MJT
Engine torque at rated speed	105 Nm
Engine Type	Diesel
Family	FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA
Fuel tank capacity	Rollover protective structure (ROPS): 51.1 L 13.5 U.S. gal. Cab: 44.7 L 11.8 U.S. gal.
Gross Power	38 hp (29 kw)
Injection pump type	High pressure common rail direct injection
Lubrication	Pressurized
Number of Cylinders	3
Power take-off (PTO) power	32 hp (24 kw)
Rated engine speed	2,600 rpm
Stroke	4 in (9 cm)
Final Drive
Final Drive Type	Bull Gear
Fluid Capacities
Crankcase with filter	4.8 L
Transmission and hydraulic system	23.8 L
Fuel System
Fuel consumption	9.1 L/hr
Fuel System Type	High pressure common rail direct injection
Hydraulic System
Draft control sensing	Position control
Hydraulic Type	Open Center
Maximum operating pressure	2,500 psi
Pump rated output	Steering - 22.3 L/min Implement - 32.5 L/min
Pump Type	Dual gear
Remote control valves available	Up to four rear remotes
Operator Station
Gear shift location - console/floor	Left Hand Side
Platform - flat/straddle	Flat
Rollover protective structure	Type Foldable Yes
Power Take-Off (PTO)
Brake (for mid and rear PTO)	Wet disc
Clutch	Wet disc
Control	Position control
Engagement method	Electro-hydraulic
Optional	Mid - 2100 rpm
Standard	Rear - 540 rpm
Tires
Front Tires Size	Farm - 7-14 Turf (Gear 4WD) - 27x8.50-15 Turf (HST 4WD) - 25x10.5LLx15 R4 - 25x8.5-14
Front tread range	114 cm (45 in)
Rear Tires Size	Farm - ?11.2-24 Turf - 41x14-20 or 41x18LL-16.1 R4 - 15-19.5
Rear tread spacing	103 cm (41 in)
Transmission
Axle capacity	Front - 720-1450 kg Rear - 2400 kg
Brakes	Multi-plate wet disc
Clutch, wet/dry	Wet
Creeper	SpeedMatch optional
Cruise control	Standard
Final Drive Type	Bull Gear
Left-hand reverser	Yes
Standard transmission; forward/reverse	Gear 4WD / eHydro (electronic hydrostatic)
Steering	Hydrostatic power steering
Transmission gear ranges	12F/12R PowrReverser (PRT) Infinitely variable - 3 range
