Auction Pricing
Auction Info: Starting on 2026-06-12 Click here to place a bid

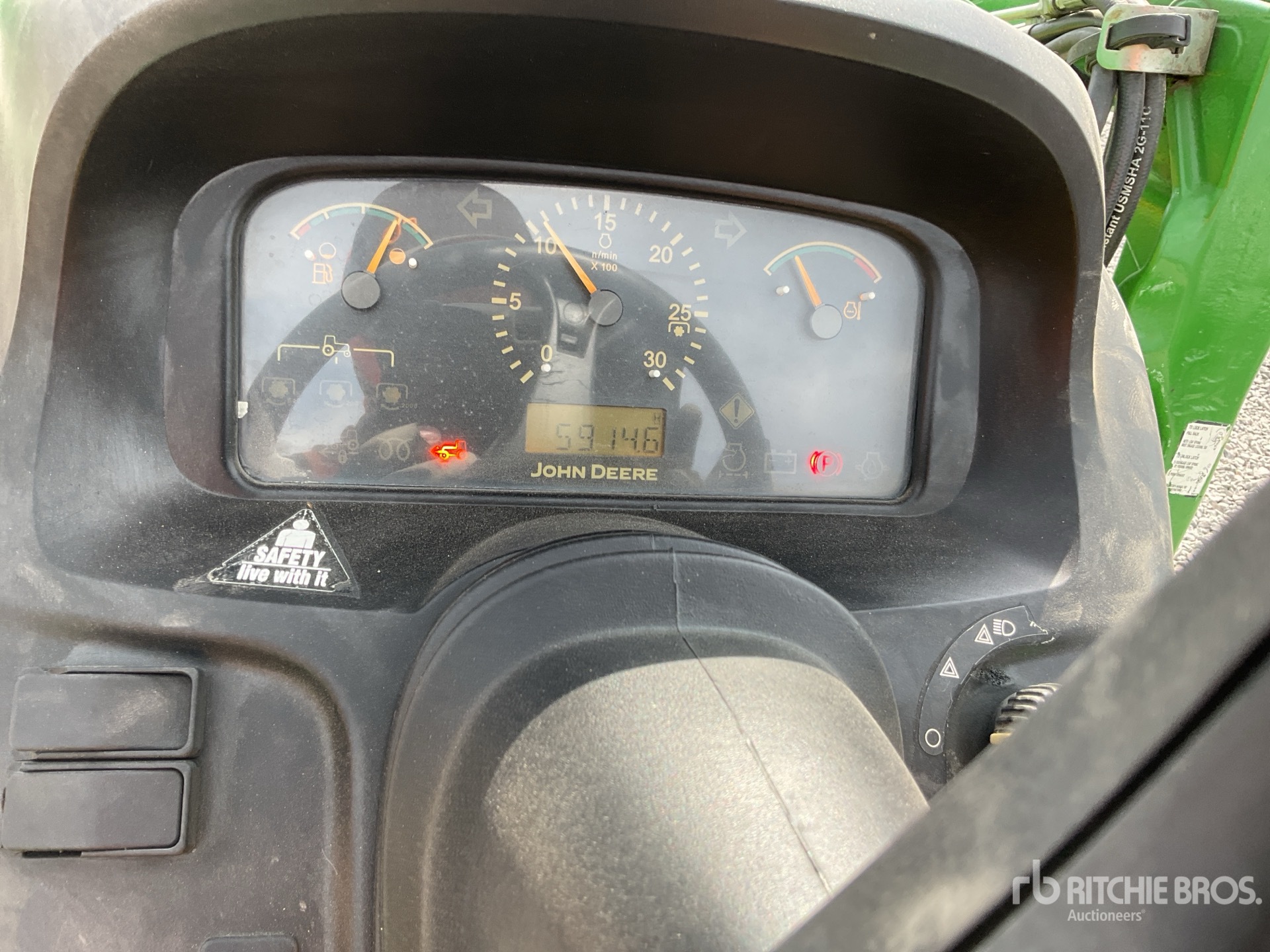

| Hours: | 5914 |

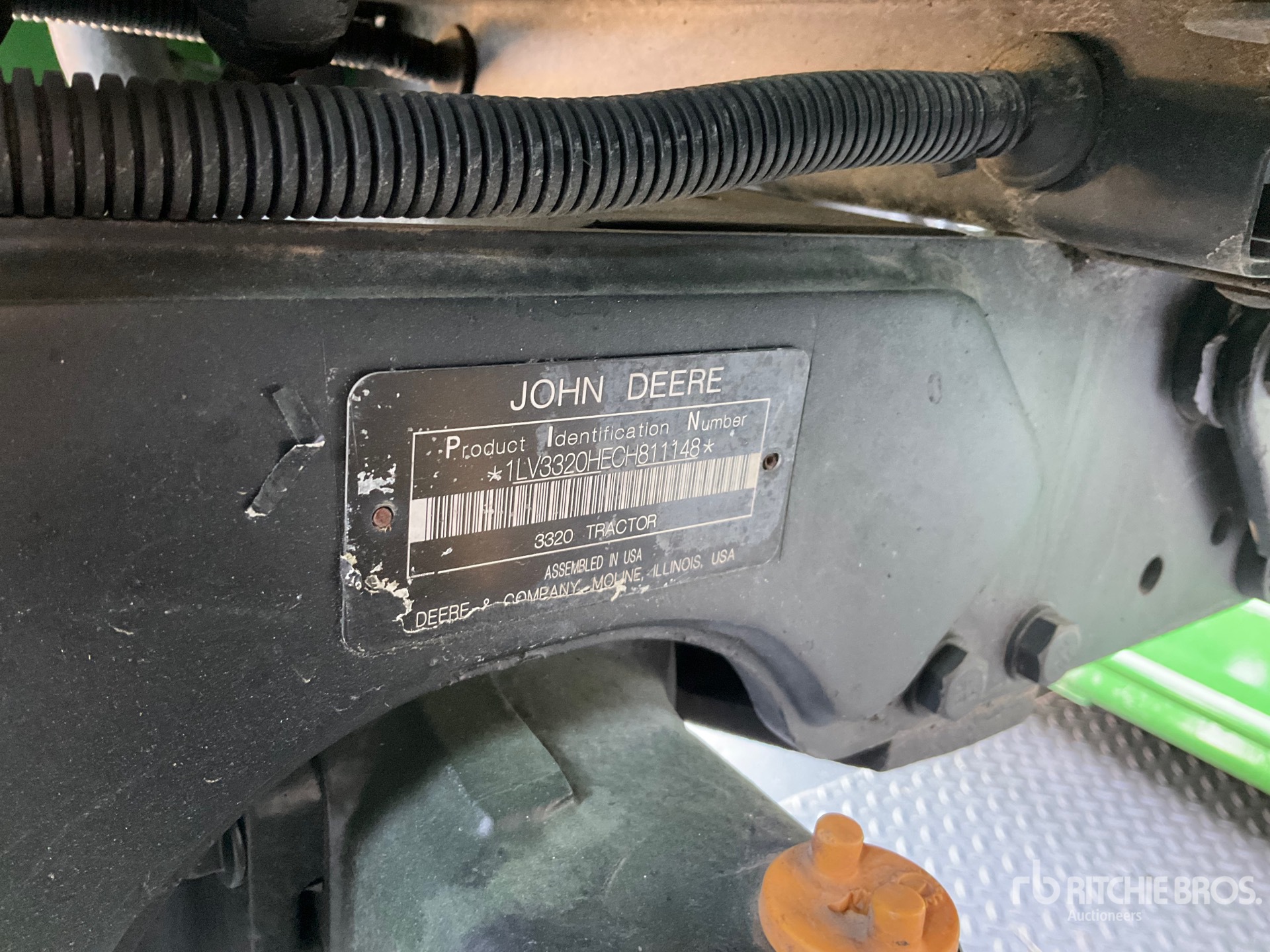

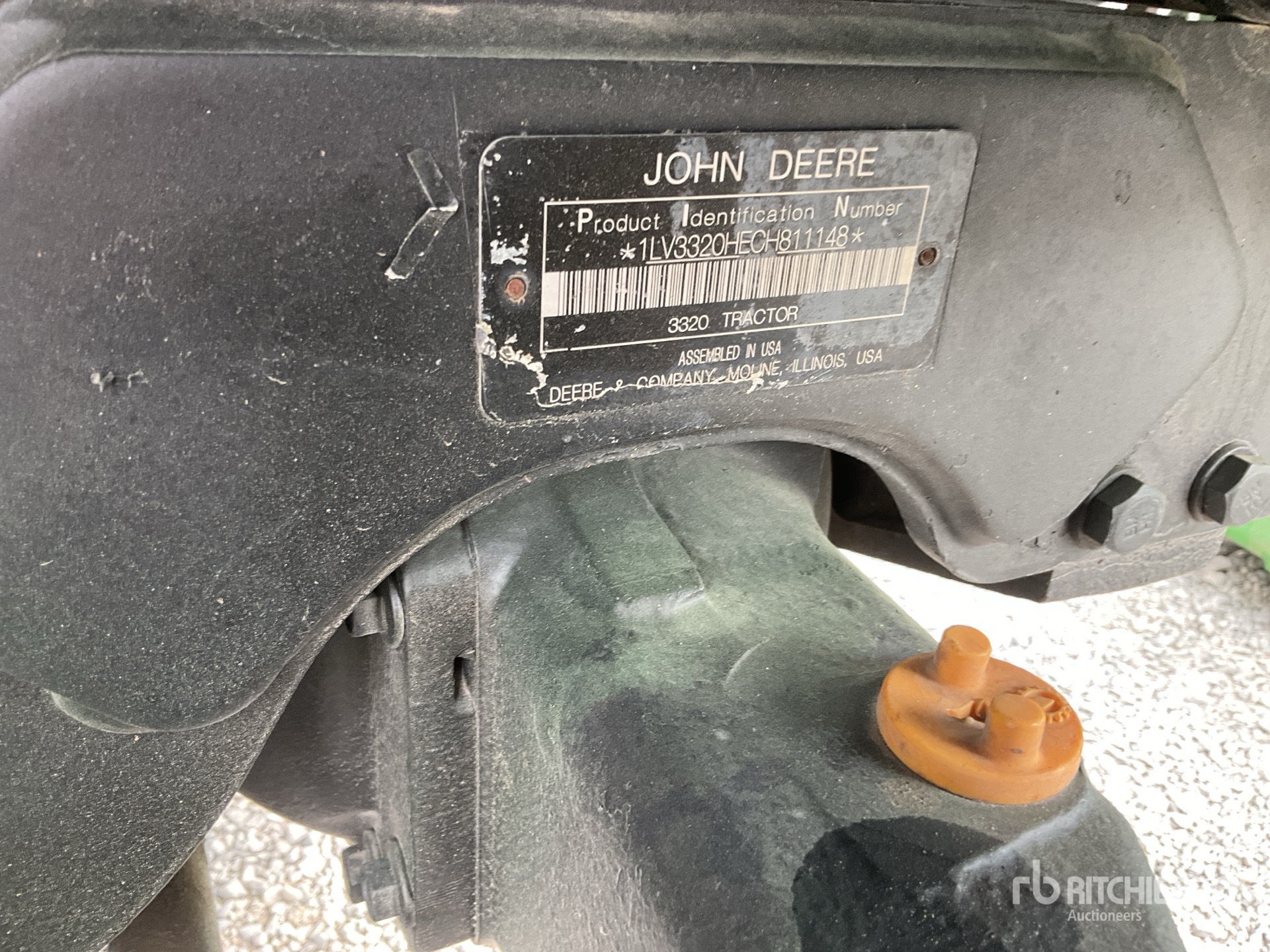

| Serial Number: | 1LV3320HECH811148 |
| Machine Location: | POLOTITLAN, MEX |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Wheelbase | 6 ft (2 m) |
| Engine | |
| Aspiration | natural |
| Displacement | 100 cu in (1,640 cu cm) |
| Engine Model | 3TNV88 |
| Gross Power | 33 hp (24 kw) |
| Max Torque | 62 lbs ft (84 nm) |
| Number of Cylinders | 3 |
| Power Measured @ | 2,600 rpm |
| PTO Power | 25 hp (19 kw) |
| Torque Measured @ | 2,600 rpm |
| Hydraulic System | |
| Number of Remote Control Valves | 5 |
| Pump Flow Capacity | 14 gpm (53 lpm) |
| Relief Valve Setting | 2,500 psi |
| Operating Specifications | |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,203 lbs (999 kg) |
| Alternator Supplied Amperage | 40 amps |
| Cooling System Fluid Capacity | 0 gal (2 l) |
| Engine Oil Capacity | 1 gal (5 l) |
| Fuel Capacity | 14 gal (51 l) |
| Operating Voltage | 12 volts |
| Tire Size Front - 2wd / 4wd | 7-14/6PR/R1 |
| Turning Radius | 9 ft (3 m) |
| Tires | |
| Rear Tires Size | 11.2-24/6PR/R1 |
| Transmission | |
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 12 |
| Transmission Type | PowrReverser |
