For Sale: $28,500.00 USD
Apply for Financing| Hours: | 439 |
| Stock Number: | 1LV4044MJMM114336 |
| Machine Location: | ROCHESTER, NY |
| More Information: | https://admarsupply.com/inventory/tractors+-+40+hp+to+99+hp/2020-john+deere-4044m-pittston-pa-69c6717fa8fd5a5bca082942/ |
Supplied by HeavyEquipmentData.com →

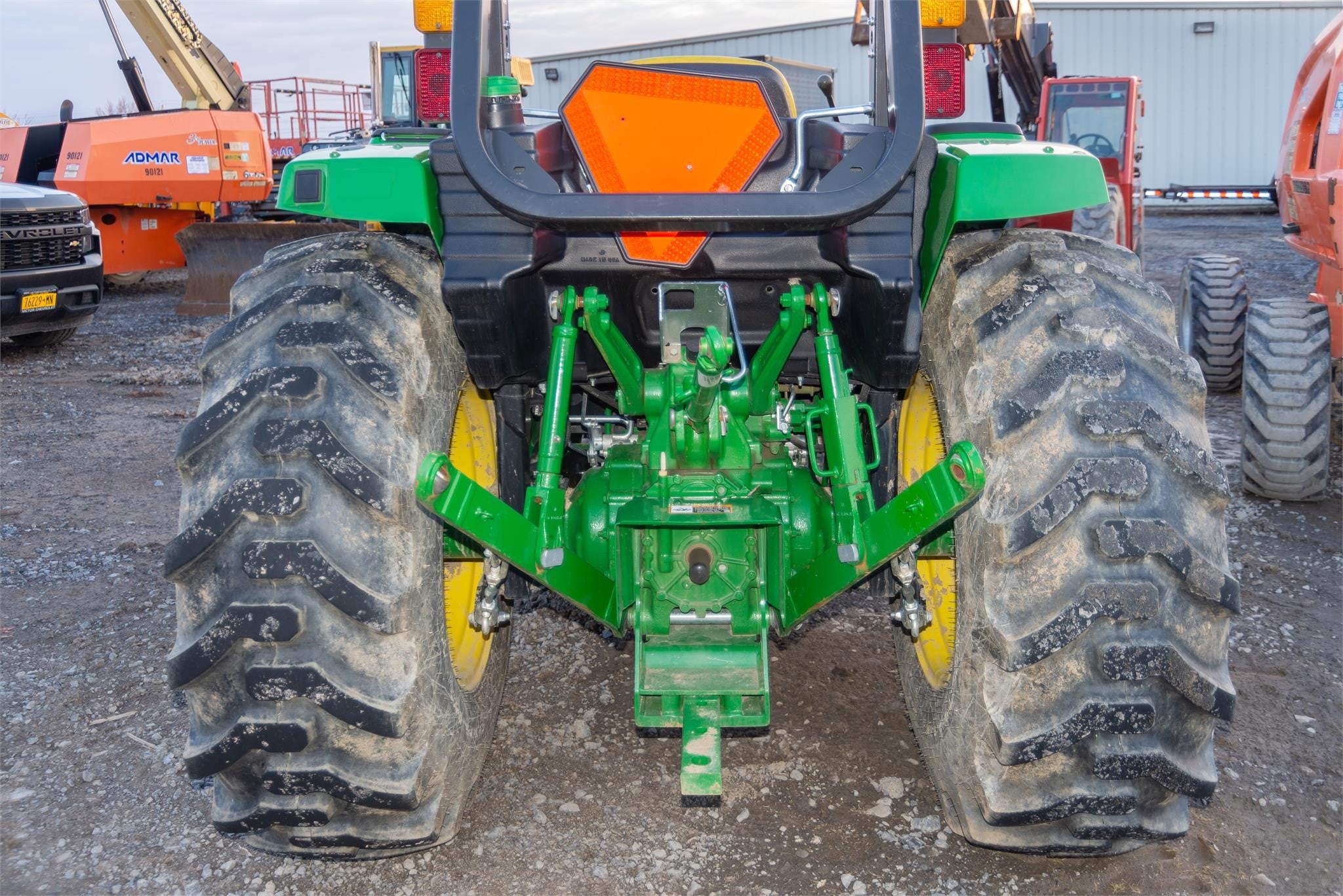

| 3-Point Hitch | |
| Lift capacity (24-in. behind link arms) | 1,135 kg (2,502 lbs) |
| Dimensions | |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb |
| Front Axle Clearance | 16 in (40 cm) |
| Turning radius with brakes | 3 m (9 ft) |
| Turning radius without brakes | 10 ft (3 m) |
| Wheelbase | 73 ft (22 m) |
| Electrical System | |
| Alternator (12-V) | 75 amp |
| Battery size | 770 CCA |
| Starter size | 3 hp (2 kw) |
| Engine | |
| Air cleaner | Dual element |
| Aspiration | Turbocharged and charge air cooled |
| Bore | 4 in (9 cm) |
| Compression ratio | 19.1:1 |
| Cooling system | Liquid |
| Cylinder liners | Cast-In-Block |
| Displacement | 134 cu in (2,189 cu cm) |
| Emissions compliance | Final Tier 4 |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV88C-MJT |
| Engine torque at rated speed | 116 Nm |
| Engine Type | Diesel |
| Family | EYDXL2.19NDA FYDXL2.19NDA GYDXL2.19NDA |
| Fuel tank capacity | 13 gal (50 l) |
| Gross Power | 31.7 kW 43.1 PS at 2600 rpm SAE J1995 rated power hp (24 kw) |
| Lubrication | Pressurized |
| Number of Cylinders | 4 |
| Power take-off (PTO) power | 35 hp (26 kw) |
| Rated engine speed | 2,600 rpm |
| Stroke | 4 in (9 cm) |
| Final Drive | |
| Differential lock | Yes |
| Final Drive Type | Planetary |
| Fluid Capacities | |
| Crankcase with filter | 5.3 L |
| Transmission and hydraulic system | 44 L |
| Fuel System | |
| Fuel System Type | High pressure common rail direct injection |
| Hydraulic System | |
| Draft control sensing | Position control |
| Hydraulic Type | Open Center |
| Pump rated output | 16 gpm (60 lpm) |
| Pump Type | High pressure common rail direct injection |
| Remote control valves available | Three optional |

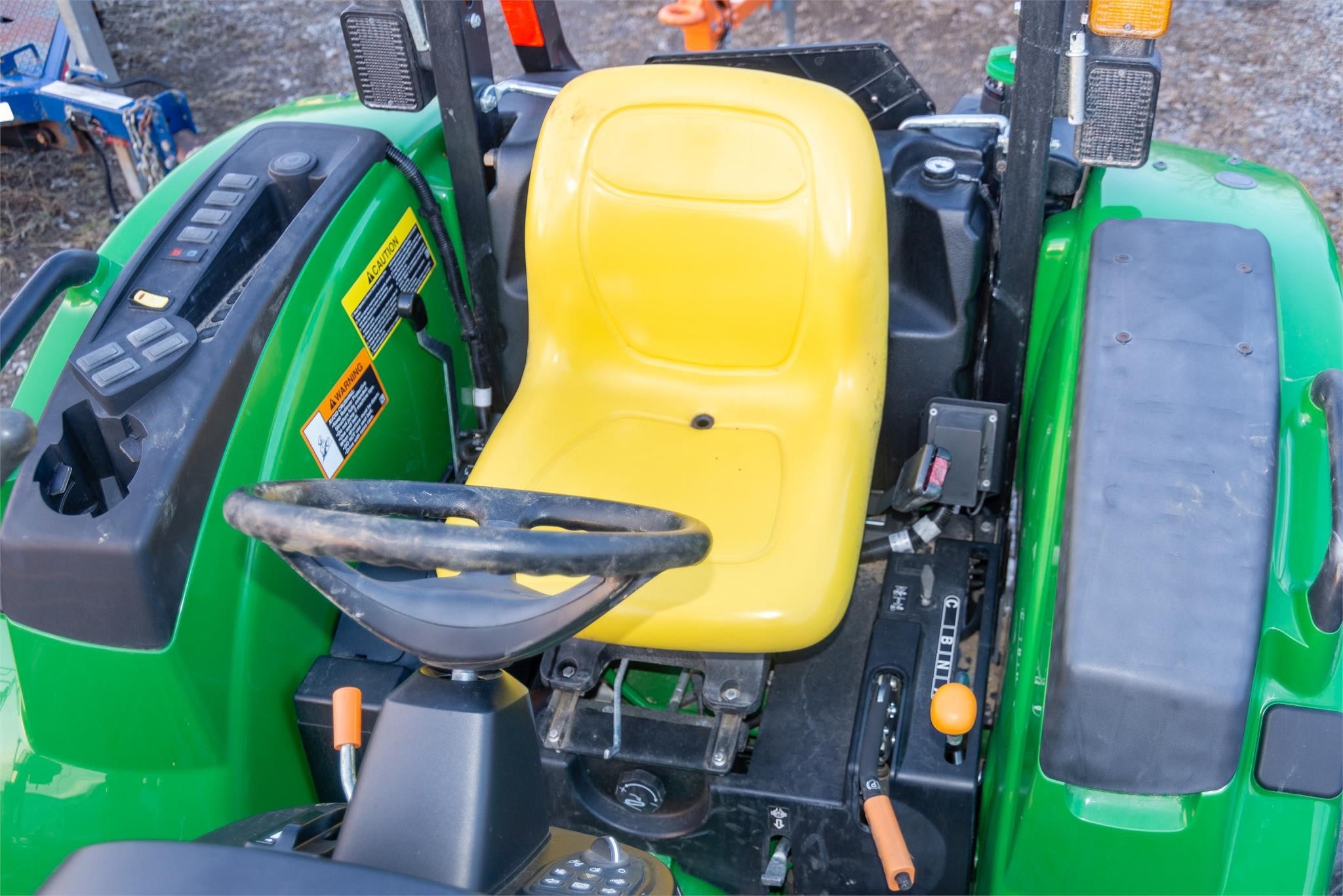

| Operator Station | |
| Gear shift location - console/floor | Left Hand Side |
| Platform - flat/straddle | Flat |
| Rollover protective structure | Type Foldable Yes |
| Power Take-Off (PTO) | |
| Clutch | Wet disc |
| Control | Position |
| Engagement method | Electro-hydraulic |
| Standard | Independent 540 rpm at 2600 rpm |
| Tires | |
| Front Tires Size | Farm - 8-16 Turf - 27x10.5-15 or 27x12LL-15 R4 - 10-16.5 |
| Front tread range | 148 cm (58 in) |
| Rear Tires Size | Farm - 13.6-28 Turf - 44x18-20 or 22.5LL-16.1 R4 - 16.9Lx24 |
| Rear tread spacing | 137 cm (54 in) |
| Transmission | |
| Axle capacity | Front 1600 kg 3528 lbRear 2400 kg 5292 lb Mechanical front.wheel drive (MFWD) . 1.6 kg 5.96 lb ft |
| Brakes | Multi-plate wet disc |
| Clutch disk diameter wet clutch | 129 mm (5 in) |
| Clutch, wet/dry | Wet |
| Cruise control | Optional |
| Differential lock | Yes |
| Final Drive Type | Planetary |
| Left-hand reverser | Yes |
| Optional transmission; forward/reverse | 3/3 Hydrostatic transmission (HST) |
| Standard transmission; forward/reverse | 12/12 PowrReverser transmission (PRT) |
| Steering | Hydrostatic power steering |
| Transmission gear ranges | 12F/12R PRT Infinitely-variable 3 range |
