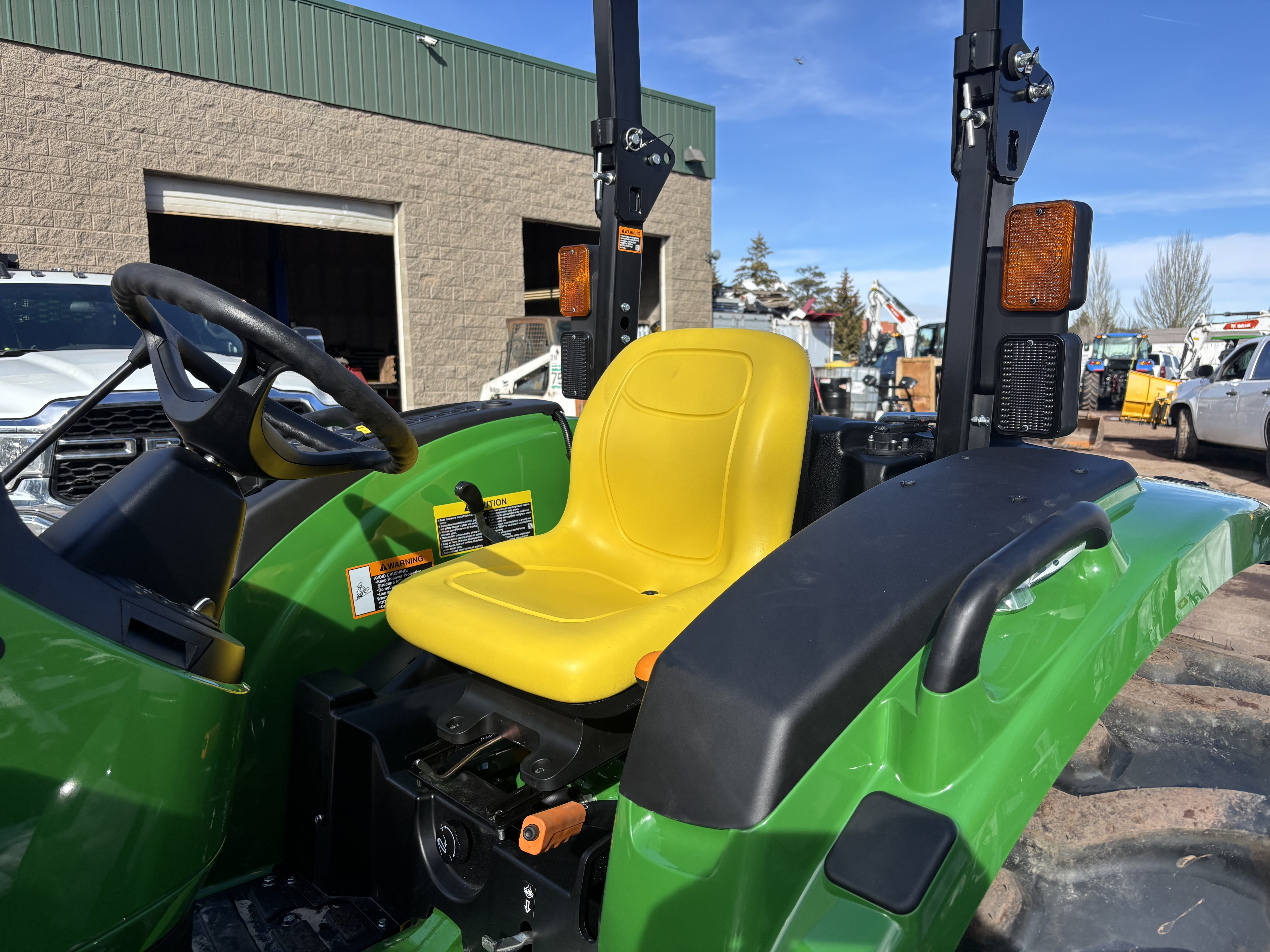

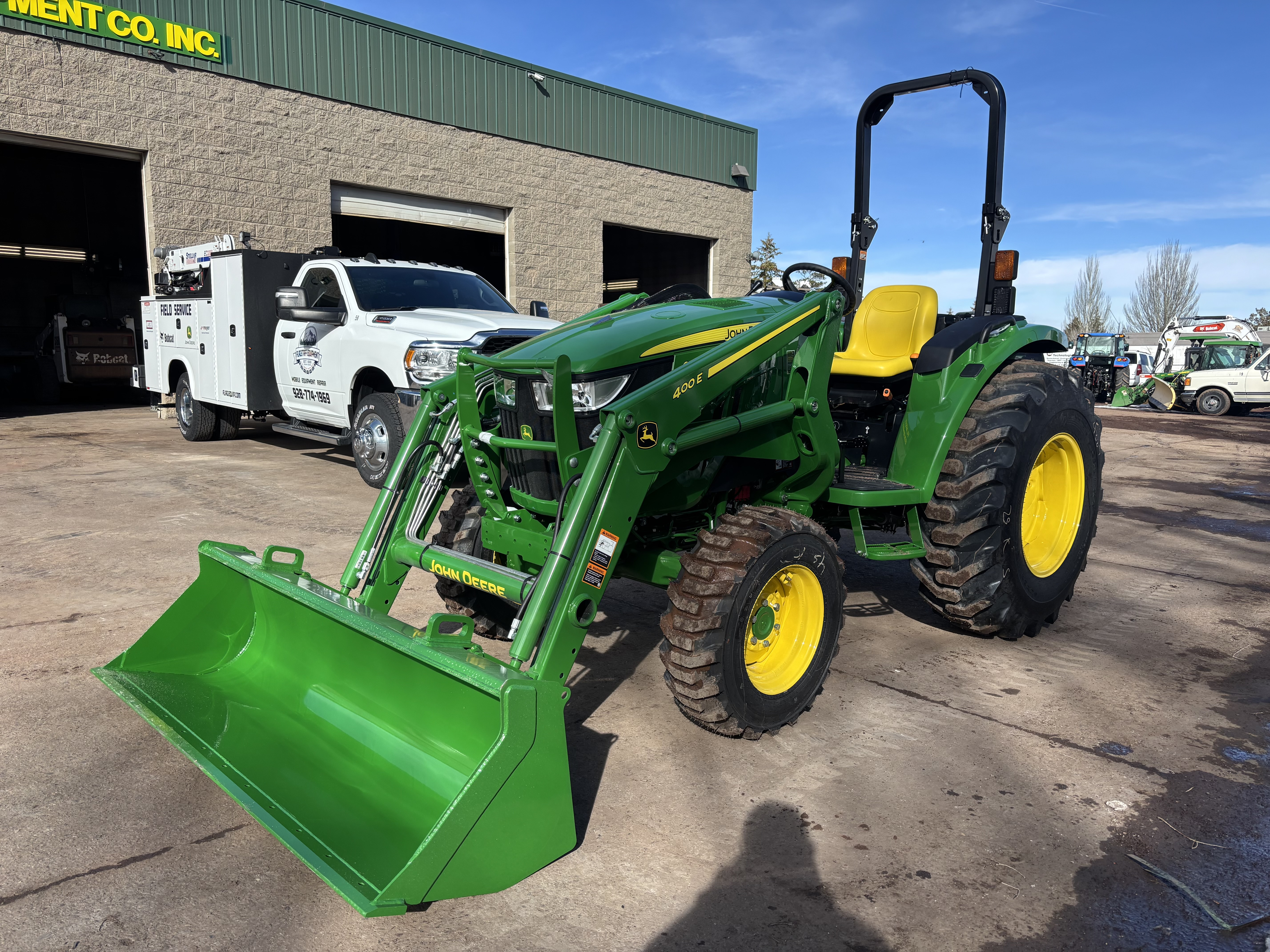

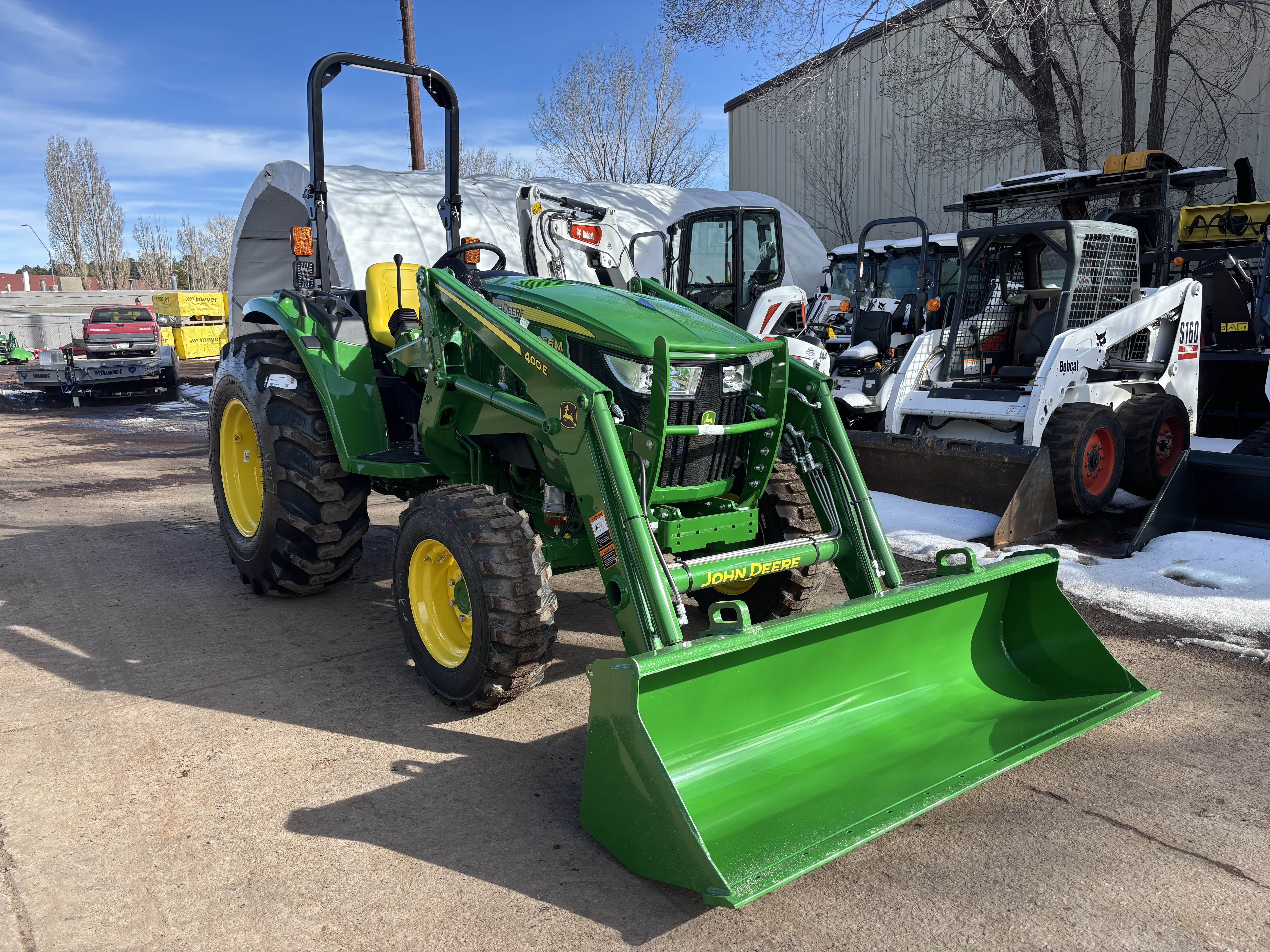

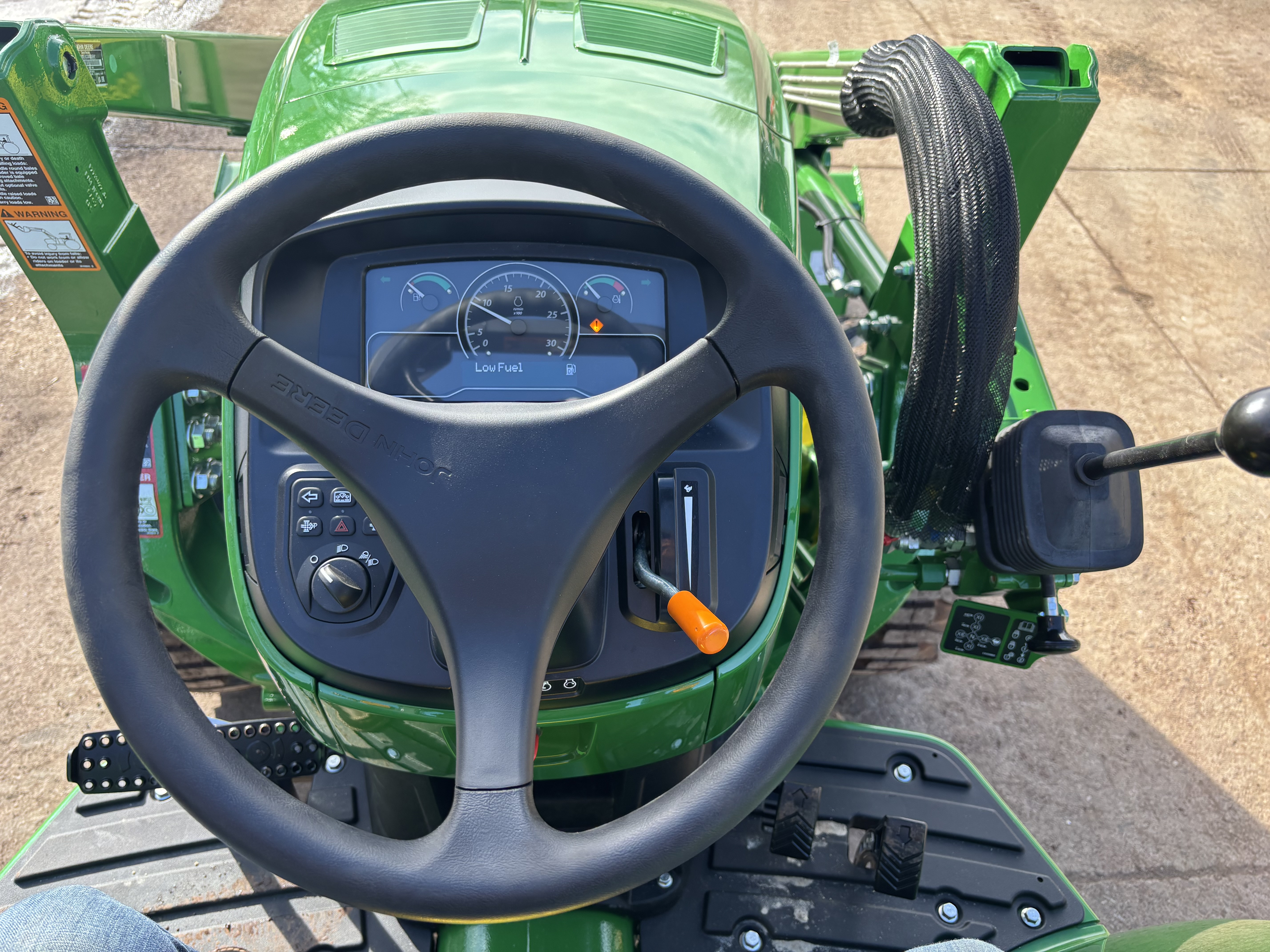

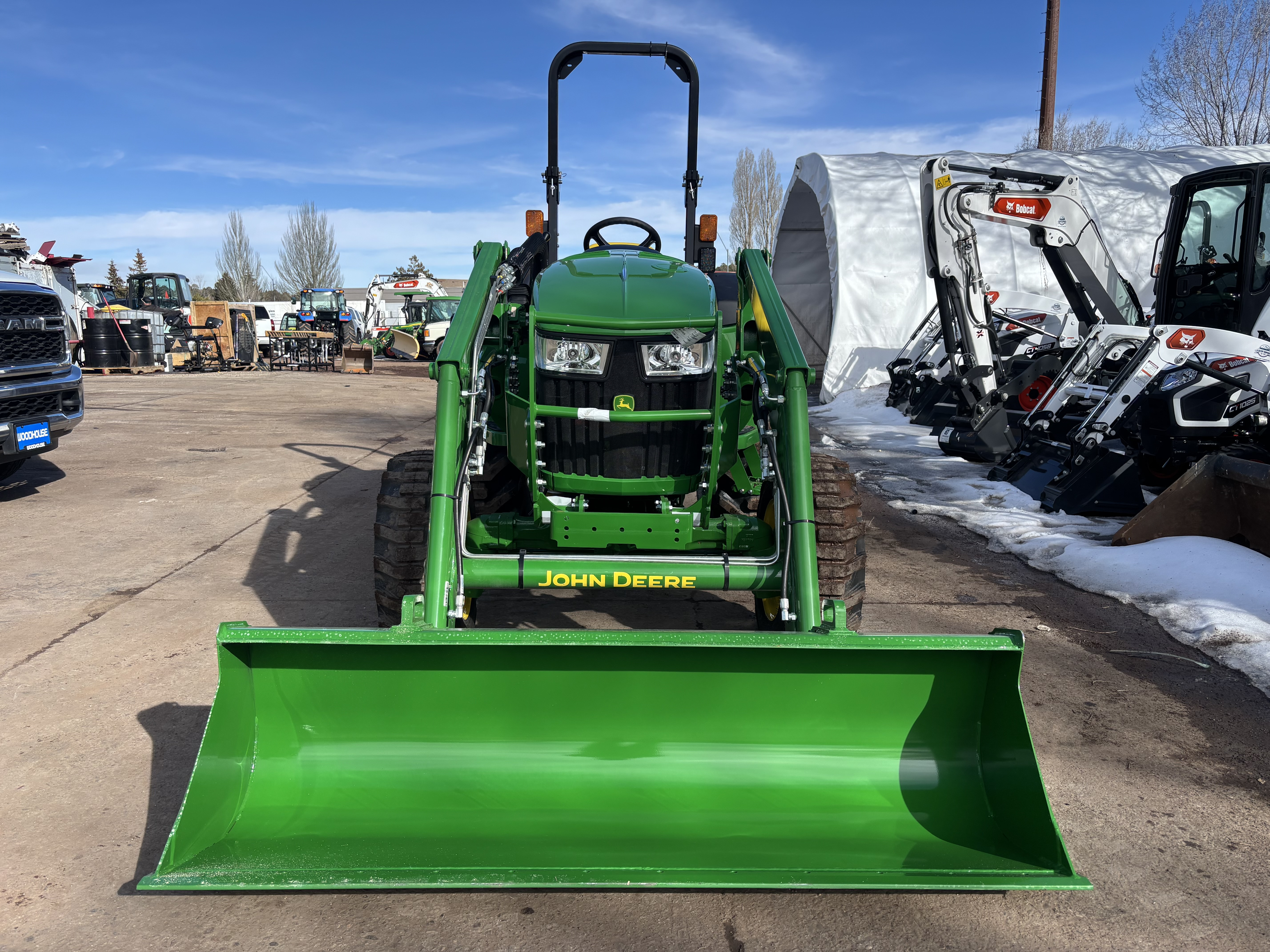

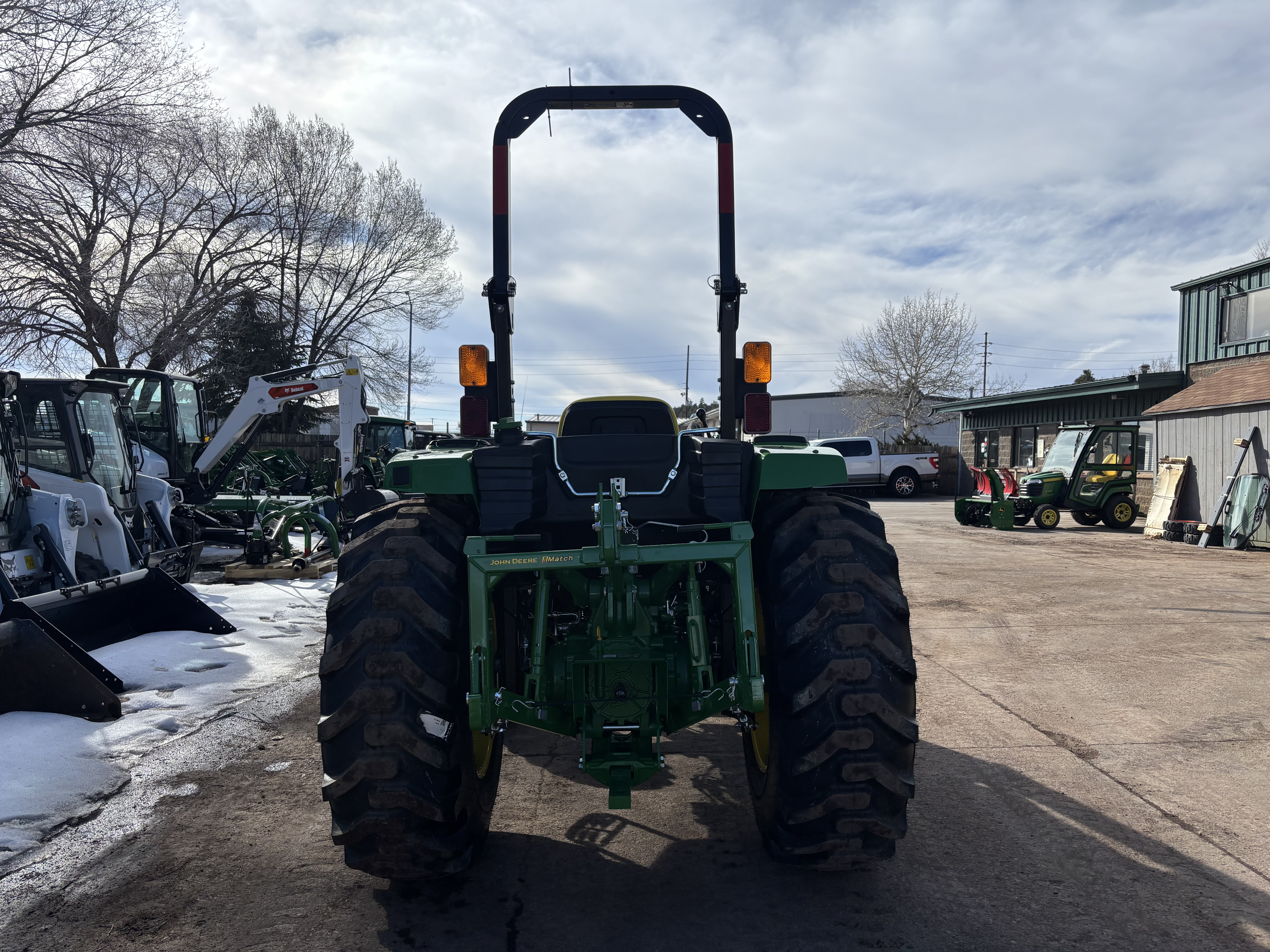

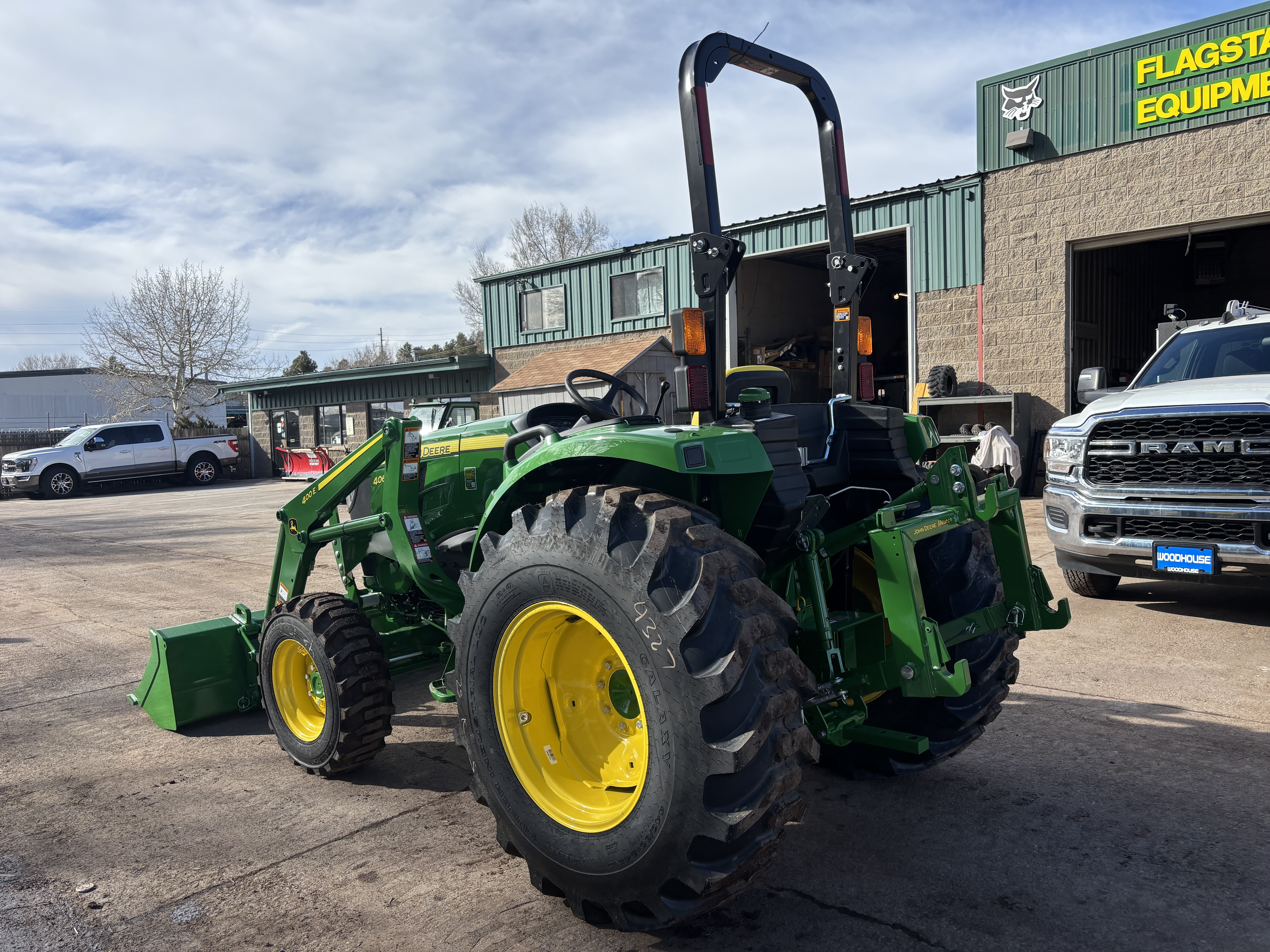

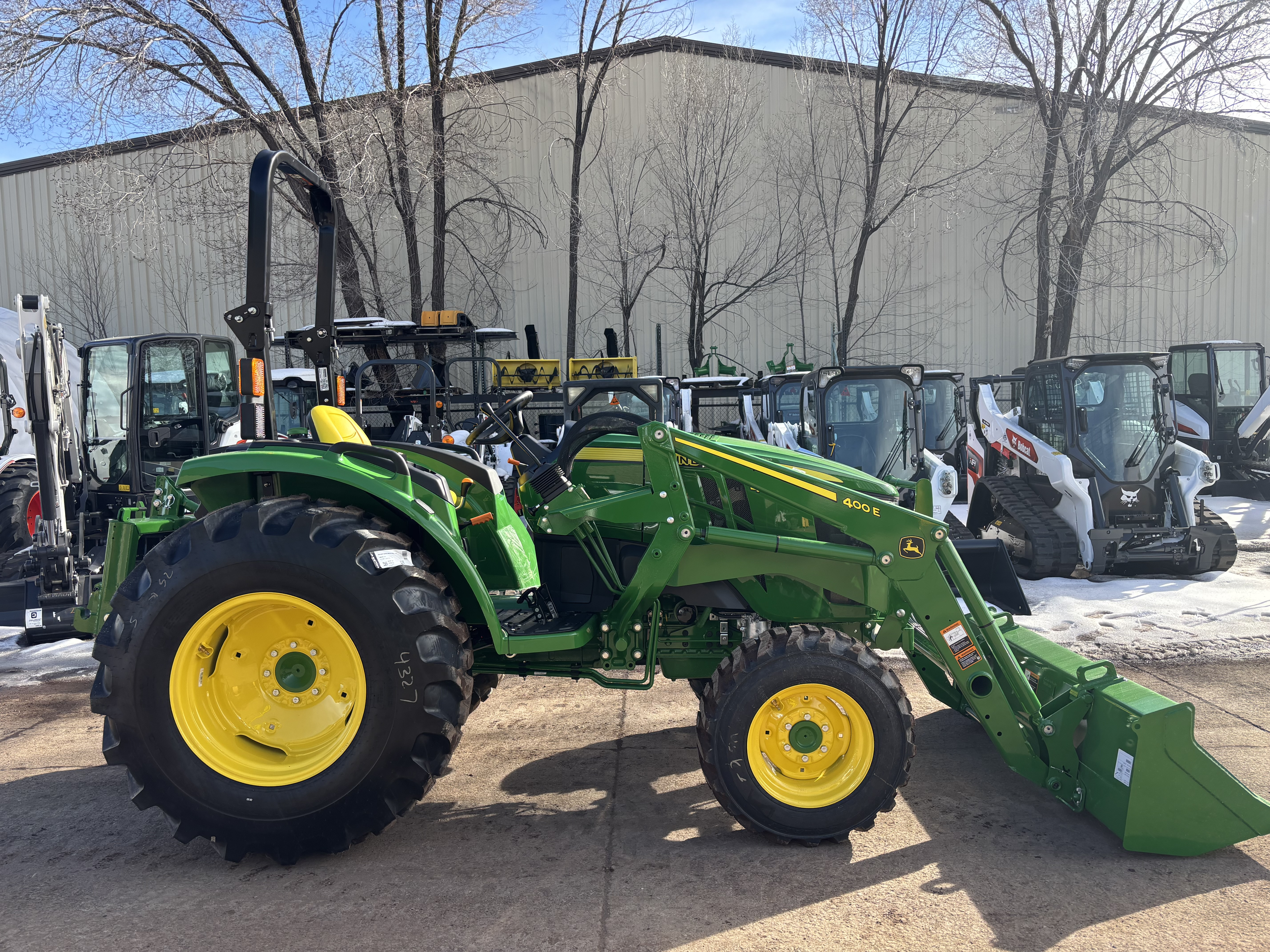

2026 John Deere 4066M For Sale in Flagstaff, AZ

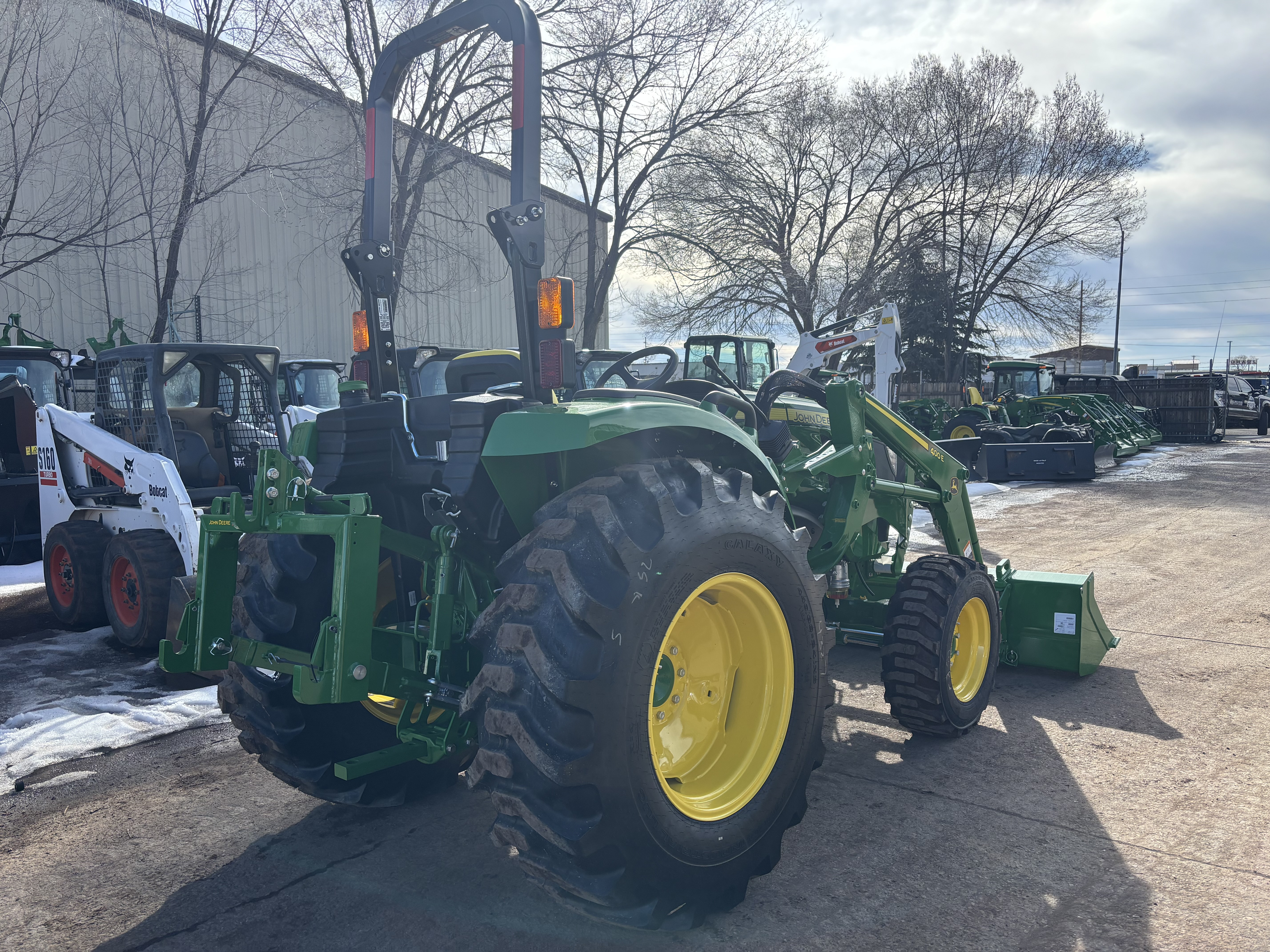

Name: 2026 John Deere 4066M
Brand: John Deere
SKU: 85590784
Price: 58999 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $58,999.00 USD

Apply for Financing

Flagstaff Equipment, Inc.

Flagstaff Equipment, Inc. Dealer Info

Flagstaff Equipment, Inc. Website

Click here to email Flagstaff Equipment, Inc..

Contact: Fran

Click for Phone Number

Machine Info:

Stock Number:	1LV4066MTTT107217
Machine Location:	FLAGSTAFF, AZ
More Information:	https://flagequip.com/inventory/tractors/2026-john+deere-4066m-flagstaff-az-699c9f44e69c5b6ce10ea4c2/

Description:

Unleash the Power of the Land: The John Deere 4066M
When the horizon looks vast and the to-do list looks longer, you don't just need a tractor—you need a partner that doesn't know the meaning of "quit." Introducing the John Deere 4066M Compact Utility Tractor, the heavyweight champion of the 4 Series, designed to bring professional-grade muscle to your farm, ranch, or estate.

Raw Power Meets Refined Engineering
At the heart of the 4066M lies a turbocharged 65.9 HP Yanmar® diesel engine. This isn't just about horsepower; it’s about torque and reliability. With high-pressure common rail direct injection and Final Tier 4 compliance, this engine delivers maximum efficiency while meeting the strictest emission standards. Whether you’re clearing brush, tilling stubborn soil, or hauling heavy loads, the 4066M provides the steady, relentless pull you need to get the job done right the first time.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

3-Point Hitch
Lift capacity (24-in. behind link arms)	1,135 kg (2,502 lbs)
Dimensions
Approximate shipping weight (open-station; cab)	Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb
Front Axle Clearance	16 in (40 cm)
Turning radius with brakes	3 m (9 ft)
Turning radius without brakes	10 ft (3 m)
Wheelbase	73 ft (22 m)
Electrical System
Alternator (12-V)	75 amp
Battery size	770 CCA
Starter size	3 hp (2 kw)
Engine
Air cleaner	Dual element
Aspiration	Turbocharged and charge air cooled
Bore	3 in (9 cm)
Compression ratio	19.1:1
Cooling system	Liquid
Cylinder liners	Cast-In-Block
Displacement	128 cu in (2,093 cu cm)
Emissions compliance	Final Tier 4
Engine Manufacturer	Yanmar
Engine Model	4TNV86CHT-MJT
Engine torque at rated speed	178 Nm
Engine Type	Diesel
Family	EYDXL2.09HDA FYDXL2.09HDA GYDXL2.09HDA
Fuel tank capacity	Rollover protective structure (ROPS) - 49.2 L 13 U.S. gal. Cab - 50 L 13.8 U.S. gal.
Gross Power	48.5 kW 65.9 PS at 2600 rpm SAE J1995 rated power hp (36 kw)
Injection pump type	High pressure common rail direct injection
Lubrication	Pressurized
Number of Cylinders	4
Power take-off (PTO) power	54 hp (40 kw)
Rated engine speed	2,600 rpm
Stroke	4 in (9 cm)
Final Drive
Differential lock	Yes
Final Drive Type	Planetary
Fluid Capacities
Crankcase with filter	5.3 L
Transmission and hydraulic system	44 L
Fuel System
Fuel System Type	High pressure common rail direct injection
Hydraulic System
Draft control sensing	Position control
Hydraulic Type	Open Center
Pump rated output	Steering 21.5 L/min 5.7 gpmImplement 38.7 L/min 10.2 gpm 60.2 L/min 15.9 gpm
Pump Type	Dual gear
Remote control valves available	Three remotes optional
Operator Station
Gear shift location - console/floor	Left Hand Side
Platform - flat/straddle	Flat
Rollover protective structure	Type Fixed Yes
Power Take-Off (PTO)
Clutch	Wet disc
Control	Independent
Standard	Rear - 540 rpm at 2600 rpm
Tires
Front Tires Size	Farm - 8-16 Turf - 27x10.5-15 R4 - 10-16.5
Front tread range	148 cm (58 in)
Rear Tires Size	Farm - 14.9-24 Turf - 44x18-20 or 22.5LL-16.1 R4 - 17.5Lx24
Rear tread spacing	137 cm (54 in)
Transmission
Axle capacity	Front 1600 kg 3528 lbRear 2400 kg 5292 lb Mechanical front-wheel drive (MFWD) - 1.6 kg 5.9 lb
Brakes	Multi-plate wet disc
Clutch disk diameter wet clutch	129 mm (5 in)
Clutch, wet/dry	Wet
Cruise control	Optional
Differential lock	Yes
Final Drive Type	Planetary
Left-hand reverser	Yes
Optional transmission; forward/reverse	3/3 Hydrostatic transmission (HST)
Standard transmission; forward/reverse	12/12 PowrReverser transmission (PRT)
Steering	Hydrostatic power steering
