Auction Pricing
Auction Info: Starting on 2026-05-11 Click here to place a bid

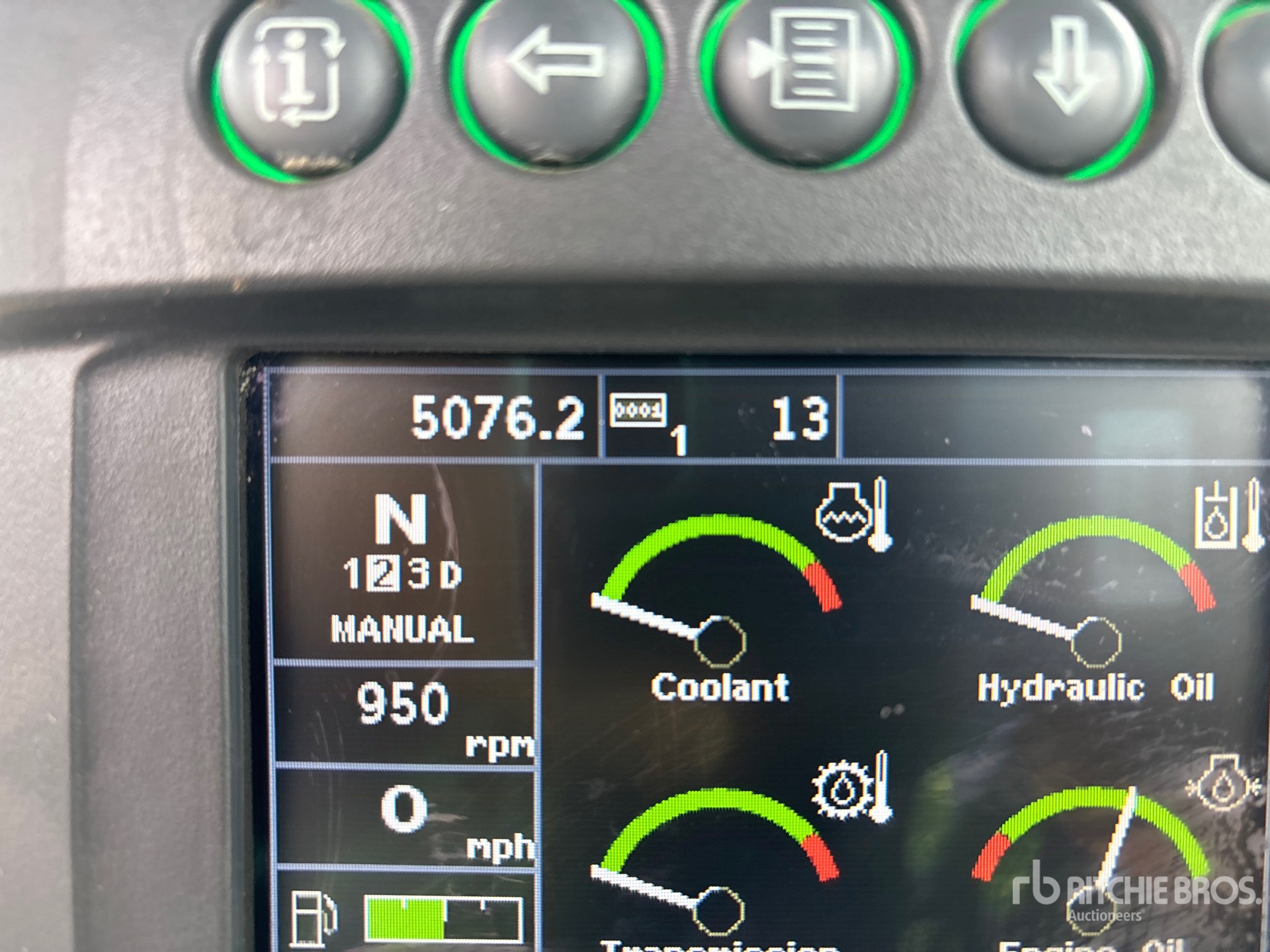

| Hours: | 5076 |

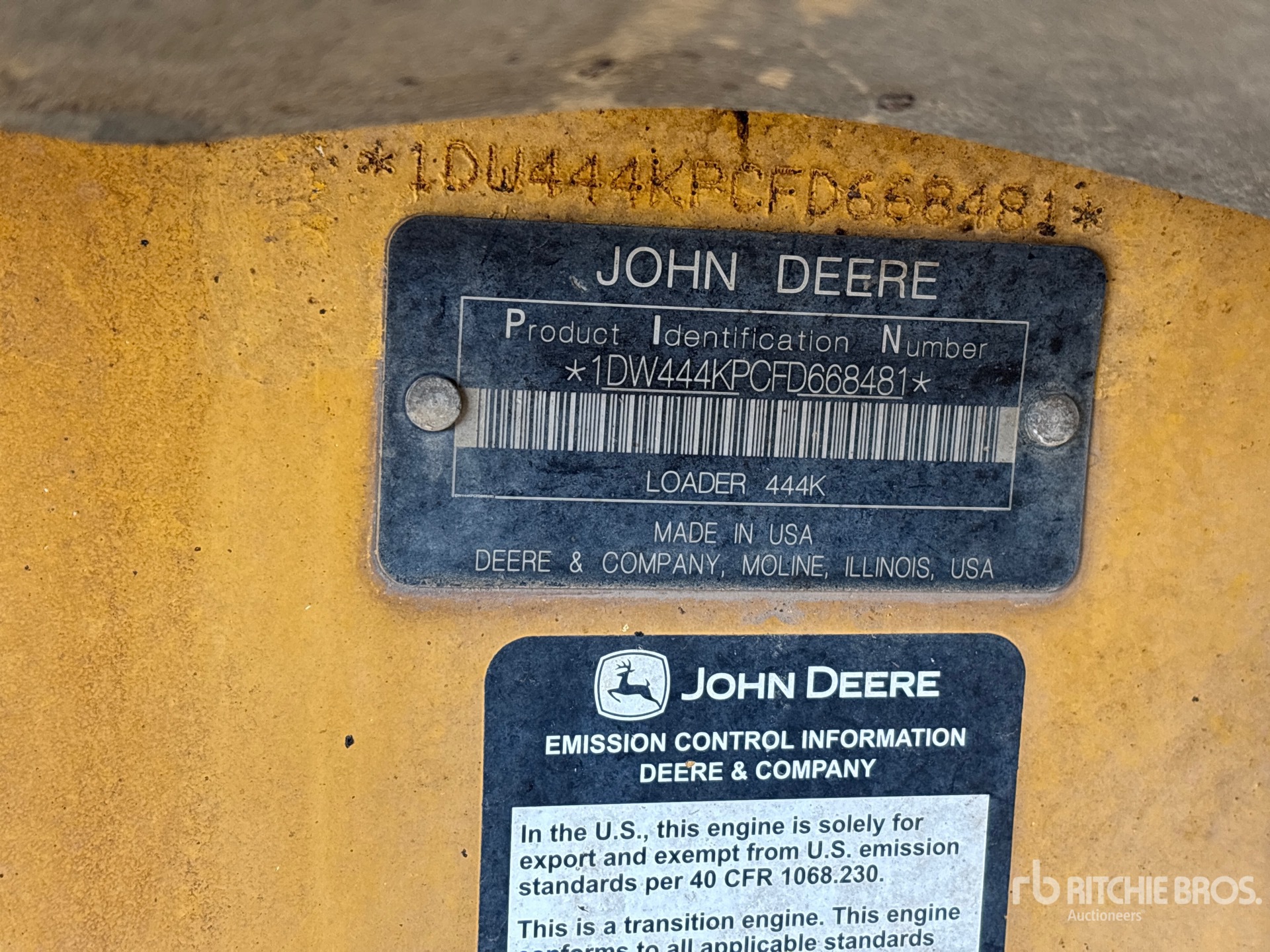

| Serial Number: | 1DW444KPCFD668481 |
| Machine Location: | EDMONTON, AB |
Supplied by HeavyEquipmentData.com →
| Bucket | |
| Breakout Force | 17,549 lbs (7,960 kg) |
| Bucket Capacity - Smallest | 3 cu yd (2 cu m) |
| Dump Clearance at Max Raise | 9 ft (3 m) |
| Largest bucket capacity | 4 cu yd (3 cu m) |
| Capacities | |
| Heaped Capacity | 3 cu yd (2 cu m) |
| Hydraulic Tank | 31 gal (119 l) |
| Transmission | 5 gal (19 l) |
| Dimensions | |
| Height - Top of Cab | 11 ft (3 m) |
| Hinge Pin - Max Height | 12 ft (4 m) |
| Length with Bucket on Ground | 23 ft (7 m) |
| Reach at Max Lift and Dump | 5 ft (1 m) |
| Turning Circle | 38 ft (12 m) |
| Wheelbase | 9 ft (3 m) |
| Width Over Tires | 8 ft (2 m) |
| Driveline | |
| Differential lock | Front- Locking Rear- Open |
| Parking Brake Type | Wet Multi Disc |
| Ride control system | Optional |
| Service Brake - Location | All Wheels |
| Service Brake Actuation | Hydraulic |
| Service Brake Type | Wet Multi Disc |
| Tire size - Standard | 17.5 R25 |
| Engine | |
| Alternator | 100 amps |
| Displacement | 275 cu in (4,502 cu cm) |
| Emission level | Tier 4 |
| Engine Make | John Deere |
| Engine Model | PowerTech PSS 4045 |
| Engine Output-Net | 123 hp (92 kw) |
| Make | Deere PowerTech |
| Net Power | 124 hp (92 kw) |
| Pump | Piston |
| Rated Speed | 2,100 rpm |
| System Voltage | 24 V |
| Torque | 374 lbs ft (507 nm) |
| Torque Rise | 34% |
| Transmission Type | Powershift |
| General Specifications | |
| Bucket Capacity (Since 2016) | 2.5 (1.9) |
| Bucket Capacity (Since 2019) | 2.5 - 4.0 (1.9) |
| Engine Power (Since 2016) | 124 (92) |
| Engine type (Since 2016) | Deere PowerTech PSS 4045 |
| Engine type (Since 2017) | Deere PSS 4045 |
| Max Dump Height (Since 2016) | 8.9 (2.7) |
| Operating Weight (Since 2016) | 24,698 (11,203) |
| Operating Weight (Since 2019) | 25,022 (11,350) |
| Operating Specifications | |
| Front Axle/Diff Fluid Capacity | 6 gal (22 l) |
| Fuel Capacity | 58 gal (220 l) |
| Operating Weight | 25,023 lbs (11,350 kg) |
| Rated Bucket Capacity | 2 cu yd (2 cu m) |
| Rear Axle/Diff Fluid Capacity | 6 gal (22 l) |
| Transmission | |
| Pump Flow | 37 gpm (140 lpm) |
| System Pressure | 248 psi |
| Weights | |
| Operational Weight | 24,698 lbs (11,203 kg) |
