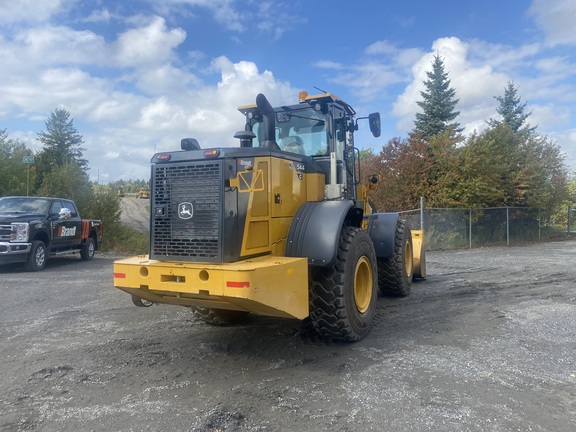

2023 John Deere 544 G For Sale in Stoney Creek, ON

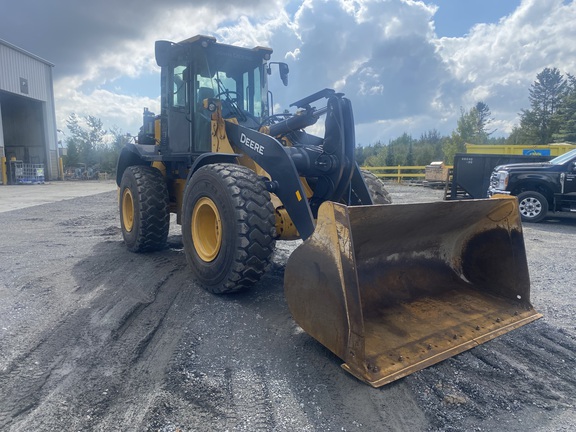

Name: 2023 John Deere 544 G
Brand: John Deere
SKU: 81310308
Price: 249000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $182,336.00 USD
Converted From: 249,000.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

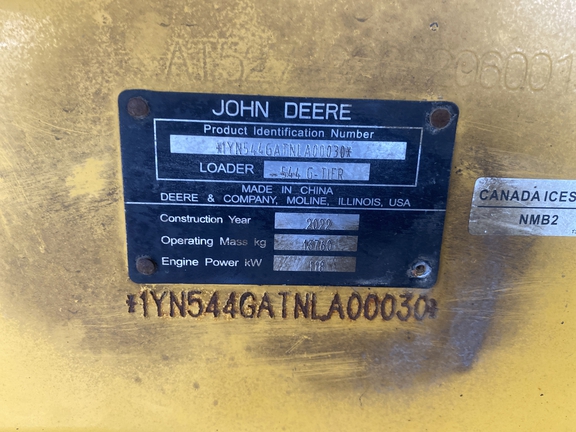

Serial Number:	1YN544GATNLA00030
Stock Number:	0UA00030
Machine Location:	STONEY CREEK, ON

Description:

Cab w/ AC; Aux Hydraulics, Quick Coupler; Front Diff Lock; 20.5 Tires; Powerllel; General Purpose Bkt; Rear Camera

Machine Details:

General Specifications

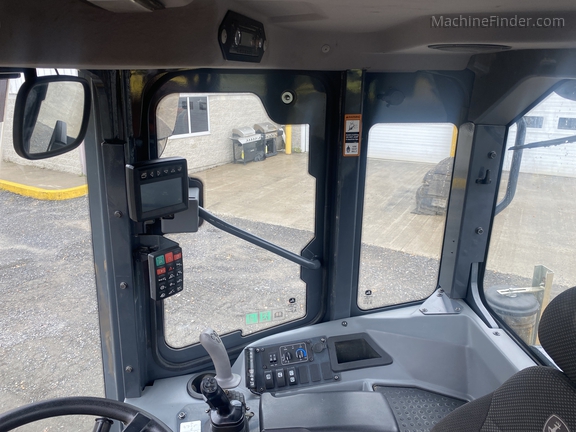

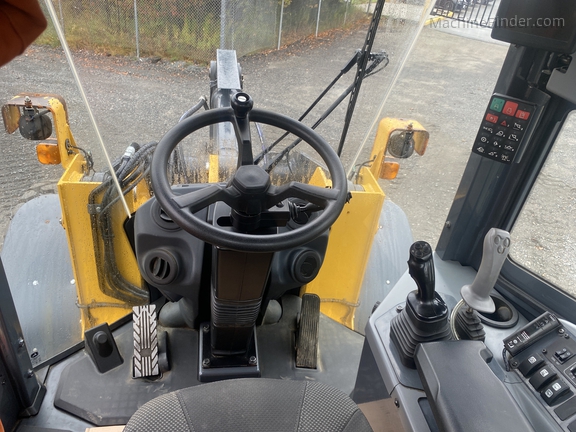

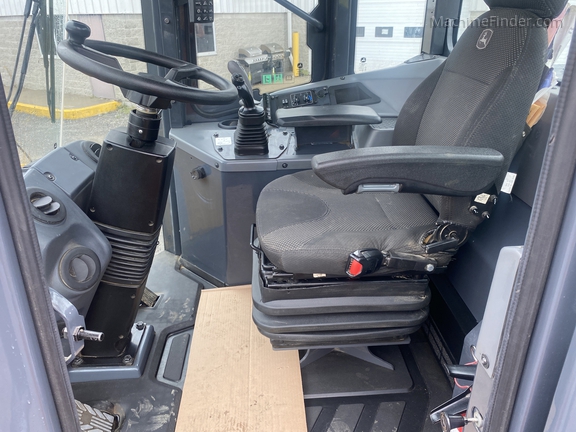

Operators Station	Cab w/ AC

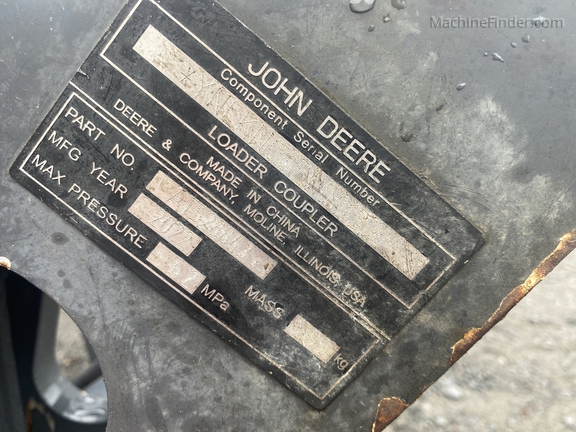

Attachments	Quick Coupler
Powertrain	Front Diff Lock

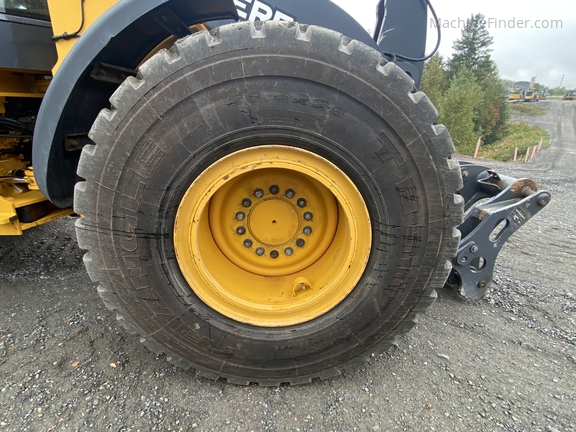

Tires	20.5 Tires
Booms	Powerllel
Miscellaneous	Rear Camera

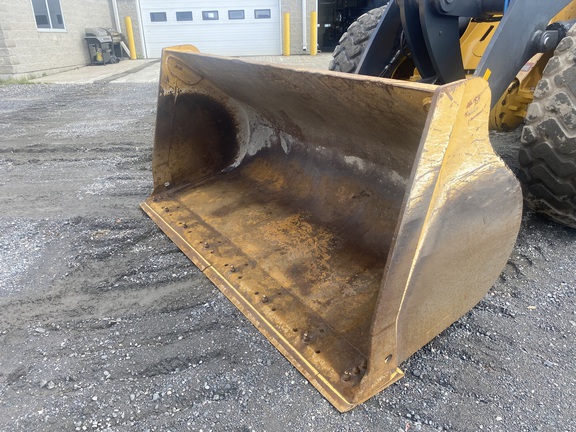

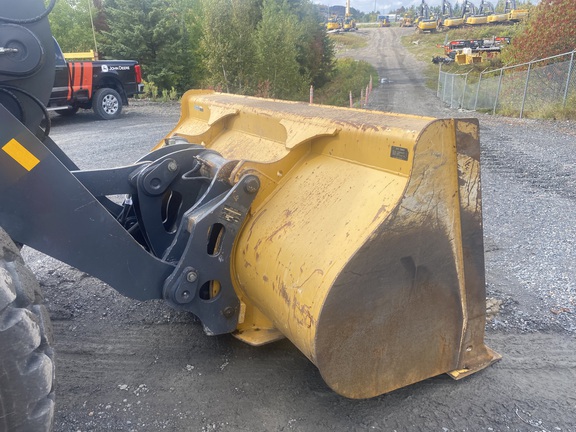

Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

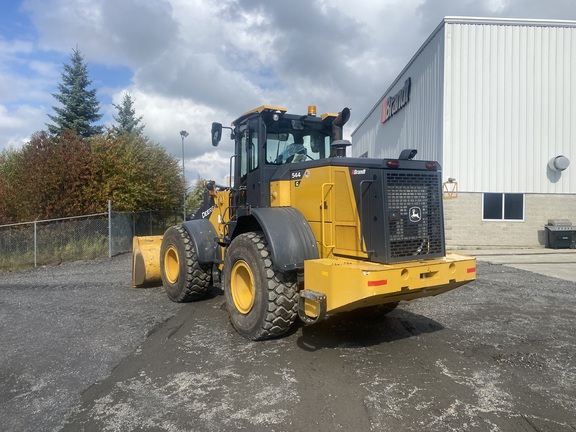

The John Deere 544G is a versatile wheel loader designed for construction, agriculture, and material handling applications. Featuring a powerful engine and advanced hydraulic system, the 544G delivers efficient performance and fuel economy. Its robust frame and durable components ensure reliability in demanding environments. The operator cab offers enhanced visibility, ergonomic controls, and comfort for extended use. Equipped with a quick coupler system, the 544G supports various attachments, increasing its functionality. This wheel loader model is known for its strong lifting capacity, precise maneuverability, and ease of maintenance, making the John Deere 544G a dependable choice for heavy-duty loading tasks.

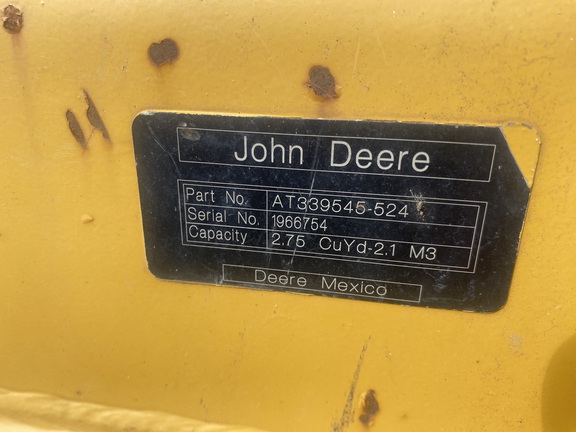

Bucket
Breakout Force	20,342 lbs (9,227 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	12 ft (4 m)
Hook Height at Max Lift - extended	22 ft (7 m)
Length w/ Bucket on Ground	23 ft (7 m)
Length with out Forks on Ground	25 ft (8 m)
Max Lift Height	11 ft (3 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)

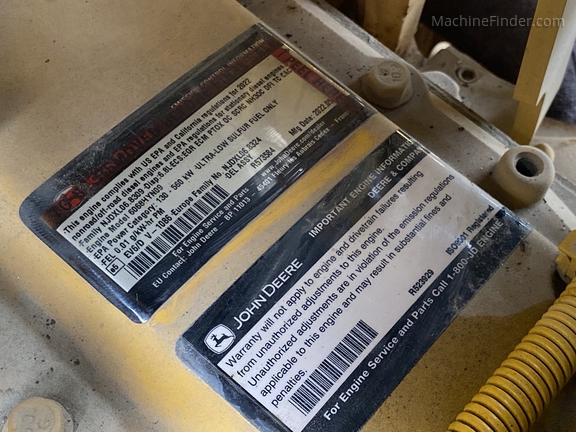

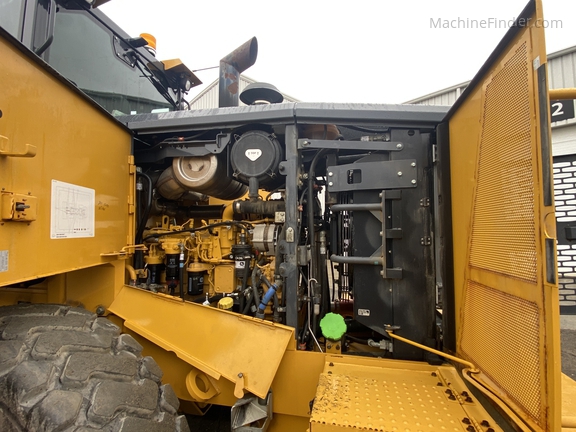

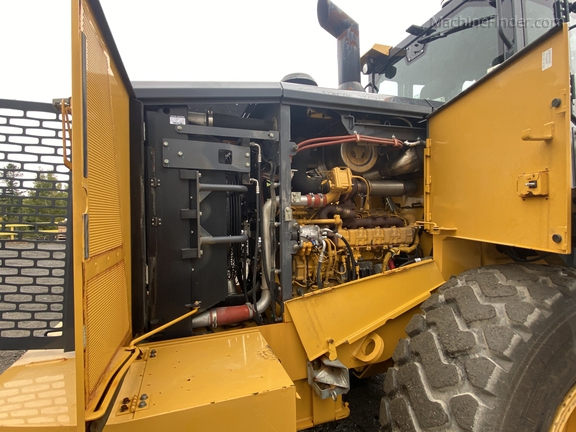

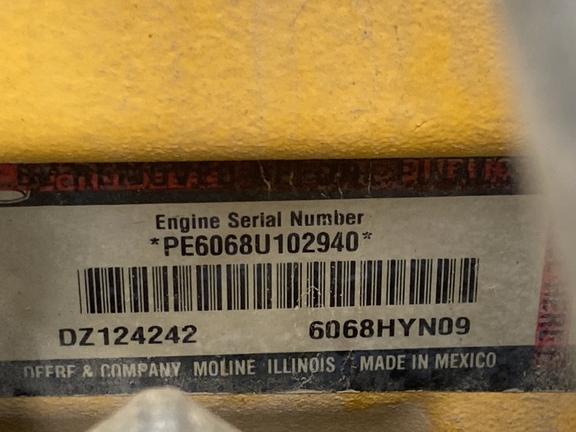

Engine
Aspiration	Turbocharged
Displacement	359 cu in (5,883 cu cm)

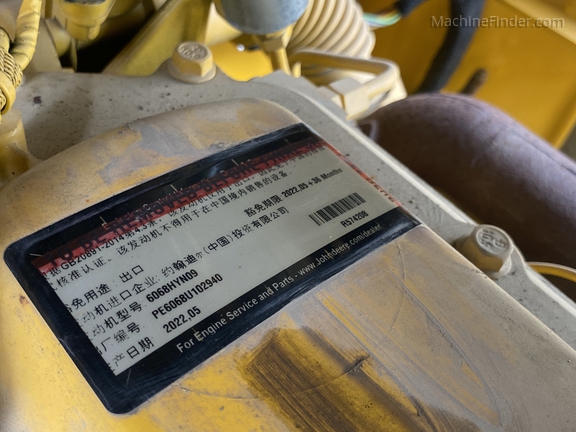

Engine Model	6059T
Gross Power	125 hp (93 kw)
Max Torque	388 lbs ft (526 nm)
Net Power	120 hp (89 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	46 gpm (175 lpm)
Pump Type	Gear type
Raise Time	6 seconds
Relief Valve Setting	2,750 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Capacity	5 gal (19 l)
Front Diff Fluid Capacity	5 gal (19 l)
Fuel Capacity	58 gal (218 l)
Hydraulic System Fluid Capacity	20 gal (76 l)

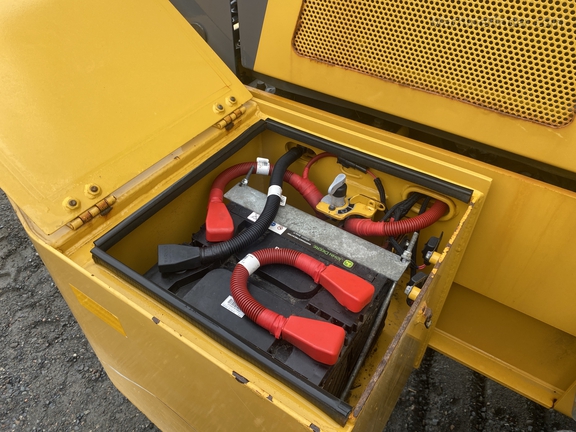

Operating Voltage	12 volts
Operating Weight	24,092 lbs (10,928 kg)
Rear Axle Oscillation	22 degrees
Rear Diff Fluid Capacity	5 gal (19 l)
Static Tipping Load - Bucket	18,453 lbs (8,370 kg)
Static Tipping Load - Forks	13,665 lbs (6,198 kg)
Static Tipping Load - Material Handler	8,945 lbs (4,057 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	3 gal (10 l)
Turning Radius	16 ft (5 m)
Transmission
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	17 mph (27 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power shift
