Equipment ↠ John Deere ↠ Wheel Loaders ↠ 2023 John Deere 544G

2023 John Deere 544G For Sale in Norton, WV

Name: 2023 John Deere 544G
Brand: John Deere
SKU: 82482728
Price: 180500 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $180,500.00 USD

Apply for Financing

Leslie Equipment Company

Leslie Equipment Company Dealer Info

Leslie Equipment Company Website

Click here to email Leslie Equipment Company.

Contact: Mark Harless, General Manager

Click for Phone Number

Machine Info:

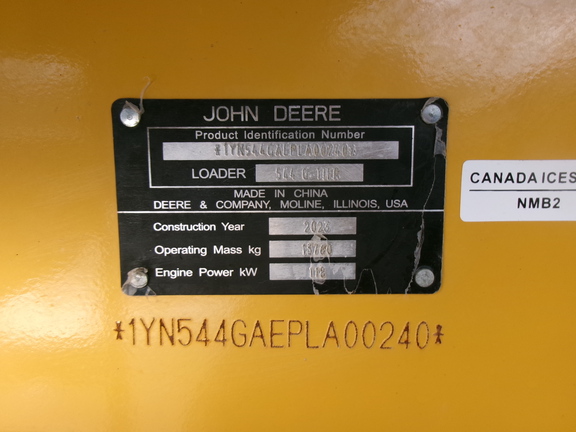

Serial Number:	1YN544GAEPLA00240
Stock Number:	44473
Machine Location:	NORTON, WV

Description:

CAB/AC, HI-VIS QC, Z-BAR, 3RD AUX.,20.5R

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 544G is a versatile wheel loader designed for construction, agriculture, and material handling applications. Featuring a powerful engine and advanced hydraulic system, the 544G delivers efficient performance and fuel economy. Its robust frame and durable components ensure reliability in demanding environments. The operator cab offers enhanced visibility, ergonomic controls, and comfort for extended use. Equipped with a quick coupler system, the 544G supports various attachments, increasing its functionality. This wheel loader model is known for its strong lifting capacity, precise maneuverability, and ease of maintenance, making the John Deere 544G a dependable choice for heavy-duty loading tasks.

Bucket
Breakout Force	20,342 lbs (9,227 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	12 ft (4 m)
Hook Height at Max Lift - extended	22 ft (7 m)
Length w/ Bucket on Ground	23 ft (7 m)
Length with out Forks on Ground	25 ft (8 m)
Max Lift Height	11 ft (3 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	359 cu in (5,883 cu cm)
Engine Model	6059T
Gross Power	125 hp (93 kw)
Max Torque	388 lbs ft (526 nm)
Net Power	120 hp (89 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	46 gpm (175 lpm)
Pump Type	Gear type
Raise Time	6 seconds
Relief Valve Setting	2,750 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Capacity	5 gal (19 l)
Front Diff Fluid Capacity	5 gal (19 l)
Fuel Capacity	58 gal (218 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Operating Voltage	12 volts
Operating Weight	24,092 lbs (10,928 kg)
Rear Axle Oscillation	22 degrees
Rear Diff Fluid Capacity	5 gal (19 l)
Static Tipping Load - Bucket	18,453 lbs (8,370 kg)
Static Tipping Load - Forks	13,665 lbs (6,198 kg)
Static Tipping Load - Material Handler	8,945 lbs (4,057 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	3 gal (10 l)
Turning Radius	16 ft (5 m)
Transmission
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	17 mph (27 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power shift
