Equipment ↠ John Deere ↠ Wheel Loaders ↠ 1998 John Deere 544H

1998 John Deere 544H For Sale in Chehalis, Wa

Name: 1998 John Deere 544H
Brand: John Deere
SKU: 87506173
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

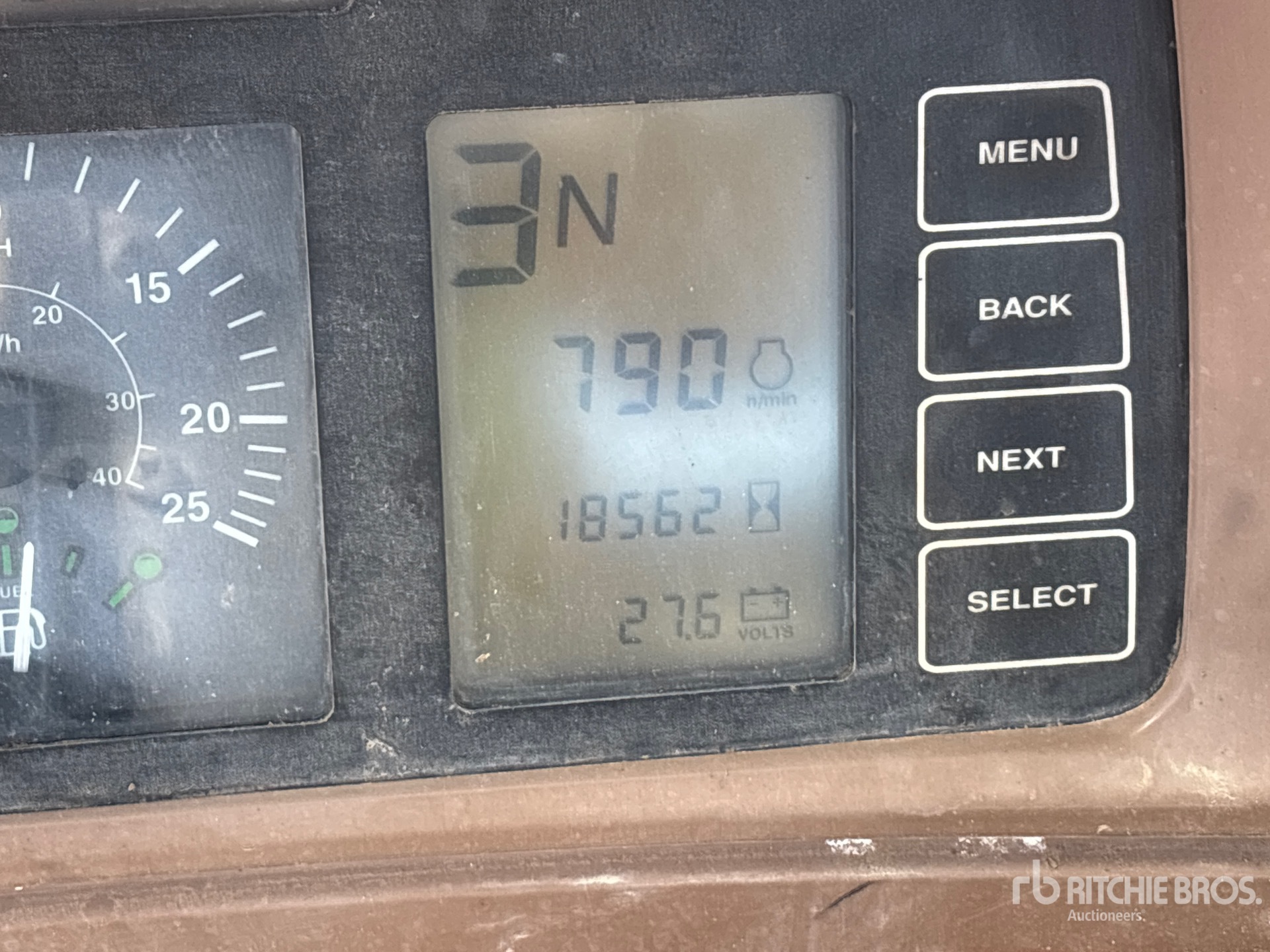

Hours:	18562

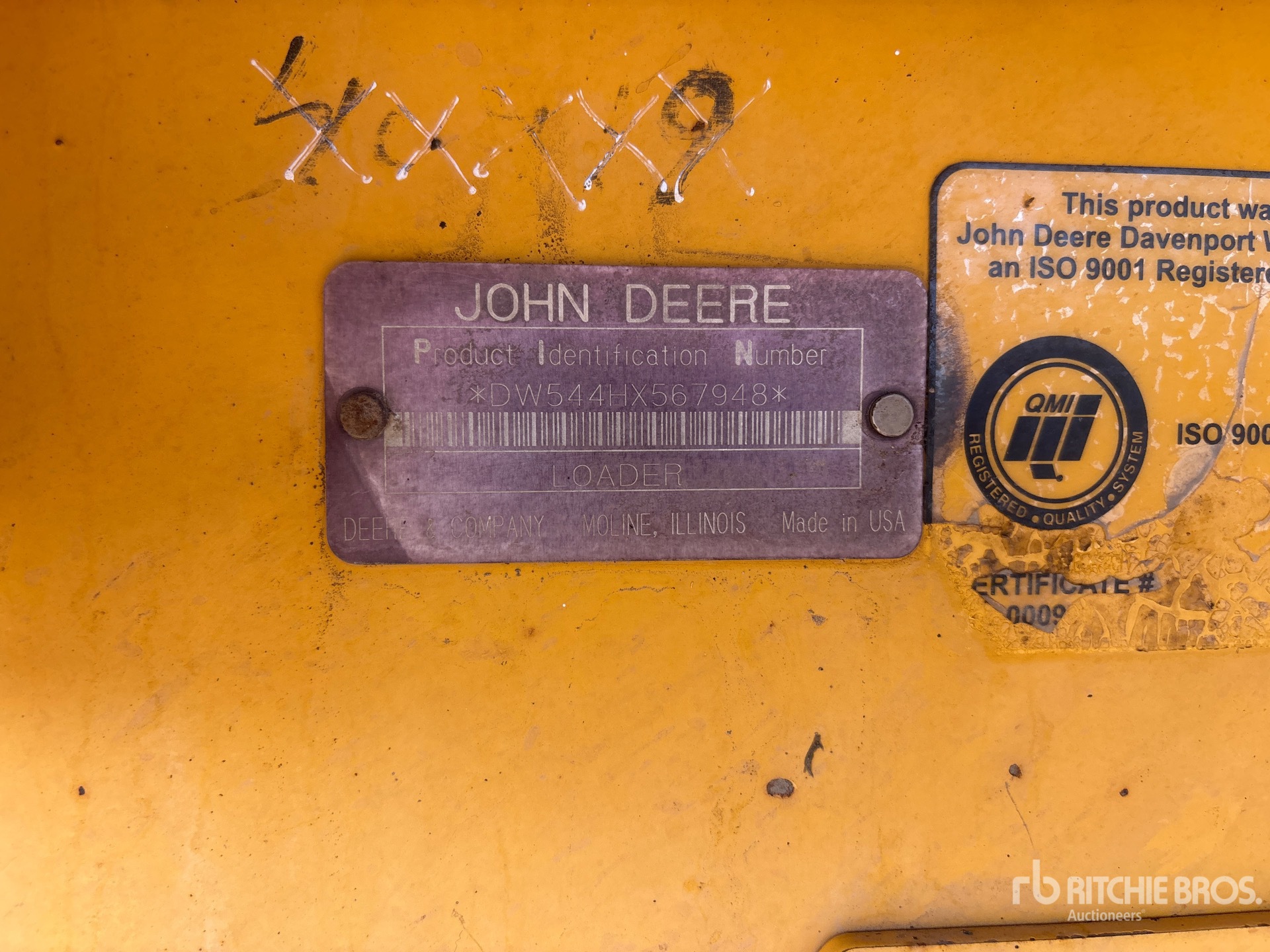

Serial Number:	DW544HX567948
Machine Location:	CHEHALIS, WA

Description:

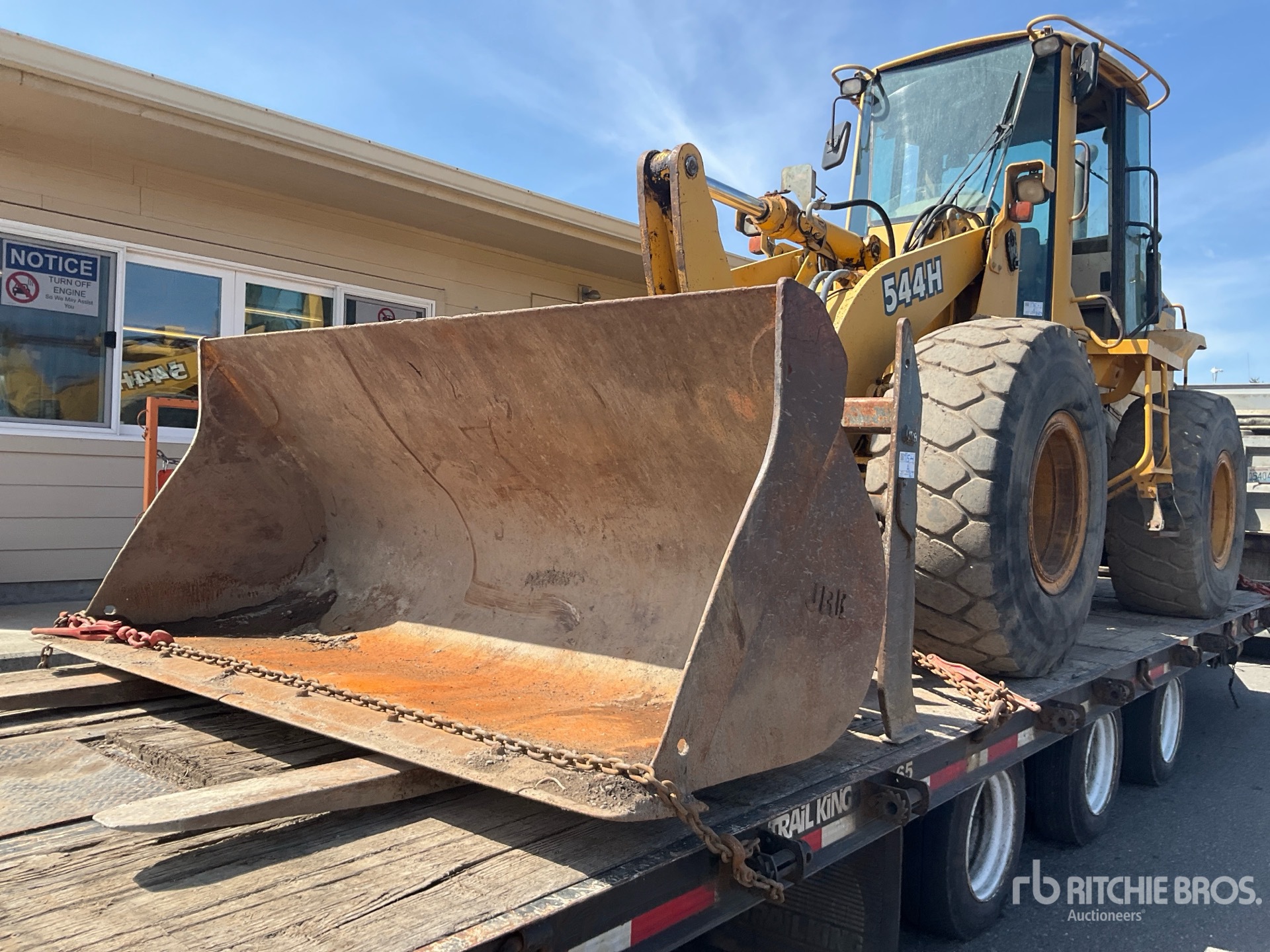

Located in Lane 7 Spot 27, Enclosed Cab, Hydraulic Coupler, 98 in Bucket, 20.5R25 Tires Closing Time: 2026-05-07 09:27:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 544H is a versatile wheel loader designed for construction, agriculture, and material handling applications. Featuring a robust engine and advanced hydraulics, the 544H delivers reliable performance and efficient fuel consumption. Its durable frame and heavy-duty axles provide stability and strength for demanding tasks. The operator cab offers enhanced visibility, ergonomic controls, and comfort for extended use. Equipped with a quick coupler system, the John Deere 544H allows fast attachment changes, increasing productivity. This wheel loader model supports various bucket sizes and attachments, making it suitable for loading, lifting, and transporting materials in diverse work environments.

Bucket
Breakout Force	22,487 lbs (10,200 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	13 ft (4 m)
Hook Height at Max Lift - standard	19 ft (6 m)
Length w/ Bucket on Ground	24 ft (7 m)
Length with out Forks on Ground	19 ft (6 m)
Length with Bucket on Ground	24 ft (7 m)
Max Lift Height	12 ft (4 m)
Reach at Max Height and Dump	3 ft (1 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068T
Max Torque	440 lbs ft (597 nm)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	41 gpm (155 lpm)
Pump Type	Piston Pump
Raise Time	6 seconds
Relief Valve Setting	3,600 psi
Operating Specifications
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	5 gal (18 l)
Engine Oil Fluid Capacity	5 gal (18 l)
Front Axle/Diff Fluid Capacity	5 gal (19 l)
Front Diff Fluid Capacity	5 gal (19 l)
Fuel Capacity	65 gal (246 l)
Hydraulic System Fluid Capacity	28 gal (106 l)
Operating Voltage	24 volts
Operating Weight	25,873 lbs (11,736 kg)
Rear Axle Oscillation	28 degrees
Rear Axle/Diff Fluid Capacity	5 gal (19 l)
Rear Diff Fluid Capacity	5 gal (19 l)
Static Tipping Load - Bucket	20,106 lbs (9,120 kg)
Static Tipping Load - Forks	12,498 lbs (5,669 kg)
Static Tipping Load - Material Handler	9,389 lbs (4,259 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	5 gal (20 l)
Turning Radius	16 ft (5 m)
Transmission
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	16 mph (25 kph)
Max Speed Forward	25 mph (40 kph)
Max Speed Reverse	16 mph (25 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
