Equipment ↠ John Deere ↠ Wheel Loaders ↠ 2002 John Deere 624H

2002 John Deere 624H For Sale in Toronto, On

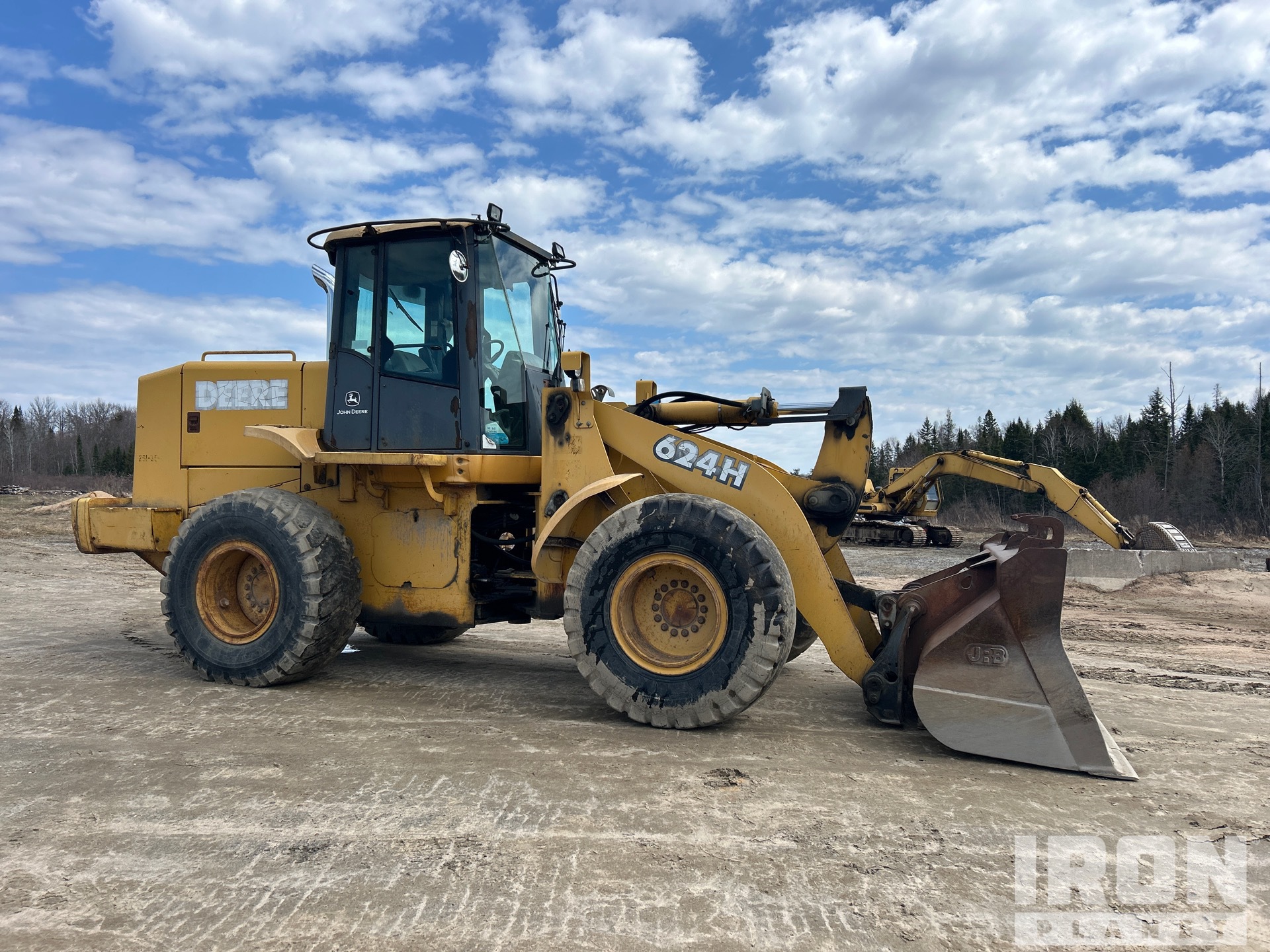

Name: 2002 John Deere 624H
Brand: John Deere
SKU: 86552560
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

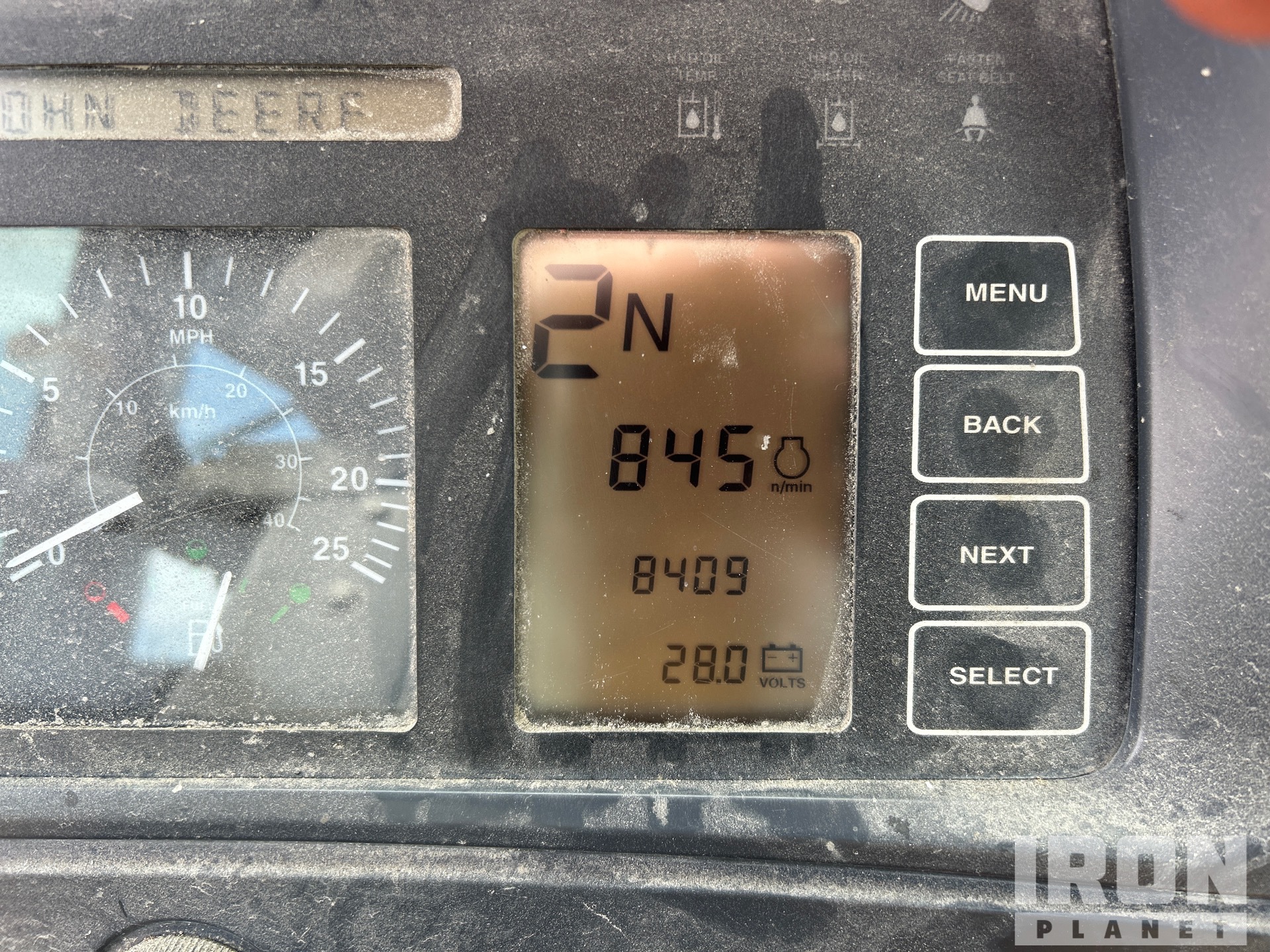

Hours:	8409

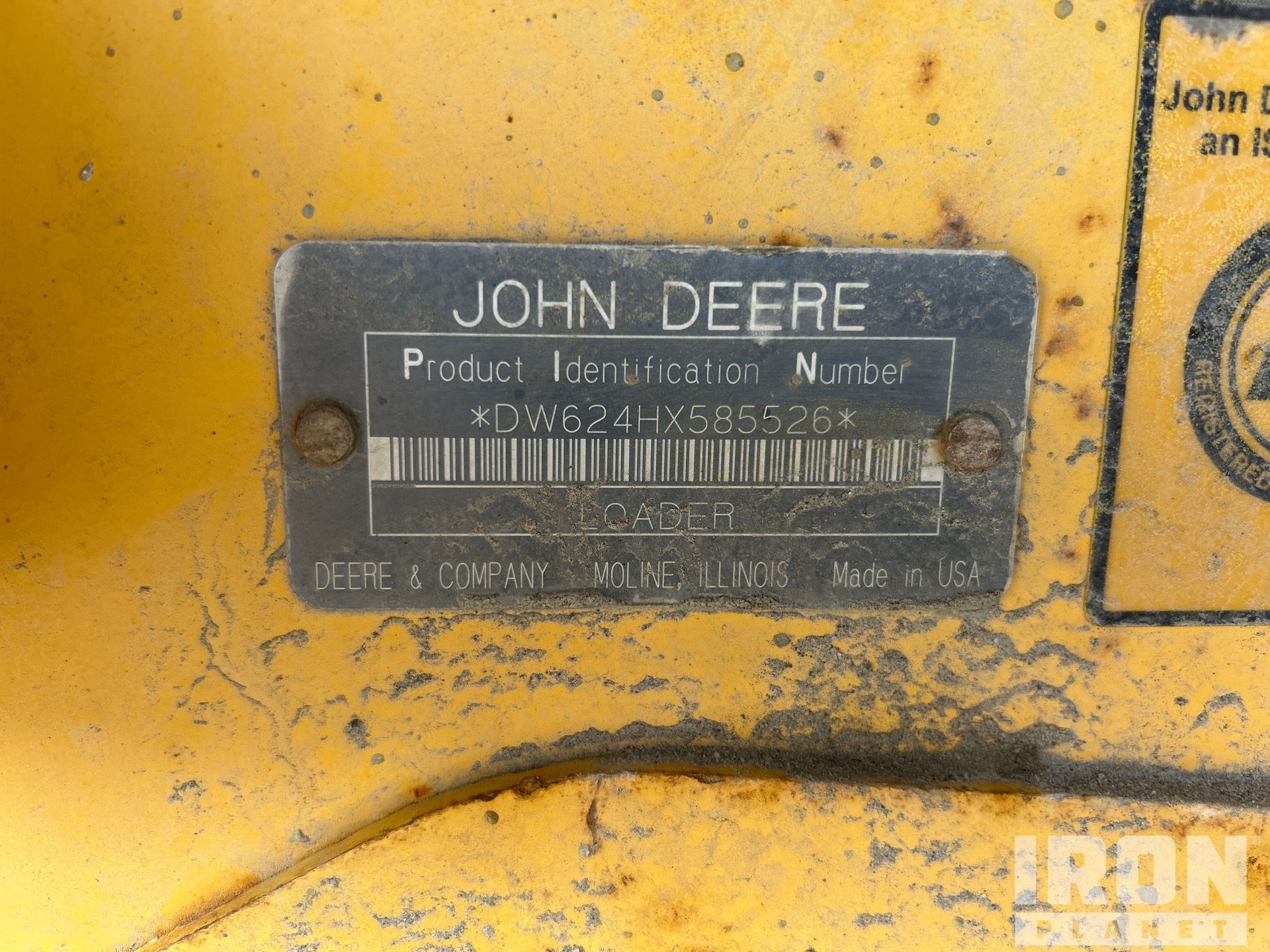

Serial Number:	DW624HX585526
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Millennium 5 On-Board Scale w/Printer, 2002 US EPA Label, Manual Quick Coupler, 91 in Bucket, 20.5R25 Tires - Viewing Appointments call: Dan Brooks 705-492-1106 or Tony Brooks 705-493-2823, Closing Time: 2026-05-20 08:58:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 624H is a versatile wheel loader designed for heavy-duty material handling and construction tasks. Featuring a powerful engine and advanced hydraulic system, the 624H delivers efficient performance and precise control. Its robust frame and durable components ensure reliability in demanding environments. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. Commonly used in construction, agriculture, and industrial applications, the John Deere 624H wheel loader excels in loading, lifting, and transporting materials such as soil, gravel, and debris. This model combines strength, efficiency, and operator-friendly features for a wide range of heavy equipment needs.

Bucket
Breakout Force	27,711 lbs (12,570 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	13 ft (4 m)
Hook Reach at Max Lift - standard	7 ft (2 m)
Length w/ Bucket on Ground	25 ft (8 m)
Length with out Forks on Ground	26 ft (8 m)
Max Lift Height	12 ft (4 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharger with Aftercooler
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068H
Gross Power	160 hp (119 kw)
Max Torque	575 lbs ft (780 nm)
Net Power	172 hp (128 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	55 gpm (208 lpm)
Pump Type	Piston Pump
Raise Time	6 seconds
Relief Valve Setting	3,600 psi
Operating Specifications
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	5 gal (20 l)
Front Diff Fluid Capacity	7 gal (28 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	31 gal (117 l)
Operating Voltage	24 volts
Operating Weight	29,894 lbs (13,560 kg)
Rear Axle Oscillation	26 degrees
Rear Diff Fluid Capacity	5 gal (20 l)
Static Tipping Load - Bucket	23,647 lbs (10,726 kg)
Static Tipping Load - Forks	14,740 lbs (6,686 kg)
Static Tipping Load - Material Handler	11,292 lbs (5,122 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	7 gal (27 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed Forward	25 mph (39 kph)
Max Speed Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power Shift
