2003 John Deere 644H For Sale in Chicago, Il

Name: 2003 John Deere 644H
Brand: John Deere
SKU: 87412463
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

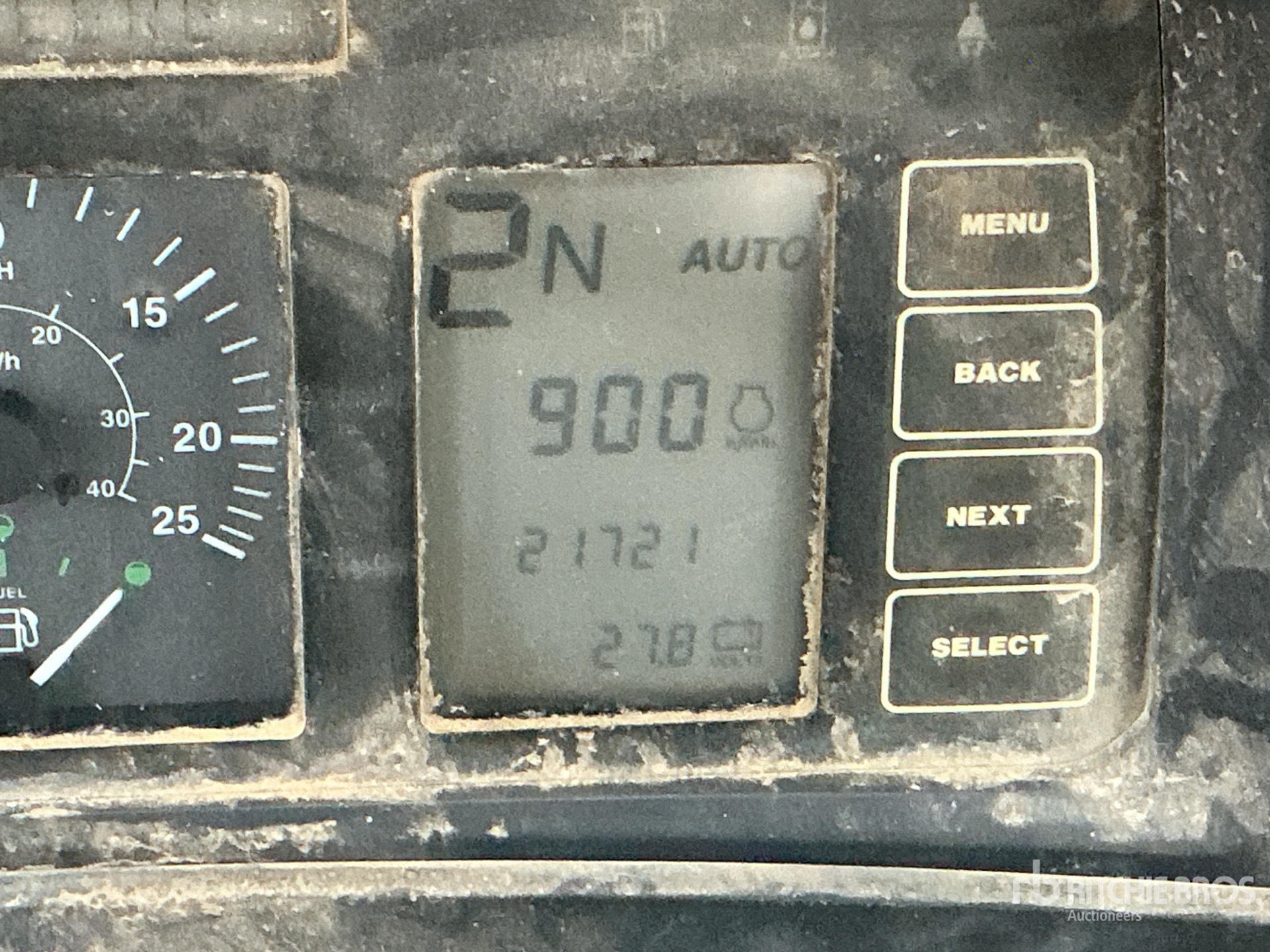

Hours:	21721

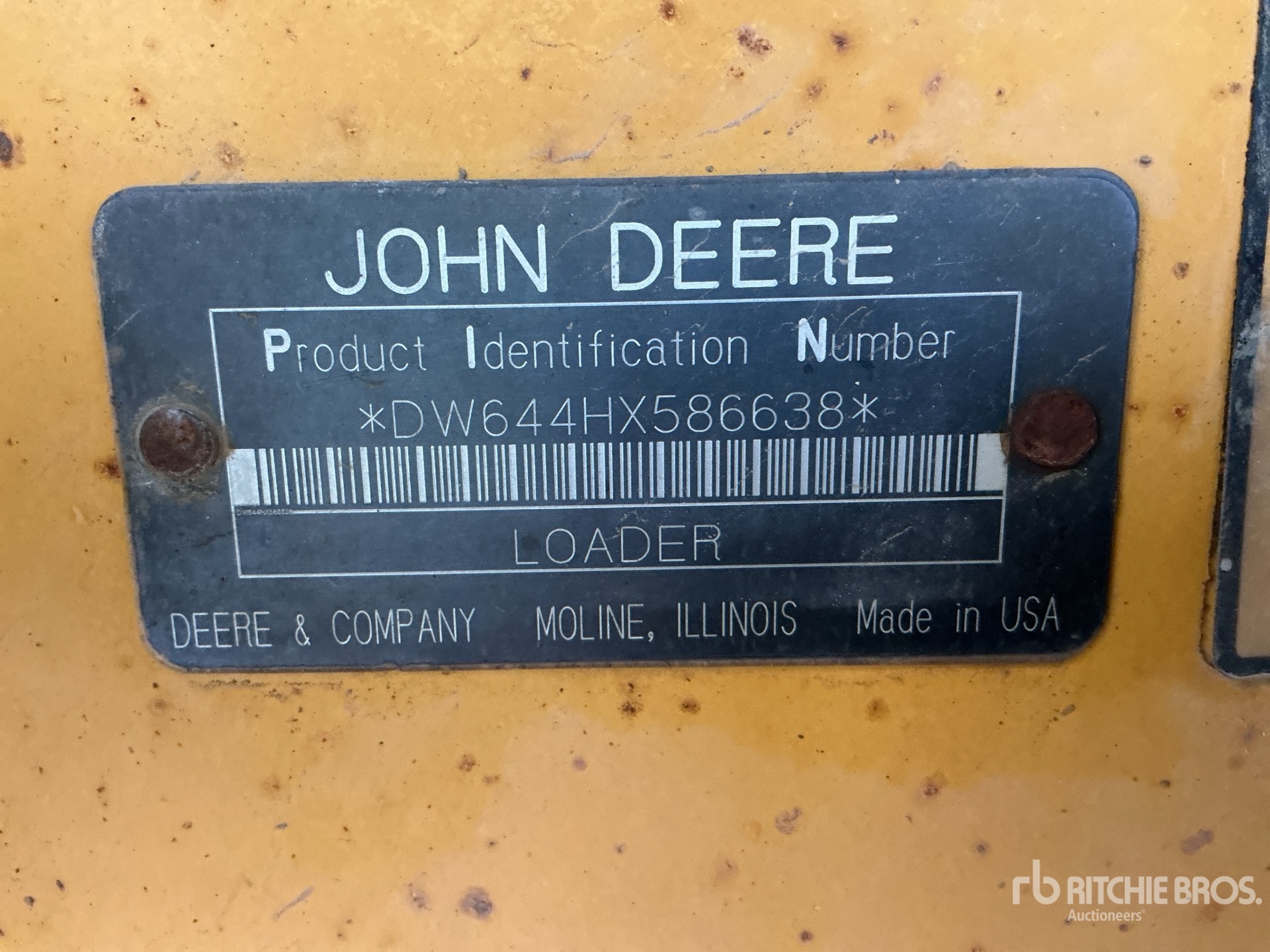

Serial Number:	DW644HX586638
Machine Location:	CHICAGO, IL

Description:

Located in Lane 25 Spot 24, Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Autoshift, Traction Control, Manual Quick Coupler, 4 cyd 114 in Bucket, Forks, 23.5R25 Tires Closing Time: 2026-05-12 09:42:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 644H is a wheel loader designed for material handling, stockpiling, loading, and general construction work. It is part of John Deere's H-series loader lineup and is commonly used in aggregate yards, roadbuilding, site preparation, and industrial applications. The 644H features a front-mounted bucket, articulated steering, and a diesel powertrain suited to repetitive loading cycles. Typical configurations include general-purpose, light material, and heavy-duty buckets, along with optional attachments for specialized tasks. Known for its balance of lift capacity, breakout force, and maneuverability, the 644H remains a recognized mid-size wheel loader in the used equipment market.

Bucket
Breakout Force	28,976 lbs (13,143 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	5 ft (2 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	14 ft (4 m)
Length w/ Bucket on Ground	27 ft (8 m)
Length with out Forks on Ground	28 ft (9 m)
Max Lift Height	13 ft (4 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	496 cu in (8,128 cu cm)
Engine Model	6081H
Gross Power	180 hp (134 kw)
Max Torque	755 lbs ft (1,024 nm)
Net Power	221 hp (165 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Torque Rise	75%
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	68 gpm (257 lpm)
Pump Type	Piston Pump
Raise Time	6 seconds
Relief Valve Setting	3,600 psi
Operating Specifications
Alternator Supplied Amperage	55 amps
Fuel Capacity	100 gal (379 l)
Operating Voltage	24 volts
Operating Weight	38,876 lbs (17,634 kg)
Rear Axle Oscillation	26 degrees
Static Tipping Load - Bucket	31,210 lbs (14,157 kg)
Static Tipping Load - Forks	22,782 lbs (10,334 kg)
Tire Size	23.5-25
Turning Radius	18 ft (6 m)
Transmission
Max Speed Forward	22 mph (35 kph)
Max Speed Reverse	16 mph (25 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power Shift
