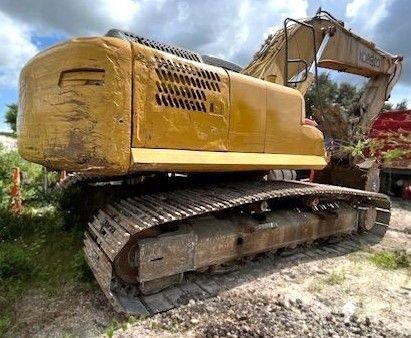

2006 Kobelco SK290 LC For Sale in Miami, FL

Name: 2006 Kobelco SK290 LC
Brand: Kobelco
SKU: 82744459
Price: 16500 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $16,500.00 USD

Apply for Financing

Case Power & Equipment

Case Power & Equipment Dealer Info

Case Power & Equipment Website

Click here to email Case Power & Equipment.

Click for Phone Number

Machine Info:

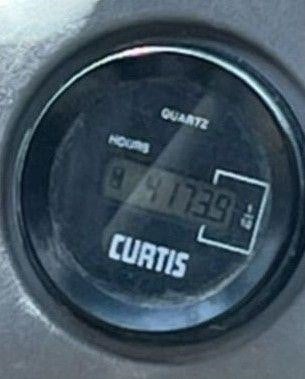

Hours:	4175

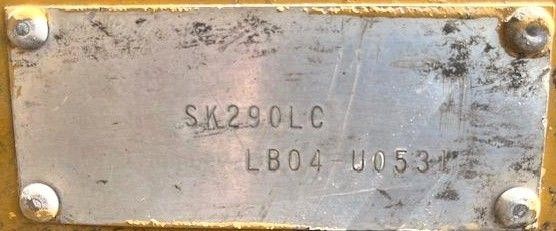

Stock Number:	LB04-U0531
Machine Location:	MIAMI, FL
More Information:	https://casepowered.com/inventory/excavators+-+crawler/2006-kobelco-sk290+lc-miami-fl-6915f2b58f7e5be1a0035fac/

Description:

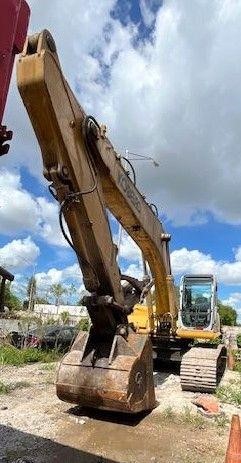

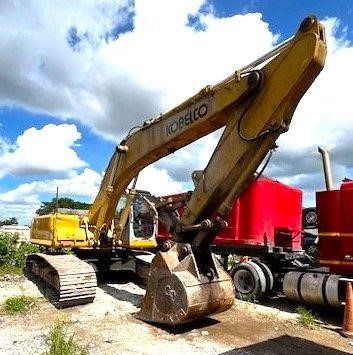

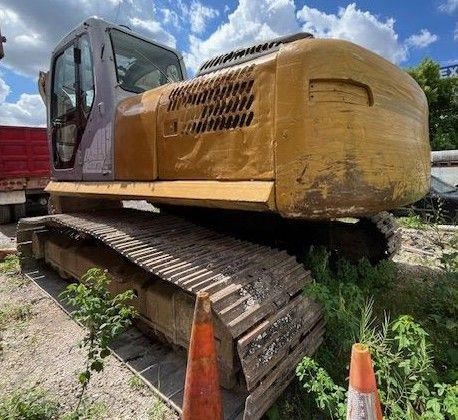

2006 KOBELCO, SK290 LC Excavators - Crawler, Operating weight approximately 66,350 lbs, 190 net horse power, Fuel capacity 111 gallons

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	37 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	13 ft (4 m)
Shipping Length of Unit	33 ft (10 m)

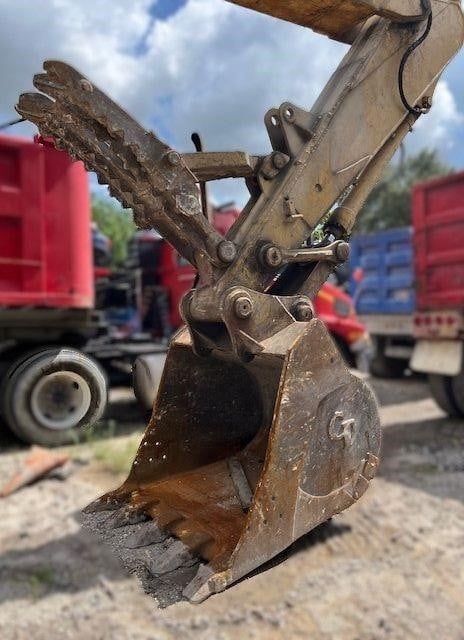

Bucket
Maximum Bucket Capacity	2 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Displacement	460 cu in (7,538 cu cm)
Engine Model	6D16-TLEG
Net Power	190 hp (142 kw)
Power Measured @	2,100 rpm
Operating Specifications
Cooling System Fluid Capacity	7 gal (28 l)
Engine Oil Capacity	9 gal (32 l)
Fuel Capacity	111 gal (420 l)
Hydraulic Pump Flow Capacity	134 gpm (505 lpm)
Hydraulic System Fluid Capacity	93 gal (351 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Weight	66,350 lbs (30,096 kg)
Swing Mechanism
Swing Speed	10 rpm

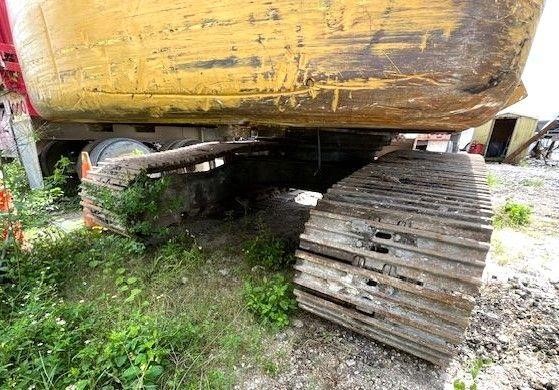

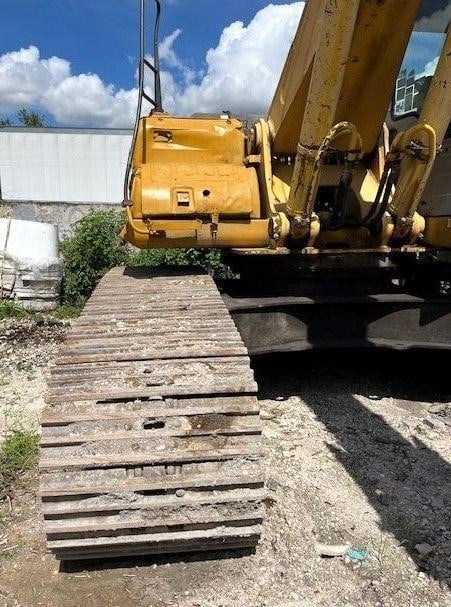

Undercarriage
Drawbar Pull	57,800 lbs (26,218 kg)
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Shoe Size	32 in (80 cm)
Track Gauge	28 ft (9 m)
