Boom/Stick Excavator Option 1
Max Cutting Height	35 ft (11 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	35 ft (11 m)
Max Digging Depth	28 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	12 ft (4 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Displacement	469 cu in (7,686 cu cm)
Engine Model	JO8E-TM
Net Power	264 hp (197 kw)
Power Measured @	2,100 rpm
Operating Specifications
Cooling System Fluid Capacity	8 gal (31 l)
Engine Oil Capacity	8 gal (29 l)
Fuel Capacity	153 gal (580 l)
Hydraulic Pump Flow Capacity	158 gpm (598 lpm)
Hydraulic System Fluid Capacity	93 gal (353 l)
Hydraulic System Relief Valve Pressure	4,210 psi
Operating Weight	79,587 lbs (36,100 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	72,389 lbs (32,835 kg)
Ground Pressure	7 psi
Max Travel Speed	4 mph (6 kph)
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)

Dealer Contact Info:

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Email Ritchie Bros. Auctioneers.

Contact:

Click for Phone Number

Our Main Office

Construction Equipment Guide
470 Maryland Drive
Fort Washington, PA 19034
800-523-2200

About Us

Construction Equipment Guide covers the nation with its four regional newspapers, offering construction and industry news and information along with new and used construction equipment for sale from dealers in your area. Now we extend those services and information to the internet. Making it as easy as possible to find the news and equipment that you need and want.

Contents Copyrighted 2026, by Construction Equipment Guide, which is a Registered Trademark, registered in the U.S. Patent Office. Registration number 0957323. All rights reserved, nothing may be reprinted or reproduced (including framing) in whole or part without written permission from the publisher. All editorial material, photographs, drawings, letters, and other material will be treated as unconditionally assigned for publication and copyright purposes and are subject to Construction Equipment Guide’s unrestricted right to edit and comment editorially. Contributor articles do not necessarily reflect the policy or opinions of this publication.

Read our privacy policy here.
Mastodon

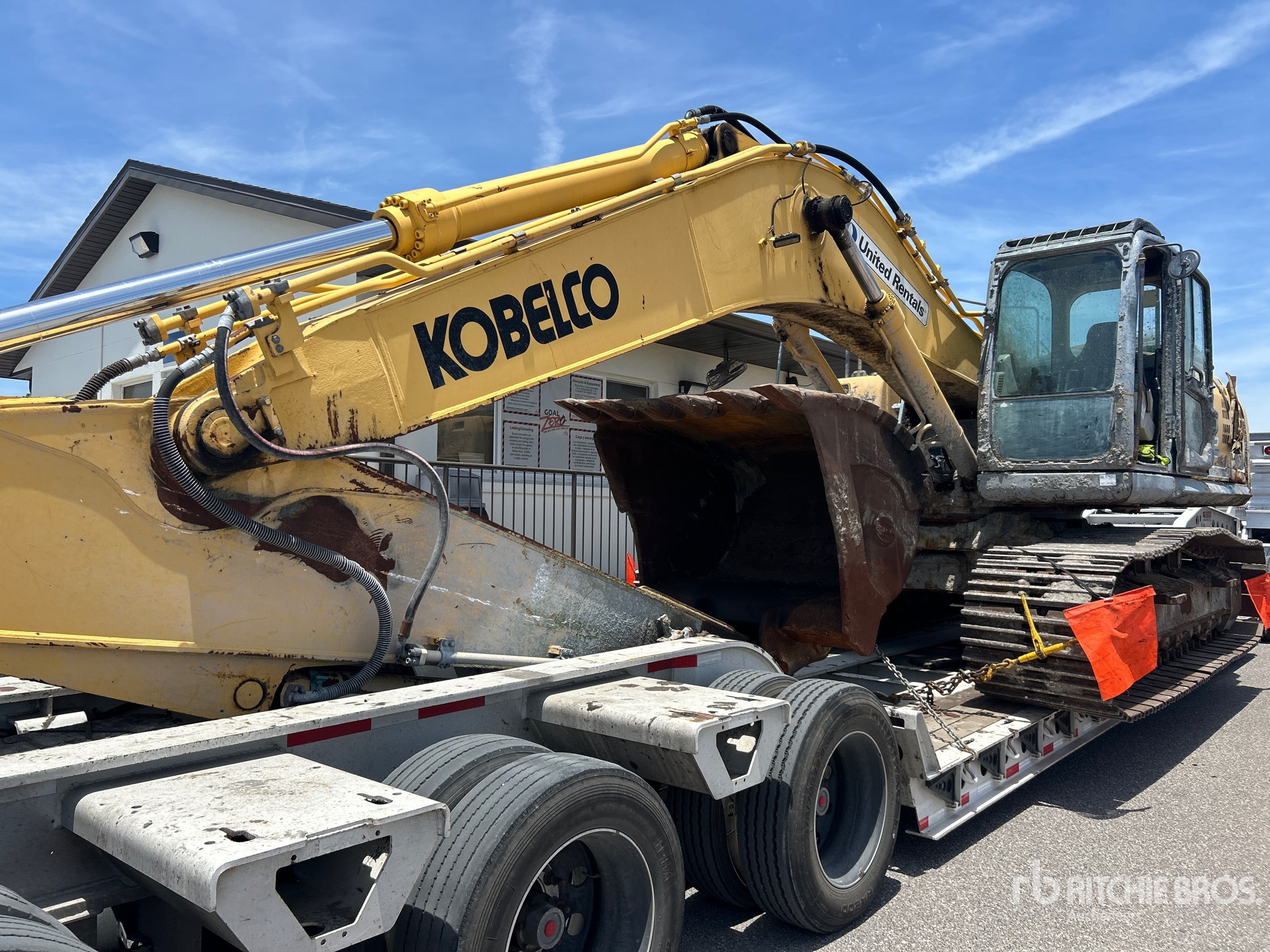

Kobelco SK350 LC For Sale in Orlando, Fl
