Equipment ↠ Kobelco ↠ Excavators ↠ 2014 Kobelco SK500LC-9

2014 Kobelco SK500LC-9

Name: 2014 Kobelco SK500LC-9
Brand: Kobelco
SKU: 87129344
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	7978

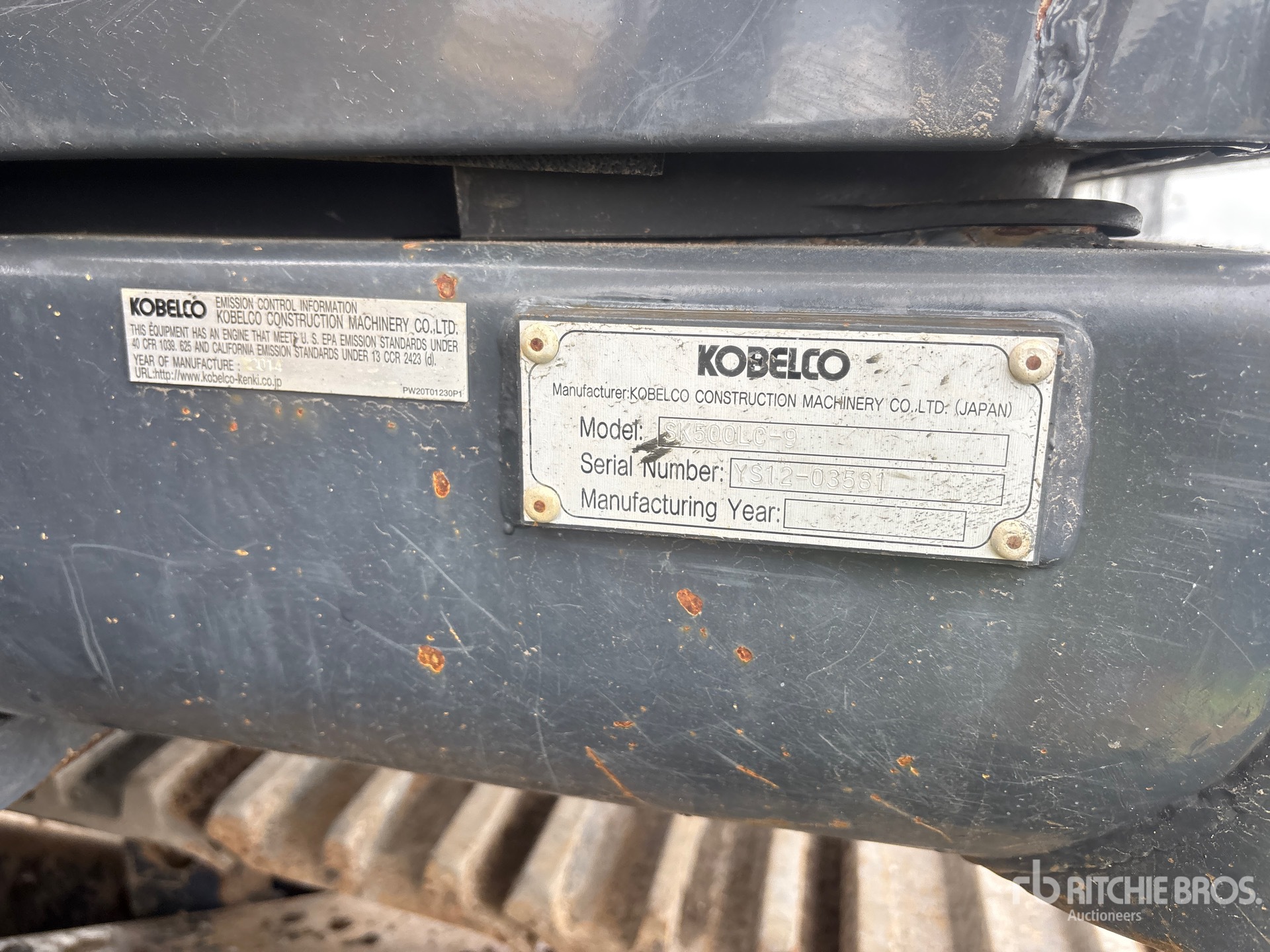

Serial Number:	YS1203581
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 3 Spot 2, Rear View Camera, 11 ft 6 in Stick, Auxiliary Hydraulic Plumbing, 35.5 in Track Shoes, Hydraulic Quick Coupler, 52 in Digging Bucket, Hydraulic Thumb Closing Time: 2026-05-07 09:51:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Arm Crowd Force - SAE	48,109 lbs (21,822 kg)
Arm Crowd Force-ISO	50,132 lbs (22,740 kg)
Bucket Digging Force	52,381 lbs (23,759 kg)
Bucket Digging Force - SAE	59,799 lbs (27,124 kg)
Max Cutting Height	37 ft (11 m)
Max Digging Depth	24 ft (7 m)
Max Digging Reach	39 ft (12 m)
Max Dumping Clearance	25 ft (8 m)
Max Reach Along Ground	37 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Min Dumping Clearance	11 ft (3 m)
Minimum swing radius	208 in (527 cm)
Boom/Stick Excavator Option 2
Arm Crowd Force-ISO	45,636 lbs (20,700 kg)
Arm Crowd Force-SAE	43,838 lbs (19,885 kg)
Bucket Digging Force - ISO	60,024 lbs (27,226 kg)
Bucket Digging Force - SAE	52,605 lbs (23,861 kg)
Horizontal Digging Stroke - Ground	20 ft (6 m)
Max Cutting Height	35 ft (11 m)
Max Digging Depth	26 ft (8 m)
Max Digging Reach	40 ft (12 m)
Max Dumping Clearance	24 ft (7 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Min Dumping Clearance	9 ft (3 m)
Minimum swing radius	202 in (514 cm)
Boom/Stick Excavator Option 3
Arm Crowd Force-ISO	40,691 lbs (18,457 kg)
Arm Crowd Force-SAE	39,566 lbs (17,947 kg)
Bucket Digging Force - ISO	59,350 lbs (26,921 kg)
Bucket Digging Force - SAE	52,605 lbs (23,861 kg)
Horizontal Digging Stroke - Ground	23 ft (7 m)
Max Cutting Height	37 ft (11 m)
Max Digging Depth	28 ft (8 m)
Max Dumping Clearance	26 ft (8 m)
Max Reach Along Ground	41 ft (12 m)
Max Vertical Wall Digging Depth	25 ft (8 m)
Min Dumping Clearance	7 ft (2 m)
Minimum swing radius	205 in (520 cm)
Boom/Stick Excavator Option 4
Max Cutting Height	39 ft (12 m)
Max Digging Depth	44 ft (14 m)
Max Digging Reach	50 ft (15 m)
Max Reach Along Ground	44 ft (13 m)
Max Vertical Wall Dig Depth	28 ft (8 m)
Minimum swing radius	209 in (530 cm)
Dimensions
Gradeability	70%
Ground Clearance	20 ft (6 m)
Height - Top of Cab	11 ft (3 m)
Overall Length	40 in (101 cm)
Overall width -Upper Structure	12 ft (4 m)
Tail Swing Radius	12 ft (4 m)
Engine
Bore	5 in (12 cm)
Displacement	642 cu in (10,521 cu cm)
Engine Type	Direct injection
Max Digging Reach	47 ft (14 m)
Net Power	345 hp (257 kw)
Power Measured @	1,850 rpm
Stroke	6 in (15 cm)
Hydraulic System
195.5	196 gpm (740 lpm)
Pump Type	Two variable displacement pumps and 1 gear pump
Operating Specifications
Cooling System Fluid Capacity	13 gal (48 l)
Engine Oil Capacity	11 gal (43 l)
Fuel Capacity	169 gal (640 l)
Hydraulic System Fluid Capacity	142 gal (538 l)
Hydraulic System Relief Valve Pressure	4,550 psi
Operating Weight	111,334 lbs (50,500 kg)
Swing Mechanism
Swing Speed	8 rpm
Undercarriage
Drawbar Pull	93,296 lbs (42,318 kg)
Ground Pressure	8 psi
Max Travel Speed	3 mph (5 kph)
Number of Shoes per Side	50
Track Gauge	9 ft (3 m)
