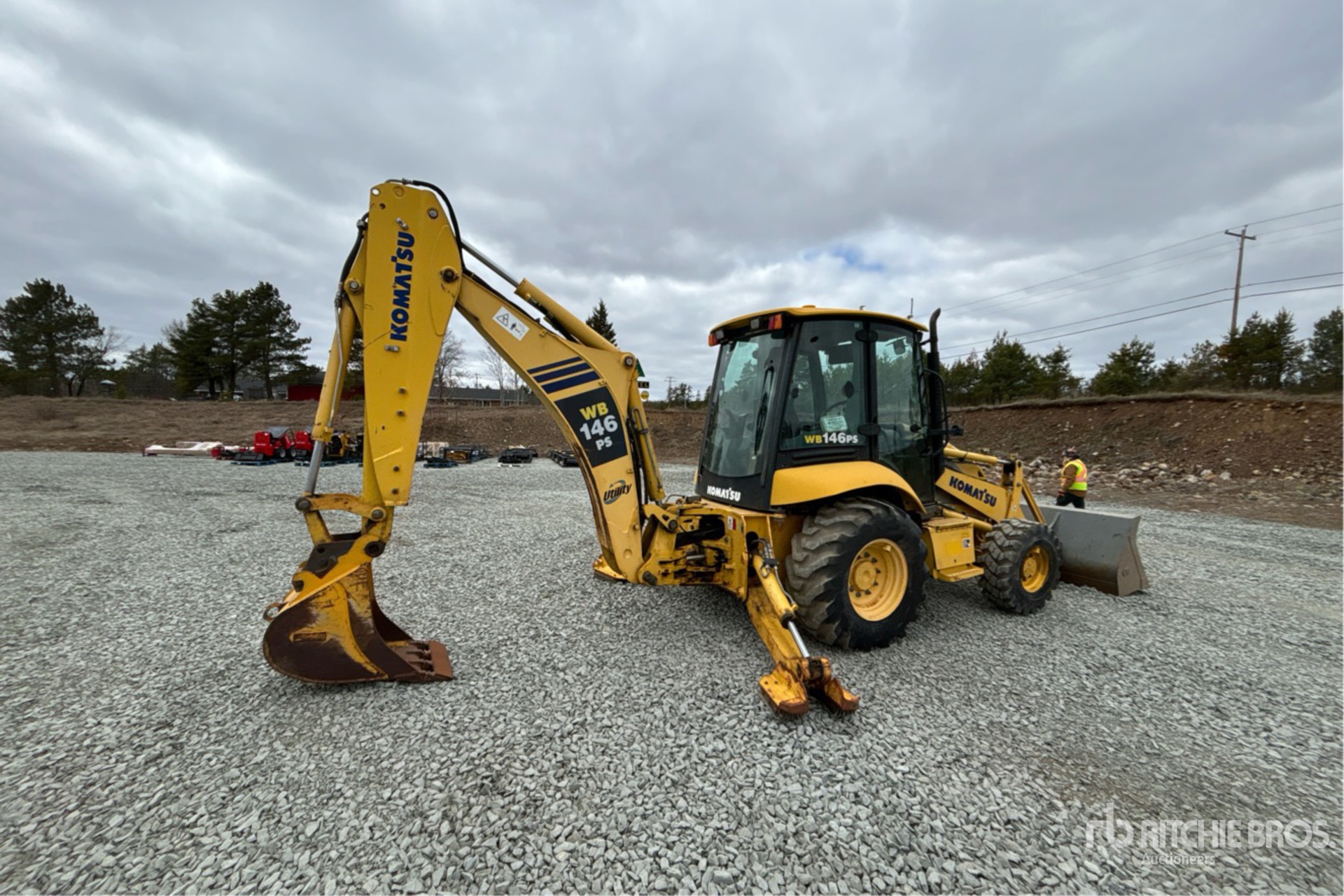

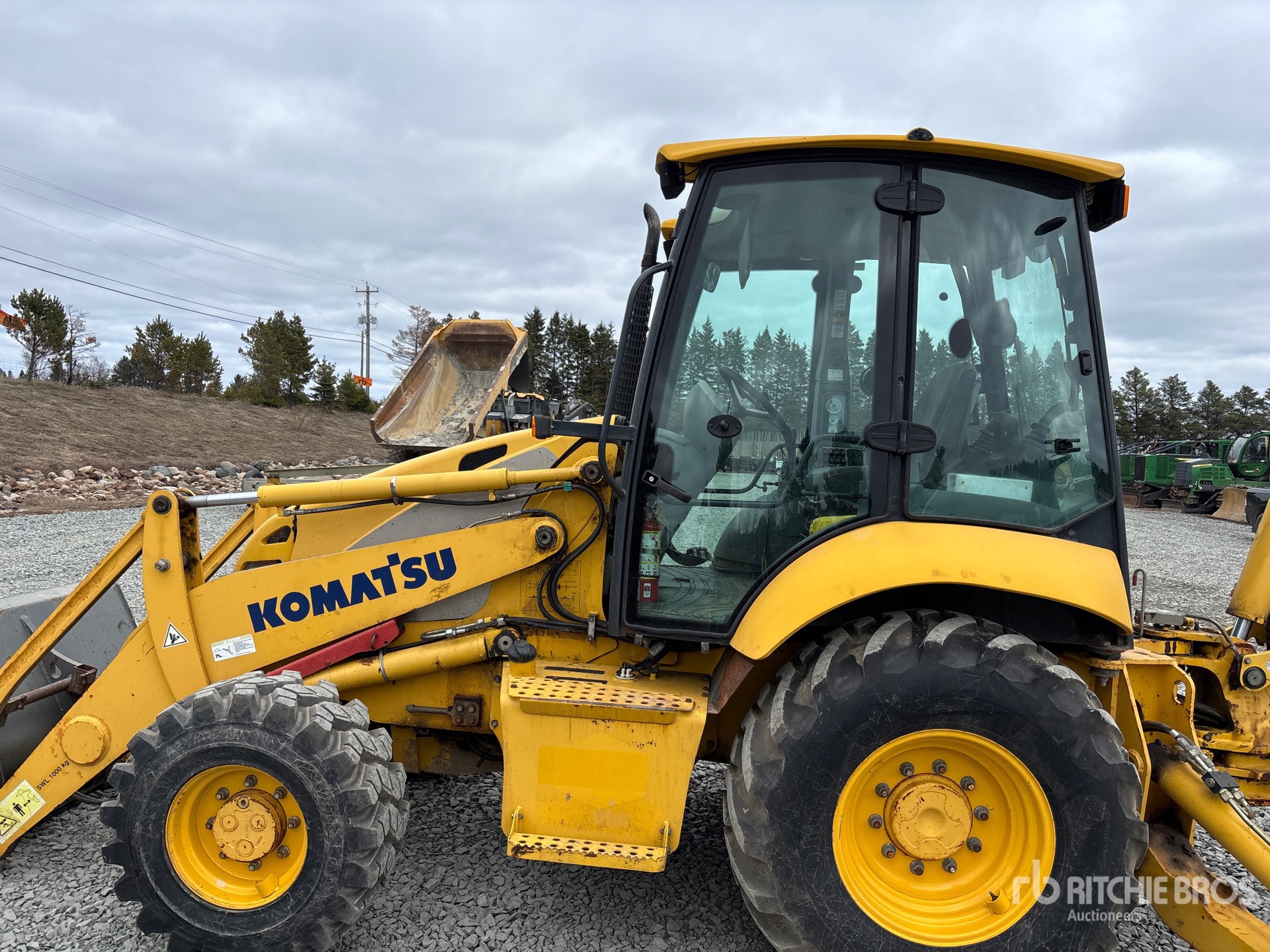

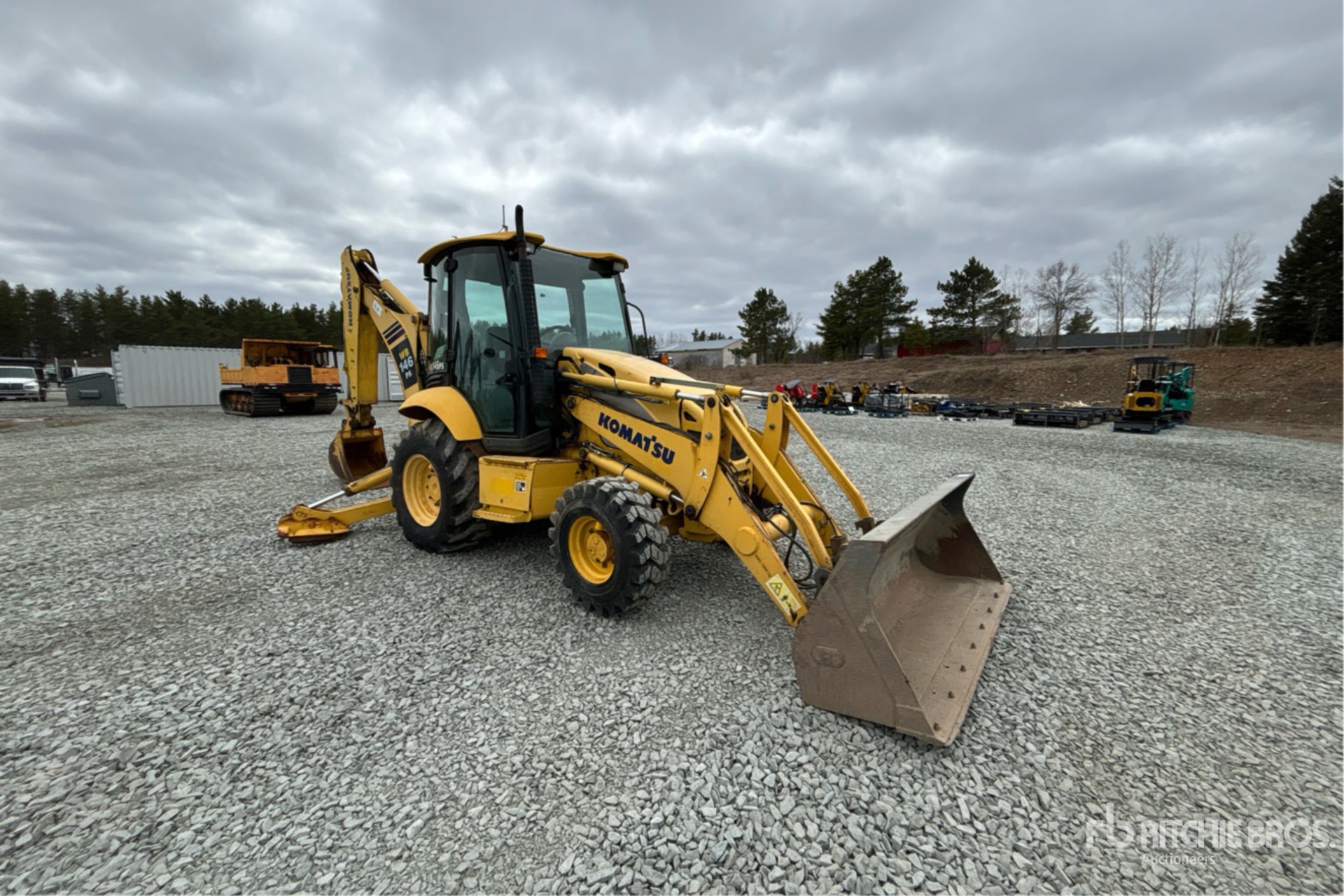

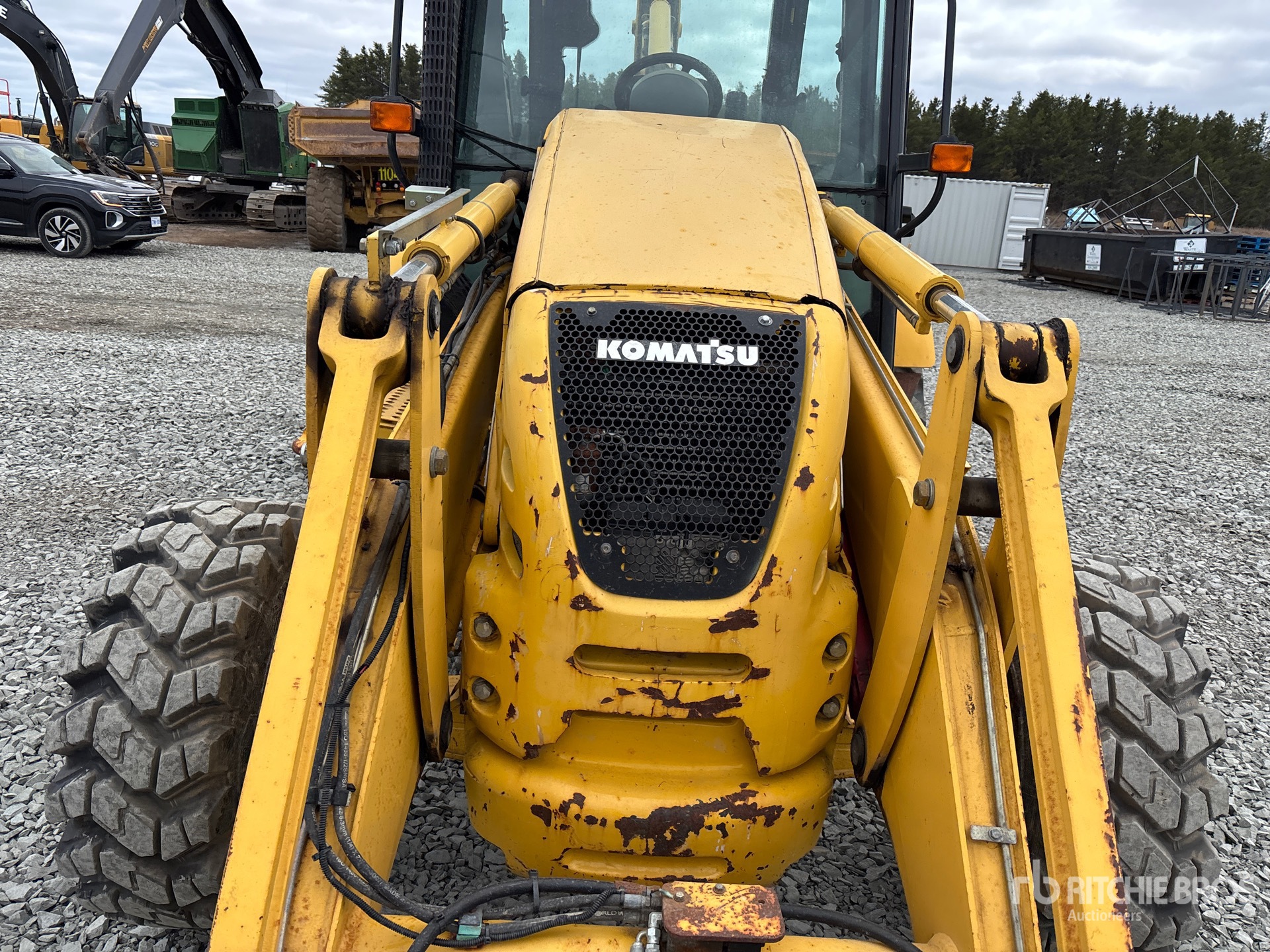

Komatsu WB146-5 For Sale in Toronto, On

Name: Komatsu WB146-5
Brand: Komatsu
SKU: 87612777
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

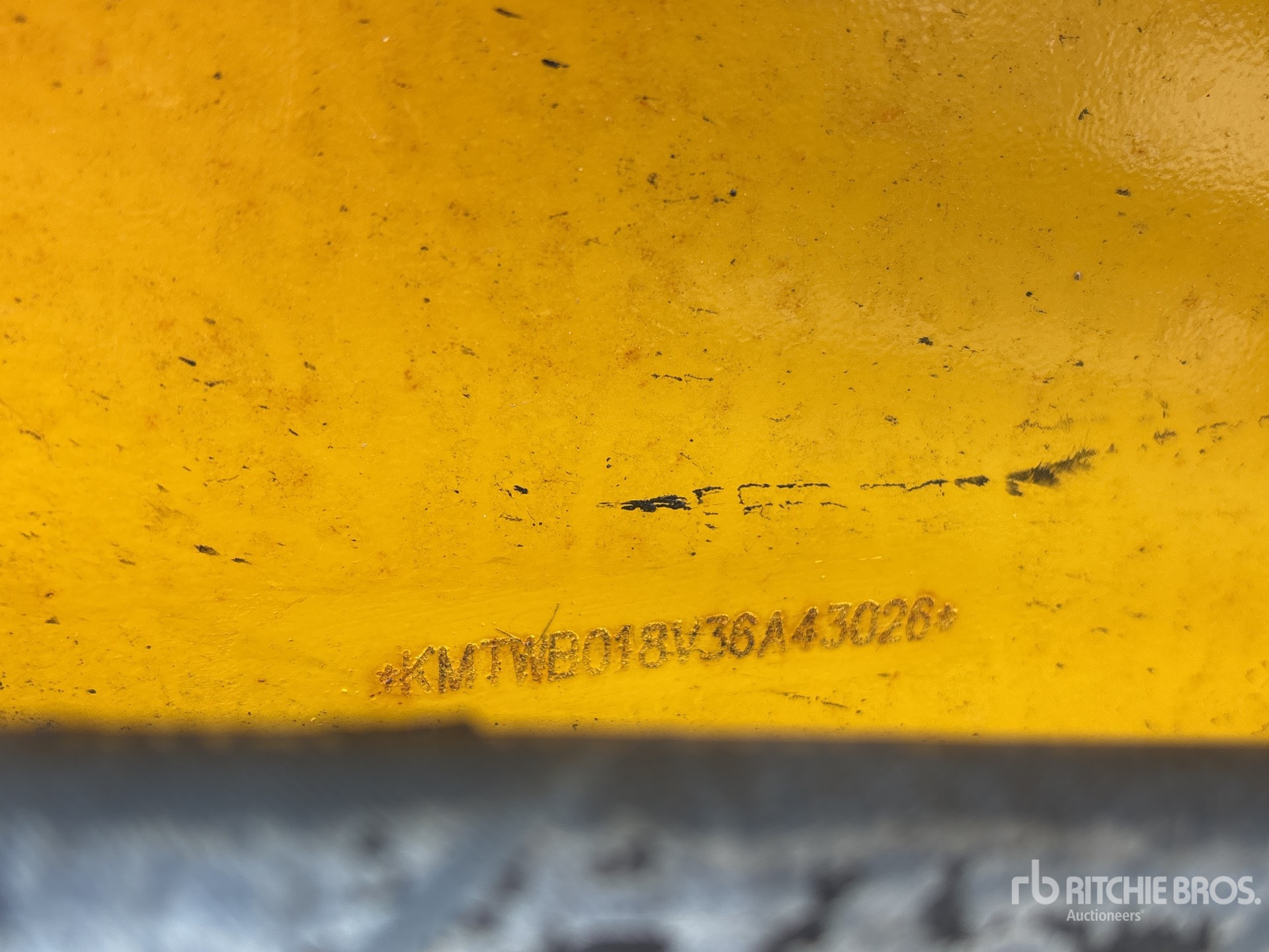

Serial Number:	Not Available
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Air Conditioner, Backhoe Pilot Controls, 2007 US EPA Label, Hydraulic Coupler, 91 in Loader Bucket, Extendable Stick, Quick Coupler, 24 in Backhoe Digging Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Backhoe
Dig Depth	15 ft (4 m)
Dig Depth - Extended	18 ft (6 m)
Load Height	12 ft (4 m)
Load Height - Extended	14 ft (4 m)
Reach From Swivel	19 ft (6 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height to Top of Suspended Cab	10 ft (3 m)
Transport Length	24 ft (7 m)
Transport Width	8 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	275 cu in (4,506 cu cm)
Engine Model	S4D102LE-2
Gross Power	93 hp (69 kw)
Net Max Torque	300 lbs ft (407 nm)
Net Power	89 hp (66 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,500 rpm
General Specifications
4TH GEAR FWD MPH (KMH) (Since 2010)	23.5 (37.8)
BACKHOE LOADING HEIGHT FT. (M) (Since 2009)	12.0 (3.68)
BREAKOUT FORCE LBS. (KG) (Since 2010)	13,224 (6,000)
DIGGING DEPTH FT. (M) (Since 2010)	14.5 (4.42)
LIFT CAPACITY LBS. (KG) (Since 2010)	8,598 (3,900)
LOADER BREAKOUT FORCE LBS. (KG) (Since 2009)	13,224 (6,000)
LOADER LIFT CAPACITY LBS. (KG) (Since 2009)	8,598 (3,900)
LOADER SAE HP (KW) (Since 2009)	88 (66)
LOADING HEIGHT FT. (M) (Since 2010)	12.0 (3.68)
MAX DIGGING DEPTH FT. (M) (Since 2009)	14.5 (4.42)
OPERATING WEIGHT LBS. (KG) (Since 2009)	16,240 (7,366)
SAE HP (KW) (Since 2010)	88 (66)
TRAVEL SPEED 4TH GEAR FWD MPH (KMH) (Since 2009)	23.5 (37.8)
WEIGHT LBS. (KG) (Since 2010)	16,240 (7,366)
Hydraulic System
Pump Flow Capacity	44 gpm (165 lpm)
Pump Type	variable displacement piston
Relief Valve Pressure	3,553 psi
Loader
Bucket Breakout Force	13,224 lbs (5,998 kg)
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	93 in (236 cm)
Clearance at Max Dump Height	9 ft (3 m)
Dig Depth	6 in (14 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	4 gal (14 l)
Front Axle Fluid Capacity	2 gal (7 l)
Fuel Capacity	40 gal (150 l)
Hydraulic System Fluid Capacity	26 gal (97 l)
Oil System Fluid Capacity	2 gal (9 l)
Operating Voltage	12 volts
Operating Weight 2wd	16,094 lbs (7,300 kg)
Operating Weight 4wd	16,094 lbs (7,300 kg)
Rear Axle Fluid Capacity	4 gal (15 l)
Tire Size Front - 2wd / 4wd	14 x 17.5 10ply R4
Transmission Fluid Capacity	5 gal (20 l)
Turning Radius	11 ft (3 m)
Tires
Rear Tires Size	19.5 x 24 10ply R4
Transmission
Max Speed	24 mph (38 kph)
Max Speed - Reverse	24 mph (38 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	synchronized gearbox powershift shuttle
