Equipment ↠ Komatsu ↠ Motor Graders ↠ 2009 Komatsu GD825A-2

2009 Komatsu GD825A-2 For Sale in Dubai, Are

Name: 2009 Komatsu GD825A-2
Brand: Komatsu
SKU: 86446031
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

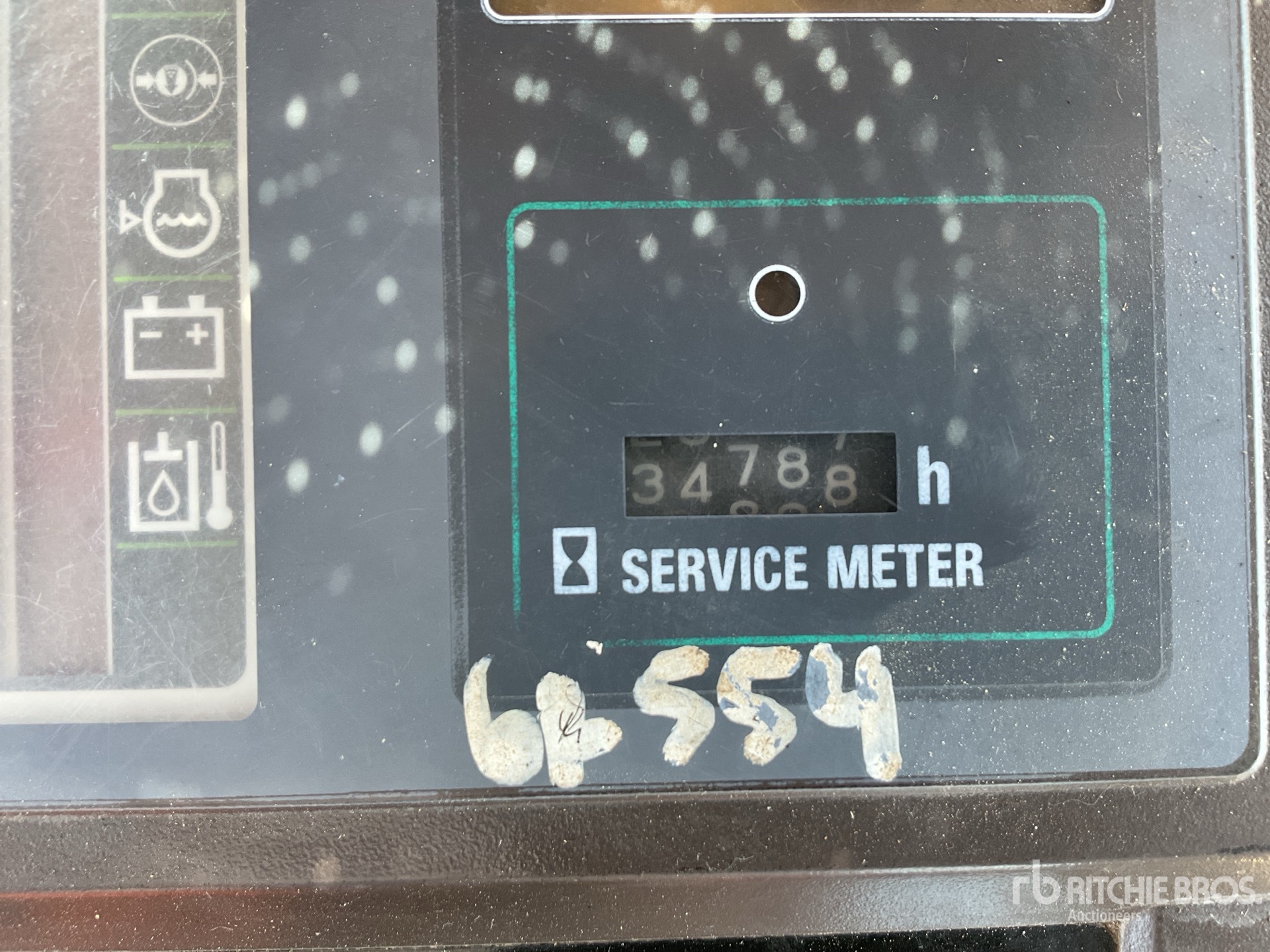

Hours:	34788

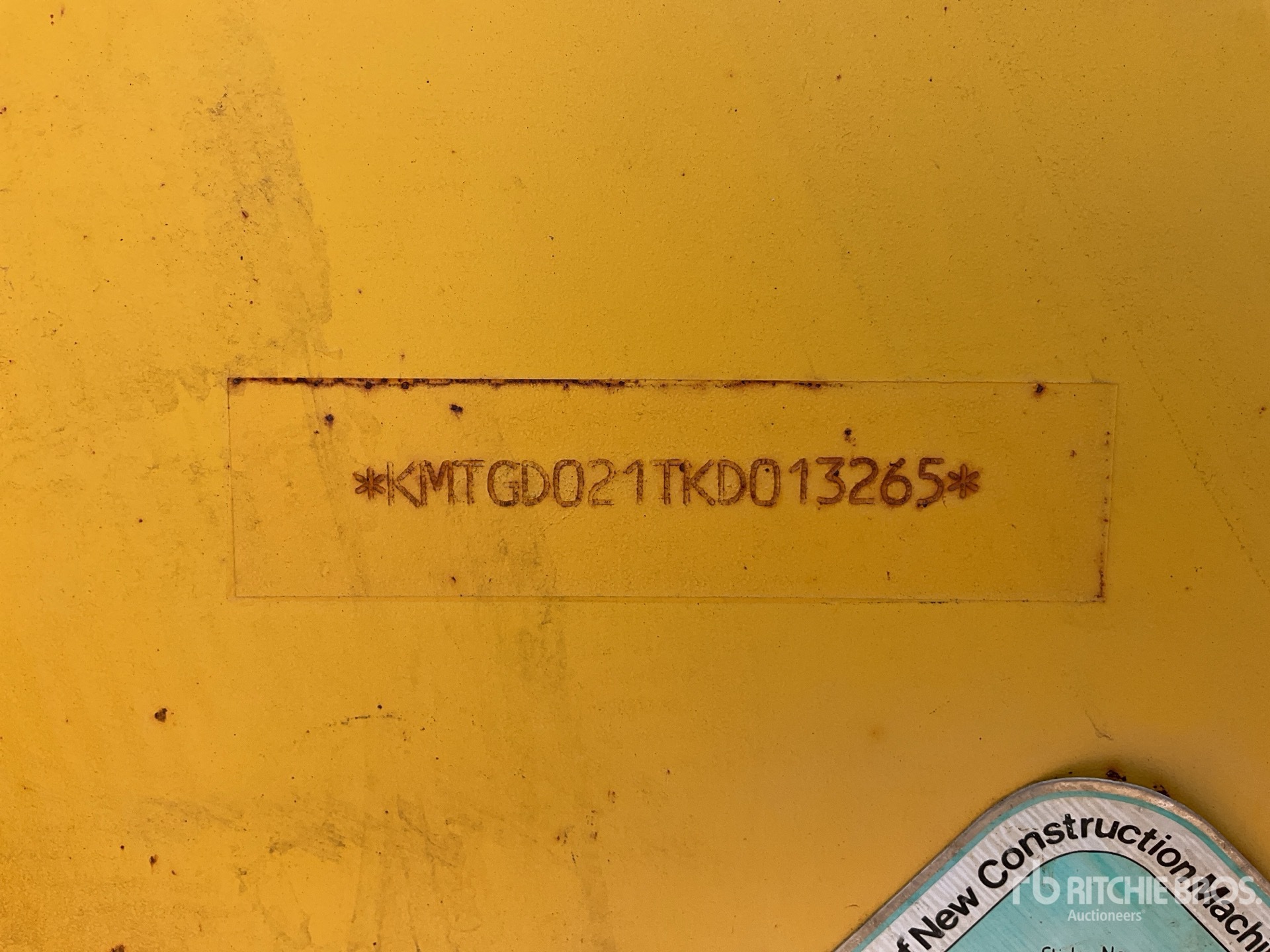

Serial Number:	KMTGD021TKD013265
Machine Location:	DUBAI, ARE

Description:

Enclosed Cab, Air Conditioner, Fire Suppression System, Push Block, Accumulators, Ripper, Fast Fuel System, 23.5R25 Tires **GCC duties not paid**, Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Komatsu GD825A-2 motor grader is a heavy-duty grading machine designed for road construction, maintenance, and site preparation. It is part of Komatsu's GD series and is used for shaping surfaces, fine grading, ditching, and snow removal. The GD825A-2 typically features a moldboard, articulated frame, and hydraulic controls for precise blade positioning and material handling. Built for municipal, highway, and mining applications, it is suited to tasks requiring consistent grade control and maneuverability. The model is commonly referenced in equipment fleets, used machinery listings, and parts identification for Komatsu motor graders.

Blades
Maximum lift above ground	1 ft (0 m)
Maximum shoulder reach outside rear tyres (frame straight): Left	8 ft (2 m)
Maximum shoulder reach outside rear tyres (frame straight): Right	8 ft (2 m)
Capacities
Final Drive	17 gal (63 l)
Fuel Tank - diesel	132 gal (500 l)
Tandem Housing	50 gal (190 l)
Transmission	7 gal (25 l)
Circle
Blade Tip Angle - Front	49 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	70 in (178 cm)
Max Lift Above Ground	19 in (48 cm)
Max Reach Outside Tires - Left	94 in (239 cm)
Max Reach Outside Tires - Right	94 in (239 cm)
Rotation	360 degrees
Dimensions
Blade Base	10 ft (3 m)
Height to Top of Isomount Cab	12 ft (4 m)
Minimum turning radius	26 ft (8 m)
Overall Length	33 ft (10 m)
Tandem Axle Wheelbase	6 ft (2 m)
Wheelbase	23 ft (7 m)
Width Over Tires	11 ft (3 m)
Engine
Aspiration	Turbocharged Diesel engine
Displacement	359 cu in (5,883 cu cm)
Engine Model	S6D140E
Max Power	280 hp (209 kw)
Net Power Gears 7-8	280 hp (209 kw)
Number of Cylinders	6
Piston displacement	408 cu in (6,691 cu cm)
Power Measured @	2,100 rpm
Frame
Front Frame Structure - Height	1 ft (0 m)
Front Frame Structure - Width	1 ft (0 m)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	15 degrees
Hydraulic System
Pump Type	Double-acting piston-type hydraulic cylinders
Relief Valve Pressure	3,560 psi
Moldboard
Blade Pull at Max Weight	30,250 lbs (13,721 kg)
Max Depth of Cut	19 in (48 cm)
Moldboard Height	31 in (79 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	16 ft (5 m)
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	15 gal (58 l)
Fuel Capacity	132 gal (500 l)
Hydraulic System Fluid Capacity	21 gal (80 l)
Max Operation Weight - Front Axle	17,570 lbs (7,970 kg)
Max Operation Weight - Rear Axle	40,680 lbs (18,452 kg)
Max Operation Weight - Total	58,250 lbs (26,422 kg)
Oil System Fluid Capacity	10 gal (38 l)
Operating Voltage	24 volts
Tandem Case Fluid Capacity (each)	50 gal (190 l)
Tire Size	23.5 X 25-12PR (L3) tires
Transmission Fluid Capacity	7 gal (25 l)
Steering System
Articulation Angle	25 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	28 mph (45 kph)
Max Speed - Reverse	30 mph (48 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	komatsu HYDROSHIFT Transmission
Weights
Operating Weight - On front wheels	17,571 lbs (7,970 kg)
Operating Weight - On rear wheels	40,521 lbs (18,380 kg)
Total Operating Weight	58,092 lbs (26,350 kg)
