Equipment ↠ Komatsu ↠ Wheel Loaders ↠ 2006 Komatsu WA480-5

2006 Komatsu WA480-5 For Sale in Ocana, Esp

Name: 2006 Komatsu WA480-5
Brand: Komatsu
SKU: 87475222
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

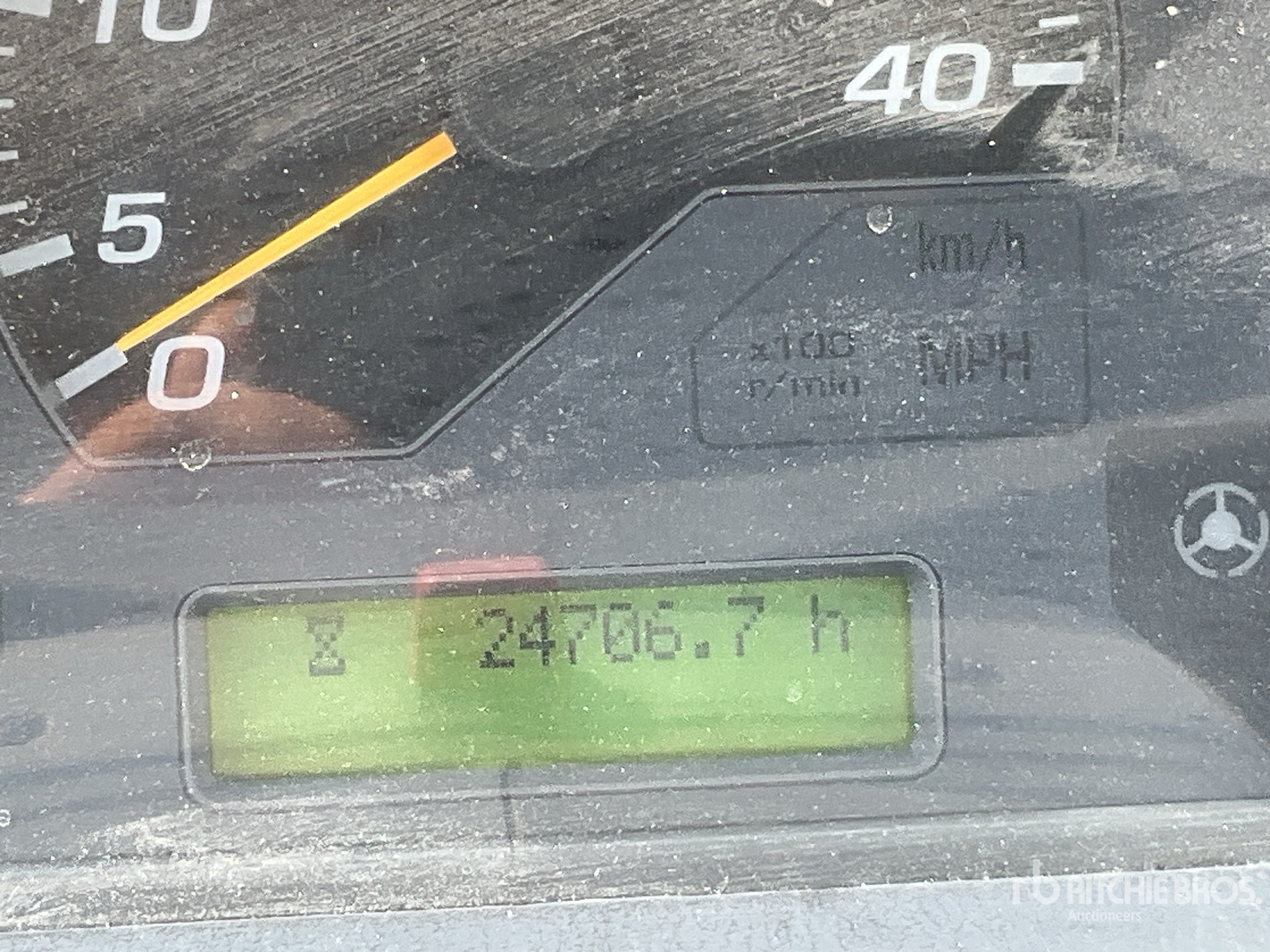

Hours:	24706

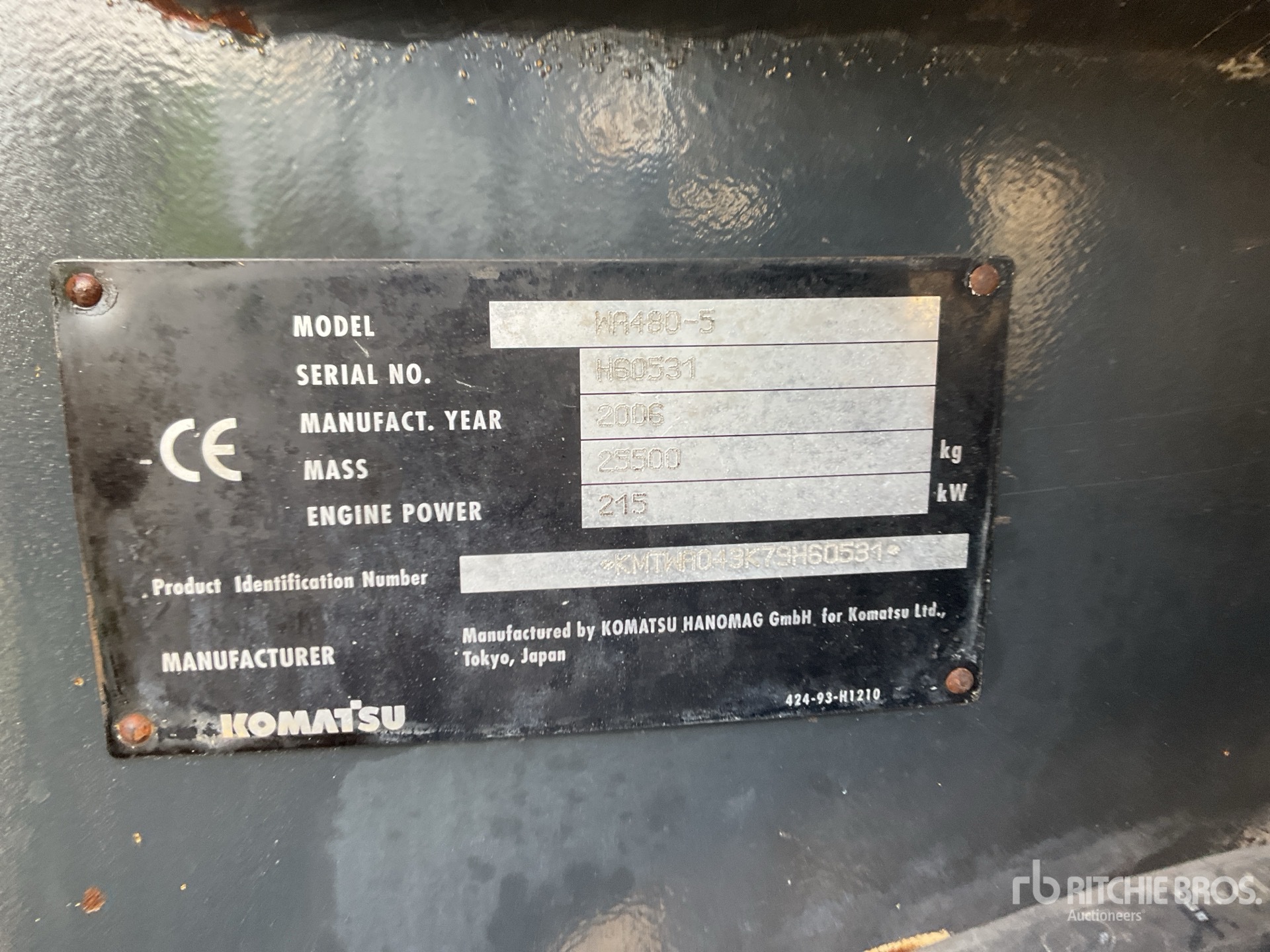

Serial Number:	H60531
Machine Location:	OCANA, ESP

Description:

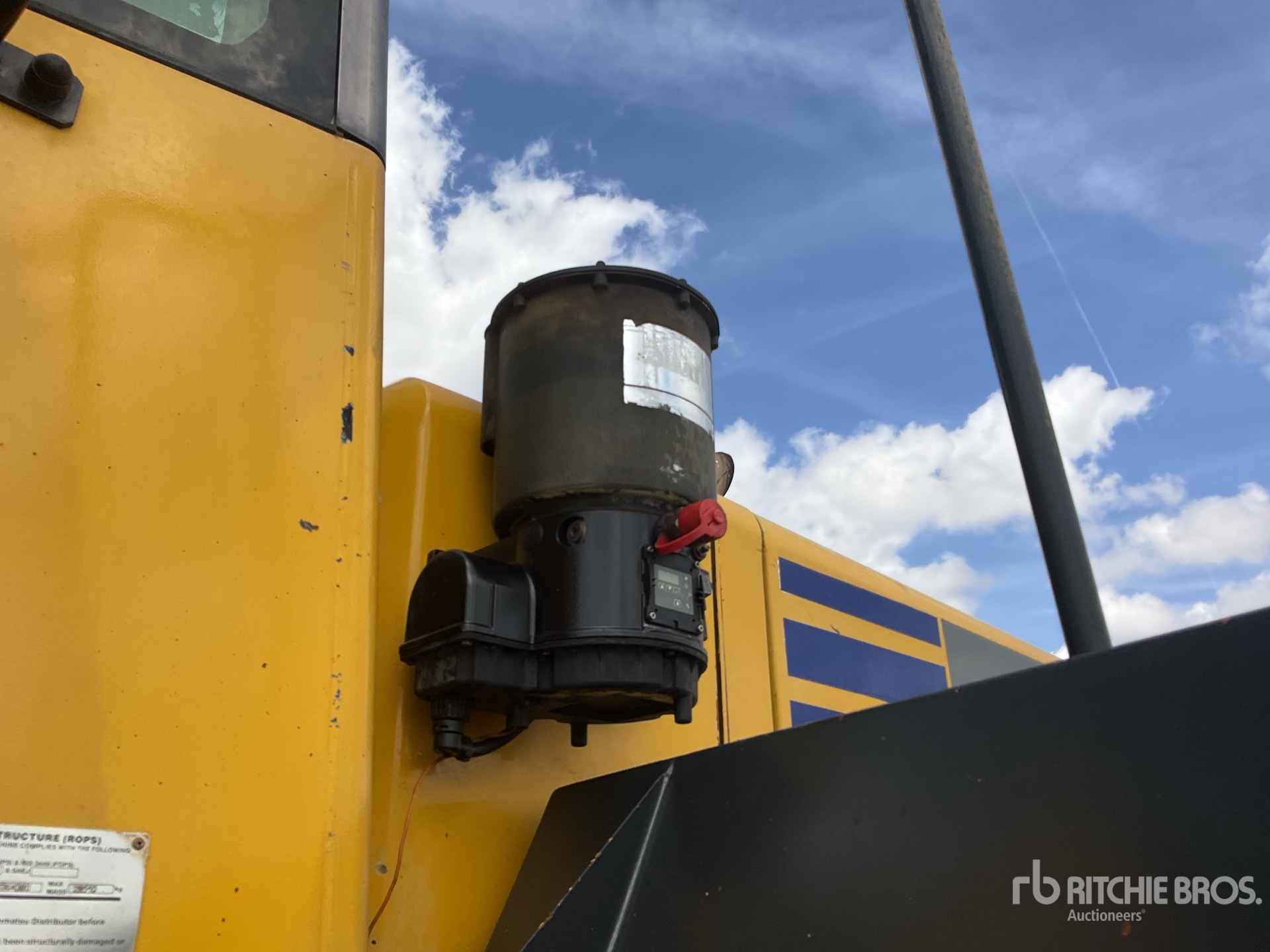

Enclosed Cab, Air Conditioner, Bucket, Auto Lube, 26.5-25 Tires, oil leaks** **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-05-12 10:10:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	51,032 lbs (23,148 kg)
Bucket Capacity - heaped	6 cu yd (5 cu m)
Bucket Width	11 ft (3 m)
Dump Clearance at Max Raise	11 ft (3 m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	12 ft (4 m)
Hinge Pin - Max Height	15 ft (5 m)
Length with Bucket on Ground	31 ft (9 m)
Reach at Max Lift and Dump	5 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	674 cu in (11,042 cu cm)
Engine Model	SAA6D125E-3
Gross Power	283 hp (211 kw)
Number of Cylinders	6
Power Measured @	1,760 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	4 seconds
Pump Flow Capacity	112 gpm (425 lpm)
Pump Type	gear pump
Raise Time	6 seconds
Relief Valve Setting	3,046 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (50 l)
Engine Oil Fluid Capacity	13 gal (47 l)
Front Axle/Diff Fluid Capacity	15 gal (55 l)
Fuel Capacity	110 gal (417 l)
Hydraulic System Fluid Capacity	78 gal (295 l)
Operating Voltage	24 volts
Operating Weight	54,565 lbs (24,750 kg)
Rear Axle Oscillation	30 degrees
Rear Axle/Diff Fluid Capacity	15 gal (55 l)
Static Tipping Weight	44,181 lbs (20,040 kg)
Tire Size	26.5 R25
Transmission Fluid Capacity	17 gal (65 l)
Turning Radius	21 ft (6 m)
Transmission
Max Speed - Forward	21 mph (34 kph)
Max Speed - Reverse	22 mph (36 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	automatic powershift transmission
