Kubota SVL90-2 For Sale in Chicago, Il


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-05-12   Click here to place a bid



Machine Info:

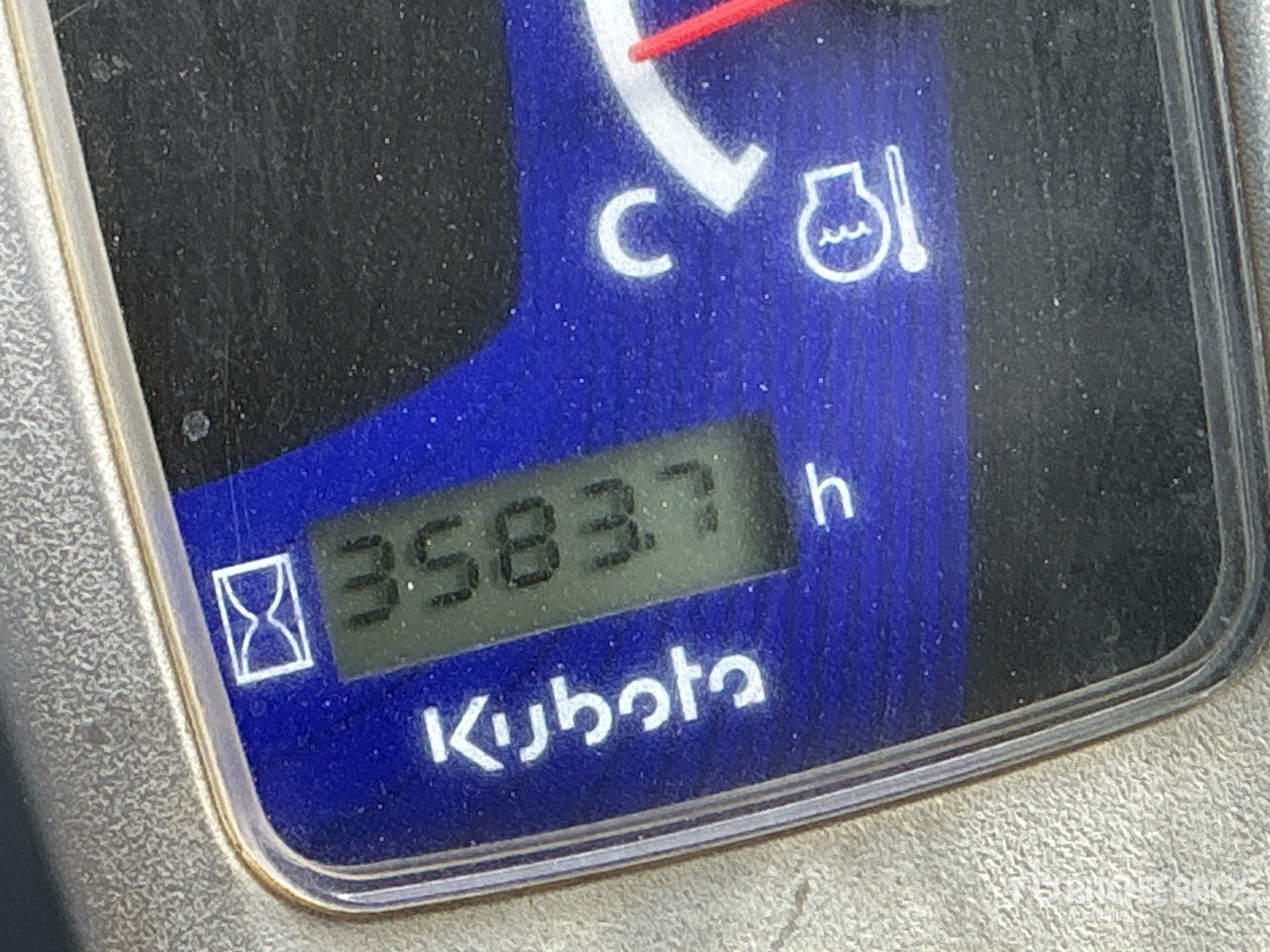

Hours:3583

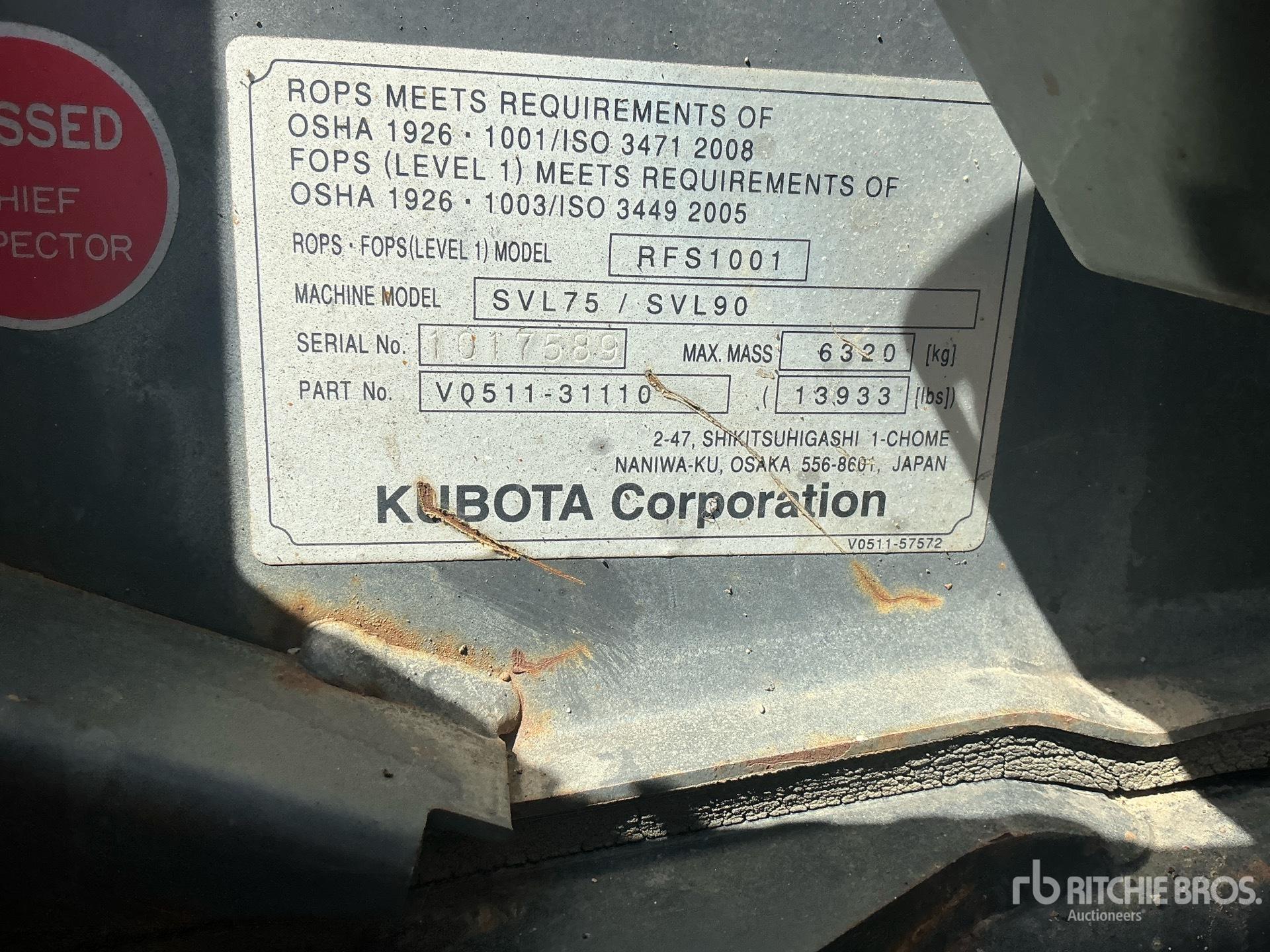

Serial Number:1017589
Machine Location:CHICAGO, IL

Description:

Located in Lane 32 Spot 8, Open Operator Station, Joystick Steering, Tier 4, 2015 US EPA Label, 17.5 in Track Belts, Manual Quick Coupler, 74 in Bucket Closing Time: 2026-05-12 09:17:45 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Kubota SVL90-2 is a compact track loader designed for versatility and durability in construction, landscaping, and agricultural applications. Featuring a powerful diesel engine, the SVL90-2 delivers efficient performance with enhanced fuel economy. Its compact size and low ground pressure allow for superior maneuverability and minimal surface disturbance on various terrains. The loader is equipped with advanced hydraulic systems for smooth operation and quick attachment changes, increasing productivity. Operator comfort is prioritized with an ergonomic cab design, improved visibility, and intuitive controls. The Kubota SVL90-2 compact track loader is engineered for reliability, strength, and adaptability in demanding work environments.
Dimensions
Bucket hinge pin 129 in (327 cm)
Dump angle 43 degrees
Ground Clearance 12 in (30 cm)
Height - Top of Cab 7 ft (2 m)
Length - with Bucket 12 ft (4 m)
Length - without Bucket 10 ft (3 m)
Overall Width 77 in (196 cm)
Reach at Max Lift and Dump 3 ft (1 m)
Turning Radius from Center - machine rear 114 in (288 cm)
Width Over Tracks 2 ft (0 m)
Engine
Aspiration Turbochar
Bore 4 in (10 cm)
Displacement 230 cu in (3,769 cu cm)
Engine Model V3800-CR-T
Gross Power 92 hp (69 kw)
Number of Cylinders 4
Power Measured @ 2,400 rpm
Stroke 5 in (12 cm)
Hydraulic System
Auxiliary hydraulic flow 25 gpm (95 lpm)
Pump Flow 25 gpm (95 lpm)
Relief Valve Pressure 3,555 psi
Loader
Breakout Force 6,742 lbs (3,058 kg)
Bucket Breakout Force 7,961 lbs (3,611 kg)
Operating Load 3,009 lbs (1,365 kg)
Tipping Load 8,598 lbs (3,900 kg)
Operating Specifications
Fuel Capacity 30 gal (113 l)
Hydraulic System Fluid Capacity 18 gal (68 l)
Max Speed - high range 7 mph (12 kph)
Max Speed - low range 5 mph (8 kph)
Operating Weight 11,299 lbs (5,125 kg)
Undercarriage
Ground Pressure 4 psi
Length of Track on Ground 6 ft (2 m)
Number of Track Rollers per Side 5
Track Gauge 5 ft (2 m)
