2016 Kubota KX019-4

Name: 2016 Kubota KX019-4
Brand: Kubota
SKU: 86683940
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

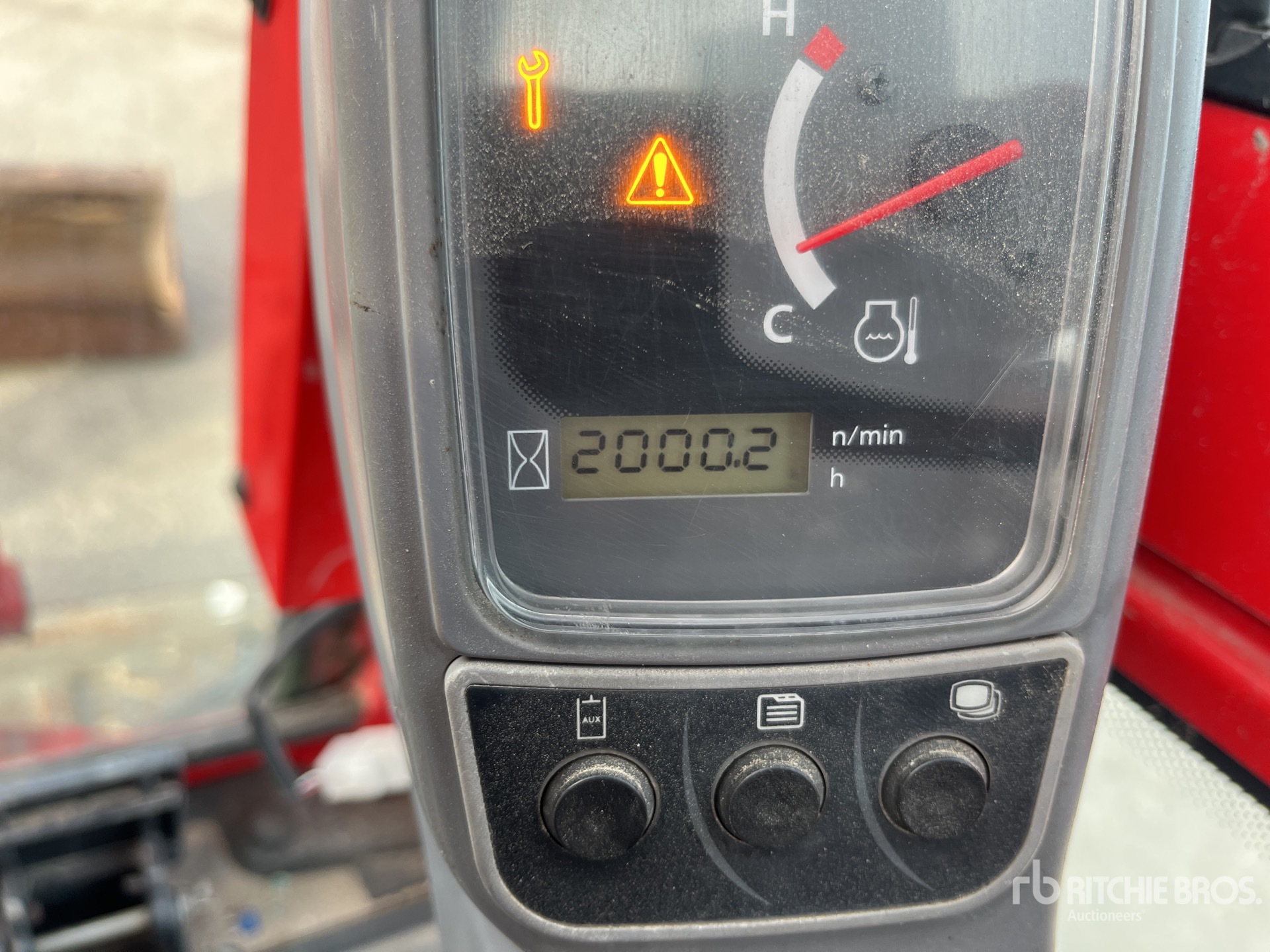

Hours:	2000

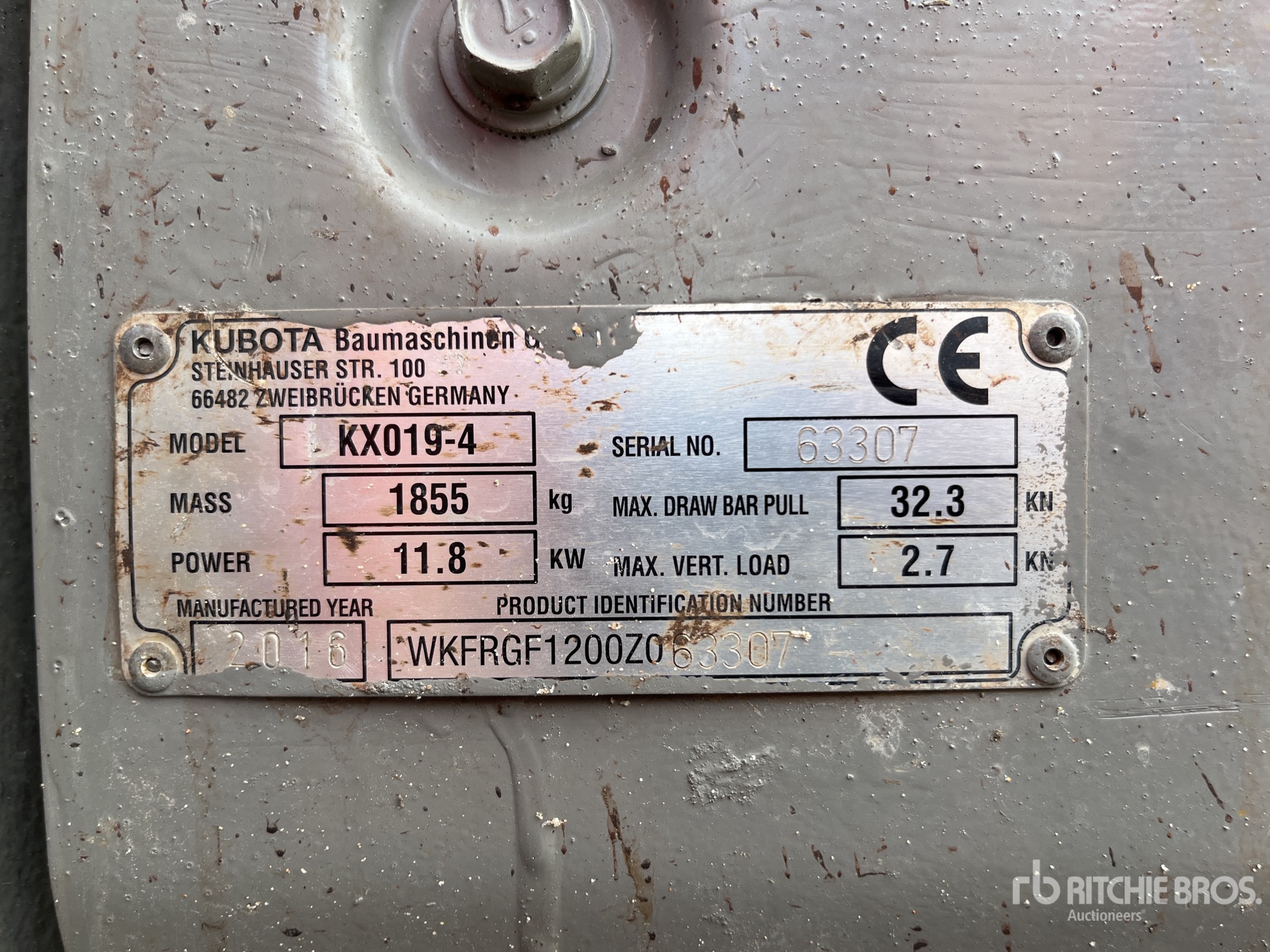

Serial Number:	63307
Machine Location:	MOERDIJK, NLD

Description:

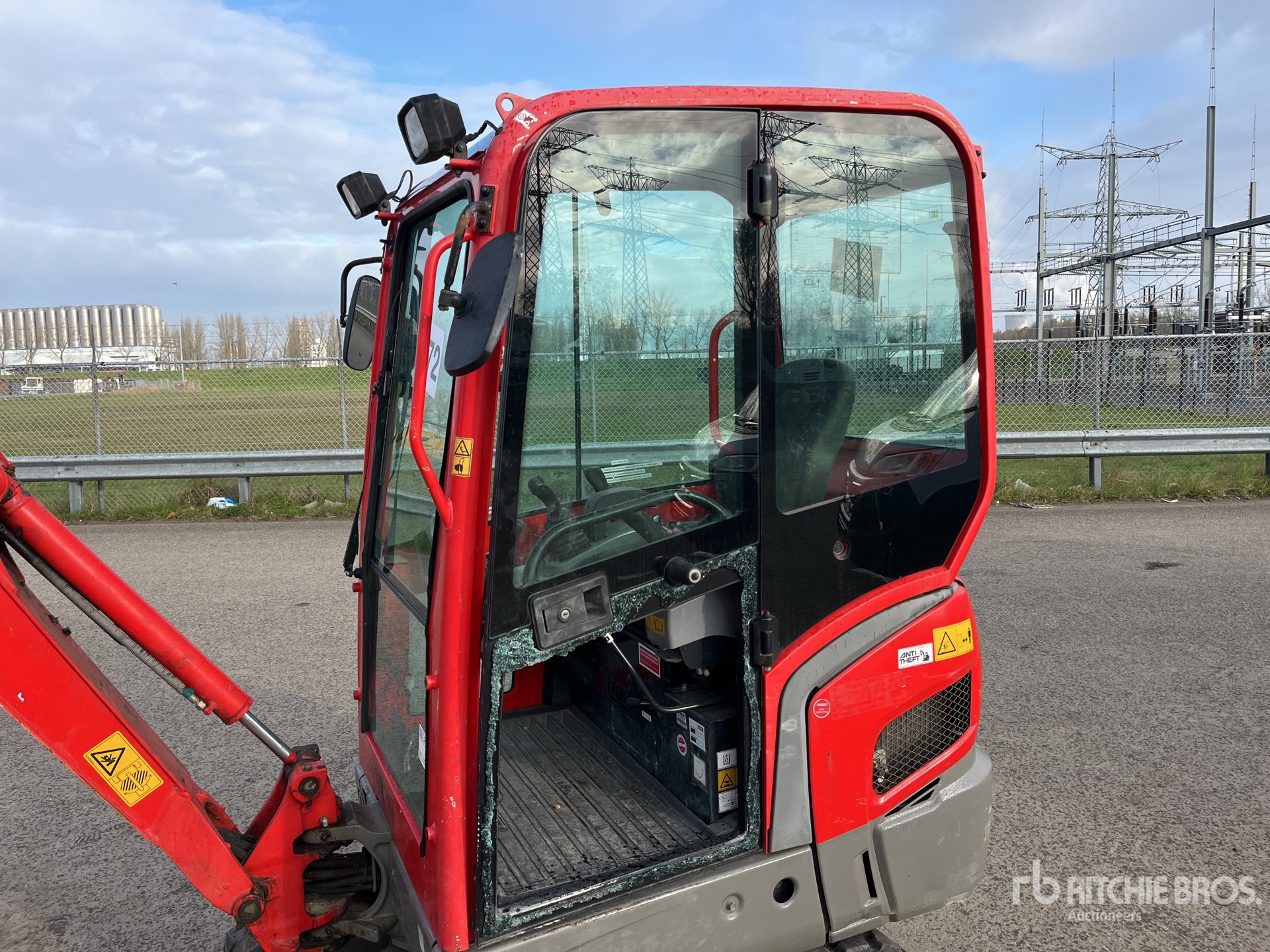

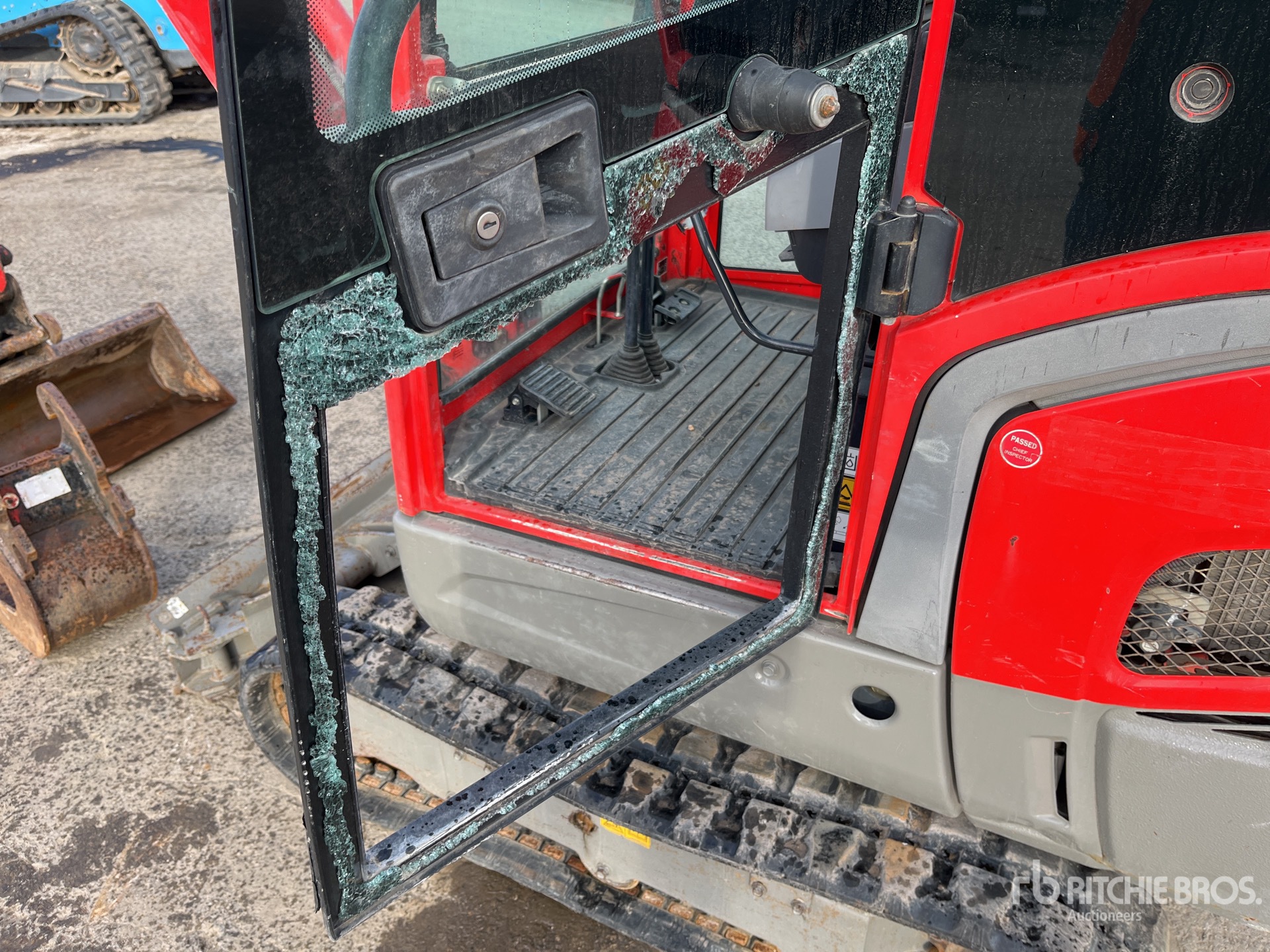

Enclosed Cab, Swing Boom, 1200 mm Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 230 mm Rubber Tracks, Expandable Width Tracks, Hydraulic Quick Coupler, 1000 mm Cleanup Bucket, Additional 250 mm Cleanup Bucket *THIS LOT SOLD WITH: 2016 - C.KLEIN CW0 BUCKET s/n: Not Available; 2017 - C.KLEIN CW05 BUCKET s/n: Not Available; Closing Time: 2026-05-06 11:13:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Kubota KX018-4 is a compact mini excavator designed for small construction, landscaping, utility, and site preparation work. It is part of Kubota's KX series and is commonly used where maneuverability and low ground disturbance are important. The KX018-4 features a short tail swing design, hydraulic controls, and a compact operating footprint for work in confined areas. Typical applications include trenching, digging, grading, and material handling. As a mini excavator, it is suited to contractors, rental fleets, and property maintenance operations that require a small excavator with reliable performance in restricted access environments.

Blades
Blade Height	9 in (23 cm)
Blade Width	4 ft (1 m)
Maximum Drop below ground	1 ft (0 m)
Maximum lift above ground	1 ft (0 m)
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	11 ft (3 m)
Max Reach Along Ground	13 ft (4 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max.Dumping Height	8 ft (2 m)
Mximum dig radius	154 in (392 cm)
Dimensions
Ground Clearance	1 ft (0 m)
Height	93 in (235 cm)
Length of Track on Ground	12 ft (4 m)
Shoe width	1 ft (0 m)
Width	3 ft (1 m)
DRIVE SYSTEM
Max. traction force-Low speed	4,920 lbs (2,232 kg)
Electrical System
Battery capacity	52 AH
Battery voltage	12 VDC
Lighting	Front working
Engine
Air filter type	Dual element
Displacement	55 cu in (898 cu cm)
Engine Model	D902-E4-BH-3
Engine Type	Water cooled
Fuel Type	Diesel
Gross Power	18 hp (13 kw)
Net Power	15 hp (11 kw)
Number of Cylinders	3
Power Measured @	2,050 rpm
Operating Specifications
Cooling System Fluid Capacity	1 gal (3 l)
Fuel Capacity	6 gal (21 l)
Hydraulic Pump Flow Capacity	4 gpm (14 lpm)
Hydraulic System Fluid Capacity	7 gal (28 l)
Operating Weight	3,747 lbs (1,700 kg)
Operating weight Cabin	3,967 lbs (1,799 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	7,261 lbs (3,294 kg)
Ground Pressure	4 psi
Max Travel Speed	3 mph (4 kph)
