Auction Pricing
Auction Info: Starting on 2026-06-17 Click here to place a bid

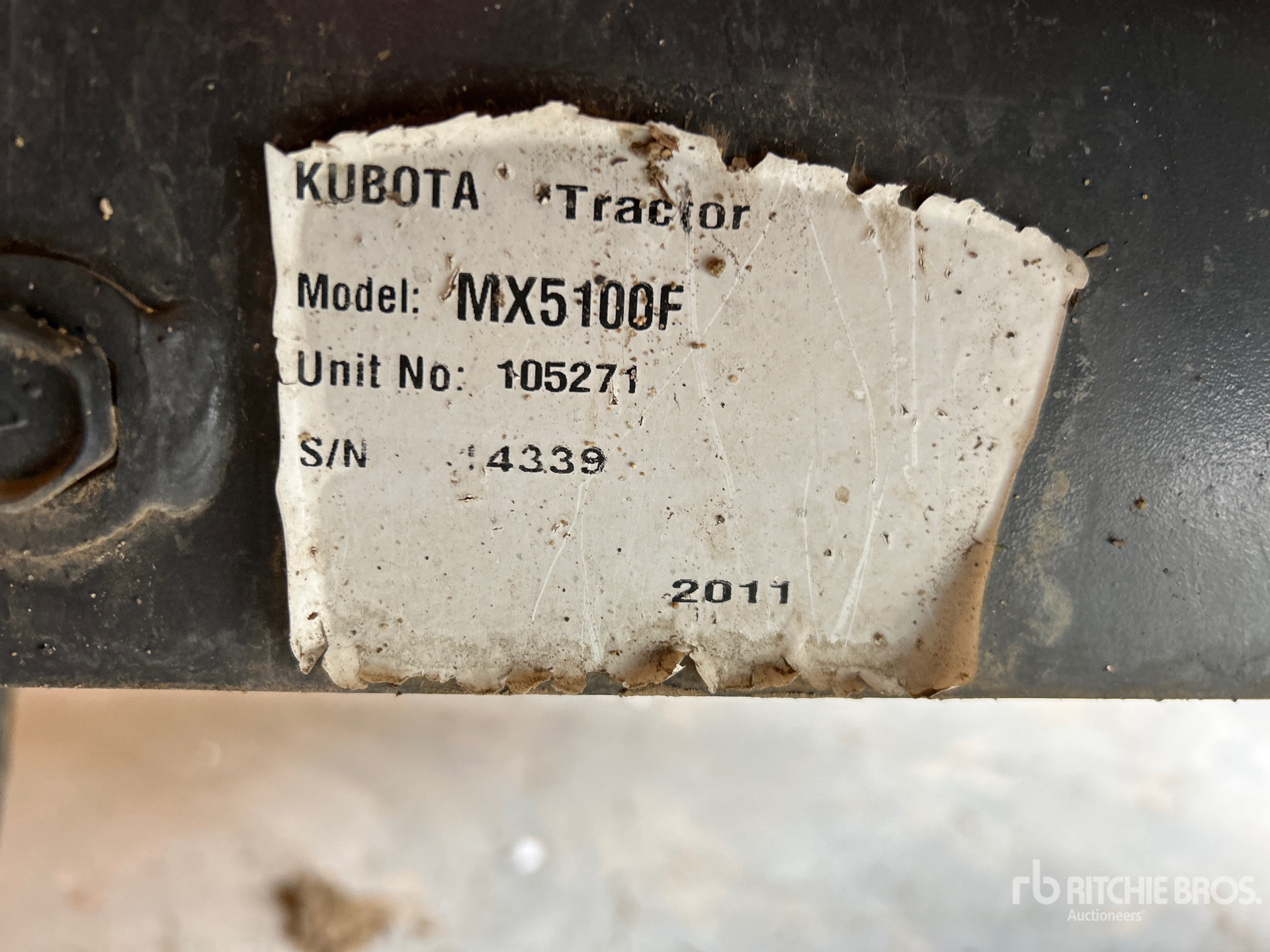

| Serial Number: | 4339 |
| Machine Location: | ASSINIBOIA, SK |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Height - Top of Cab | 8 ft (2 m) |
| Height - Top of ROPS/FOPS | 8 ft (2 m) |
| Overall Width | 6 ft (2 m) |
| Tire Size | front 9.5-16 rear 14.9-26 |
| Wheelbase | 6 ft (2 m) |
| Width Outside Frame | 6 ft (2 m) |
| Engine | |
| Aspiration | turbocharged |
| Displacement | 149 cu in (2,433 cu cm) |
| Engine Model | V2403-M-T |
| Gross Power | 52 hp (39 kw) |
| Net Power | 50 hp (37 kw) |
| Number of Cylinders | 4 |
| PTO Power | 44 hp (33 kw) |
| Hydraulic System | |
| Number of Remote Control Valves | 3 |
| Pump Flow Capacity | 10 gpm (36 lpm) |
| Operating Specifications | |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,315 lbs (1,050 kg) |
| 3 Point Hitch Type | Cat I & II |
| Alternator Supplied Amperage | 45 amps |
| Fuel Capacity | 13 gal (48 l) |
| Tire Size Front - 2wd / 4wd | 7.5L-15 |
| Production | |
| Series | MX Series |
| Years Manufactured | 2009 - 2014 |
| Tires | |
| Rear Tires Size | 14.9-26 |
| Transmission | |
| Max Speed | 16 mph (26 kph) |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 8 |
