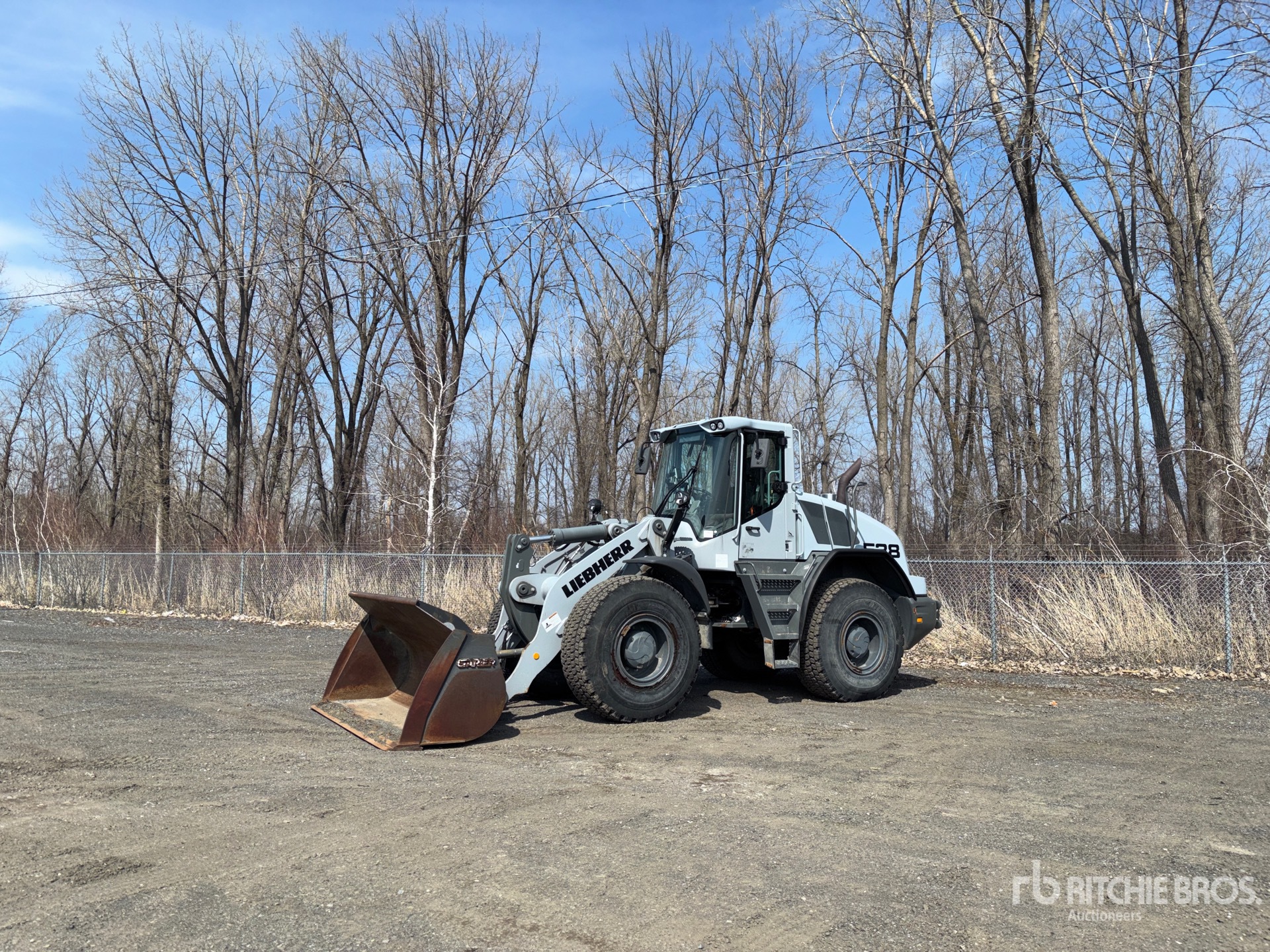

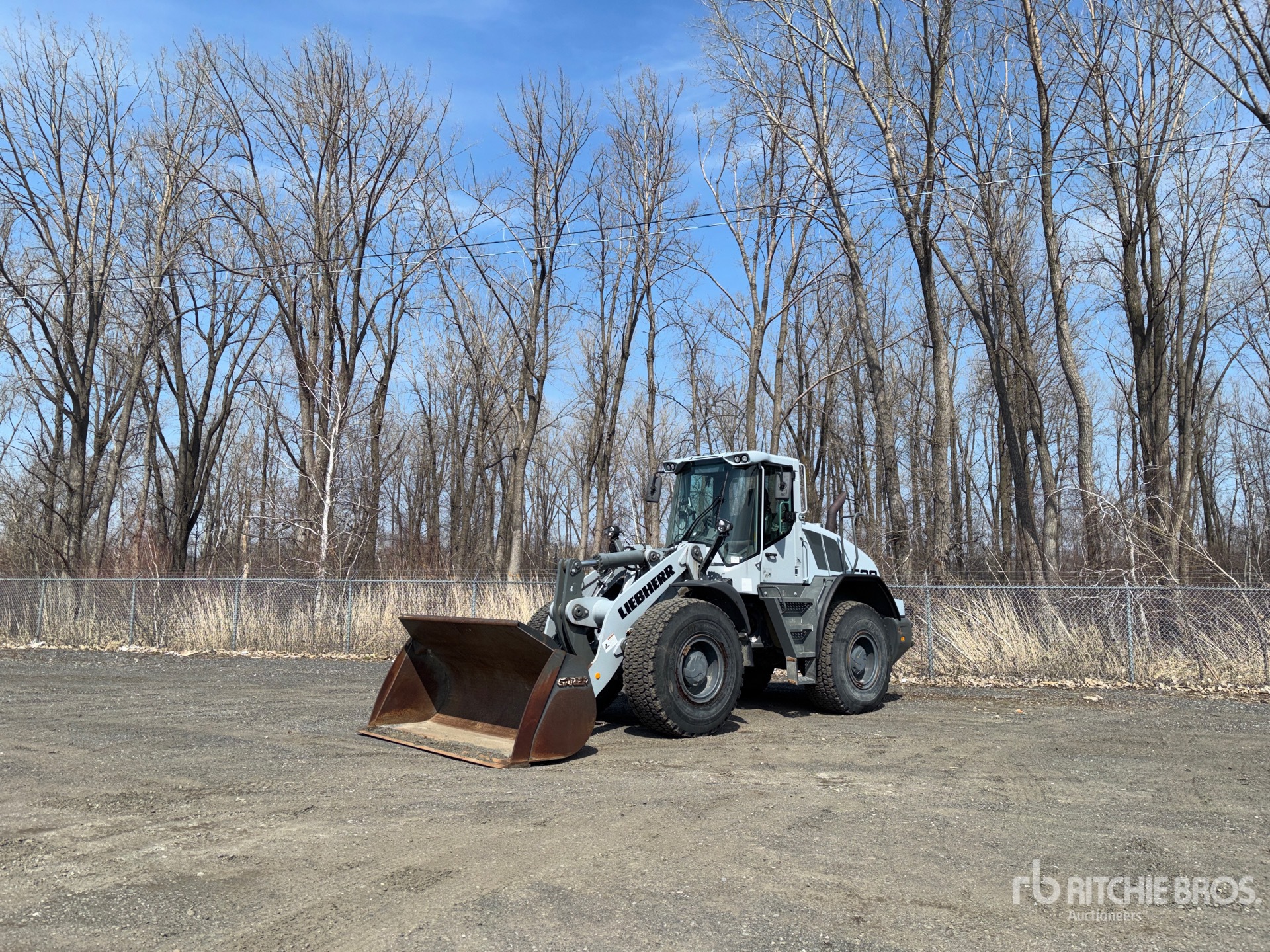

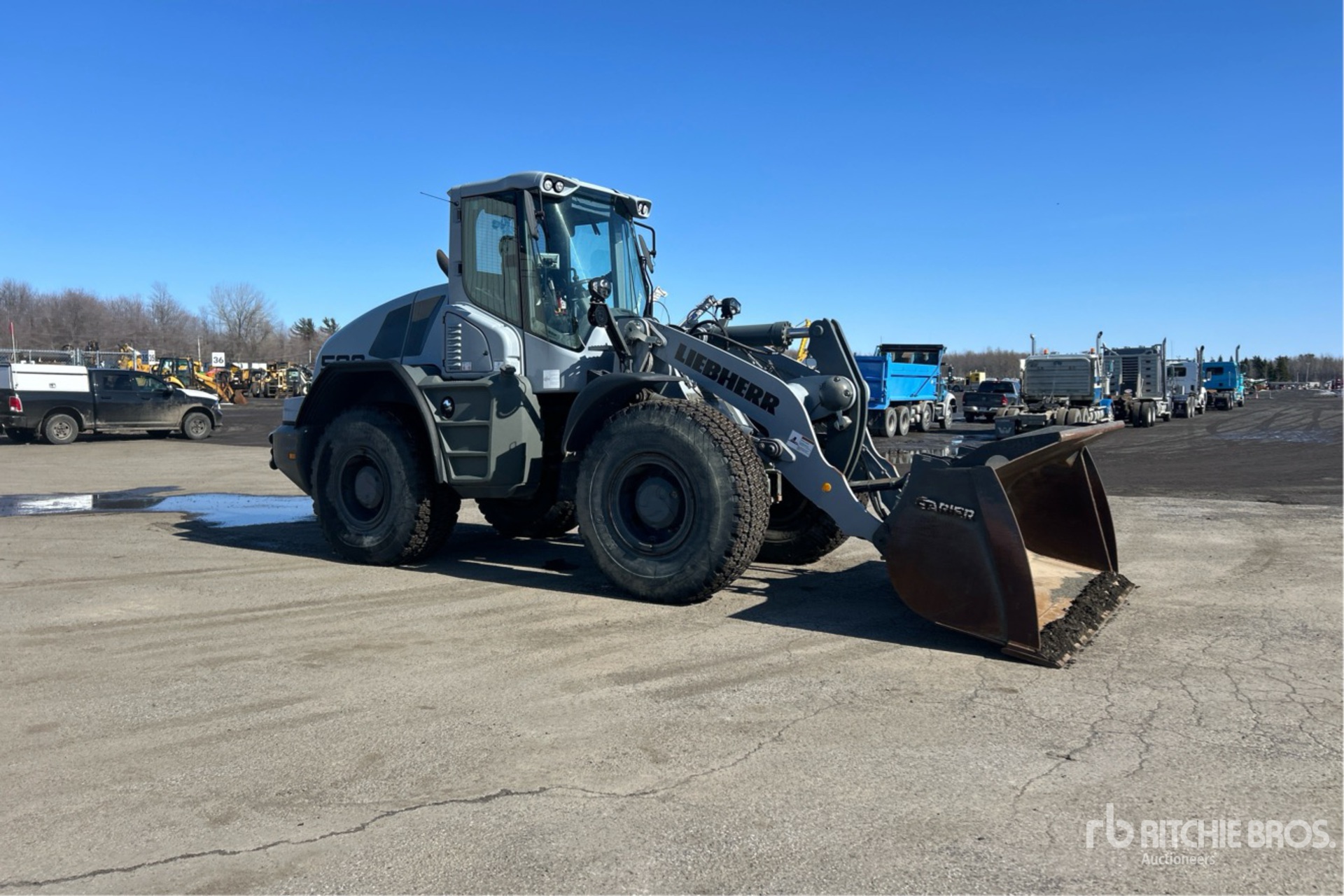

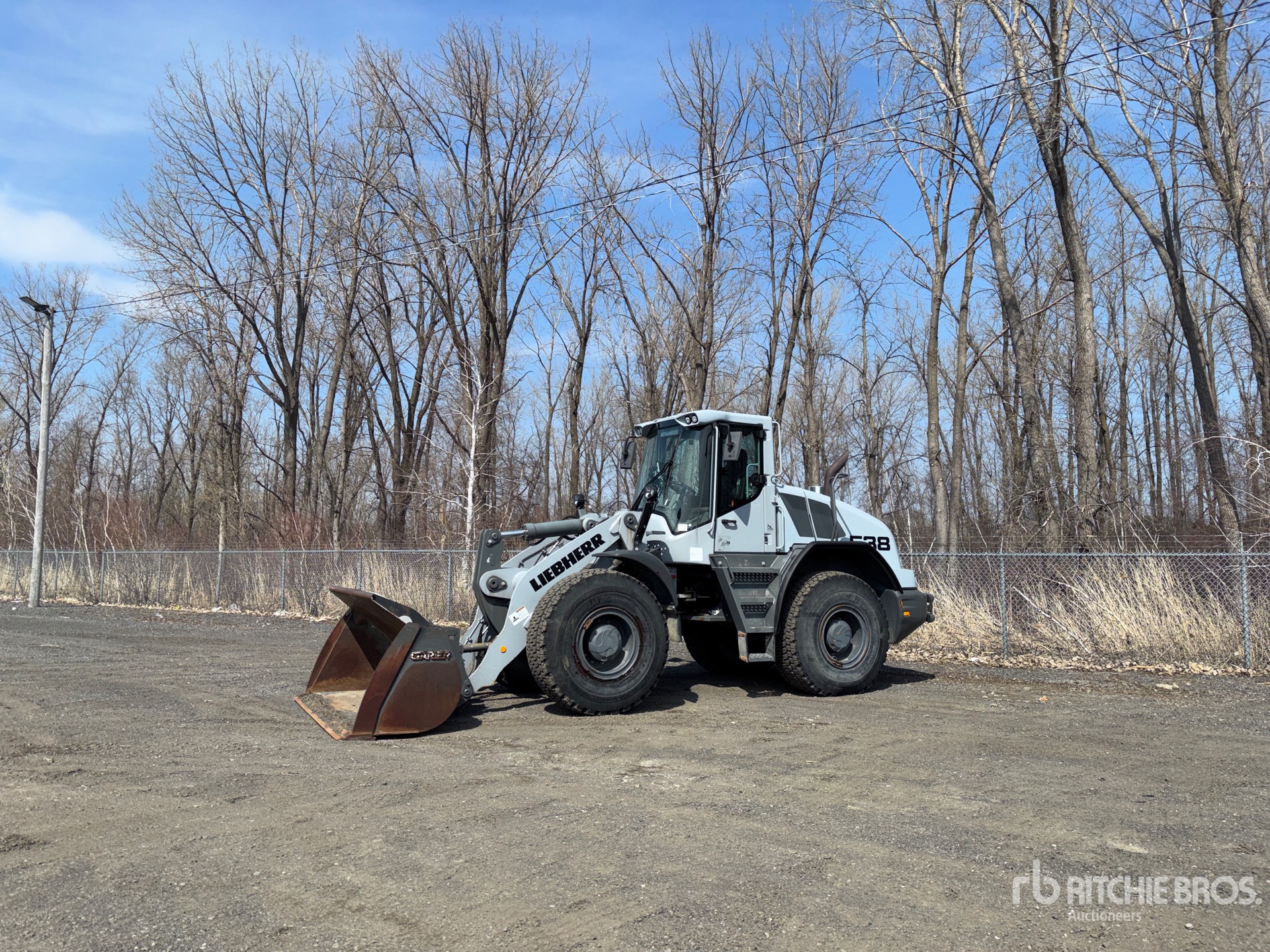

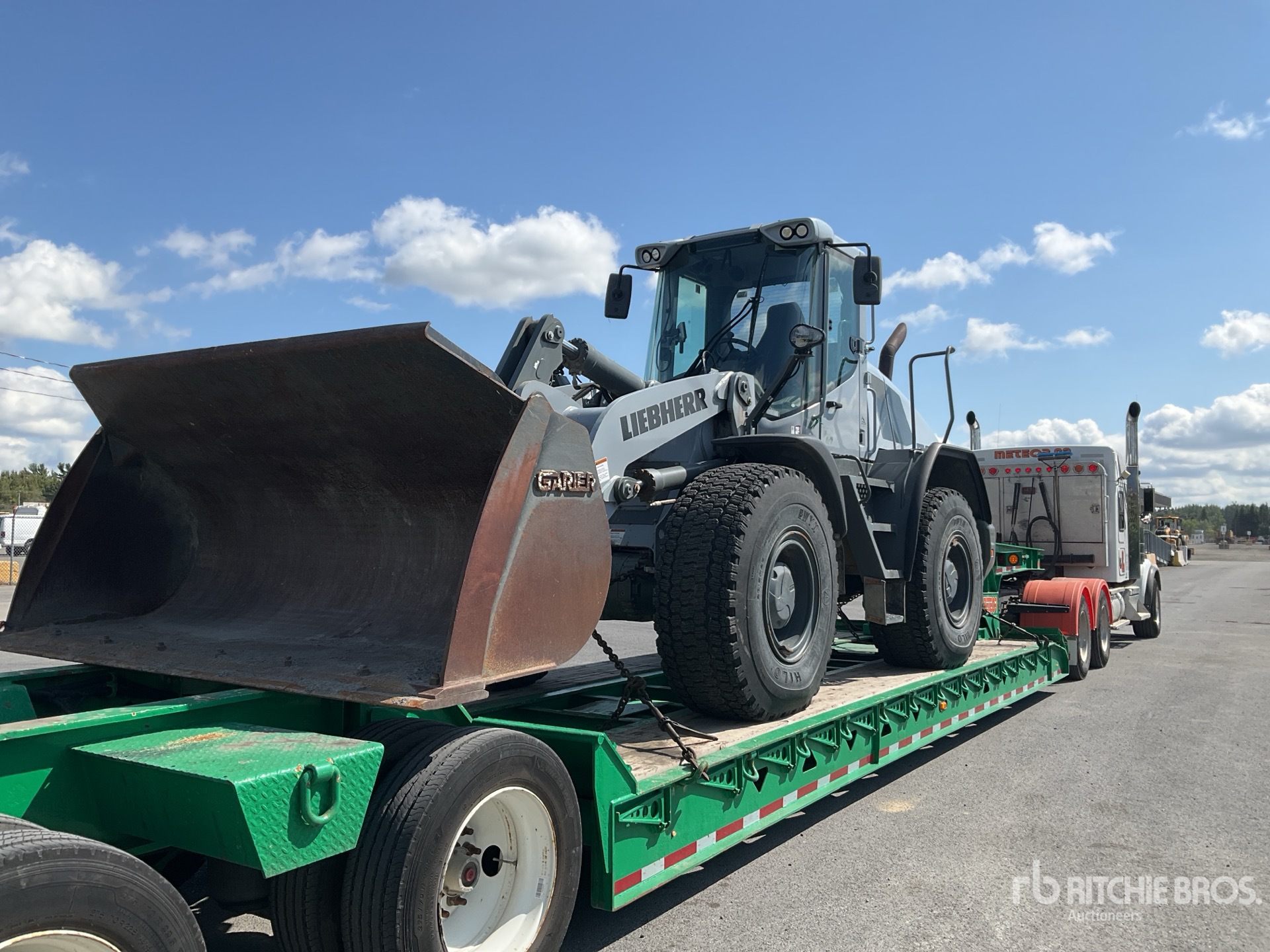

2020 Liebherr L538 For Sale in Montreal, Qc


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-05-26   Click here to place a bid



Machine Info:

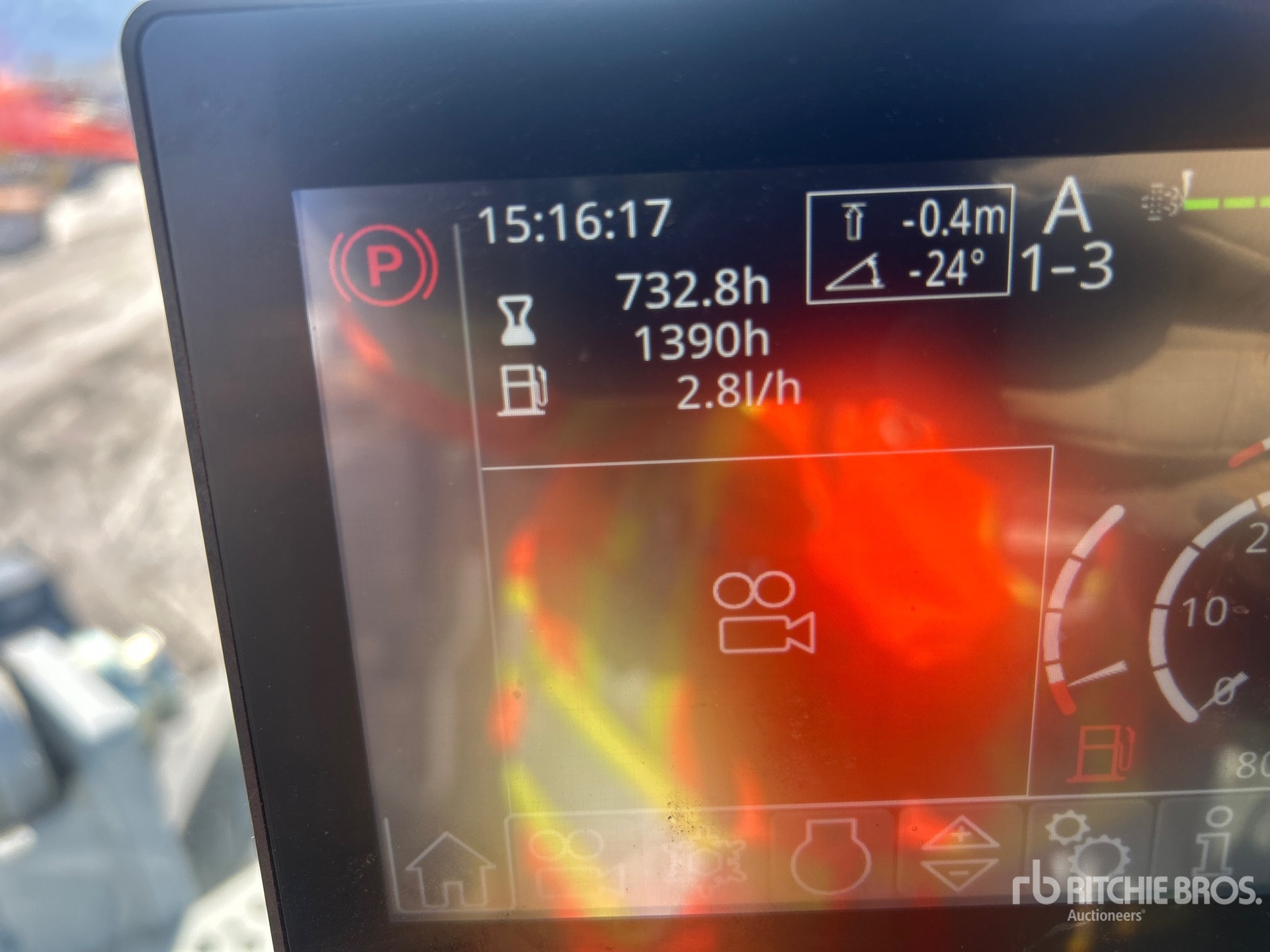

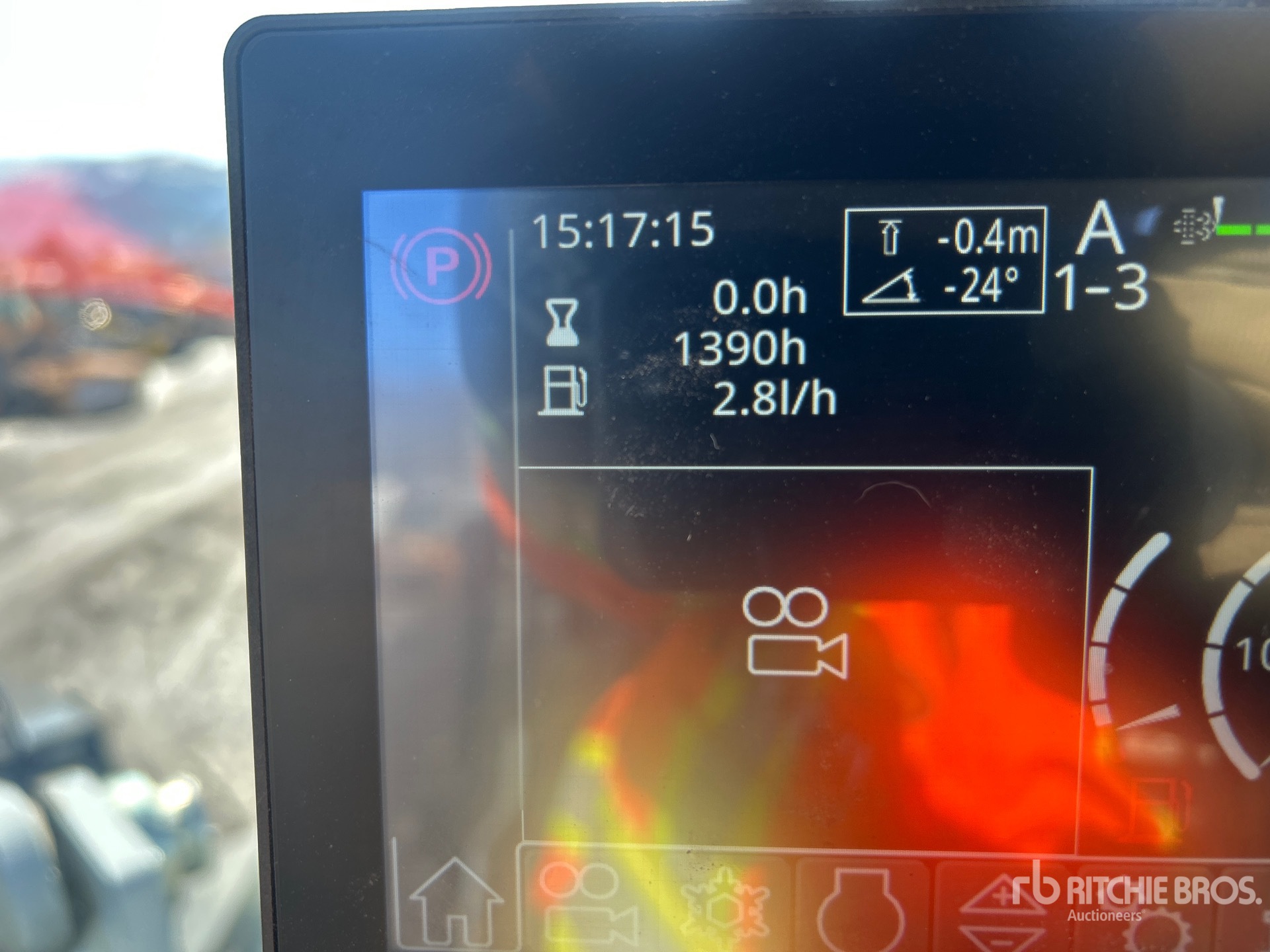

Hours:1390

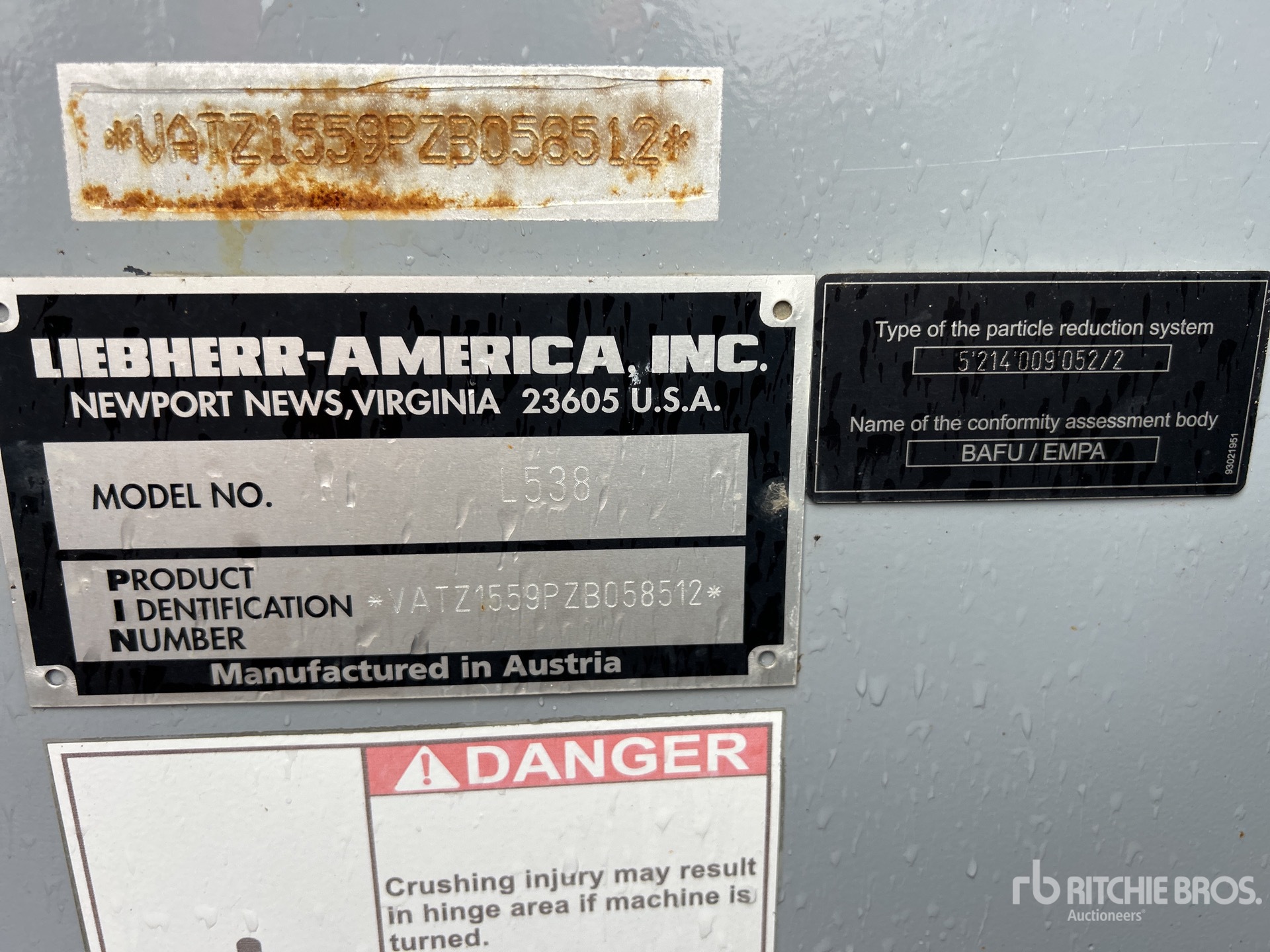

Serial Number:VATZ1559PZB058512
Machine Location:MONTREAL, QC

Description:

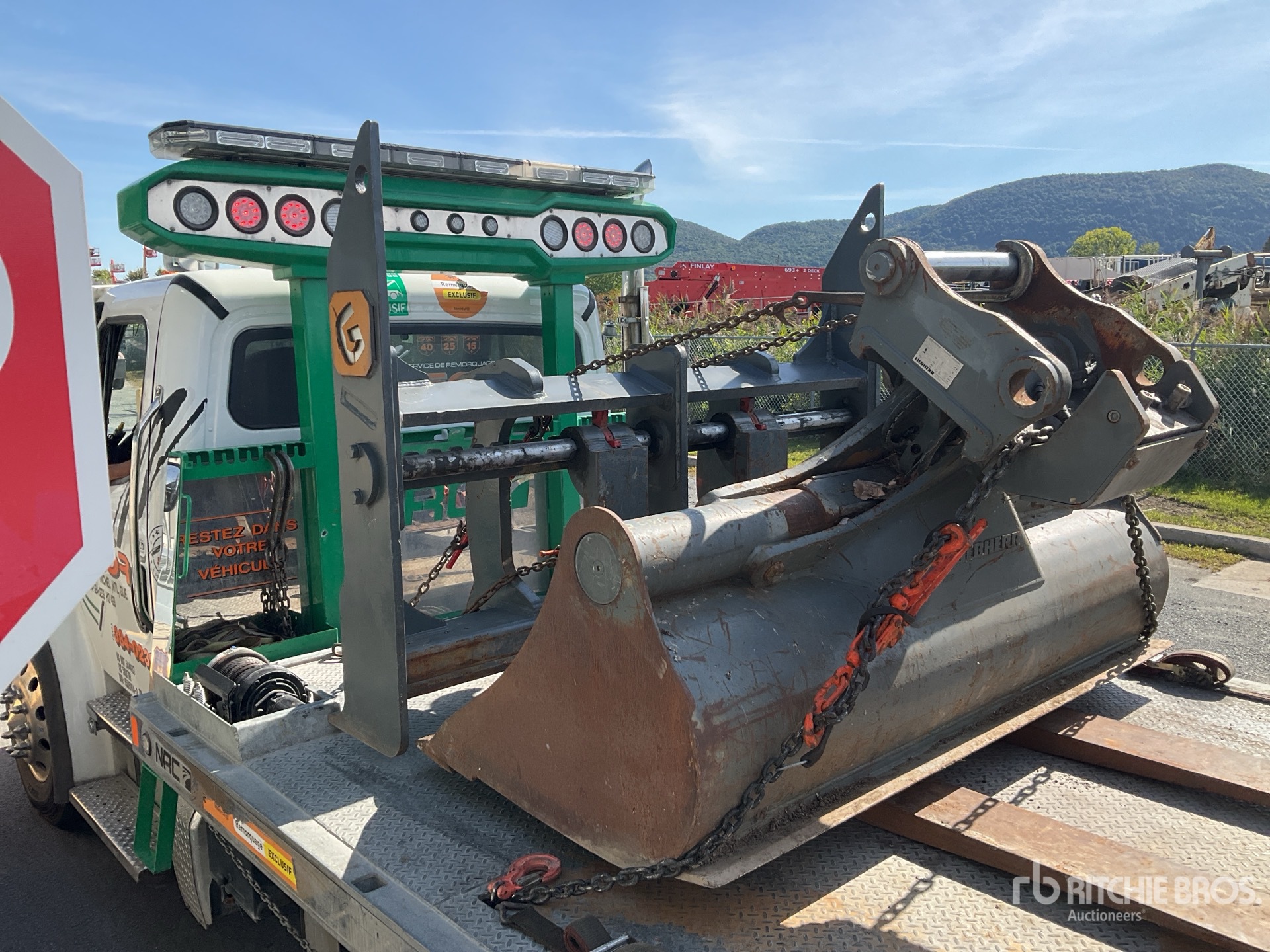

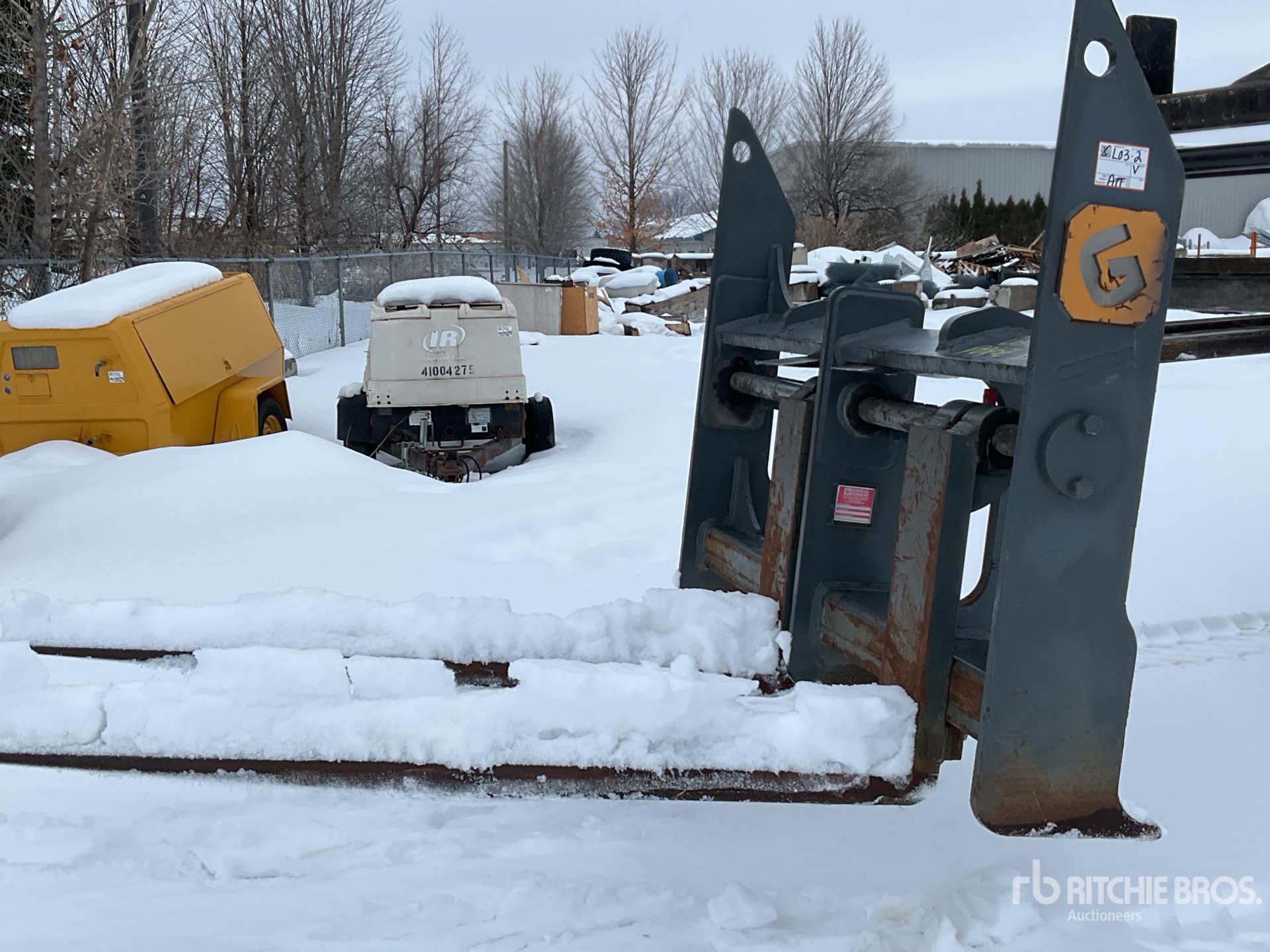

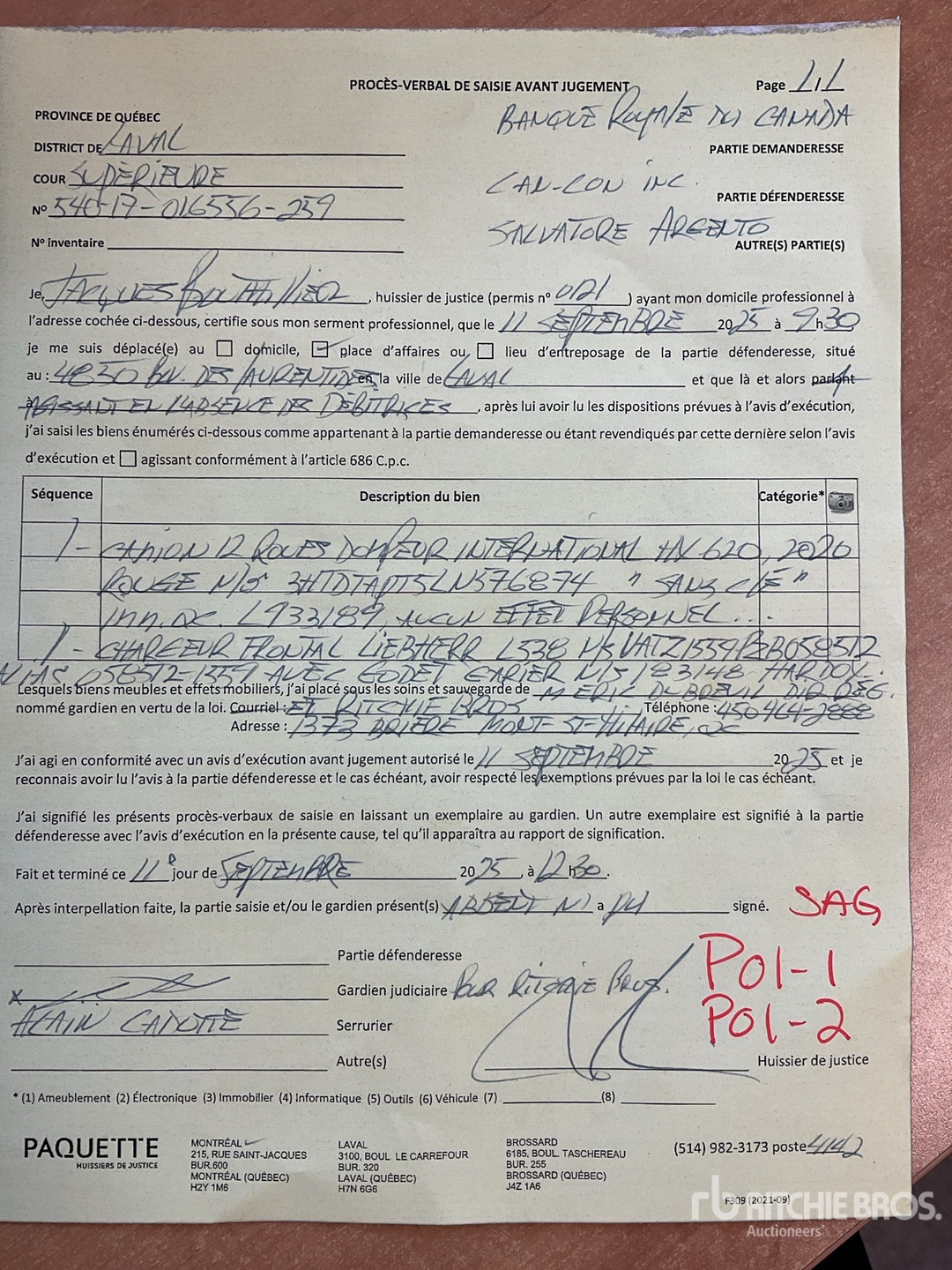

Located in Lane 34 Spot 11, Enclosed Cab, Air Conditioner, Rear View Camera, Ride Control, Autoshift, Traction Control, 2019 US EPA Label, Auxiliary Hydraulics, Hydraulic Coupler, 106 in Bucket, 20.5R25 Tires Immatriculations non-recues. Le lot doit rester dans la cour jusqu'a reception des immatriculations / o/s in transit. Item must remain in yard until titles are received - Item additionnel a la sortie / Additional item at the check out Closing Time: 2026-05-26 09:13:45 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Liebherr L538 is a wheel loader designed for material handling, loading, and site support applications in construction, aggregates, waste, and industrial operations. It is part of Liebherr's L 538 series and is commonly used for stockpile work, truck loading, and general earthmoving tasks. The machine typically features a hydrostatic drive, articulated steering, and a front-mounted loader arm with a standard bucket or other attachments. The L538 is known for balanced performance, operator visibility, and maneuverability in confined work areas. It is used in municipal, quarry, recycling, and infrastructure environments where reliable loading capacity and efficient cycle times are required.
Bucket
Breakout Force 25,180 lbs (11,421 kg)
Bucket Capacity - heaped 3 cu yd (2 cu m)
Bucket Width 8 ft (3 m)
Dump Clearance at Max Raise 9 ft (3 m)
Dimensions
Ground Clearance 2 ft (1 m)
Height - Top of Cab 11 ft (3 m)
Hinge Pin - Max Height 13 ft (4 m)
Length with Bucket on Ground 24 ft (7 m)
Reach at Max Lift and Dump 4 ft (1 m)
Wheelbase 10 ft (3 m)
Engine
Air cleaner Dry air filter with main and safety element pre-cleaner service indicator on the display
Aspiration Inline engine water-cooled exhaust-turbo charged with intercooler
Bore 4 in (11 cm)
Displacement 275 cu in (4,506 cu cm)
Engine Model 4045HFL93
Gross Power 154 hp (115 kw)
Max Torque 454 lbs ft (616 nm)
Number of Cylinders 4
Power Measured @ 2,000 rpm
Stroke 5 in (13 cm)
Torque Measured @ 1,600 rpm
Hydraulic System
Dump Time 2 seconds
Lower Time 4 seconds
Pump Flow Capacity 45 gpm (170 lpm)
Pump Type Load-Sensing vaiable axial piston pump with output control and pressure cutoff
Raise Time 5 seconds
Relief Valve Setting 4,351 psi
Operating Specifications
Alternator Supplied Amperage 55 amps
Cooling System Fluid Capacity 10 gal (38 l)
Engine Oil Fluid Capacity 5 gal (20 l)
Front Axle/Diff Fluid Capacity 4 gal (16 l)
Fuel Capacity 54 gal (205 l)
Hydraulic System Fluid Capacity 48 gal (180 l)
Operating Voltage 24 volts
Operating Weight 27,029 lbs (12,260 kg)
Rear Axle Oscillation 12 degrees
Rear Axle/Diff Fluid Capacity 4 gal (15 l)
Static Tipping Weight 22,399 lbs (10,160 kg)
Tire Size 20.5R25 L3
Transmission Fluid Capacity 1 gal (4 l)
Turning Radius 20 ft (6 m)
Transmission
Max Speed - Forward 25 mph (40 kph)
Max Speed - Reverse 25 mph (40 kph)
Number of Forward Gears 3
Number of Reverse Gears 3
Transmission Type Stepless hydrostatic travel drive
