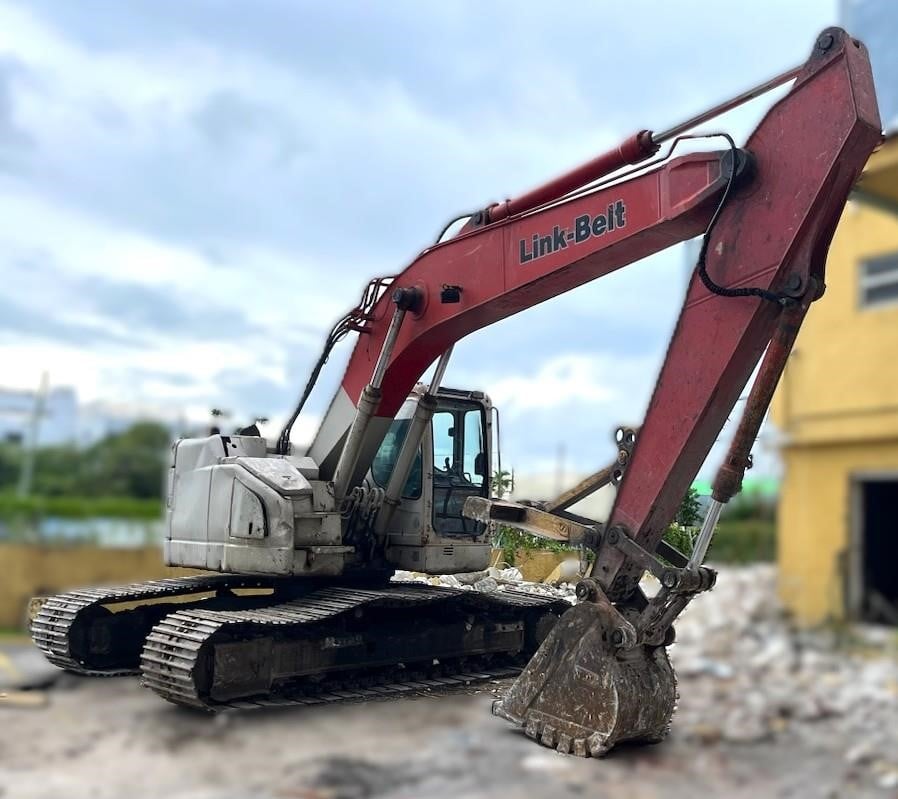

2013 Link-Belt 225 SPIN ACE For Sale in Miami, FL

Name: 2013 Link-Belt 225 SPIN ACE
Brand: Link-Belt
SKU: 82166065
Price: 17900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $17,900.00 USD

Apply for Financing

Case Power & Equipment

Case Power & Equipment Dealer Info

Case Power & Equipment Website

Click here to email Case Power & Equipment.

Click for Phone Number

Machine Info:

Hours:	8604
Stock Number:	ECAK2-6668
Machine Location:	MIAMI, FL
More Information:	https://casepowered.com/inventory/excavators+-+crawler/2013-link-belt-225+spin+ace-miami-fl-6900e92b85b0484ddc068be8/

Description:

2013 LINK-BELT, 225 SPIN ACE Excavators - Crawler, Operating weight approximately 51,376 lbs, Fuel capacity 70.1 gallons, Engine oil 6.4 gallons

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	35 ft (11 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	36 ft (11 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Tail Swing Radius	6 ft (2 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Natural
Displacement	396 cu in (6,489 cu cm)
Engine Model	BB-6BG1T
Max Torque	388 lbs ft (526 nm)
Net Power	138 hp (103 kw)
Power Measured @	1,950 rpm
Torque Measured @	1,600 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	70 gal (265 l)
Hydraulic Pump Flow Capacity	100 gpm (380 lpm)
Hydraulic System Fluid Capacity	54 gal (205 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 volts
Operating Weight	51,376 lbs (23,304 kg)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	8 ft (2 m)
