Equipment ↠ Link-Belt ↠ Excavators ↠ 2004 Link-Belt 330LX

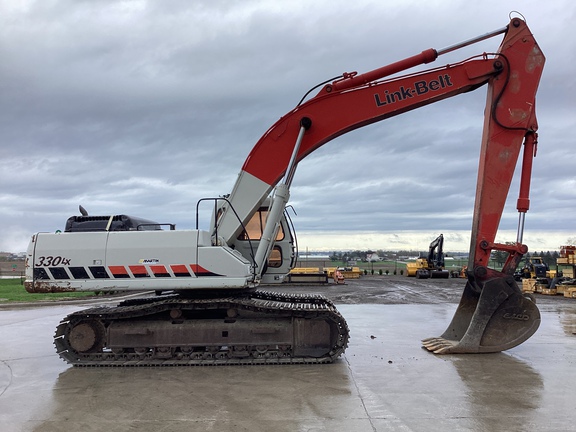

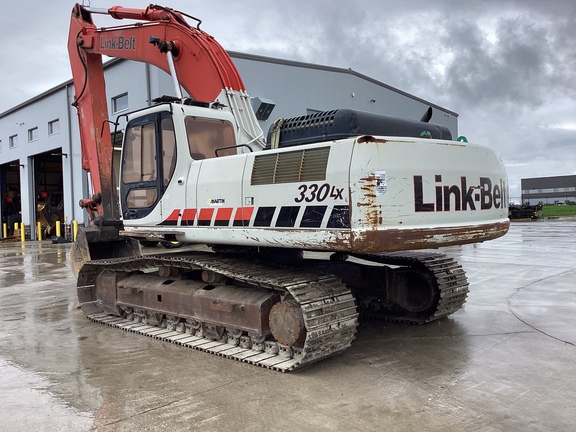

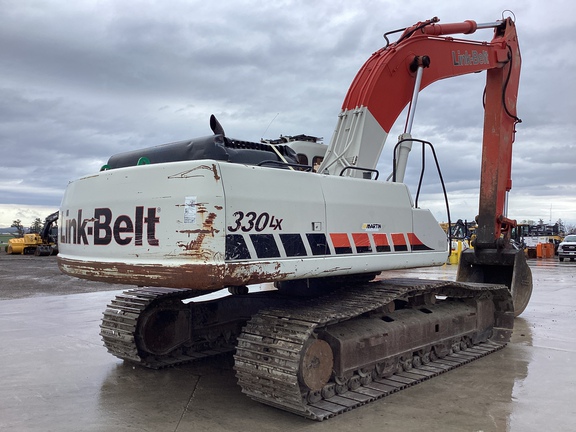

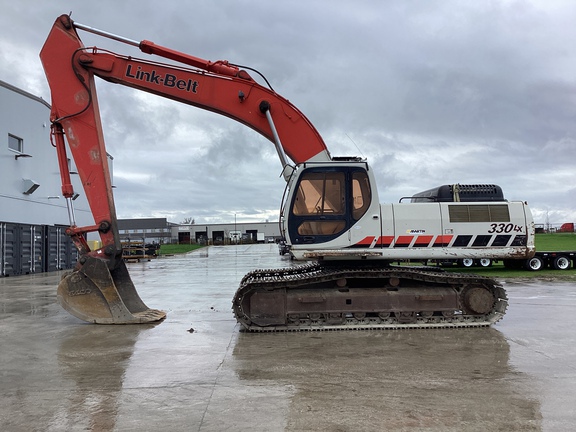

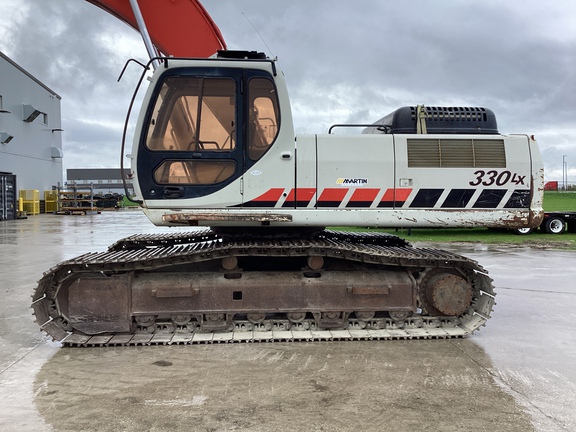

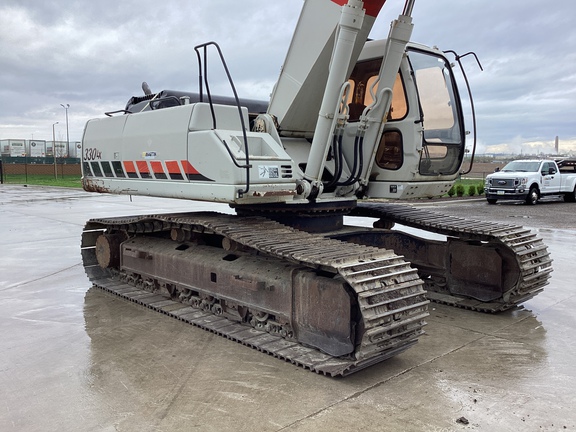

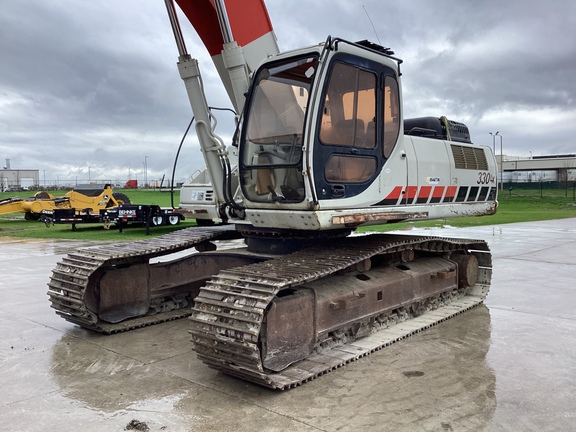

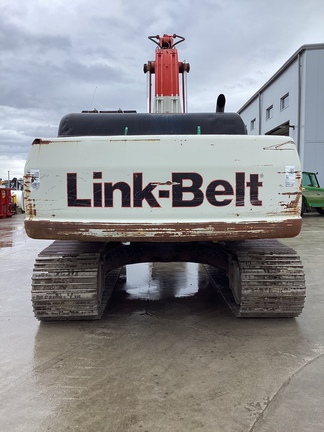

2004 Link-Belt 330LX For Sale in CEDAR RAPIDS, IA

Name: 2004 Link-Belt 330LX
Brand: Link-Belt
SKU: 87037830
Price: 34900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $34,900.00 USD

Apply for Financing

Martin Equipment

Martin Equipment Dealer Info

Martin Equipment Website

Click here to email Martin Equipment.

Contact: Josh White, Used Equipment Manager

Click for Phone Number

Machine Info:

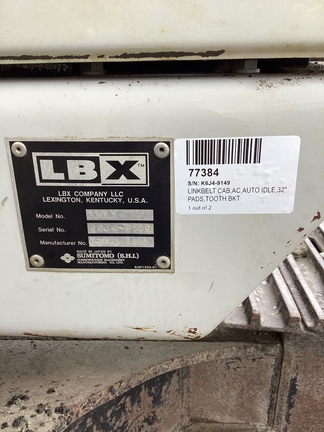

Serial Number:	K6J4-9149
Stock Number:	77384
Machine Location:	CEDAR RAPIDS, IA

Description:

Cab w/ AC, Long Arm, 32" Pads, w/ Bucket

Machine Details:

General Specifications

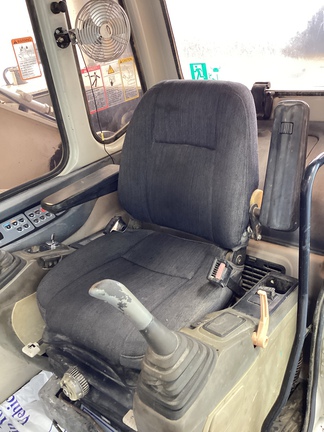

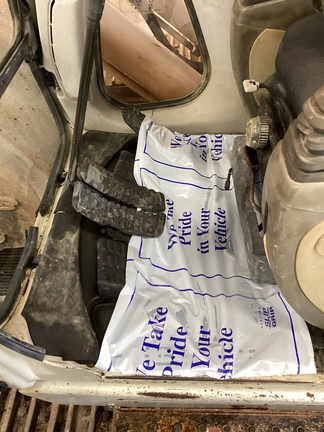

Operators Station	Cab w/ AC
Arms	Long Arm
Pad Size	32" Pads

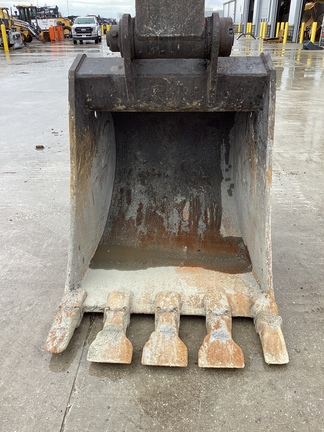

Buckets	w/ Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged with Intercooler
Displacement	475 cu in (7,784 cu cm)
Engine Model	AA-6HK1XQB
Max Torque	687 lbs ft (931 nm)
Net Power	247 hp (184 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,600 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	11 gal (42 l)
Engine Oil Capacity	9 gal (33 l)
Fuel Capacity	153 gal (580 l)
Hydraulic Pump Flow Capacity	150 gpm (568 lpm)
Hydraulic System Fluid Capacity	93 gal (350 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 volts
Operating Weight	78,000 lbs (35,380 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm

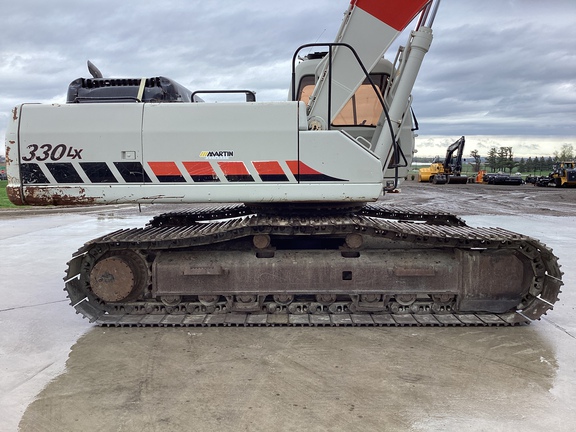

Undercarriage
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
