Equipment ↠ Link-Belt ↠ Truck Cranes ↠ 1987 Link-Belt HTC840

1987 Link-Belt HTC840 For Sale in Las Vegas, Nv

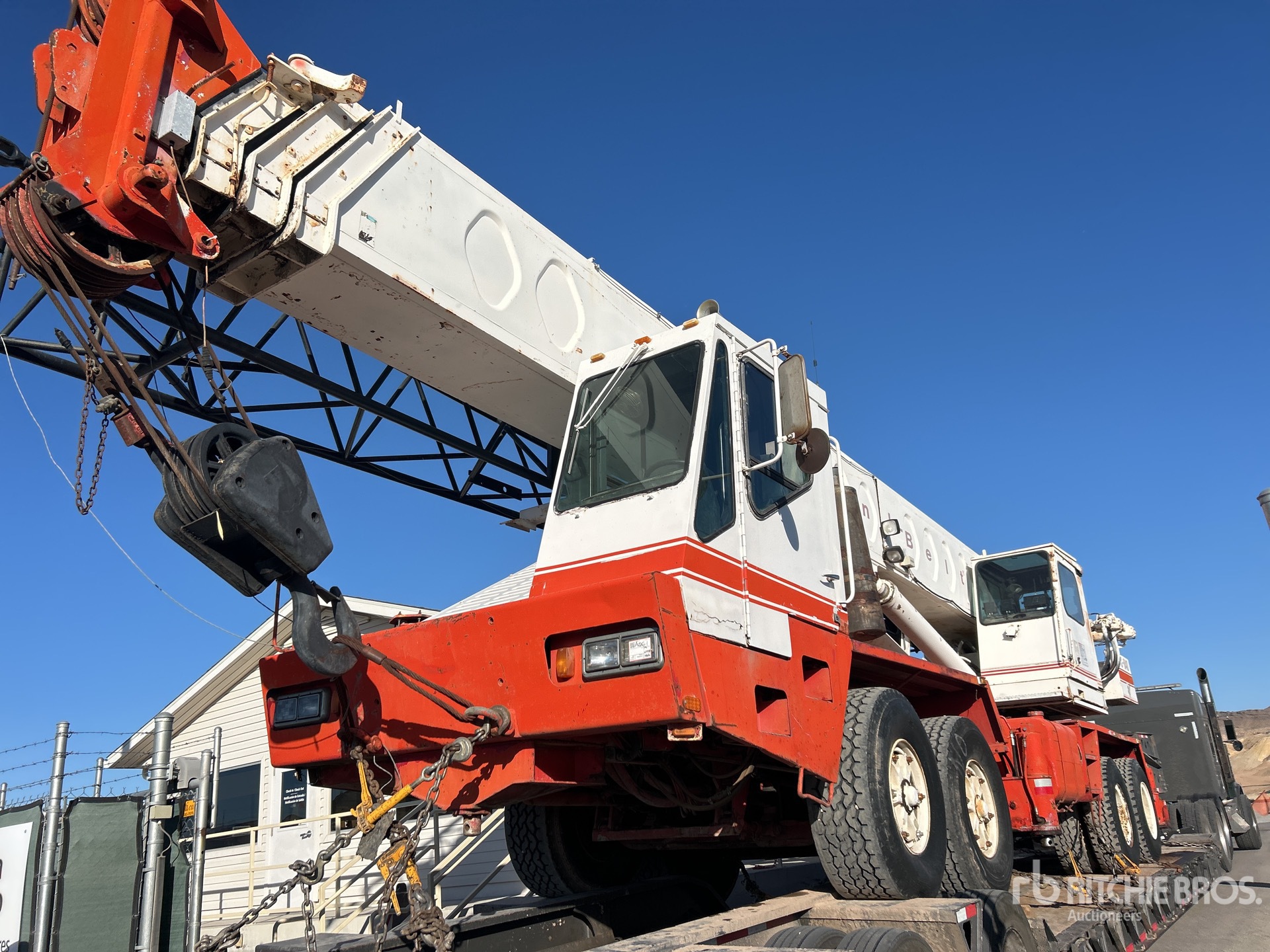

Name: 1987 Link-Belt HTC840
Brand: Link-Belt
SKU: 86116628
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

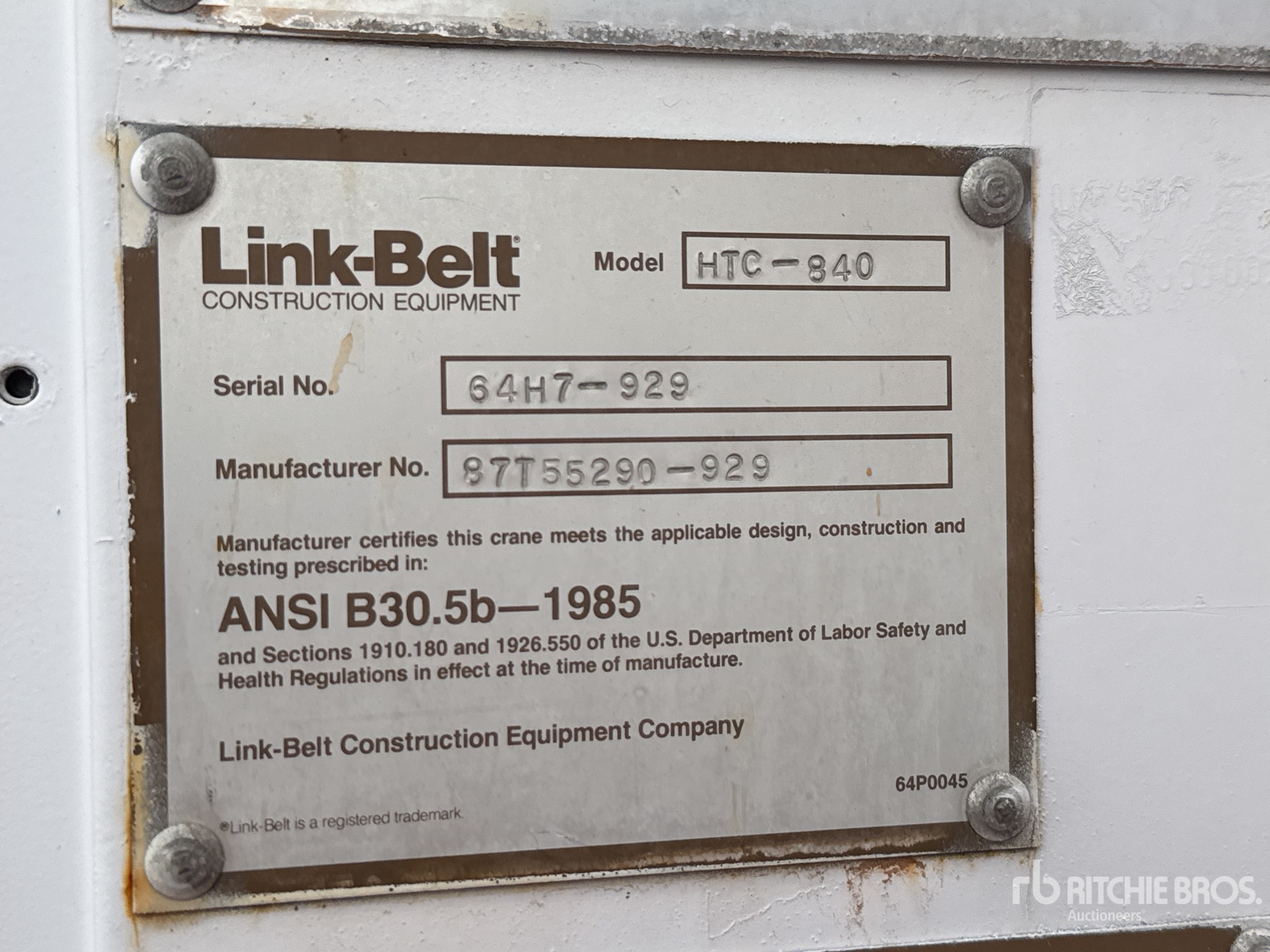

Serial Number:	64H7929
Machine Location:	LAS VEGAS, NV

Description:

Eaton Fuller 12 Speed Manual Transmission, 1999 hrs Carrier Engine, Cummins 6 Cylinder Diesel Carrier Engine, LoadWise 315/316/317 Load Moment Indicator, 35 ft Minimum 110 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 33 ft Swingaway Jib, 3 Sheave Hook Block Closing Time: 2026-06-05 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Max Elevating Angle	78 degrees
Max Height @ Max Raise Angle - no jib	85 ft (26 m)
Min Height @ Max Raise Angle	35 ft (11 m)
Number of Sections	3
Swing Speed	3 rpm
CARRIER ENGINE
bore	4 in (11 cm)
Displacement	505 cu in (8,267 cu cm)
Gross Power	234 hp (175 kw)
Make	Link-Belt
Max Torque	640 lbs ft (868 nm)
Number of cylinders	6
Power Measured @	2,200 rpm
Stroke	6 in (14 cm)
Dimensions
Carrier Length	37 ft (11 m)
Ground Clearance	1 ft (0 m)
Transport Height	11 ft (3 m)
Transport Length	46 ft (14 m)
Transport Width	8 ft (2 m)
Upper Structure Tail Swing Radius	14 ft (4 m)
Width w/ Outriggers Extended	22 ft (7 m)
Operating Specifications
Alternator Supplied Amperage	80 amps
Carrier Fuel Capacity	100 gal (379 l)
Operating Voltage	24 volts
Operating Weight	62,100 lbs (28,168 kg)
Tire Size	Front - 15.0 x 22.5 (16 PR) Rear - 11.0 x 20.0 (14 PR)
Upper Structure Hydraulic System Fluid Capacity	145 gal (549 l)
Transmission
Max Speed - Forward	51 mph (81 kph)
Number of Forward Gears	13
Number of Reverse Gears	3
Transmission Type	Fuller Roadranger
