Auction Pricing
Auction Info: Starting on 2026-05-20 Click here to place a bid

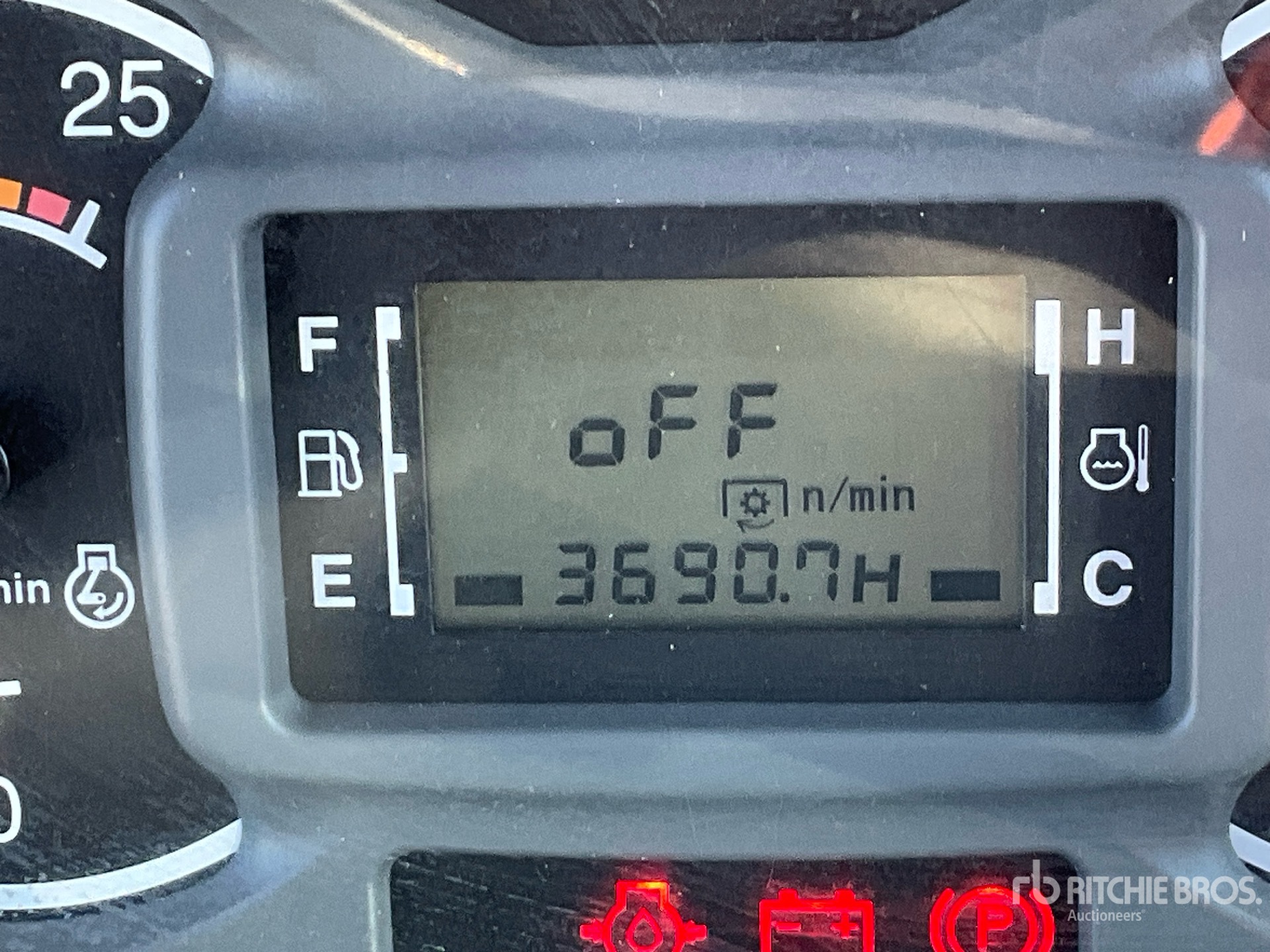

| Hours: | 3690 |

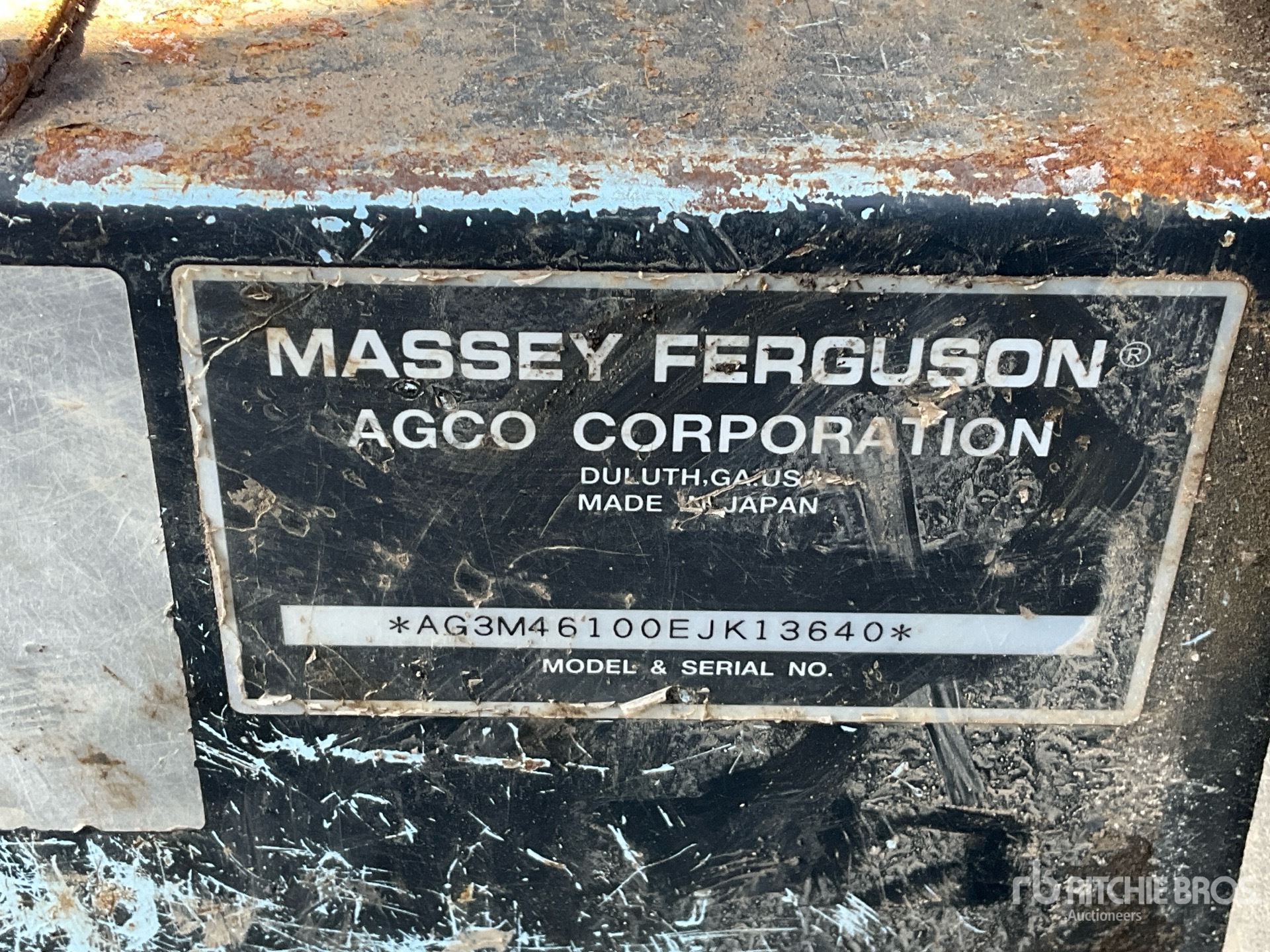

| Serial Number: | AG3M46100EJK13640 |
| Machine Location: | TORONTO, ON |
Supplied by HeavyEquipmentData.com →
| 3-Point Hitch | |
| Extendable lower links | Extendable ball ends |
| Lift capacity @ 24in. (ASAE) | 3,417 lbs (1,550 kg) |
| Dimensions | |
| Height - Top of Cab | 9 ft (3 m) |
| Overall Length | 153 in (388 cm) |
| Overall Width | 7 ft (2 m) |
| Wheelbase | 7 ft (2 m) |
| Electrical System | |
| Alternator | 95 |
| Battery | 12 V |
| Engine | |
| Aspiration | Turbocharged |
| Displacement | 201 cu in (3,300 cu cm) |
| Engine Make | AGCO Power |
| Engine Model | 33 AWIC |
| Gross Power | 99 hp (74 kw) |
| Number of Cylinders | 3 |
| Power Measured @ | 2,200 rpm |
| PTO Power | 80 hp (60 kw) |
| Hydraulic System | |
| Hydraulic System Type | Open Center system |
| Number of Remote Control Valves | 1 or 2 standard |
| Pump Flow Capacity | 24 gpm (90 lpm) |
| Pump Type | Gear type single pump |
| Operating Specifications | |
| Fuel Capacity | 27 gal (102 l) |
| Power Take-Off (PTO) | |
| Optional | Independent |
| Power Take-Off(PTO) Type | Electronically engaged |
| PTO speed | 540 rpm |
| PTO Speeds @ Engine rpm | 1,000 |
| Production | |
| Series | 4600 Series |
| Years Manufactured | 2013 - 2015 |
| Transmission | |
| Transmission Type | 12F x 12R Power shuttle |
| Weights | |
| Weight (shipping, 4WD, cab, flange axle) | 6,945 lbs (3,150 kg) |
| Weight 4WD With ROPS | 6,504 lbs (2,950 kg) |
