1986 Michigan L120 For Sale in Edmonton, Ab

Name: 1986 Michigan L120
Brand: Michigan
SKU: 87327304
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

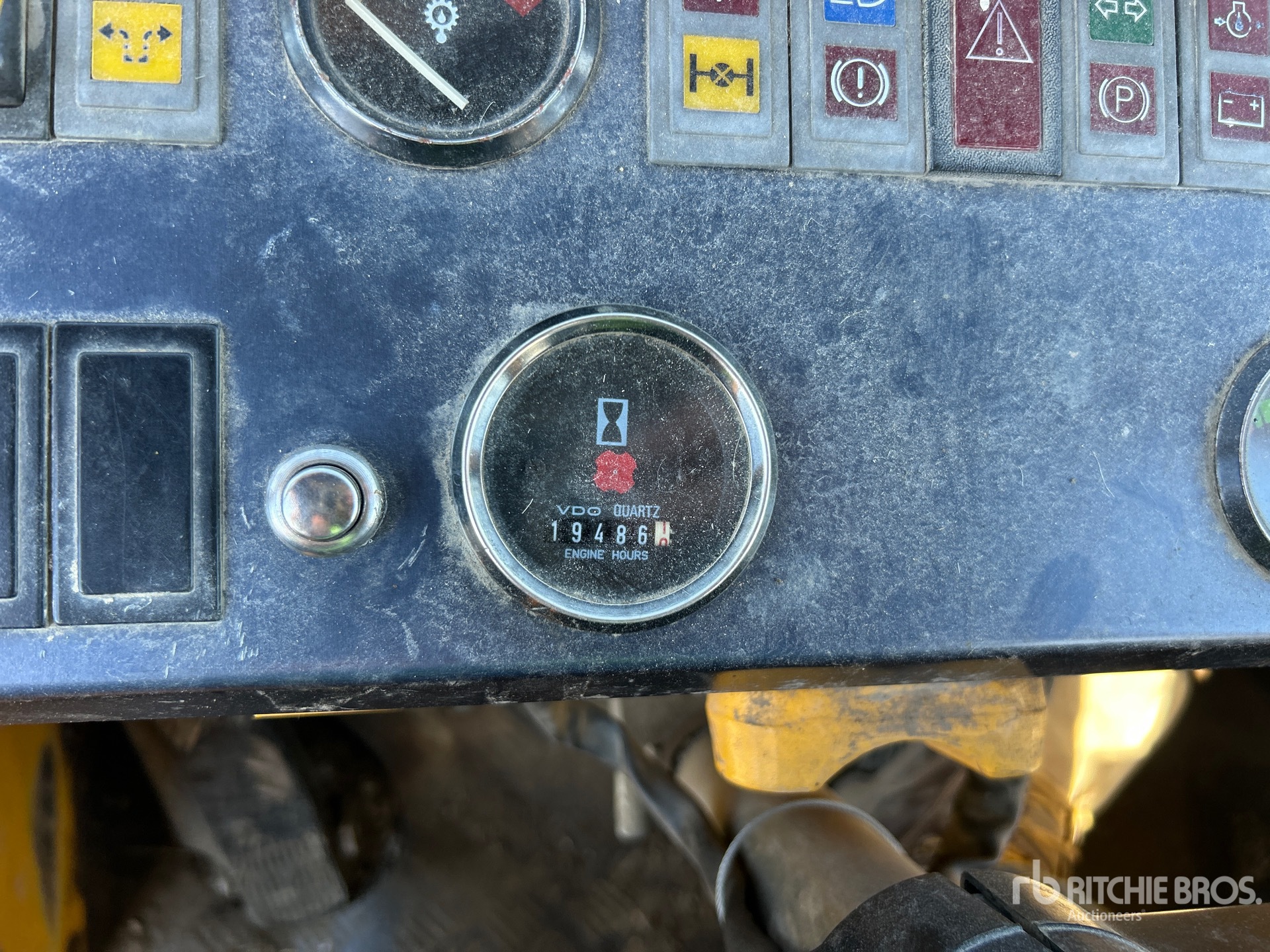

Hours:	19486

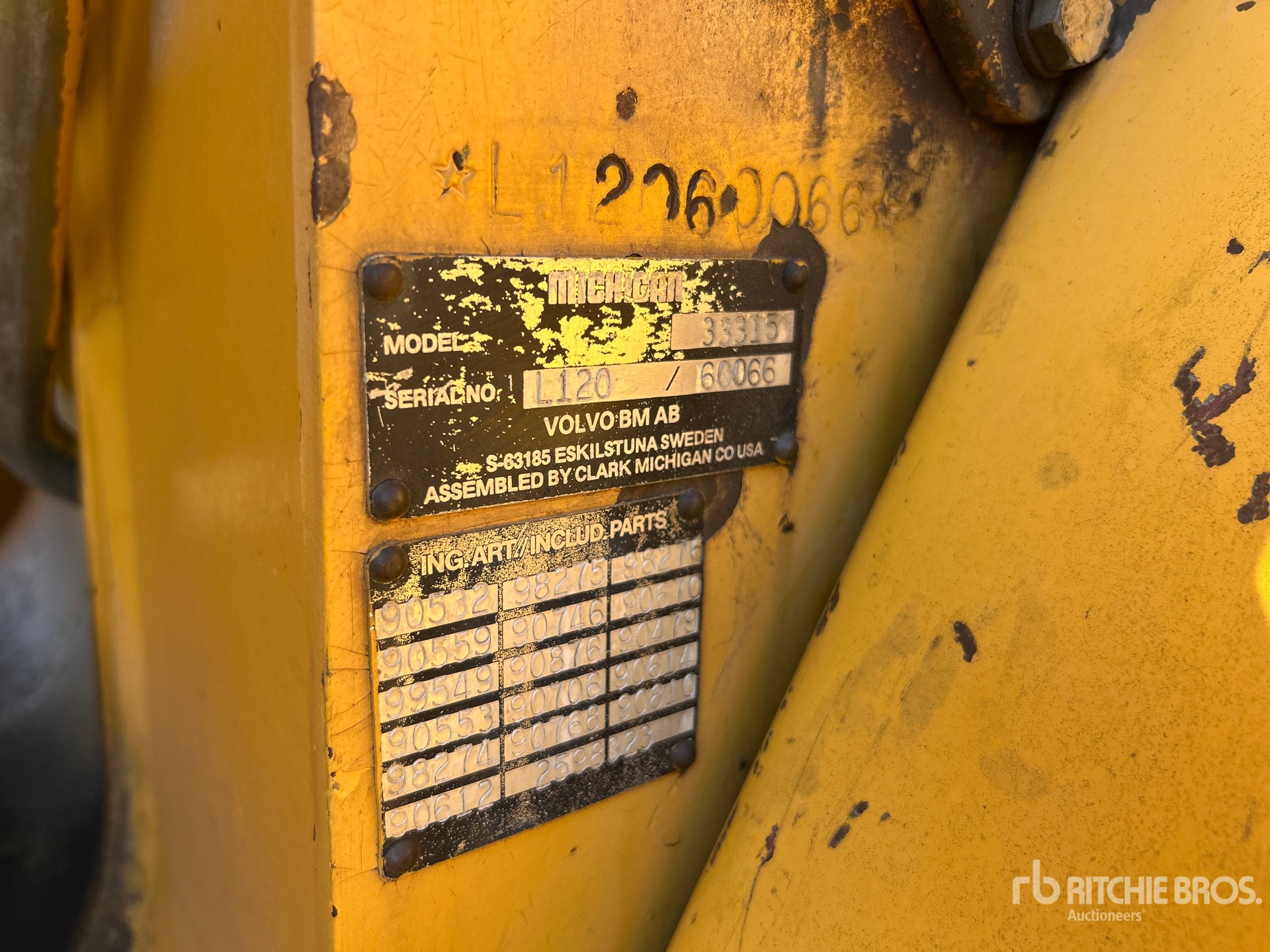

Serial Number:	60066
Machine Location:	EDMONTON, AB

Description:

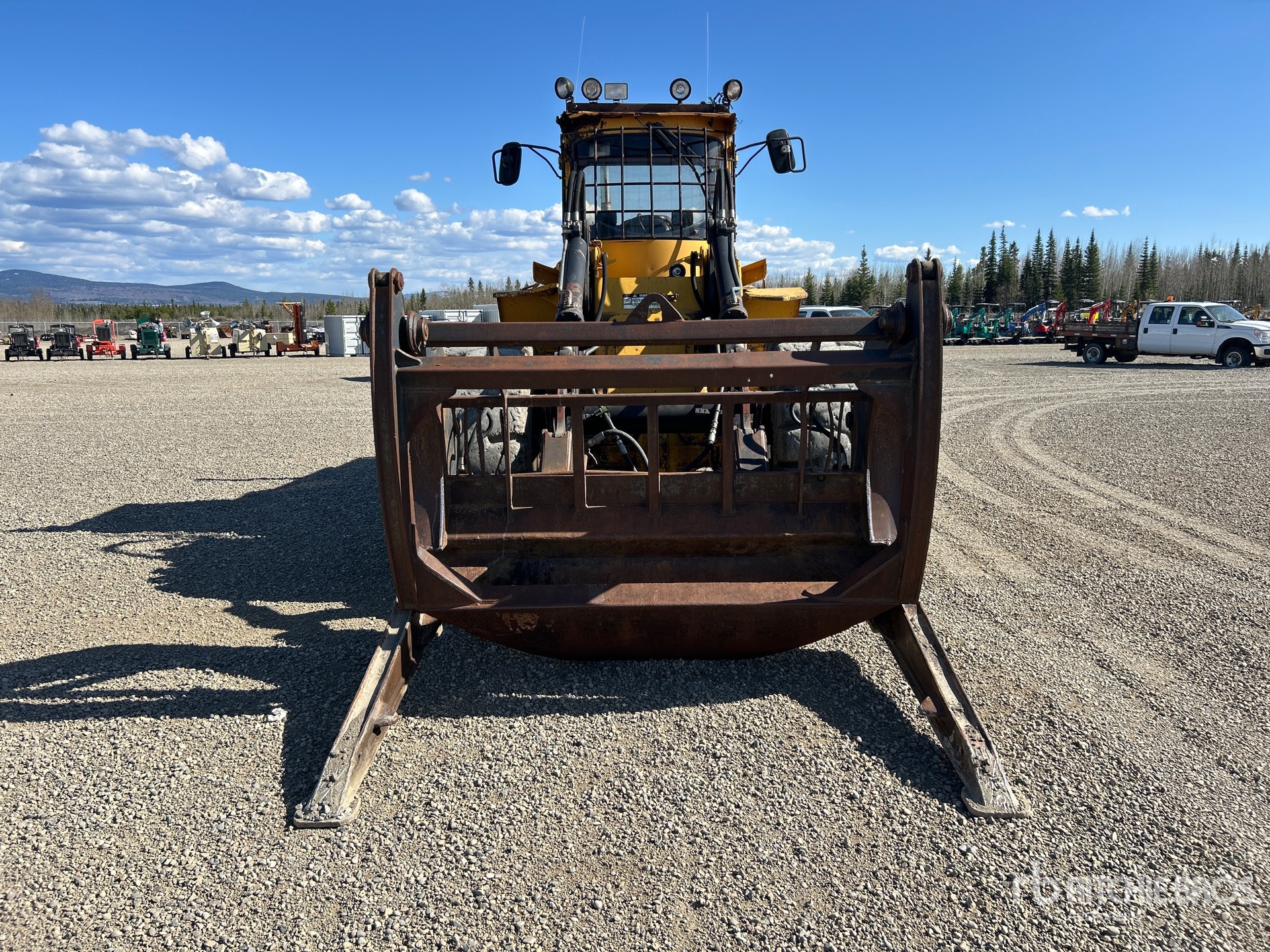

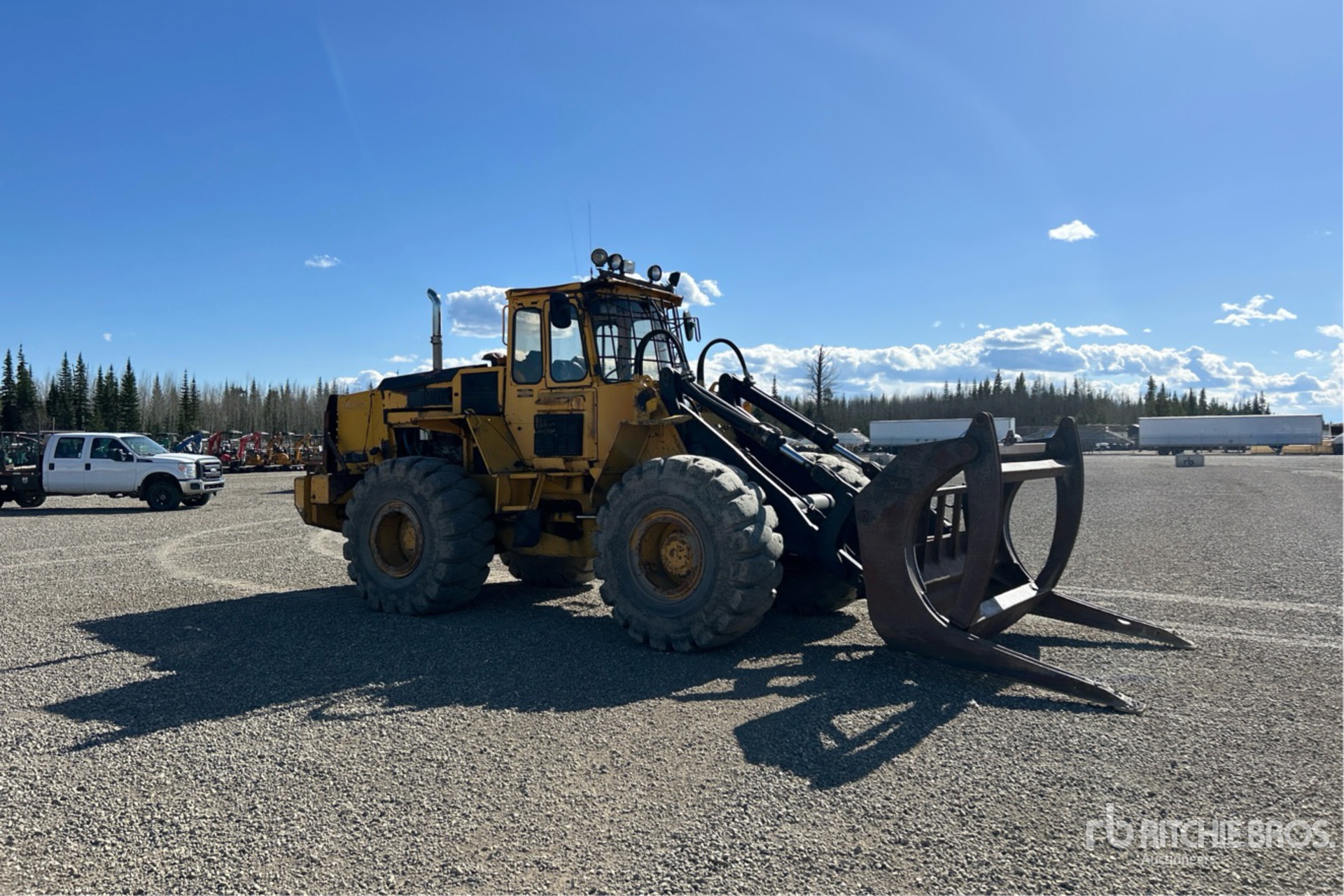

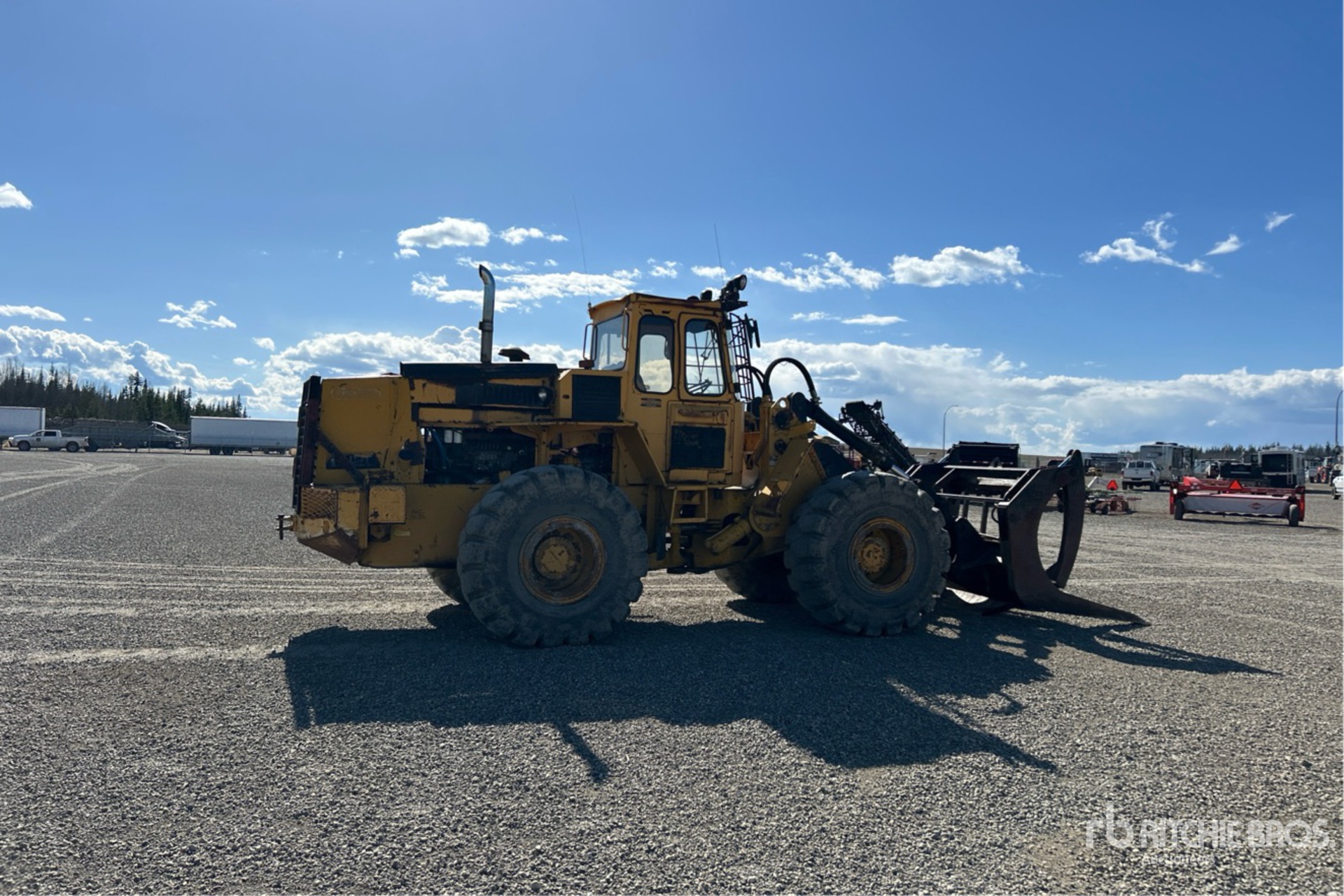

Enclosed Cab, 94 inch grapple, Log Grapple, 23.5-25 Tires This lot is subject to 7% BC PST Closing Time: 2026-05-11 10:35:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	28,420 lbs (12,891 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Height at Hook Max Reach	6 ft (2 m)
Hinge Pin Max Height	13 ft (4 m)
Length w/ Bucket on Ground	25 ft (8 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	409 cu in (6,702 cu cm)
Engine Model	TD71G
Gross Power	200 hp (149 kw)
Max Torque	524 lbs ft (710 nm)
Net Power	190 hp (142 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	2 seconds
Lower Time	3 seconds
Pump Flow Capacity	52 gpm (196 lpm)
Pump Type	triple vane type
Raise Time	7 seconds
Relief Valve Setting	3,050 psi
Operating Specifications
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	17 gal (65 l)
Engine Oil Capacity	6 gal (22 l)
Front Diff Fluid Capacity	9 gal (35 l)
Fuel Capacity	57 gal (215 l)
Hydraulic System Fluid Capacity	67 gal (255 l)
Operating Voltage	24 volts
Operating Weight	34,190 lbs (15,508 kg)
Rear Axle Oscillation	26 degrees
Rear Diff Fluid Capacity	10 gal (38 l)
Static Tipping Load - Bucket	27,980 lbs (12,692 kg)
Tire Size	23.5R25
Transmission Fluid Capacity	9 gal (33 l)
Turning Radius	21 ft (6 m)
Transmission
Max Speed Forward	24 mph (39 kph)
Max Speed Reverse	17 mph (27 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Volvo BM HT 131 automatic powershift
