1988 Michigan L190 For Sale in Toronto, On

Name: 1988 Michigan L190
Brand: Michigan
SKU: 87405261
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

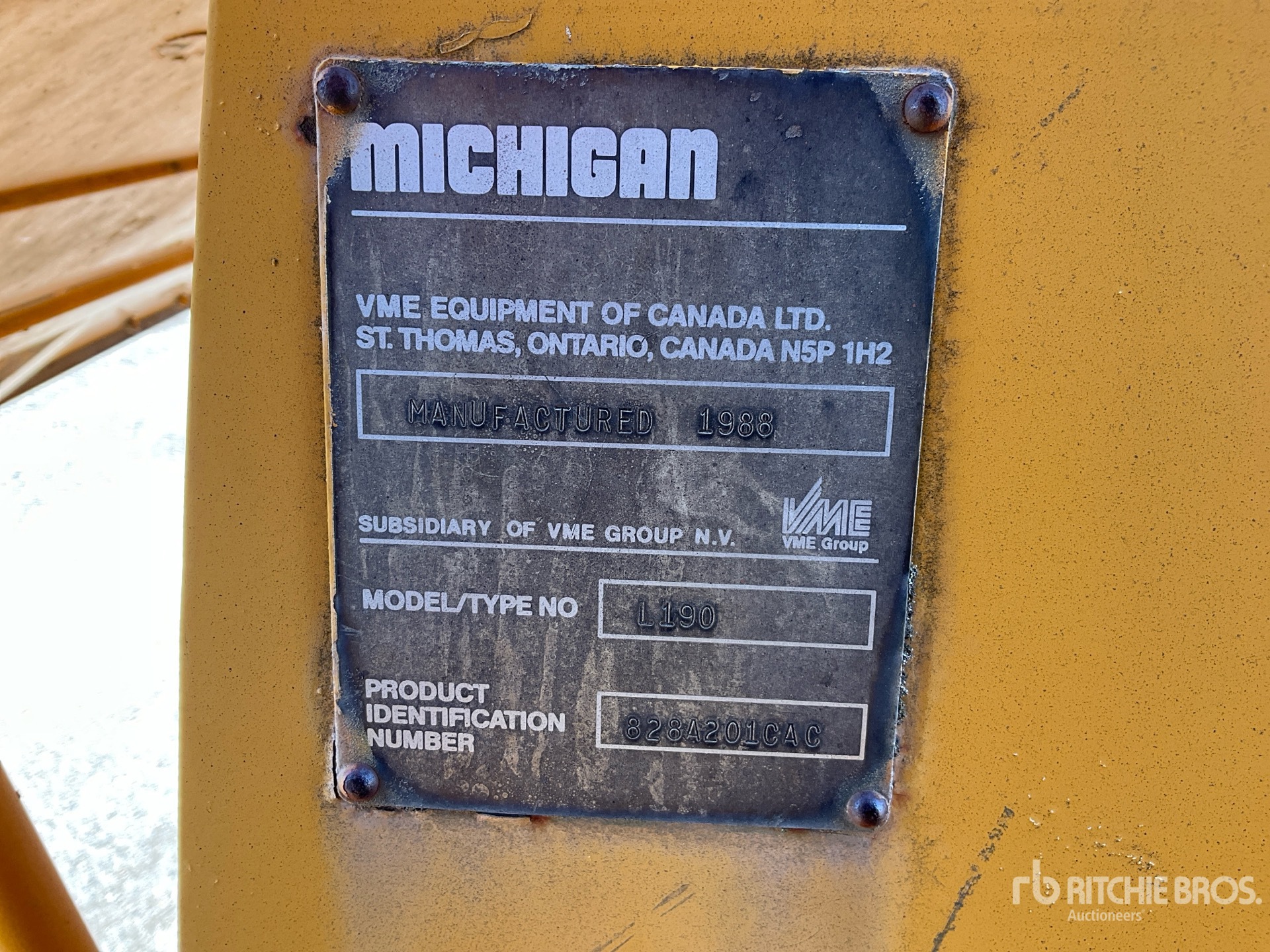

Serial Number:	828A201CAC
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, 128 in Bucket, 29.5-25 Tires Closing Time: 2026-05-20 09:02:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	58,563 lbs (26,564 kg)
Bucket Capacity - heaped	6 cu yd (4 cu m)
Bucket Capacity - struck	5 cu yd (4 cu m)
Bucket Width	11 ft (3 m)
Dump Clearance at Max Raise	11 ft (3 m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	12 ft (4 m)
Hinge Pin - Max Height	15 ft (4 m)
Length with Bucket on Ground	30 ft (9 m)
Reach at Max Lift and Dump	5 ft (1 m)
Wheelbase	12 ft (4 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	turbo + aftercooled
Displacement	855 cu in (14,011 cu cm)
Engine Model	NTA 855C335
Gross Power	322 hp (240 kw)
Net Power	290 hp (216 kw)
Number of Cylinders	6
Power Measured @	1,900 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	3 seconds
Lower Time	5 seconds
Pump Flow Capacity	36 gpm (134 lpm)
Pump Type	gear type
Raise Time	7 seconds
Relief Valve Setting	2,750 psi
Operating Specifications
Alternator Supplied Amperage	100 amps
Cooling System Fluid Capacity	20 gal (76 l)
Engine Oil Fluid Capacity	9 gal (34 l)
Front Axle/Diff Fluid Capacity	9 gal (34 l)
Fuel Capacity	115 gal (436 l)
Hydraulic System Fluid Capacity	85 gal (322 l)
Operating Voltage	24 volts
Operating Weight	59,781 lbs (27,116 kg)
Rear Axle Oscillation	22 degrees
Rear Axle/Diff Fluid Capacity	9 gal (34 l)
Static Tipping Weight	42,261 lbs (19,169 kg)
Tire Size	29.5-25
Transmission Fluid Capacity	13 gal (47 l)
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	22 mph (36 kph)
Max Speed - Reverse	22 mph (36 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	Clark 4425-200
