Equipment ↠ New Holland ↠ Backhoe Loaders ↠ 2001 New Holland LB90

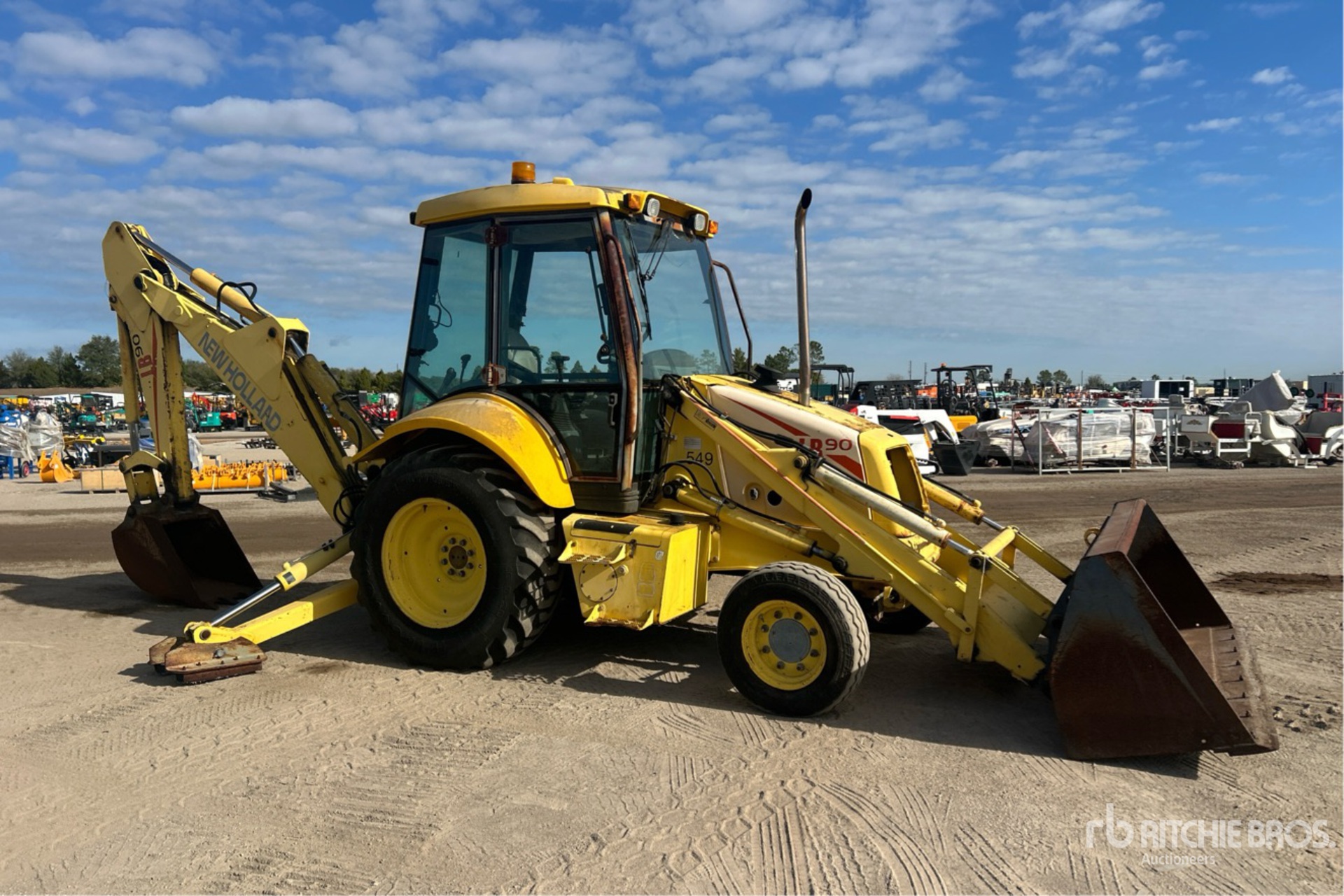

2001 New Holland LB90 For Sale in Atlanta, Ga

Name: 2001 New Holland LB90
Brand: New Holland
SKU: 87234248
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

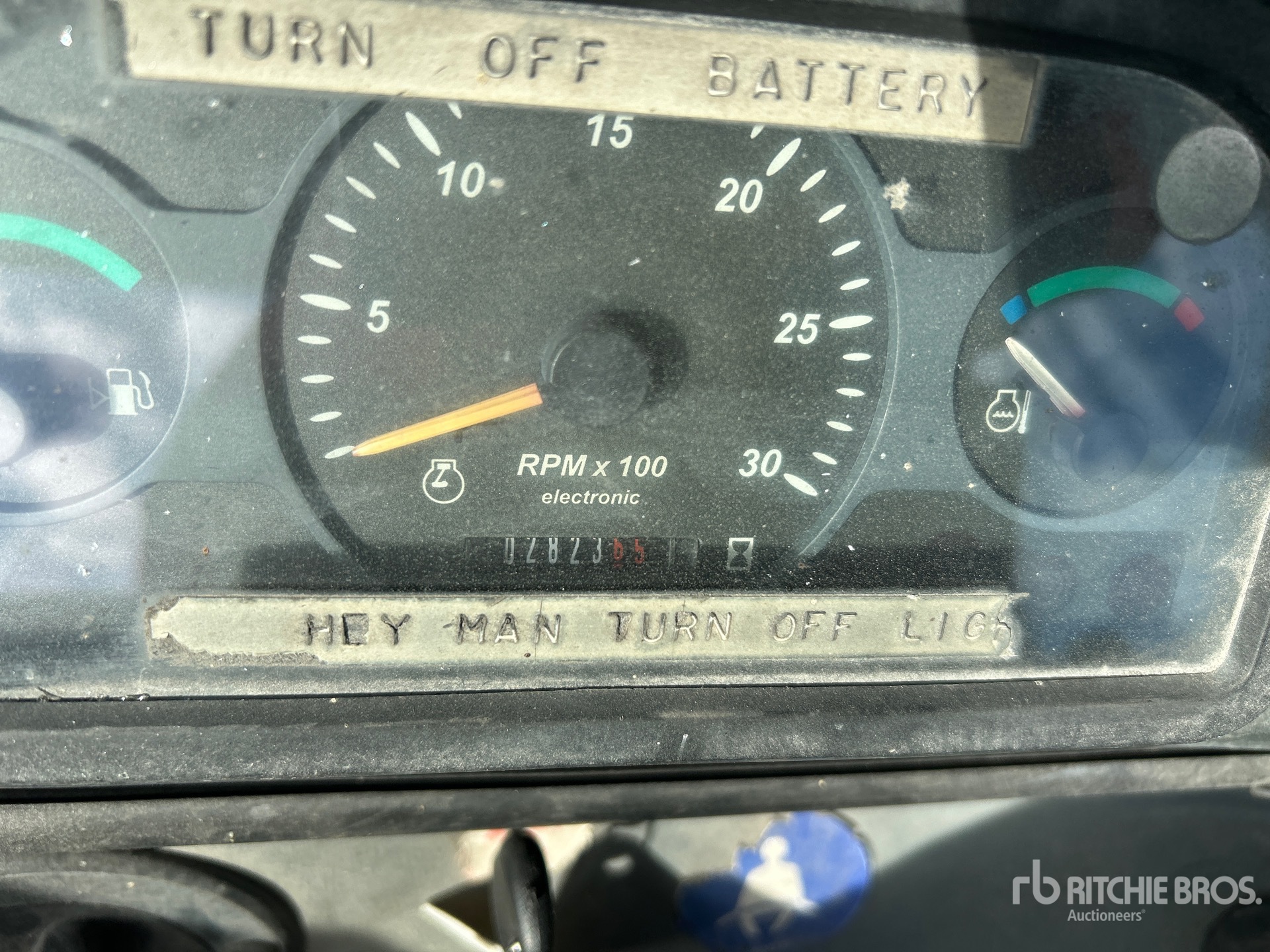

Hours:	2823

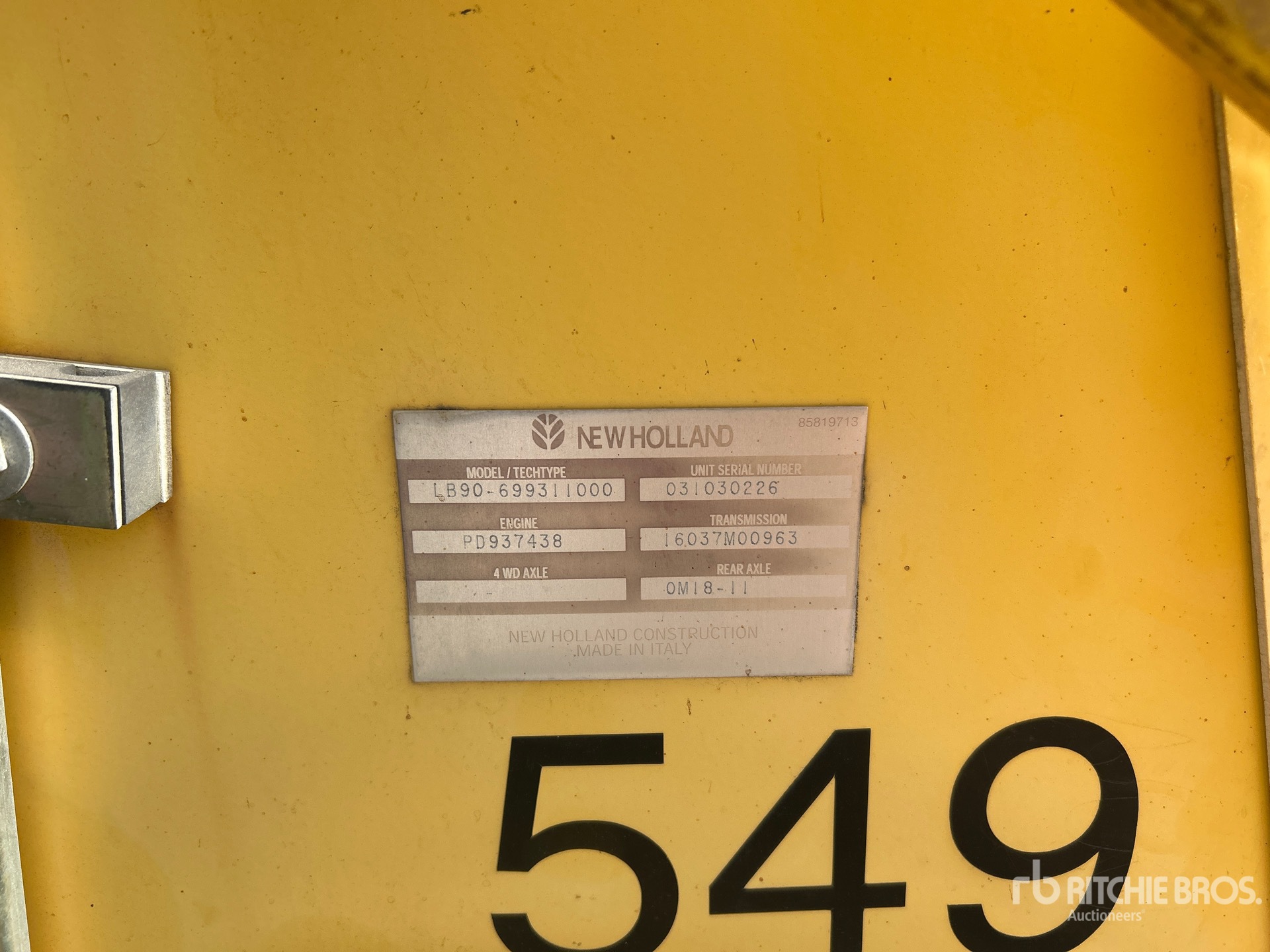

Serial Number:	31030226
Machine Location:	ATLANTA, GA

Description:

Enclosed Cab, 88 in Loader Bucket, 24 in Backhoe Digging Bucket Closing Time: 2026-05-27 09:23:06 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Backhoe
Bucket Dig Force	12,808 lbs (5,810 kg)
Bucket Dig Force - Extended	12,808 lbs (5,810 kg)
Dig Depth	14 ft (4 m)
Dig Depth - Extended	18 ft (5 m)
Load Height - Extended	15 ft (4 m)
Reach at Load Height - Extended	9 ft (3 m)
Reach From Swivel	18 ft (6 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	10 ft (3 m)
Transport Length	23 ft (7 m)
Transport Width	11 ft (3 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	305 cu in (5,001 cu cm)
Engine Model	BSD 450T
Gross Power	98 hp (73 kw)
Net Power	98 hp (73 kw)
General Specifications
4th Gear Fwd mph (kmh) (Since 2004)	20 (32.2)
Breakout Force lbs (kgs) (Since 2004)	13,942 (6,324)
Digging Depth ft (m) (Since 2004)	14.5 (4.4)
Lift Capacity lbs (kgs) (Since 2004)	7,782 (3,530)
Loading Height ft (m) (Since 2004)	12 (3.7)
Operating Weight lbs (kg) (Since 2004)	14,714 (6,674)
SAE Net hp (kW) (Since 2004)	92 (68)
Hydraulic System
Pump Flow Capacity	40 gpm (151 lpm)
Pump Type	dual gear
Relief Valve Pressure	3,045 psi
Loader
Bucket Breakout Force	13,942 lbs (6,324 kg)
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	89 in (225 cm)
Clearance at Max Dump Height	9 ft (3 m)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	7 gal (25 l)
Fuel Capacity	33 gal (125 l)
Hydraulic System Fluid Capacity	28 gal (106 l)
Oil System Fluid Capacity	5 gal (17 l)
Operating Voltage	12 volts
Operating Weight 4wd	14,714 lbs (6,674 kg)
Transmission
Max Speed	20 mph (32 kph)
Max Speed - Reverse	25 mph (40 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	power-reversing/torque converter
