Equipment ↠ New Holland ↠ Skid Steer Loaders ↠ 2017 New Holland L225

2017 New Holland L225 For Sale in Toronto, On

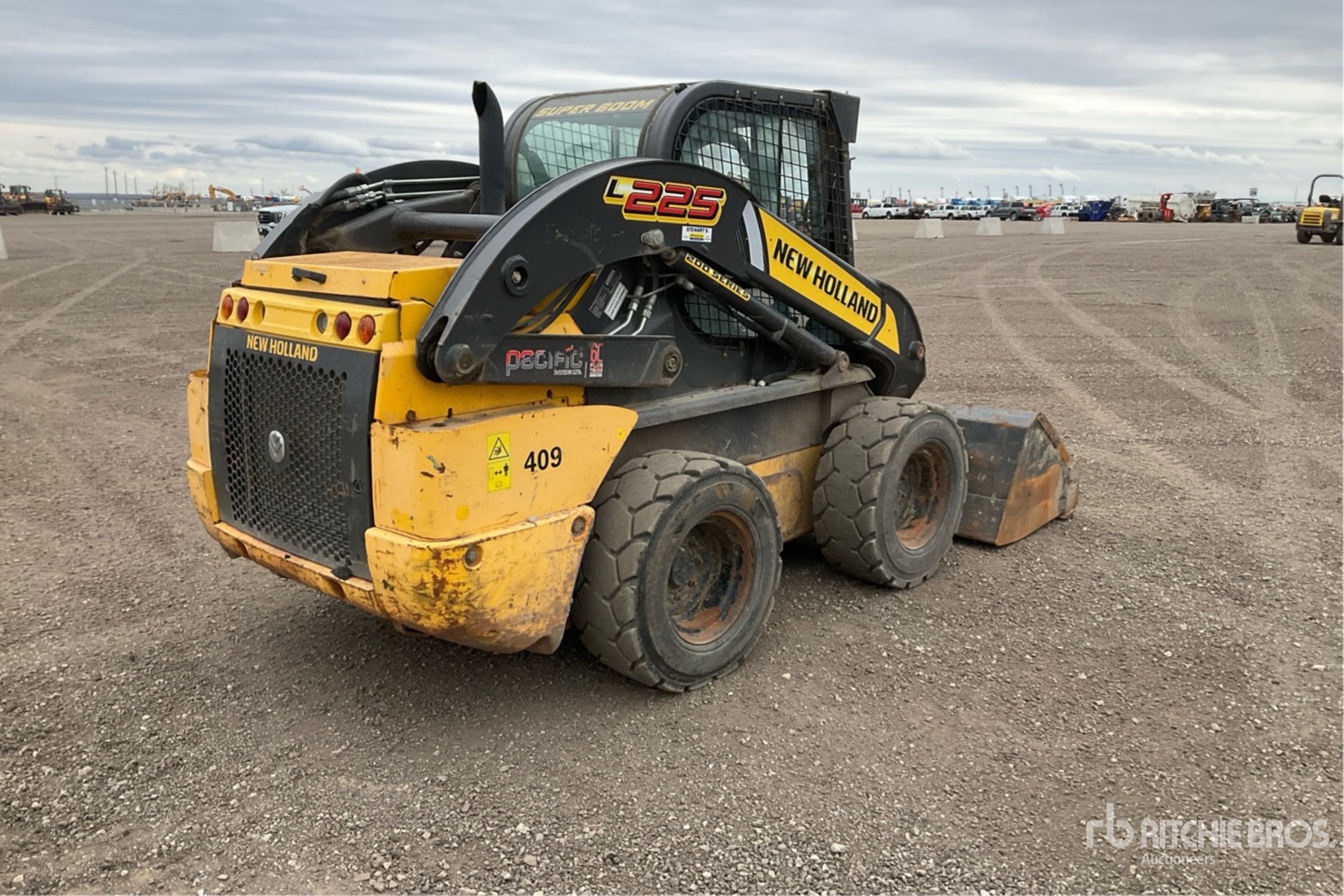

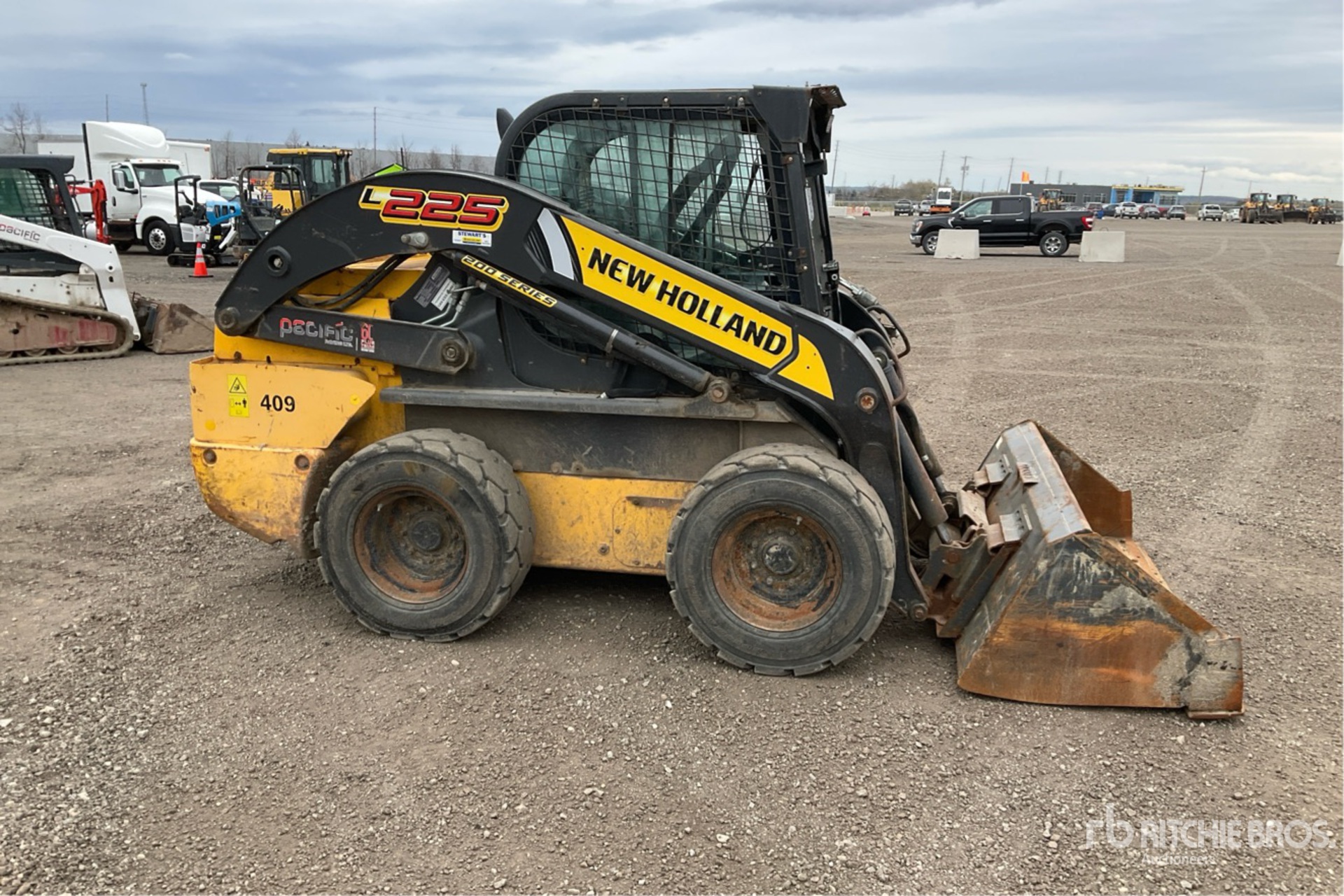

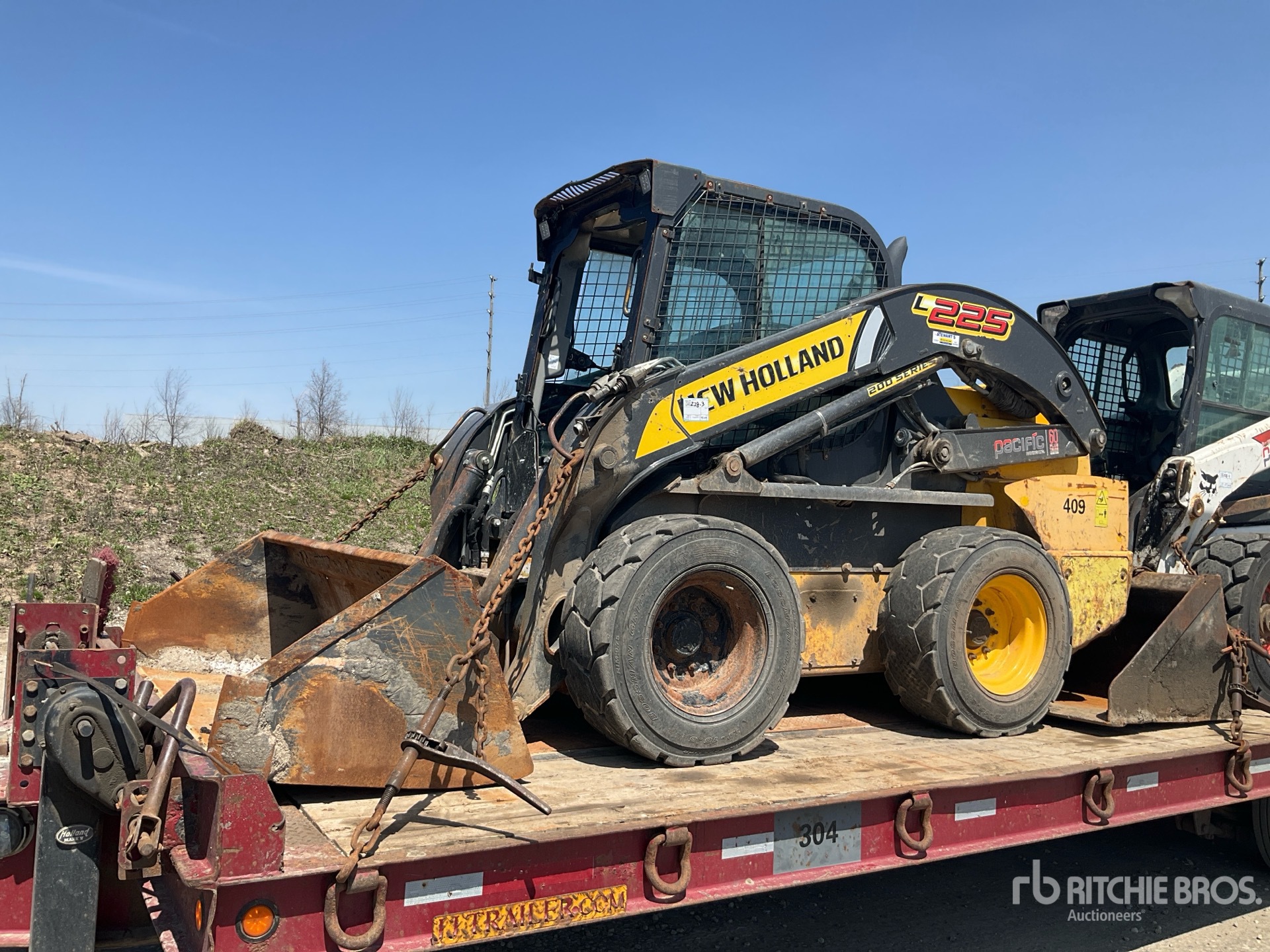

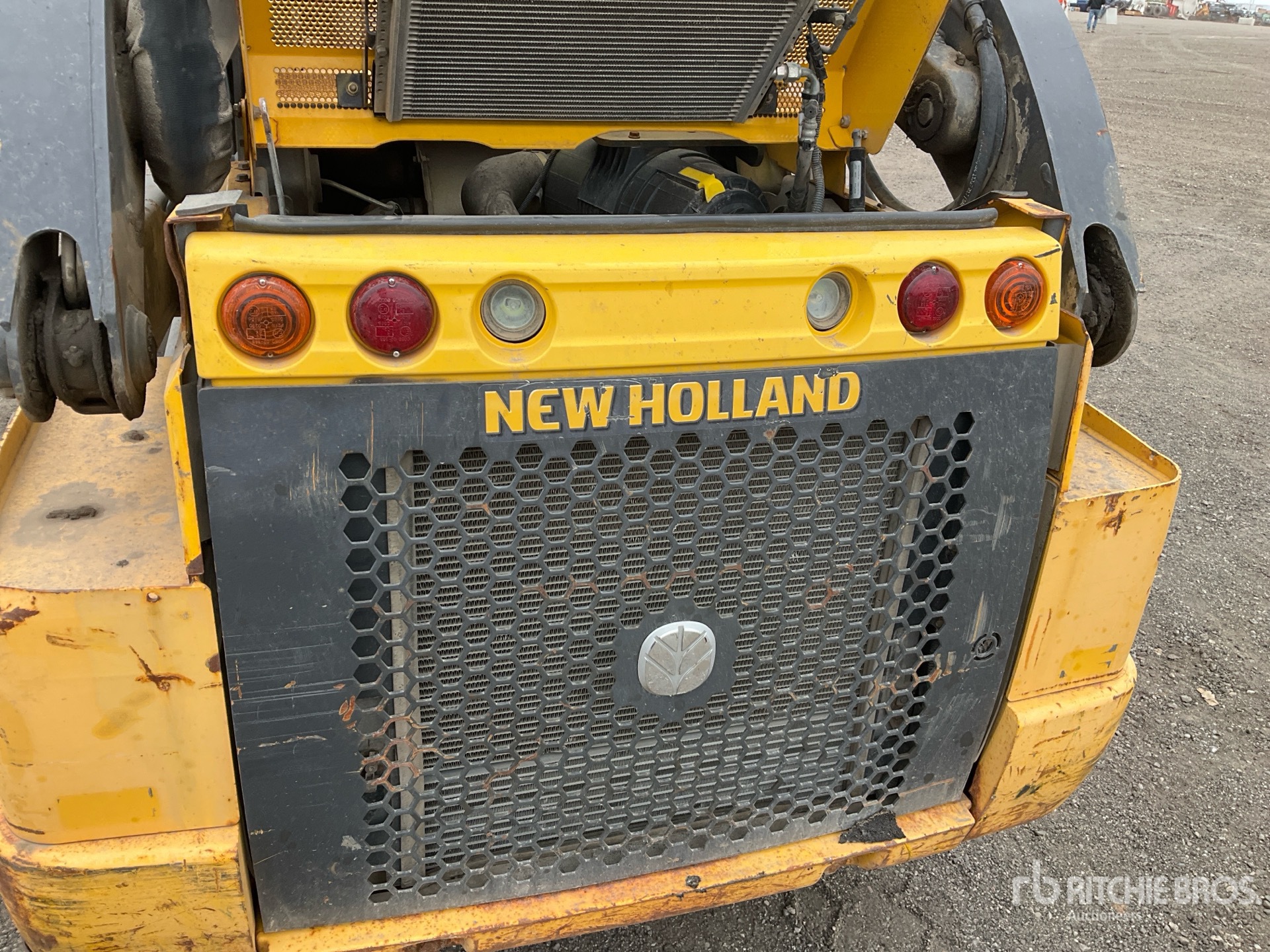

Name: 2017 New Holland L225
Brand: New Holland
SKU: 87613876
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

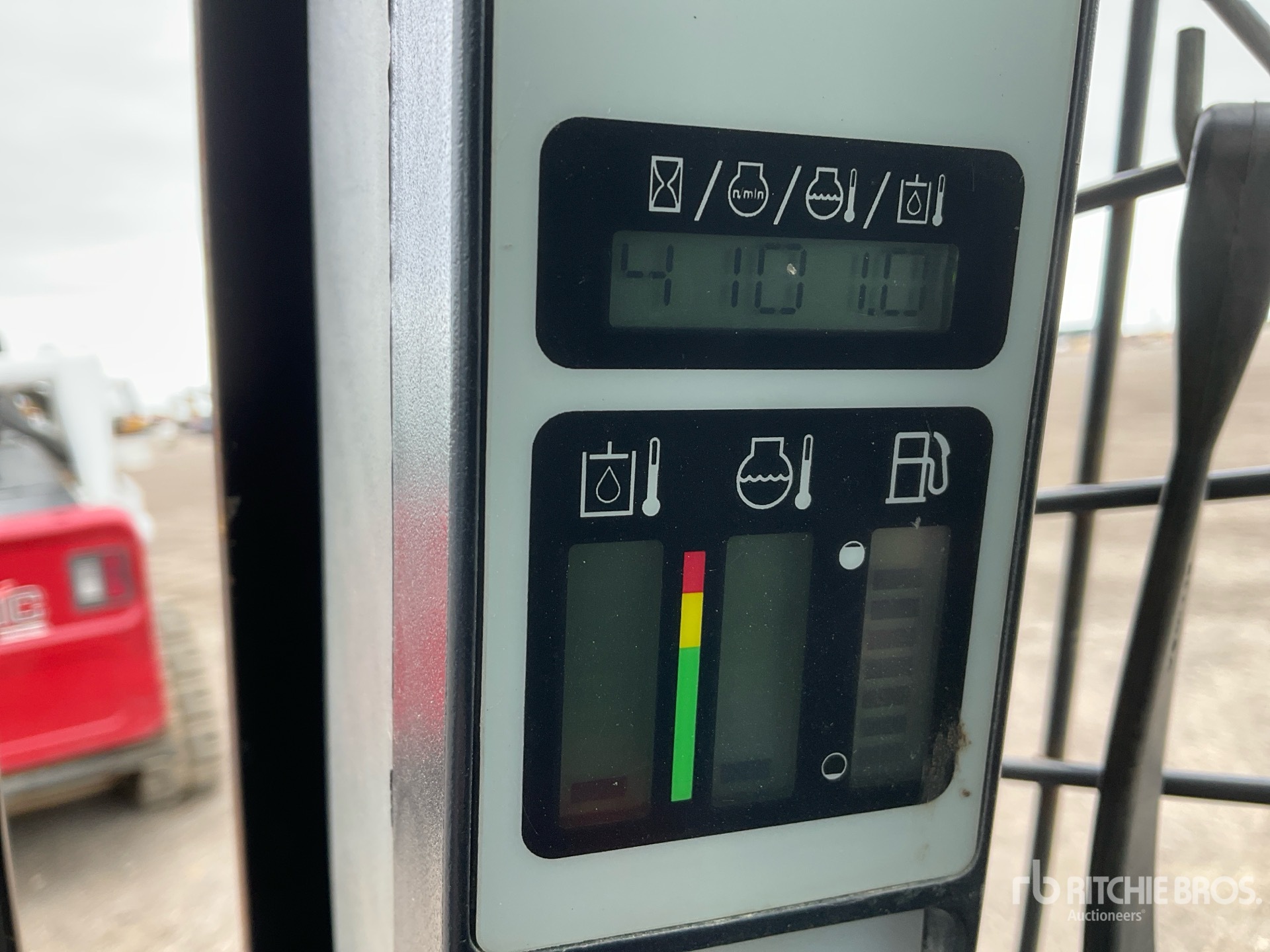

Hours:	4101

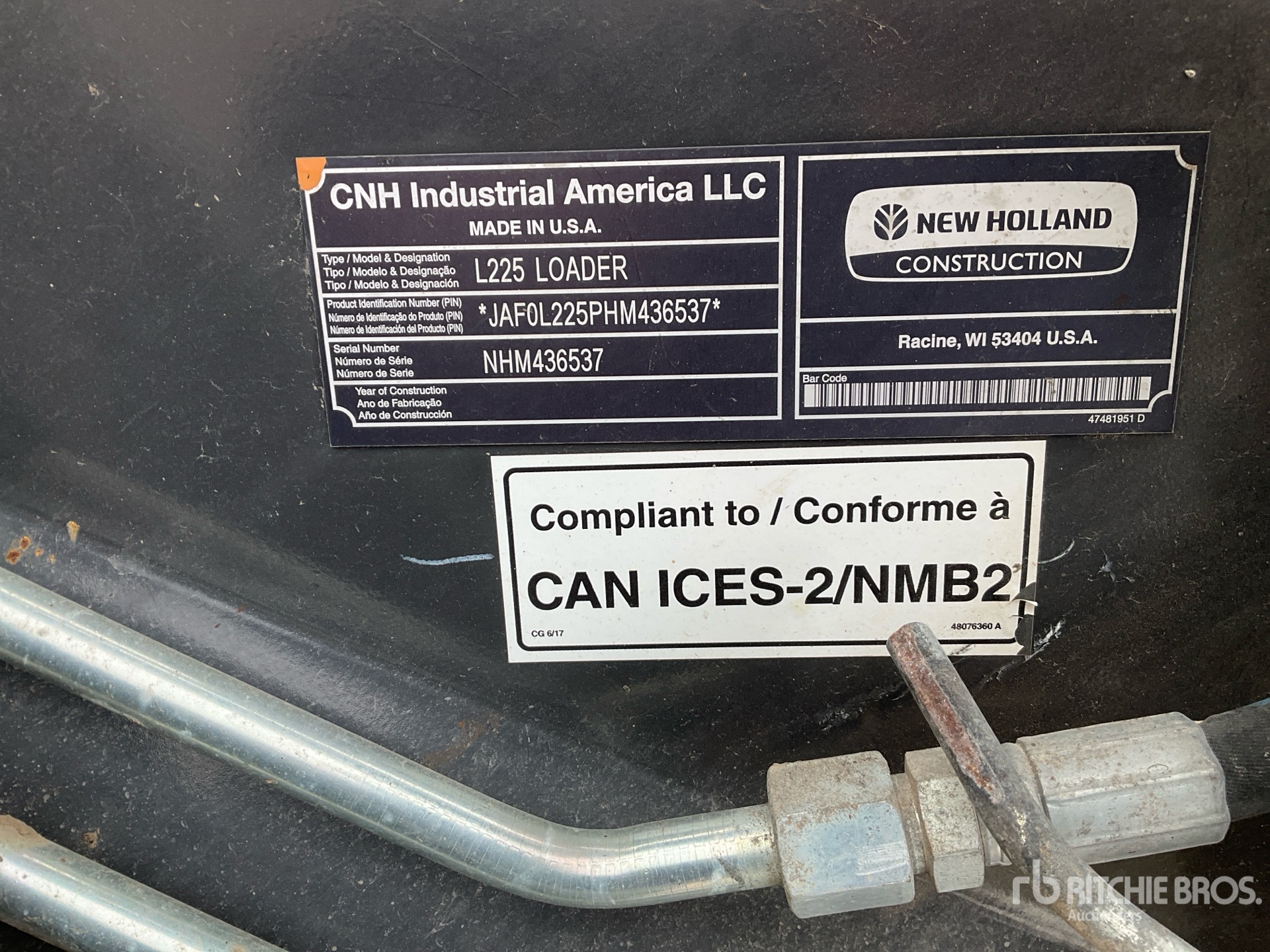

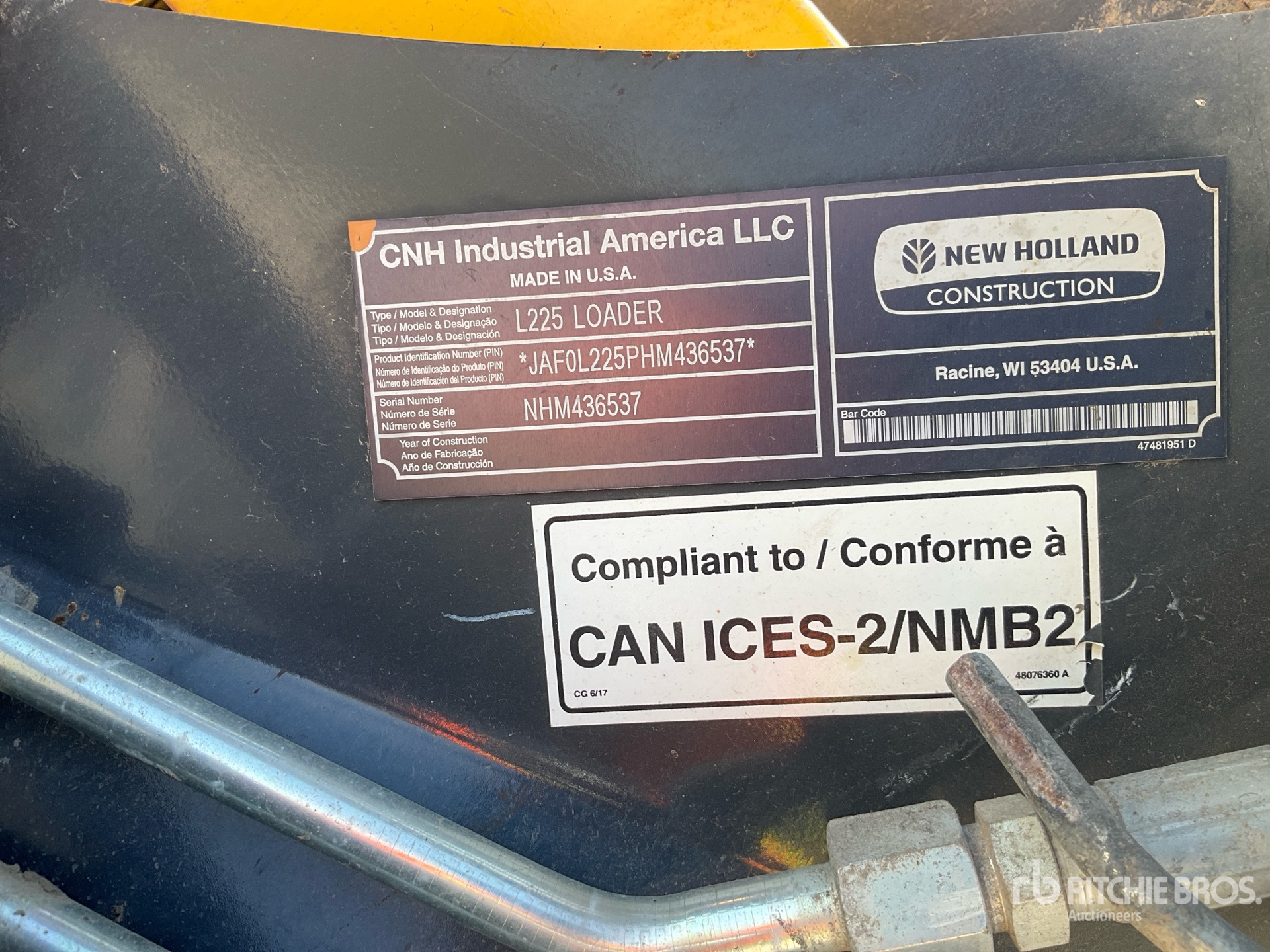

Serial Number:	JAF0L225PHM436537
Machine Location:	TORONTO, ON

Description:

Enclosed Cab (Door missing), Air Conditioner, Hydraulic Coupler, 72 in Bucket Closing Time: 2026-05-20 08:40:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Bucket hinge pin fully raised	10,794 ft (3,290 m)
Ground Clearance	8 in (20 cm)
Height - Top of ROPS/FOPS	79 in (200 cm)
Length w/o Bucket	10 ft (3 m)
Length with Bucket	12 ft (4 m)
Overall Width	76 in (193 cm)
Reach at Max Lift and Dump	32 in (82 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	5 ft (1 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	195 cu in (3,200 cu cm)
Engine Make	FPT
Engine Model	F5C E9454
Max Torque	225 lbs ft (305 nm)
Number of Cylinders	4
Power Measured @	2,500 rpm
Stroke	4 in (10 cm)
Torque Measured @	1,400 rpm
Hydraulic System
3.9	3.9 sec seconds
Displacement-High-flow aux	1 cu in (20 cu cm)
Displacement-Standard aux	2 cu in (34 cu cm)
Dump Time	3 seconds
Lower Time	3 seconds
Pump Flow Capacity	23 gpm (85 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Operating Load Rating	2,500 lbs (1,134 kg)
Operating Width	69 in (176 cm)
Tipping load (ISO 14397)	5,000 lbs (2,268 kg)
Operating Specifications
Chain Box Fluid Capacity - each side	7 gal (28 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	6 gal (23 l)
Max Speed	7 mph (12 kph)
Operational Weight	7,893 lbs (3,580 kg)
Shipping Weight - Empty	7,562 lbs (3,430 kg)
Tire Size	12 X 16.5
