2017 Toyota 8FD45U For Sale in Chicago, Il


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-05-12   Click here to place a bid



Machine Info:

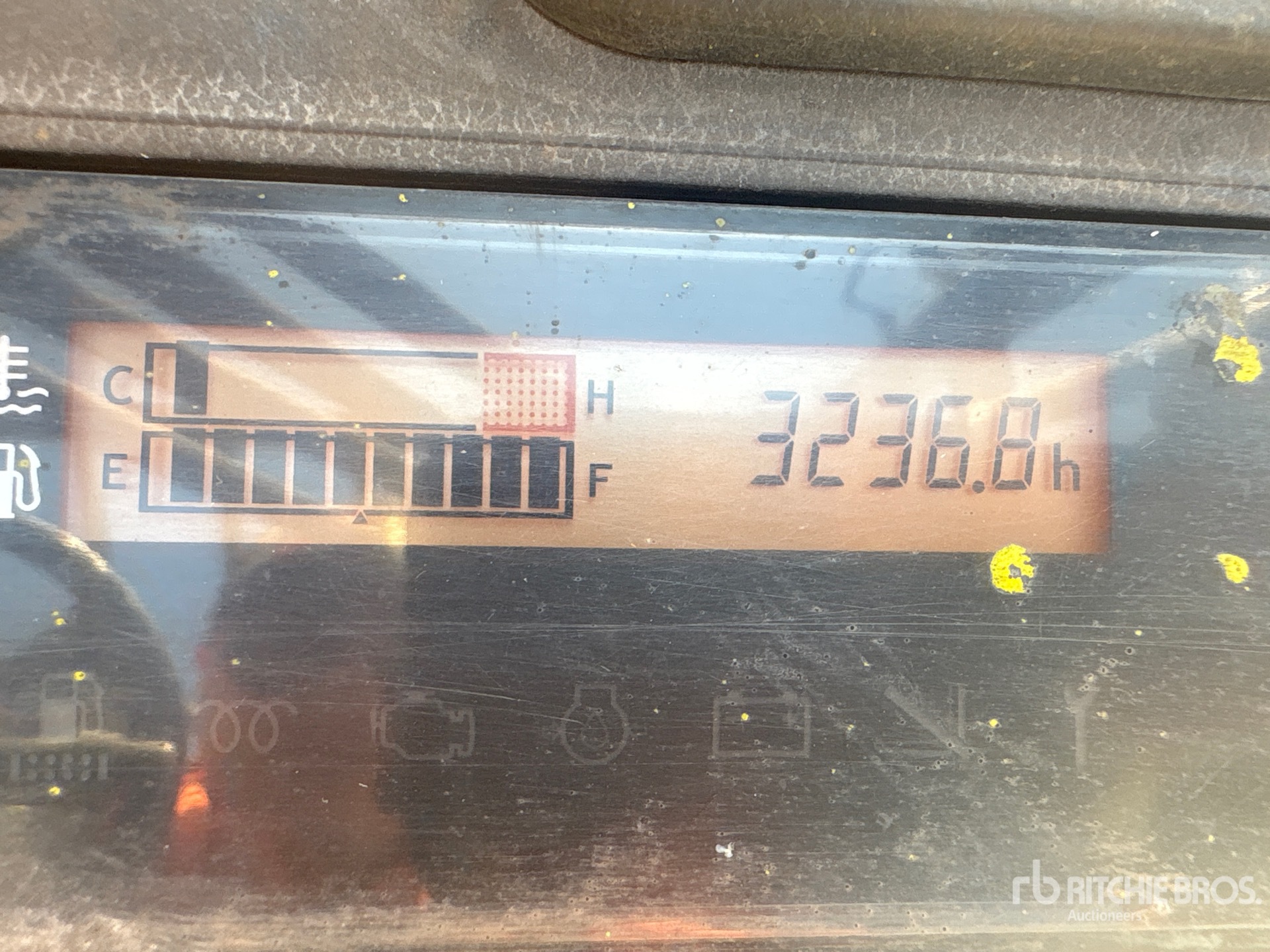

Hours:3236

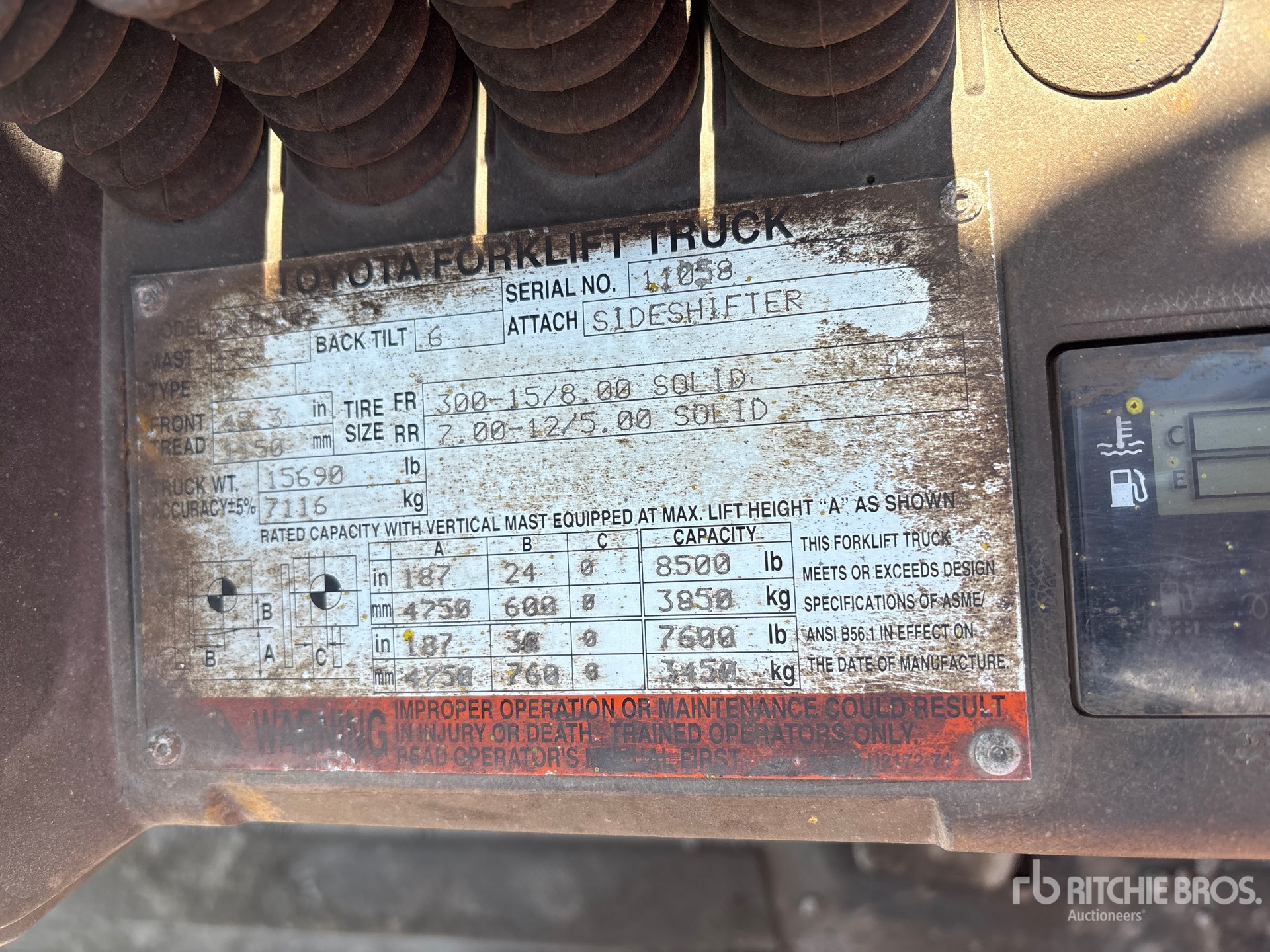

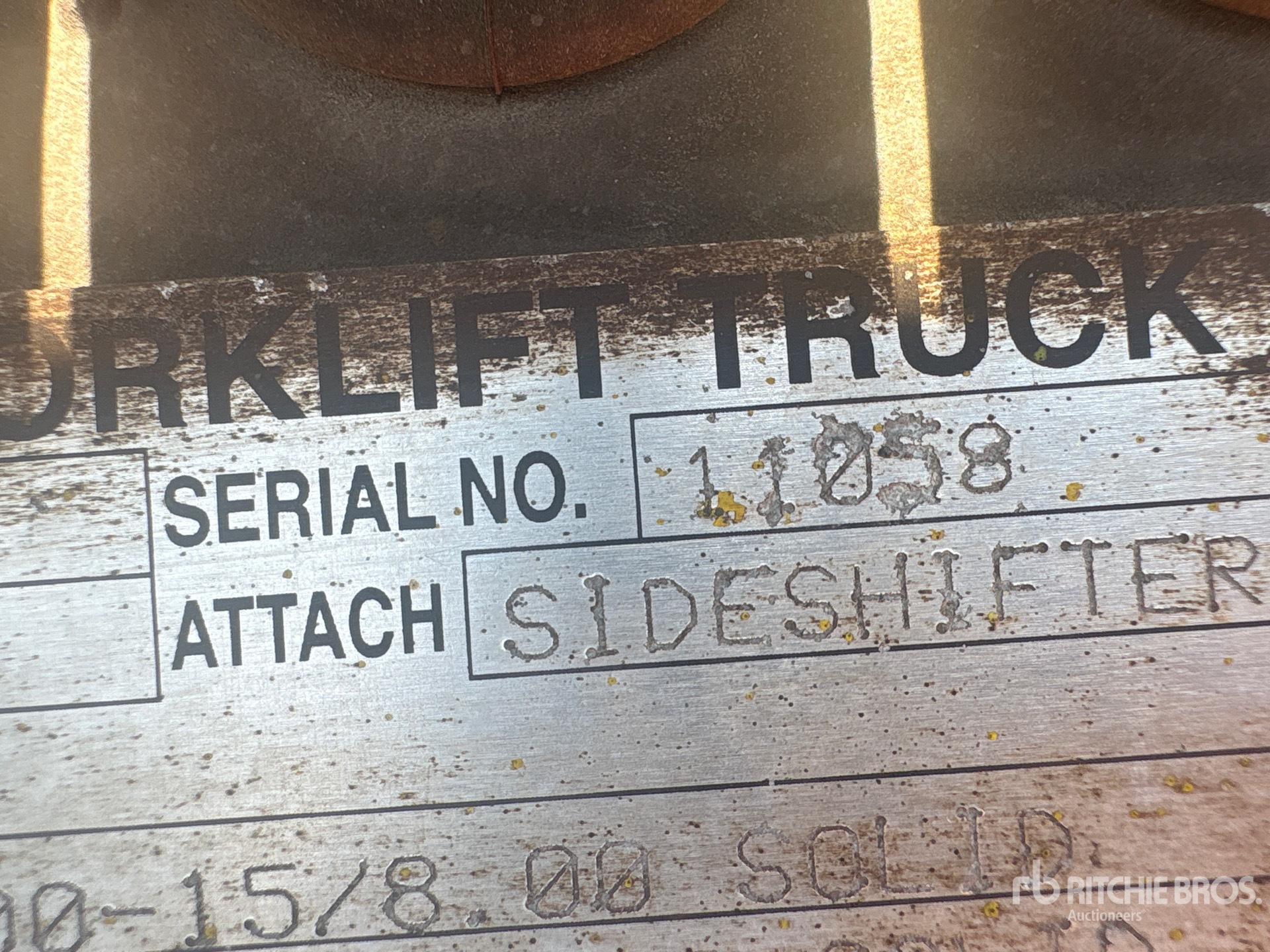

Serial Number:8FD50U-11058
Machine Location:CHICAGO, IL

Description:

3 Stage Mast, 187 in Max Lift Height, 92 in Lowered Mast Height, 48 in Forks, Side Shift, Fork Positioner, Solid Pneumatic Tires, 2017 US EPA Label, Toyota 4 Cylinder 2.98 L Diesel Engine Closing Time: 2026-05-12 10:26:45 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Toyota 8FD45U is a robust forklift model designed for industrial material handling applications. Featuring a diesel engine, the 8FD45U offers reliable power and durability for heavy lifting tasks. This forklift supports a load capacity of approximately 4,500 kg (9,920 lbs), making it suitable for warehouses, manufacturing plants, and distribution centers. Equipped with advanced hydraulic systems and ergonomic controls, the Toyota 8FD45U enhances operator efficiency and safety. Its solid construction and maneuverability allow effective operation in tight spaces. The Toyota 8FD45U forklift is widely recognized for its performance, longevity, and ease of maintenance in demanding work environments.
Brakes
Parking brake Hand
Service brake Hydraulic
Dimensions
Free lift 4 in (11 cm)
Gradeability 35%
Ground Clearance 5 in (12 cm)
Height to Top of Overhead Guard 8 ft (2 m)
Length to Fork Face 10 ft (3 m)
Max Fork Height 10 ft (3 m)
Overall Height - mast lowered 7 ft (2 m)
Overall Width 5 ft (1 m)
Right Angle Stack 11 ft (3 m)
Turning Radius 9 ft (3 m)
Wheelbase 7 ft (2 m)
Engine
Battery 12 V
Displacement 182 cu in (2,982 cu cm)
Engine Make TOYOTA
Engine Model 1KD
Fuel Type Diesel
Number of Cylinders 4
Power 74 hp (55 kw)
Power Measured @ 2,200 rpm
Torque 220 lbs ft (298 nm)
Torque Measured @ 1,500 rpm
Hydraulic System
Main pump flow standard 34 gpm (128 lpm)
Maximum operating pressure 2,630 psi
MAST
Lift Speed 94 ft/min (29 m/min)
Load Capacity 9,921 lbs (4,500 kg)
Load Center 24 in (61 cm)
Lower Speed 106 ft/min (32 m/min)
Mast Tip Forward 6 degrees
Mast Tip Rear 12 degrees
Max Fork Spread 46 in (116 cm)
Operating Specifications
Drawbar Pull 8,157 lbs (3,700 kg)
Fuel Capacity 32 gal (120 l)
Number of Front Wheels 2
Number of Rear Wheels 2
Operating Weight 14,749 lbs (6,690 kg)
Tire Type Pneumatic
Tires
Standard_Option_Front 300-15-20PR
Standard_Rear 7.00-12-12PR
Transmission
Max Speed - Forward 13 mph (21 kph)
Max Speed - Reverse 13 mph (21 kph)
Transmission Type Powershift
Travelspeeds(BACKWRD)Speed range 1
Travelspeeds(FRWD)Speed range 1
