2016 Toyota 8FGU25

Name: 2016 Toyota 8FGU25
Brand: Toyota
SKU: 86443362
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

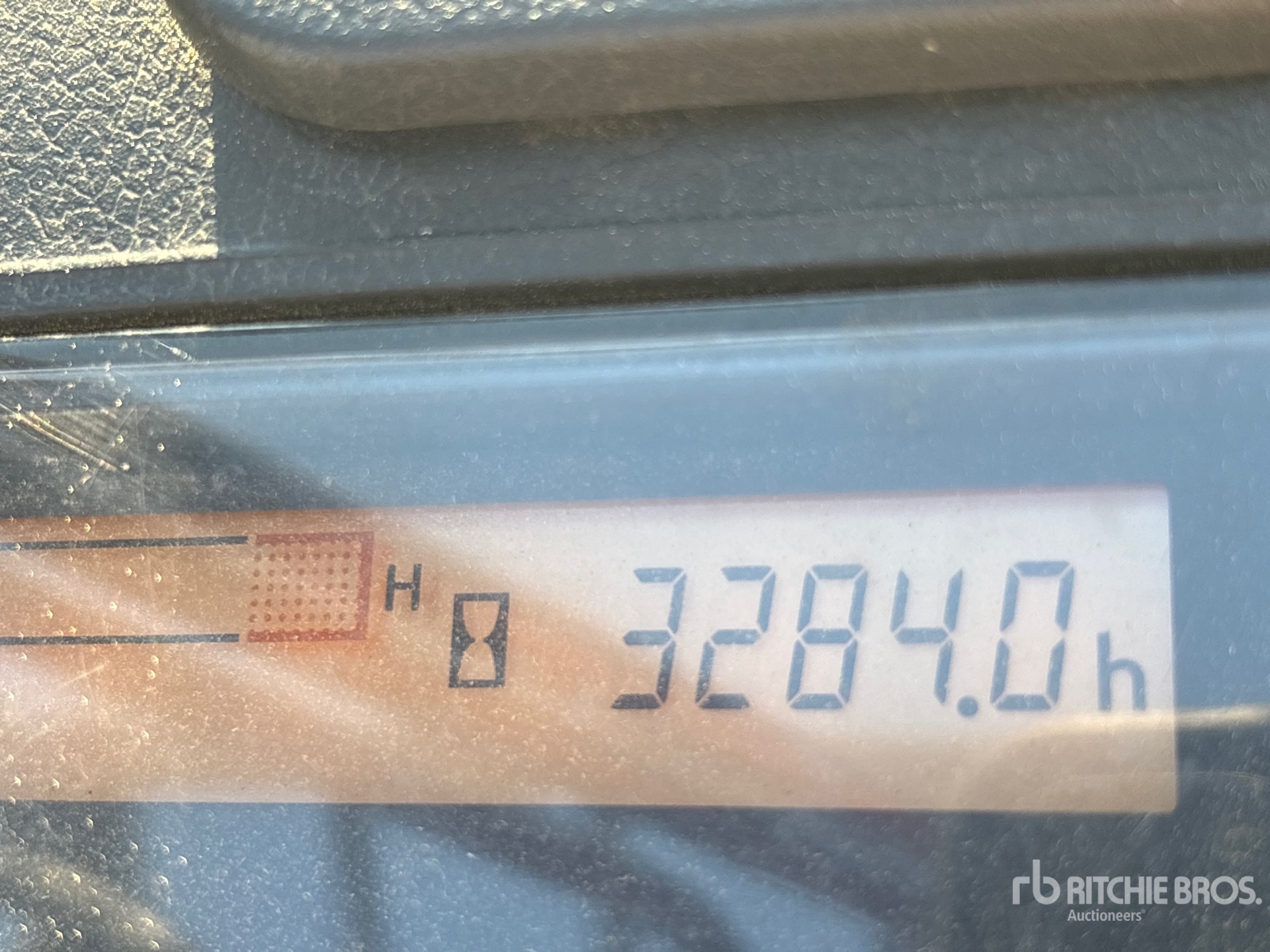

Hours:	3284
Serial Number:	74741
Machine Location:	ATLANTA, GA

Description:

3 Stage Mast, Full Free Lift, 189 in Max Lift Height, 83 in Lowered Mast Height, 48 in Forks, Side Shift, 2016 US EPA Label, Toyota 4Y ECS 4 Cylinder 38 kW 2.237 L LPG Engine Closing Time: 2026-05-27 10:39:18 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Toyota 8FGU25 forklift is a versatile industrial forklift designed for efficient material handling in warehouses, manufacturing, and distribution centers. Powered by a reliable internal combustion engine, the 8FGU25 offers a lifting capacity of approximately 5,000 pounds, making it suitable for medium-duty lifting tasks. Its ergonomic design enhances operator comfort and productivity, while advanced safety features ensure secure operation. The Toyota 8FGU25 forklift includes responsive hydraulics, durable construction, and easy maintenance access. Widely used across various industries, this model supports efficient loading, unloading, stacking, and transport of goods, contributing to streamlined warehouse operations and improved workflow.

Brakes
Parking brake	Mechanical
Service brake	Hydraulic
Dimensions
Free lift	6 in (16 cm)
Gradeability	34%
Ground Clearance	4 in (10 cm)
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	9 ft (3 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	4 ft (1 m)
Right Angle Stack	9 ft (3 m)
Turning Radius	7 ft (2 m)
Wheelbase	6 ft (2 m)
Engine
Battery	12 V
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y - ECS
Fuel Type	Gasoline
Power	118 hp (88 kw)
Power Measured @	2,570 rpm
Torque	115 lbs ft (156 nm)
Torque Measured @	2,100 rpm
Hydraulic System
Main pump flow standard	20 gpm (76 lpm)
Maximum operating pressure	2,275 psi
MAST
Lift Speed	118 ft/min (36 m/min)
Load Capacity	4,961 lbs (2,250 kg)
Lower Speed	98 ft/min (30 m/min)
Max Fork Spread	10 in (25 cm)
Operating Specifications
Drawbar Pull	4,255 lbs (1,930 kg)
Fuel Capacity	16 gal (60 l)
Max Speed	11 mph (18 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	7,849 lbs (3,560 kg)
Tire Type	Pneumatic
Tires
Front Tires Size	7.00-12-12PR (1)
Rear Tires Size	6.00-9-10PR (1)
