Equipment ↠ Toyota ↠ Forklifts ↠ 2020 Toyota 8FGU25

2020 Toyota 8FGU25 For Sale in Fort Worth, Tx

Name: 2020 Toyota 8FGU25
Brand: Toyota
SKU: 88020760
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

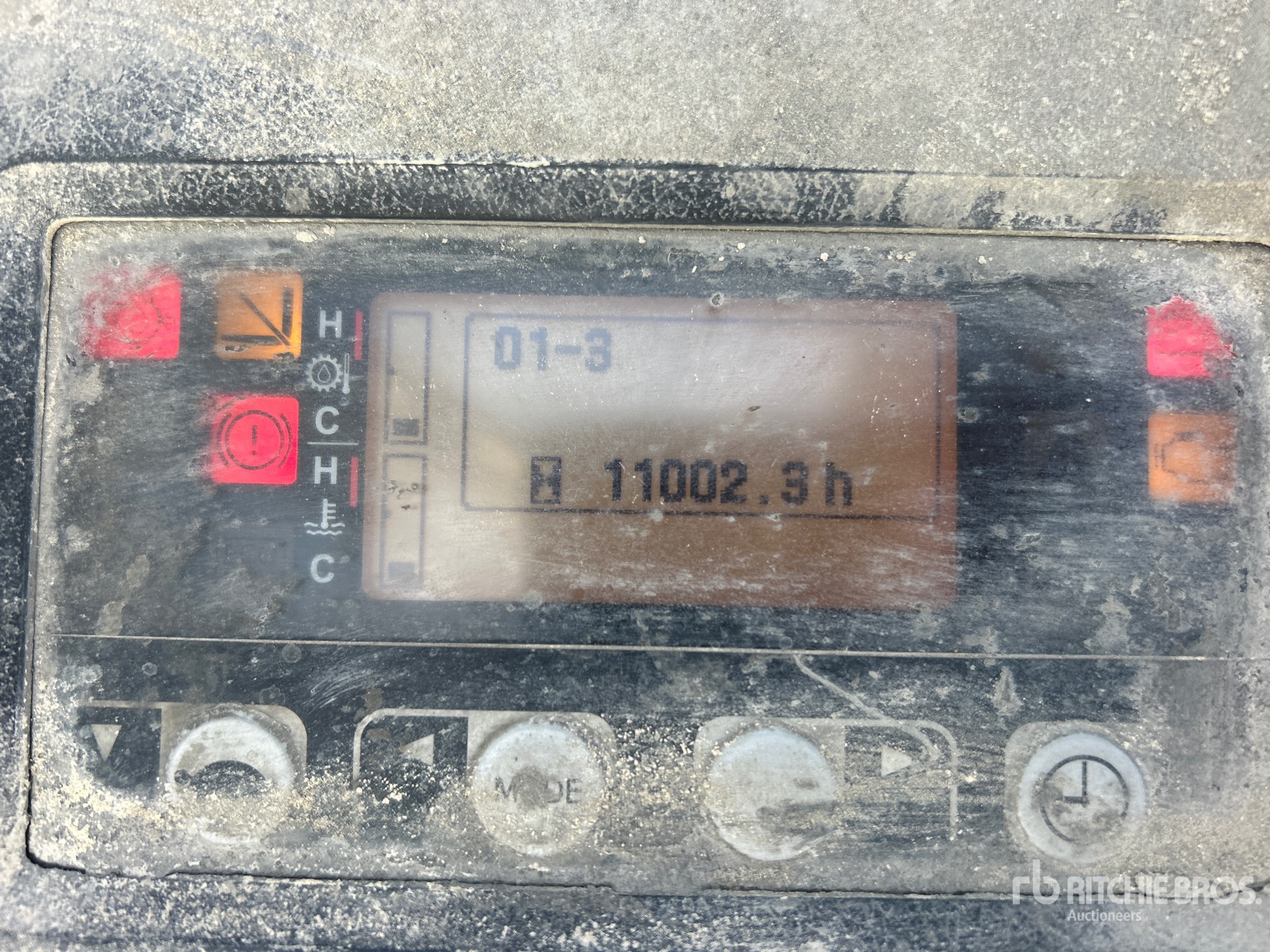

Hours:	11002

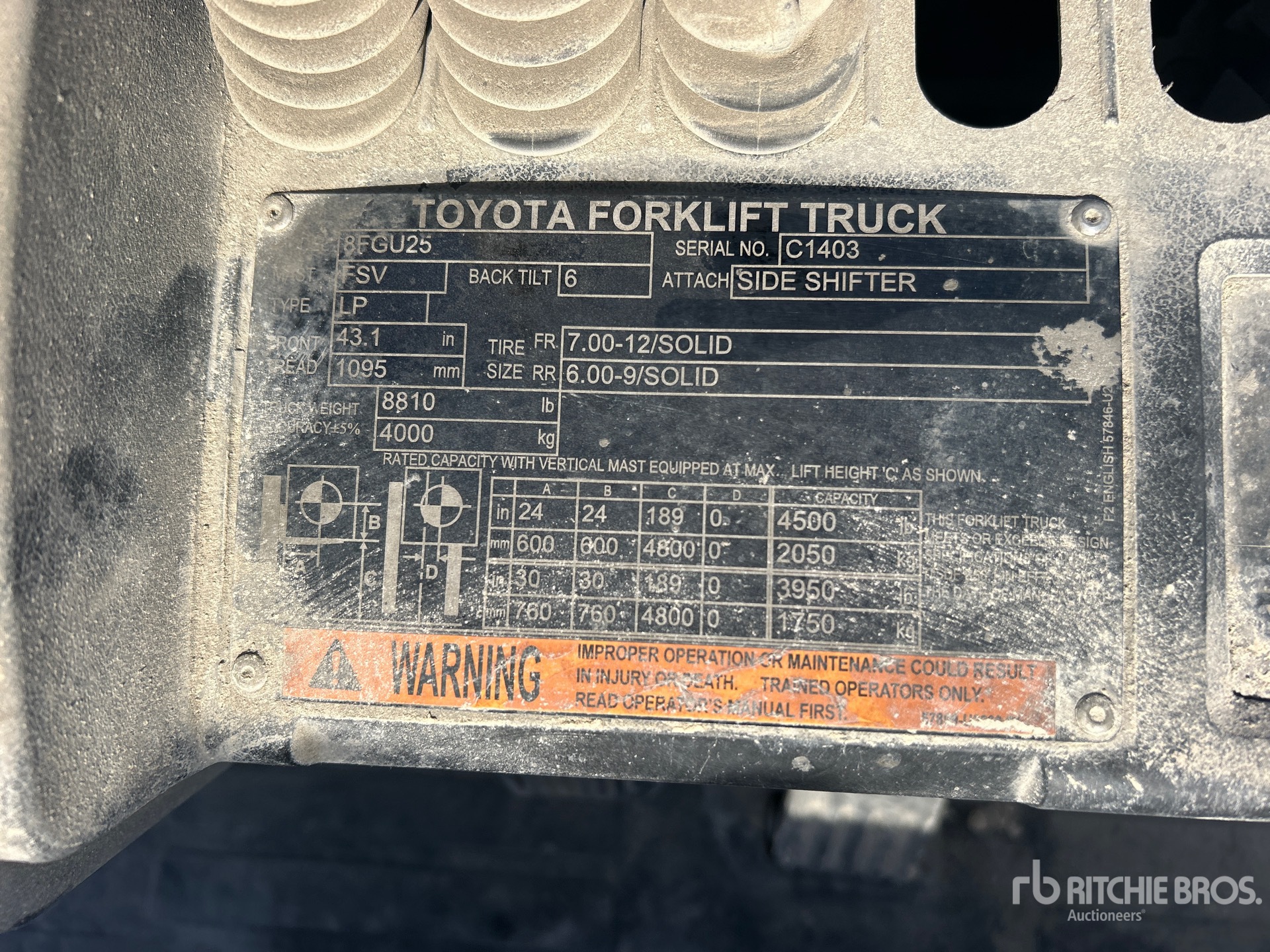

Serial Number:	C1403
Machine Location:	FORT WORTH, TX

Description:

3 Stage Mast, Full Free Lift, 189 in Max Lift Height, 83 in Lowered Mast Height, 40 in Forks, Side Shift, Solid Pneumatic Tires, 4 Cylinder LPG Engine

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FGU25 is a cushion-tire forklift in Toyota's 8-Series, designed for indoor material handling and warehouse operations. It is powered by a gasoline or LPG engine, depending on configuration, and is commonly used for loading, unloading, pallet transport, and general lift truck duties on smooth surfaces. The 8FGU25 typically offers a 5,000 lb. rated load capacity, a compact turning radius, and Toyota's System of Active Stability (SAS) on many units. This model is part of Toyota's industrial forklift lineup and is known for reliability, operator visibility, and serviceability in distribution, manufacturing, and logistics environments.

Brakes
Parking brake	Mechanical
Service brake	Hydraulic
Dimensions
Free lift	6 in (16 cm)
Gradeability	34%
Ground Clearance	4 in (10 cm)
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	9 ft (3 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	4 ft (1 m)
Right Angle Stack	9 ft (3 m)
Turning Radius	7 ft (2 m)
Wheelbase	6 ft (2 m)
Engine
Battery	12 V
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y - ECS
Fuel Type	Gasoline
Power	118 hp (88 kw)
Power Measured @	2,570 rpm
Torque	115 lbs ft (156 nm)
Torque Measured @	2,100 rpm
Hydraulic System
Main pump flow standard	20 gpm (76 lpm)
Maximum operating pressure	2,275 psi
MAST
Lift Speed	118 ft/min (36 m/min)
Load Capacity	4,961 lbs (2,250 kg)
Lower Speed	98 ft/min (30 m/min)
Max Fork Spread	10 in (25 cm)
Operating Specifications
Drawbar Pull	4,255 lbs (1,930 kg)
Fuel Capacity	16 gal (60 l)
Max Speed	11 mph (18 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	7,849 lbs (3,560 kg)
Tire Type	Pneumatic
Tires
Front Tires Size	7.00-12-12PR (1)
Rear Tires Size	6.00-9-10PR (1)
