Auction Pricing
Auction Info: Starting on 2026-08-06 Click here to place a bid

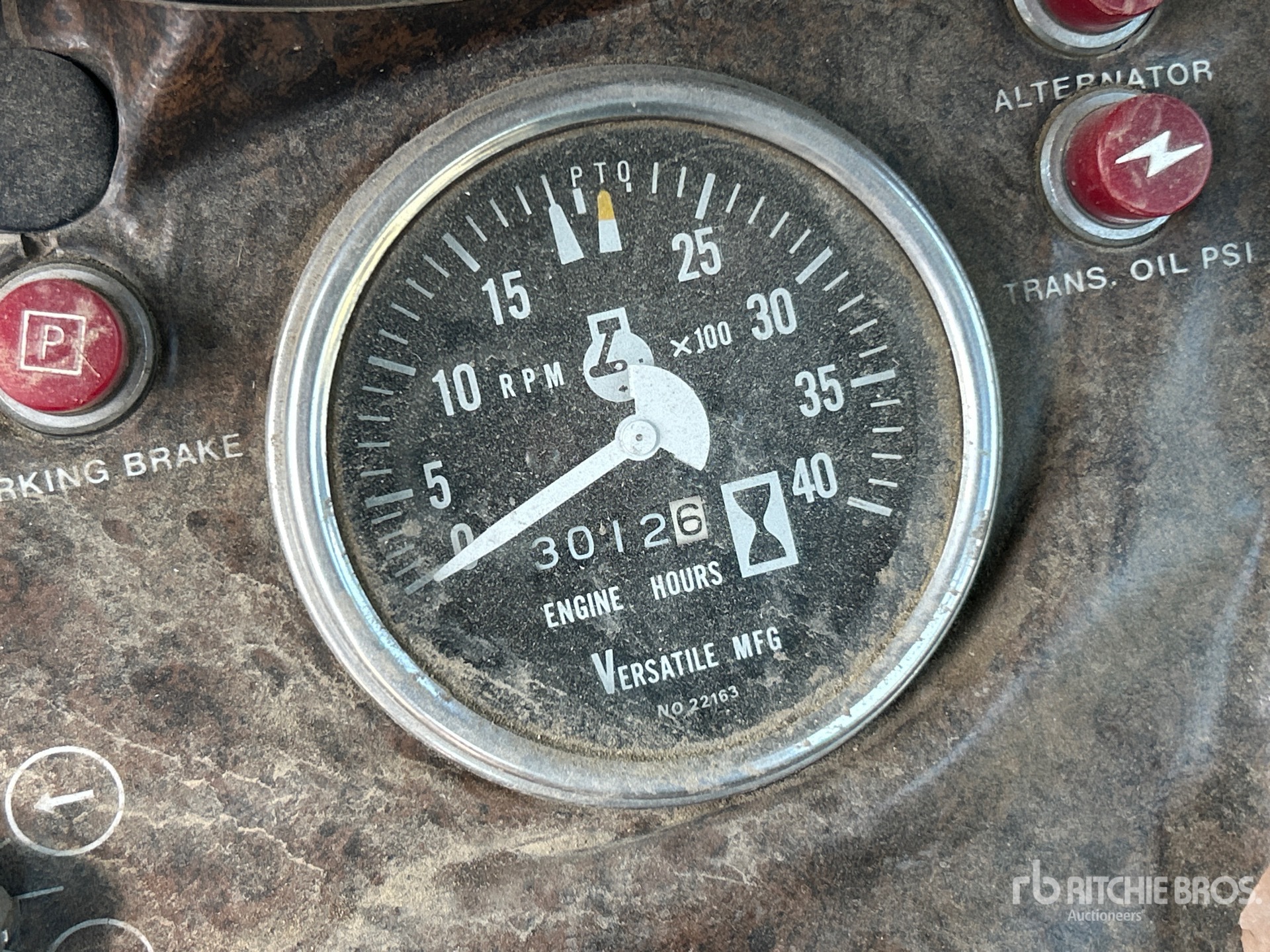

| Hours: | 3012 |
| Serial Number: | 053750 |
| Machine Location: | VALLEYVIEW, AB |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Height - Top of Cab | 11 ft (3 m) |
| Overall Length | 253 in (643 cm) |
| Wheelbase | 11 ft (3 m) |
| Width Outside Frame | 12 ft (4 m) |
| Engine | |
| Bore | 6 in (14 cm) |
| Displacement | 854 cu in (14,001 cu cm) |
| Engine Make | Versatile |
| Engine Model | Cummins |
| Gross Power | 280 hp (209 kw) |
| Number of Cylinders | 6 |
| Power Measured @ | 2,100 rpm |
| PTO Power | 253 hp (188 kw) |
| Stroke | 6 in (15 cm) |
| Hydraulic System | |
| Hydraulic System Type | Open-center |
| Number of Remote Control Valves | 4 |
| Pump Flow Capacity | 24 gpm (89 lpm) |
| Relief Valve Pressure | 2,250 psi |
| Operating Specifications | |
| 3 Point Hitch Type | 4N/3 |
| Alternator Supplied Amperage | 90 amps |
| Cooling System Fluid Capacity | 12 gal (45 l) |
| Engine Oil Capacity | 11 gal (40 l) |
| Front Tire Size | 20.8x38 |
| Fuel Capacity | 185 gal (700 l) |
| Hydraulic System Fluid Capacity | 21 gal (79 l) |
| Operating Weight | 25,630 lbs (11,626 kg) |
| Rear Tire Size | 20.8x38 |
| Transmission | |
| Max Speed - Forward | 14 mph (23 kph) |
| Max Speed - Reverse | 5 mph (9 kph) |
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 4 |
