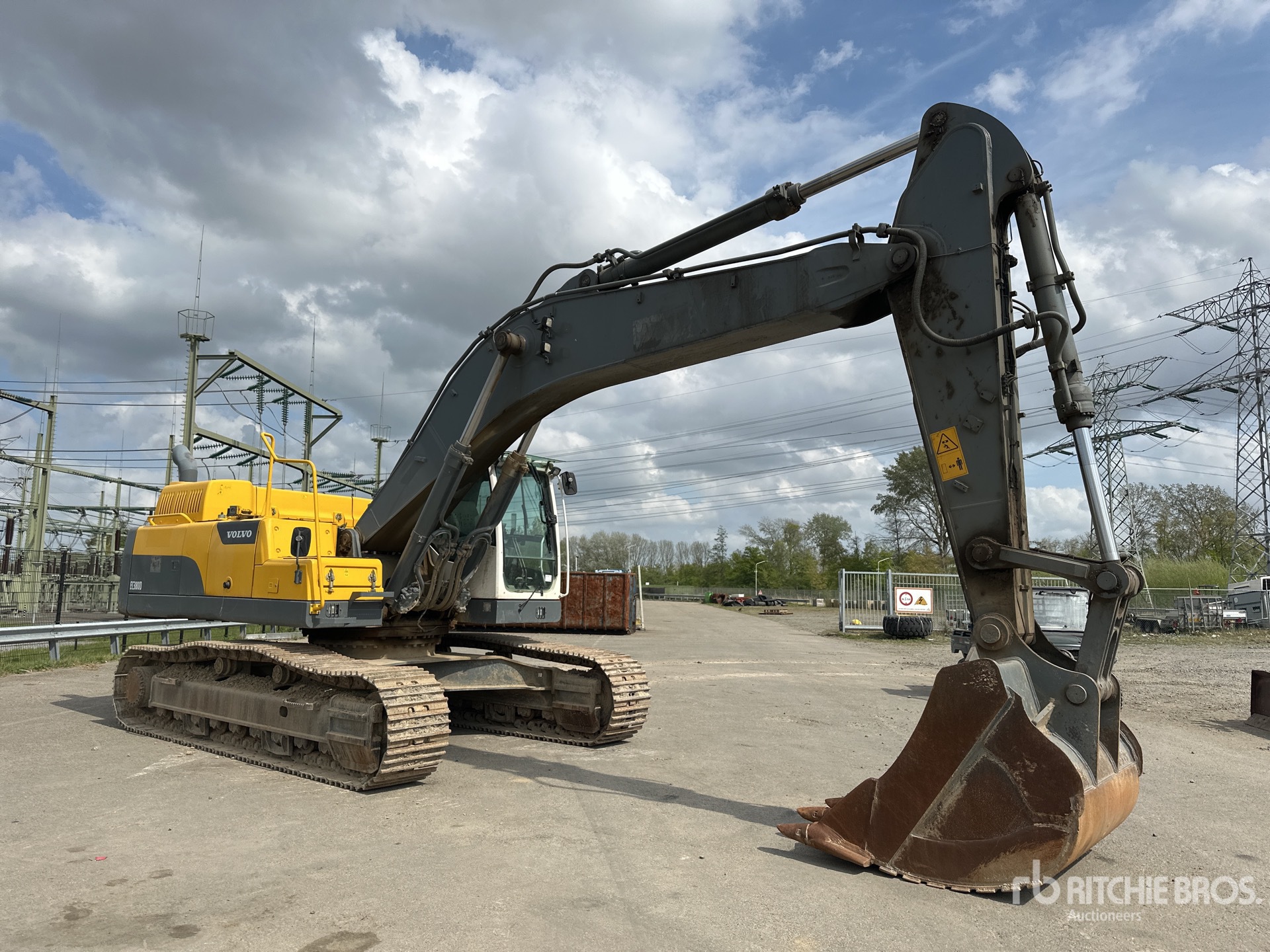

2011 Volvo EC380DL

Name: 2011 Volvo EC380DL
Brand: Volvo
SKU: 87017063
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

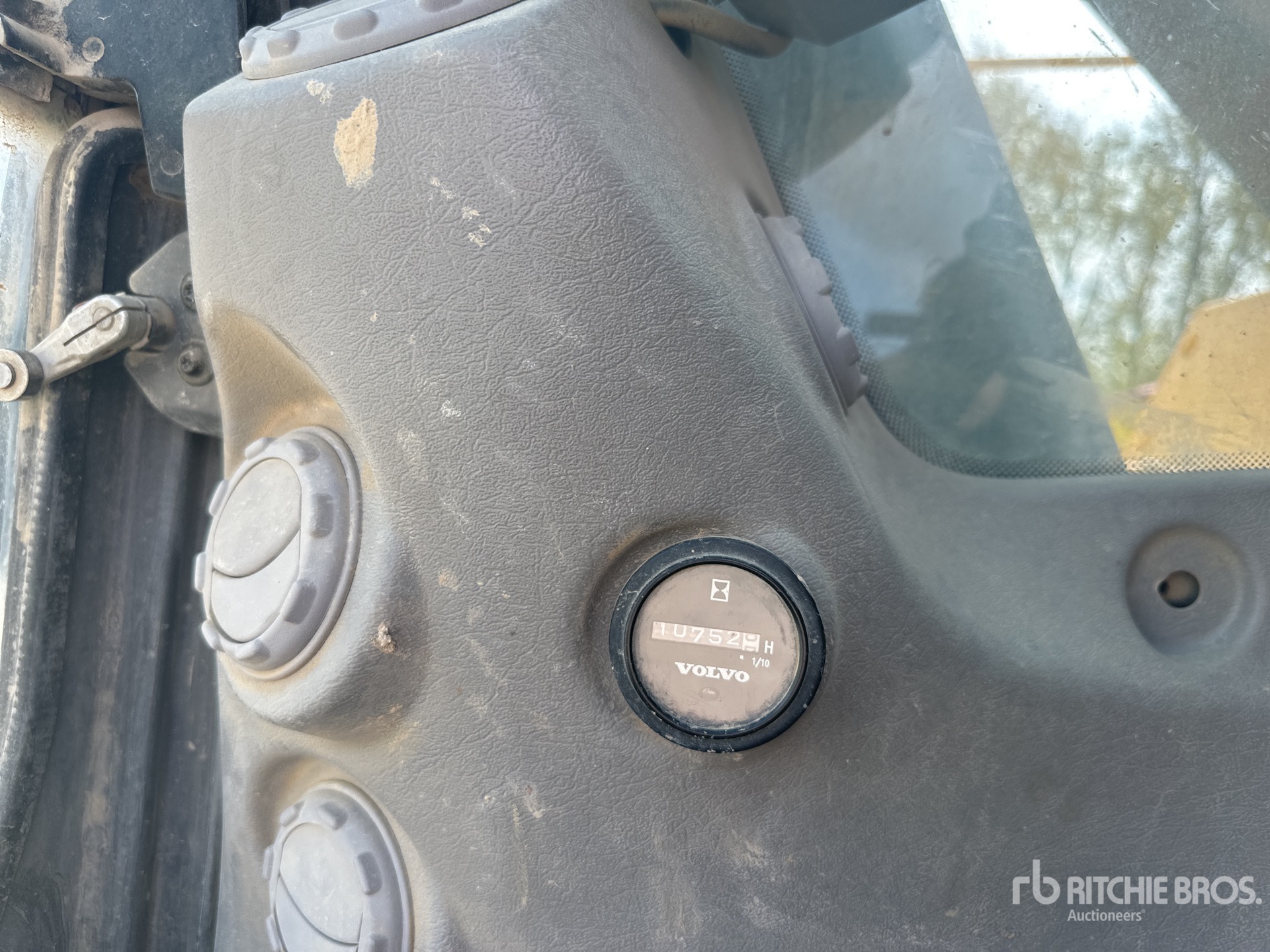

Hours:	10752
Serial Number:	VCEC380DK00210024
Machine Location:	MOERDIJK, NLD

Description:

Air Conditioner, Rear & Side View Cameras, 2600 mm Stick, Boom Check Valves, 600 mm Triple Grouser Track Shoes, 1500 mm Digging Bucket, Auto Lube, Fast Fuel System ** Digital Copy of CE Certificate Available **, Closing Time: 2026-05-06 10:45:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	25 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	21 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	37 ft (11 m)
Bucket
Maximum Bucket Capacity	4 cu yd (3 cu m)
Reference Bucket Capacity	3 cu yd (2 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	14 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	12 ft (4 m)
Width to Outside of Tracks	12 ft (4 m)
Engine
Aspiration	Turbocharged and Intercooled
Displacement	781 cu in (12,798 cu cm)
Engine Model	D13H
Gross Power	293 hp (218 kw)
Max Torque	1,165 lbs ft (1,580 nm)
Net Power	283 hp (211 kw)
Power Measured @	1,700 rpm
Torque Measured @	1,300 rpm
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	16 gal (60 l)
Engine Oil Capacity	11 gal (42 l)
Fuel Capacity	164 gal (620 l)
Hydraulic Pump Flow Capacity	159 gpm (600 lpm)
Hydraulic System Fluid Capacity	132 gal (500 l)
Hydraulic System Relief Valve Pressure	5,120 psi
Operating Voltage	24 volts
Operating Weight	84,327 lbs (38,250 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	62,181 lbs (28,205 kg)
Ground Pressure	9 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	50
Number of Track Rollers per Side	9
Shoe Size	28 in (70 cm)
Track Gauge	9 ft (3 m)
