2013 Volvo ECR88

Name: 2013 Volvo ECR88
Brand: Volvo
SKU: 86470826
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

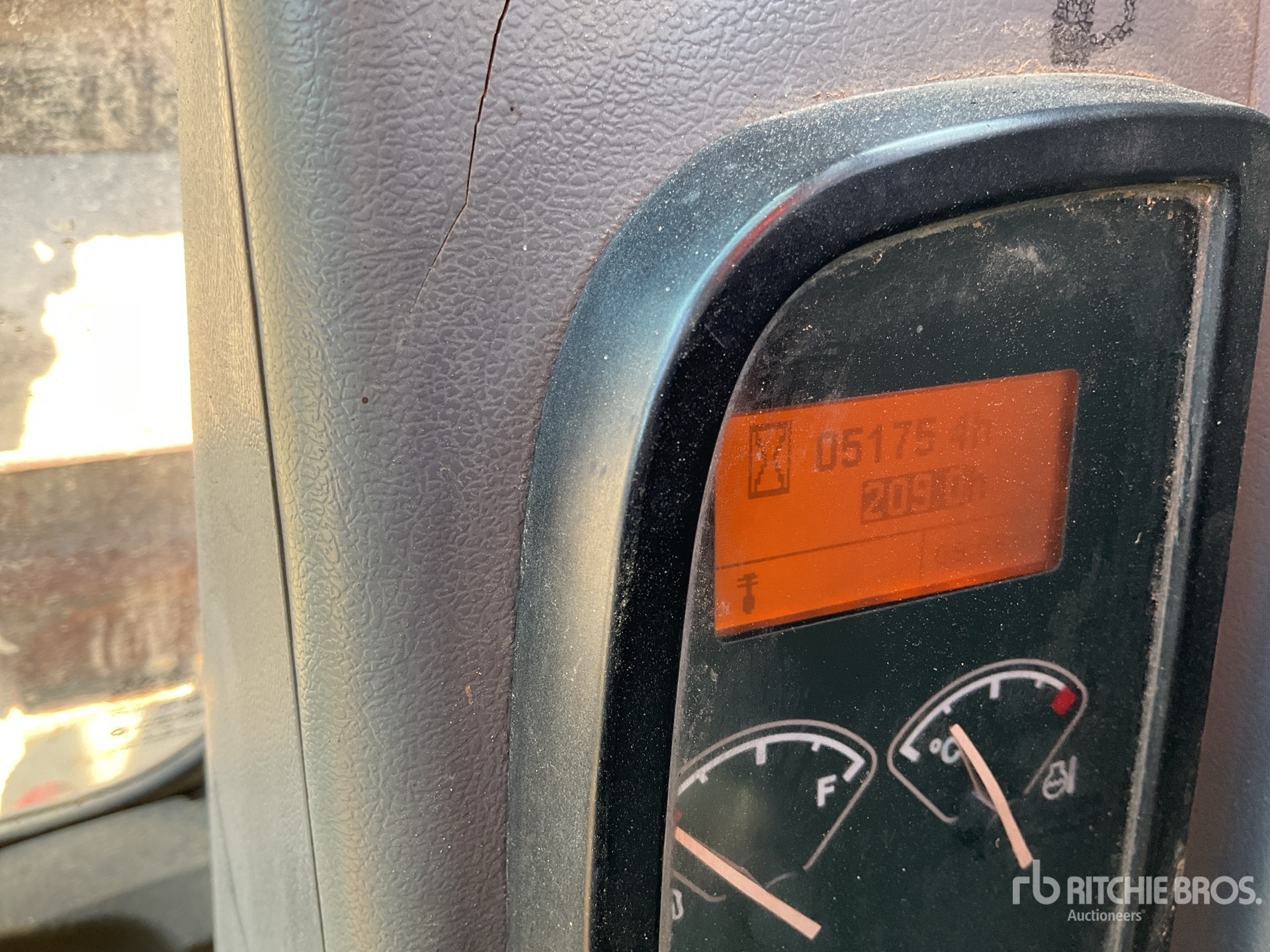

Hours:	5175
Serial Number:	VCE0EC88J00016151
Machine Location:	BURNABY, BC

Description:

2011 US EPA Label, Swing Boom, 1700 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, 450 mm Rubber Tracks, Manual Quick Coupler, 1740 mm Cleanup Bucket, Fast Fuel System *THIS LOT SOLD WITH: BUCKET s/n: Not Available;

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	22 ft (7 m)
Max Digging Depth	14 ft (4 m)
Max Loading Height	16 ft (5 m)
Max Reach Along Ground	23 ft (7 m)
Max Vertical Wall Digging Depth	10 ft (3 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	21 ft (6 m)
Boom/Stick Excavator Option 2
Max Cutting Height	23 ft (7 m)
Max Digging Depth	15 ft (5 m)
Max Loading Height	17 ft (5 m)
Max Reach Along Ground	24 ft (7 m)
Max Vertical Wall Digging Depth	11 ft (3 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	21 ft (6 m)
Bucket
Maximum Bucket Capacity	0 cu yd (0 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	0 cu yd (0 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Width to Outside of Tracks	8 ft (2 m)
Engine
Aspiration	Natural
Displacement	203 cu in (3,318 cu cm)
Engine Model	D3.4
Gross Power	59 hp (44 kw)
Max Torque	173 lbs ft (235 nm)
Net Power	57 hp (42 kw)
Number of Cylinders	4
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	2 gal (7 l)
Engine Oil Capacity	3 gal (12 l)
Fuel Capacity	29 gal (110 l)
Hydraulic Pump Flow Capacity	46 gpm (174 lpm)
Hydraulic System Fluid Capacity	37 gal (140 l)
Hydraulic System Relief Valve Pressure	4,354 psi
Operating Voltage	12 volts
Operating Weight	18,040 lbs (8,183 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	1
Number of Track Rollers per Side	6
Shoe Size	18 in (45 cm)
Track Gauge	6 ft (2 m)
