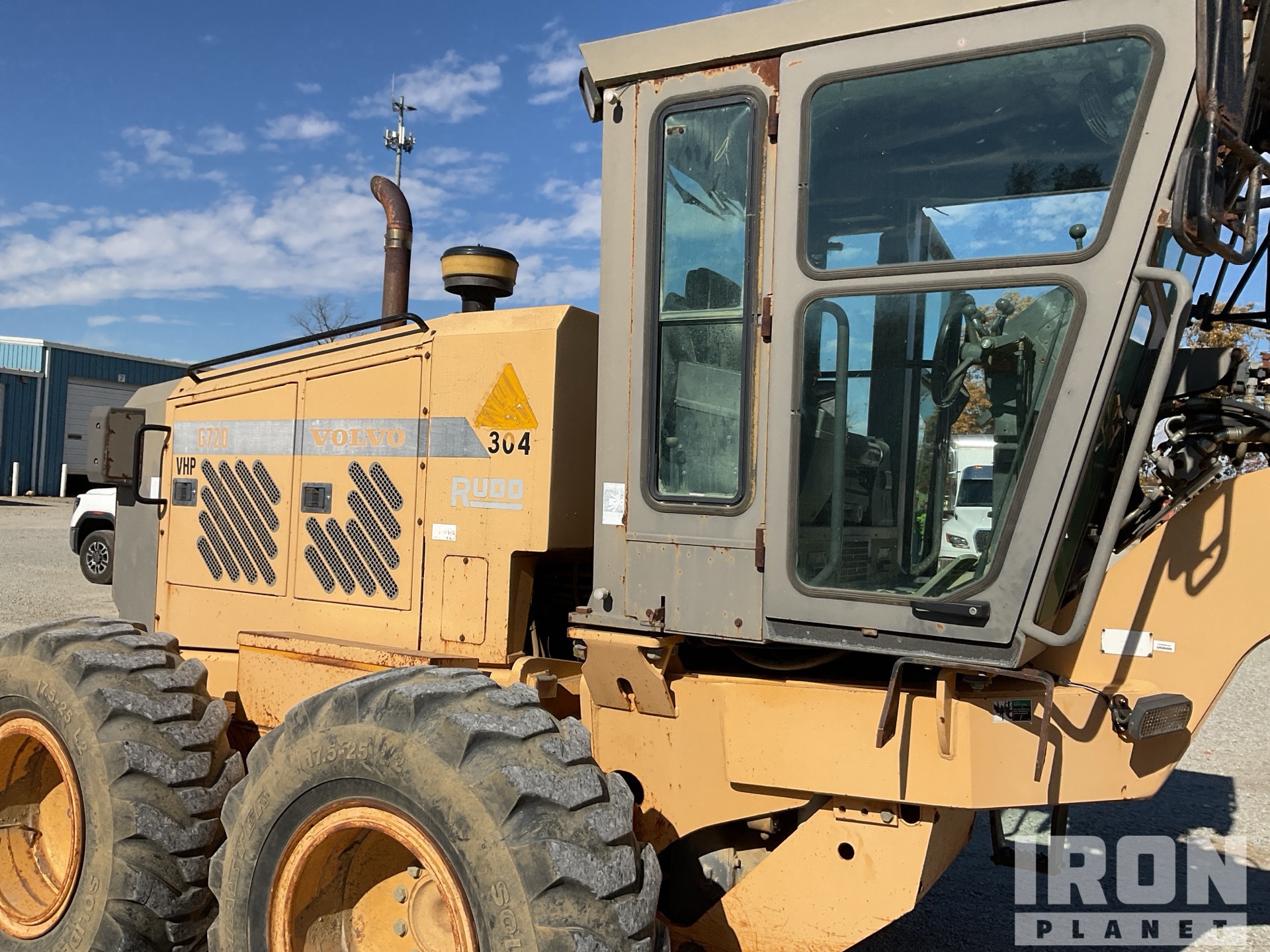

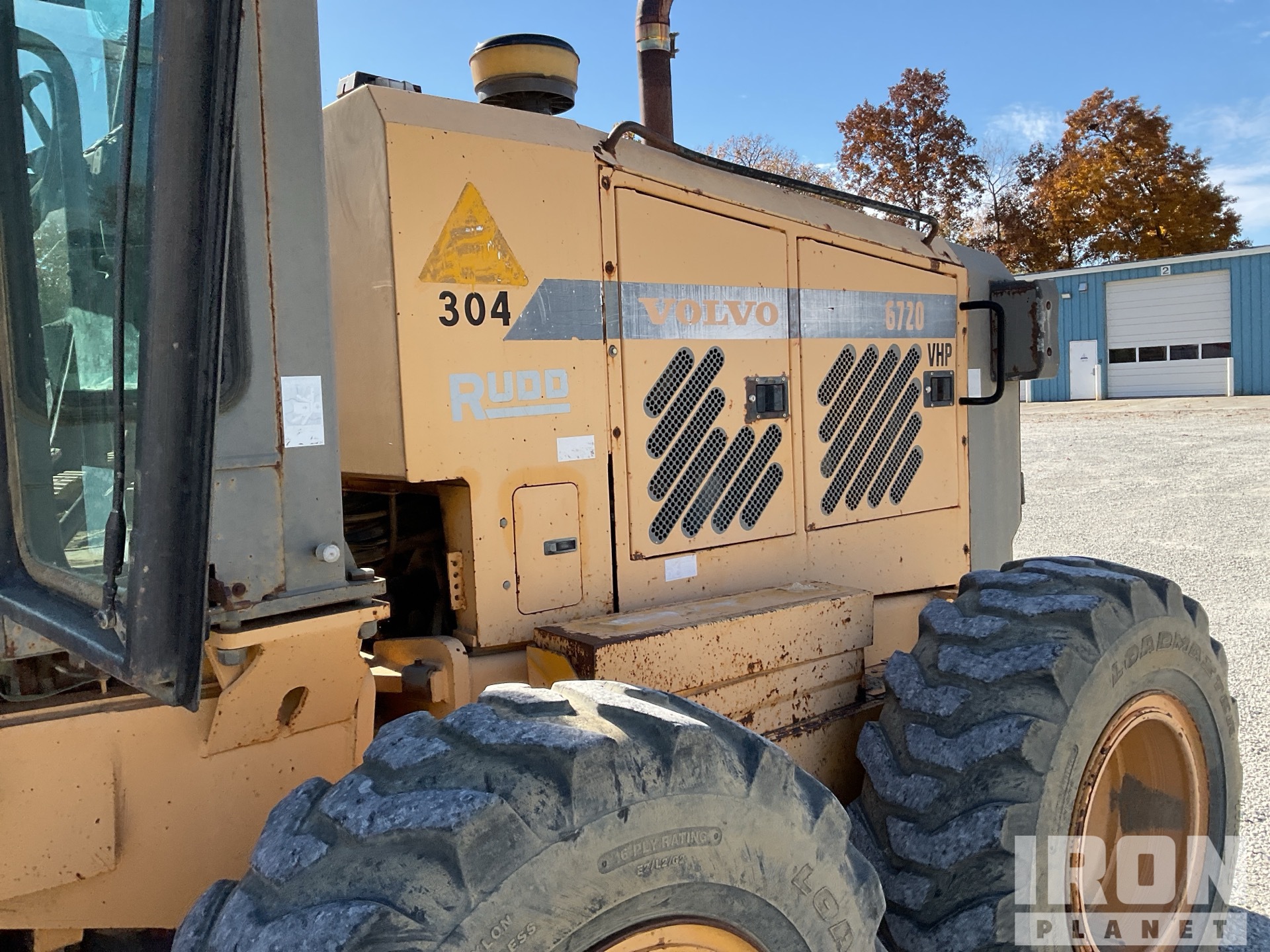

2001 Volvo G720 VHP For Sale in Chicago, Il

Name: 2001 Volvo G720 VHP
Brand: Volvo
SKU: 87413909
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

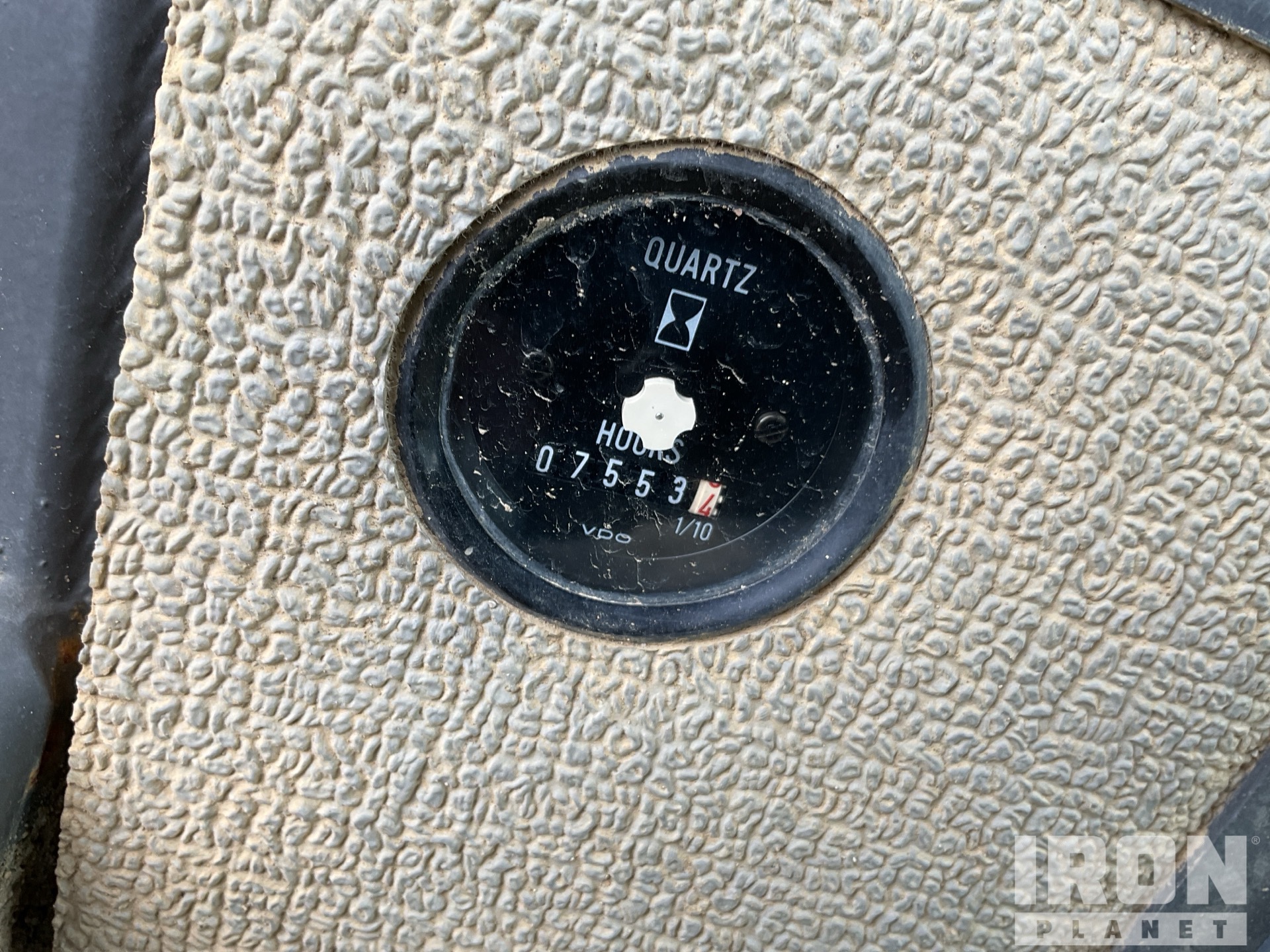

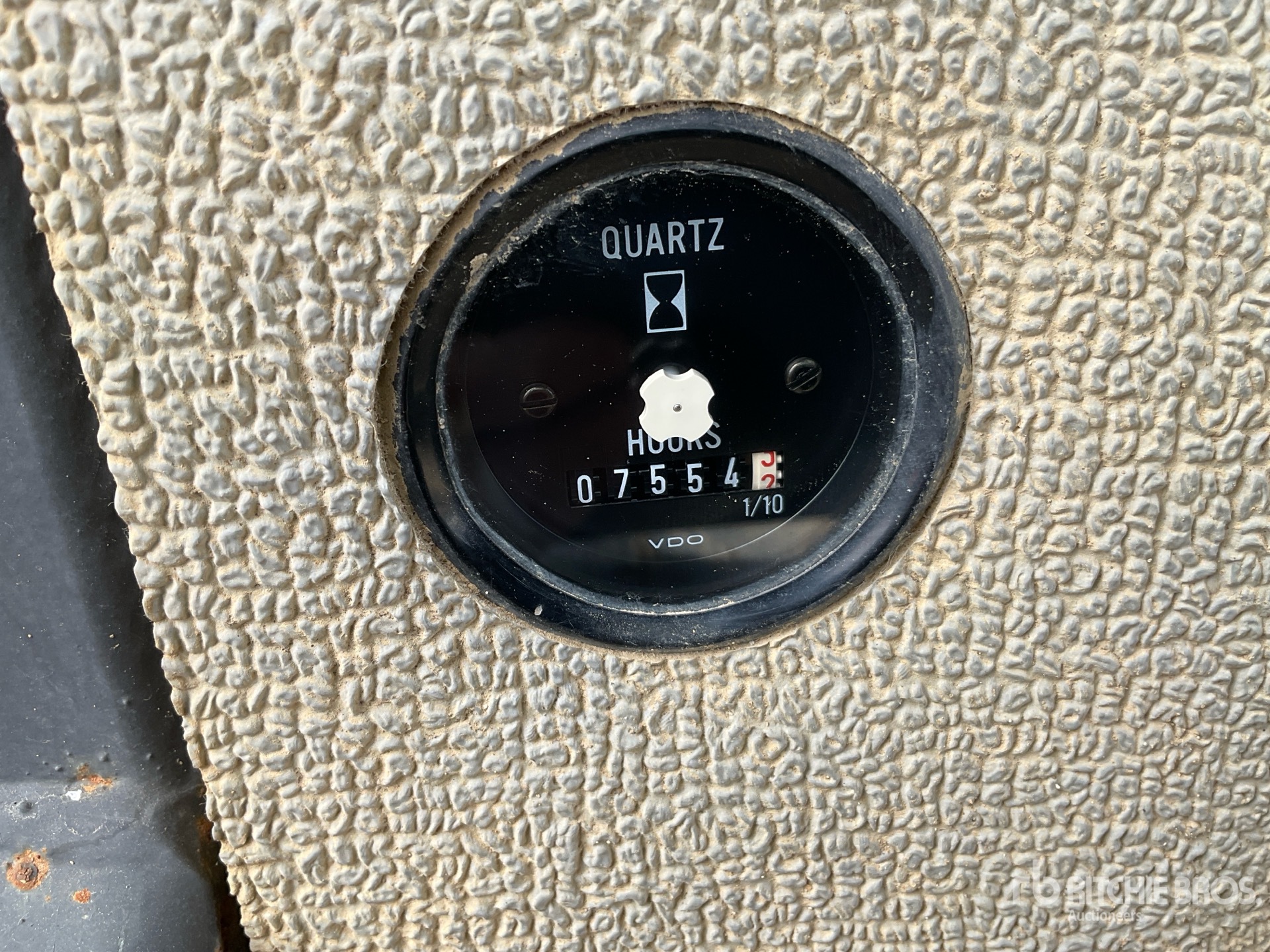

Hours:	7553
Serial Number:	033373
Machine Location:	CHICAGO, IL

Description:

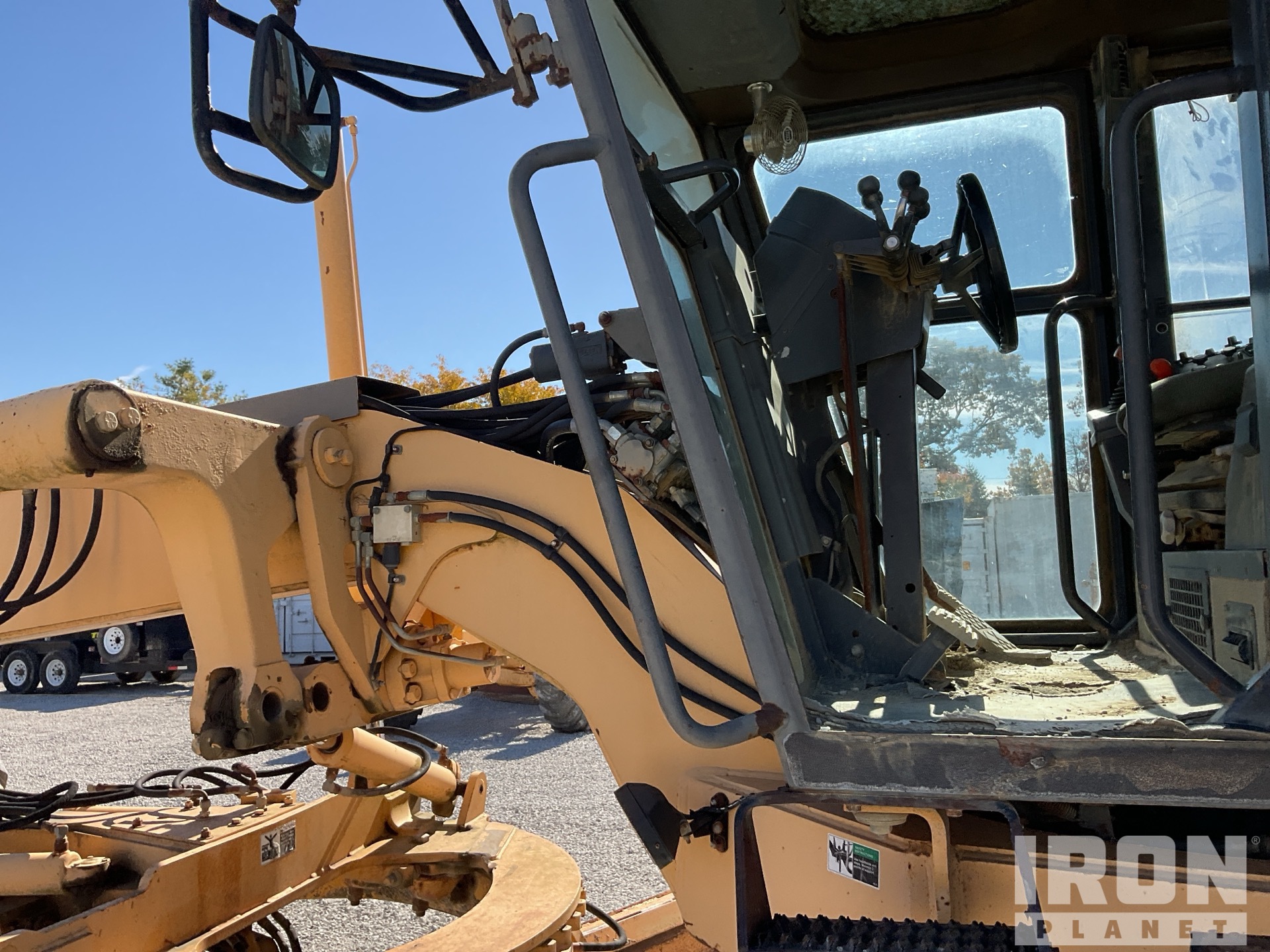

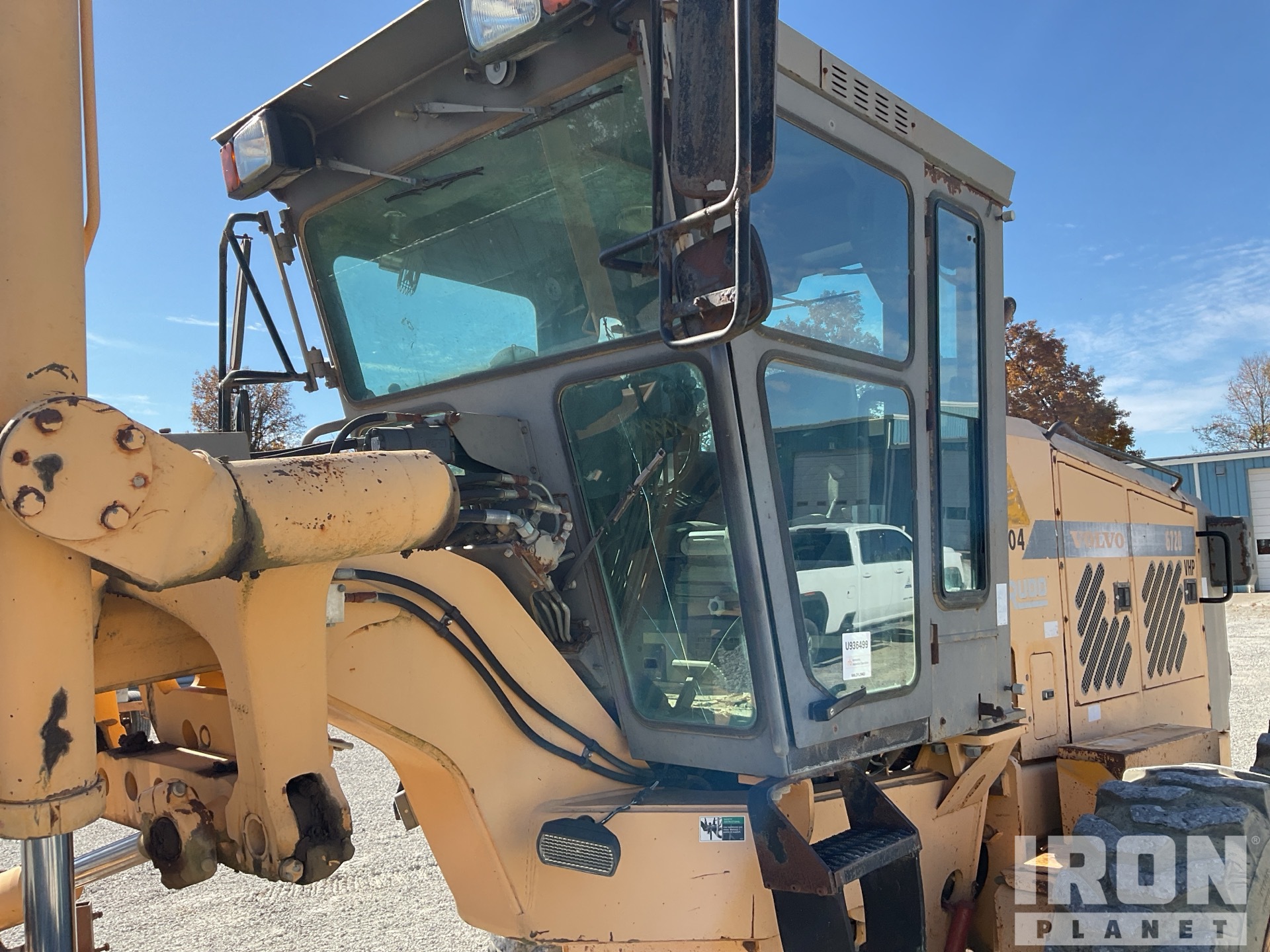

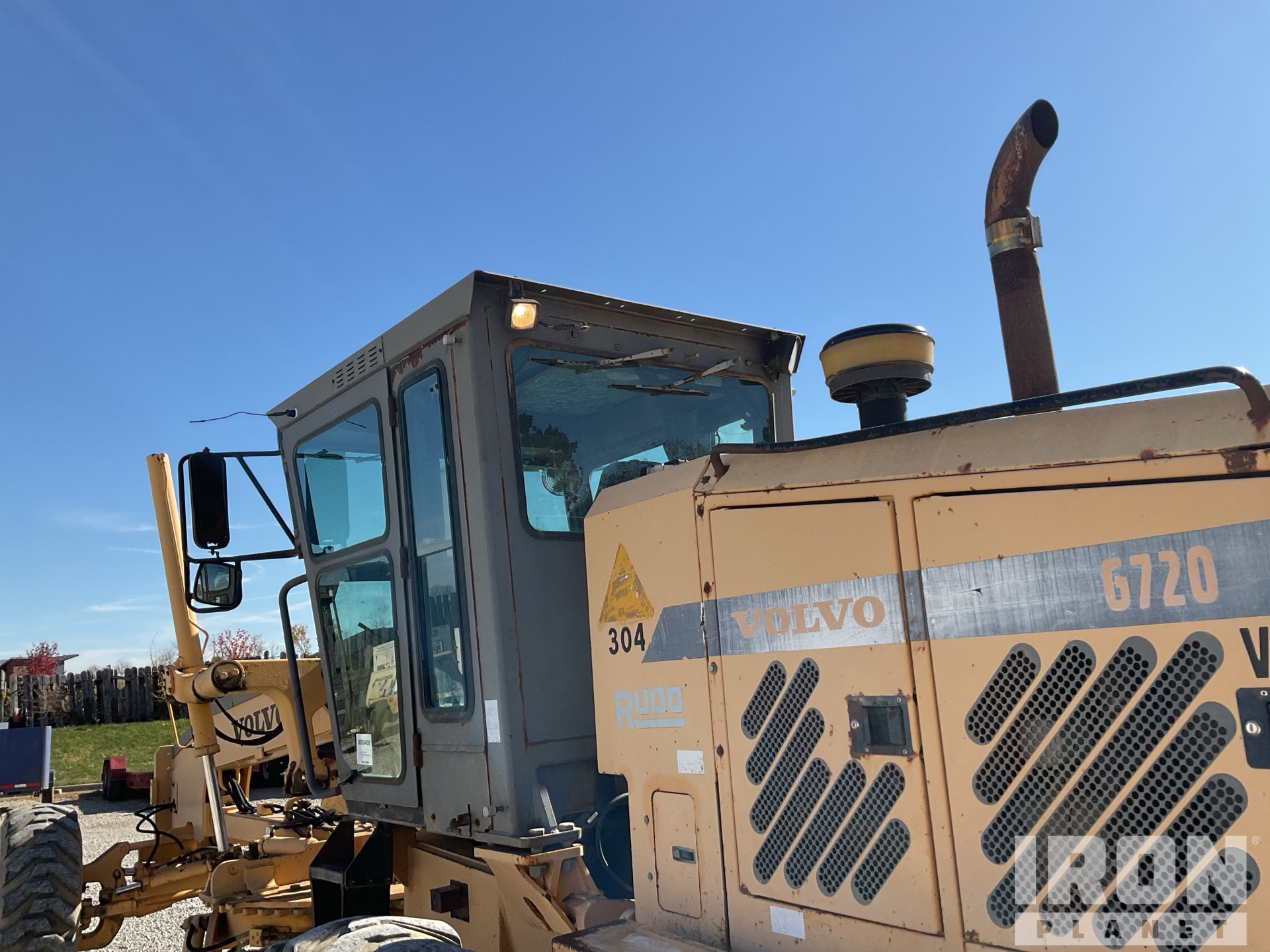

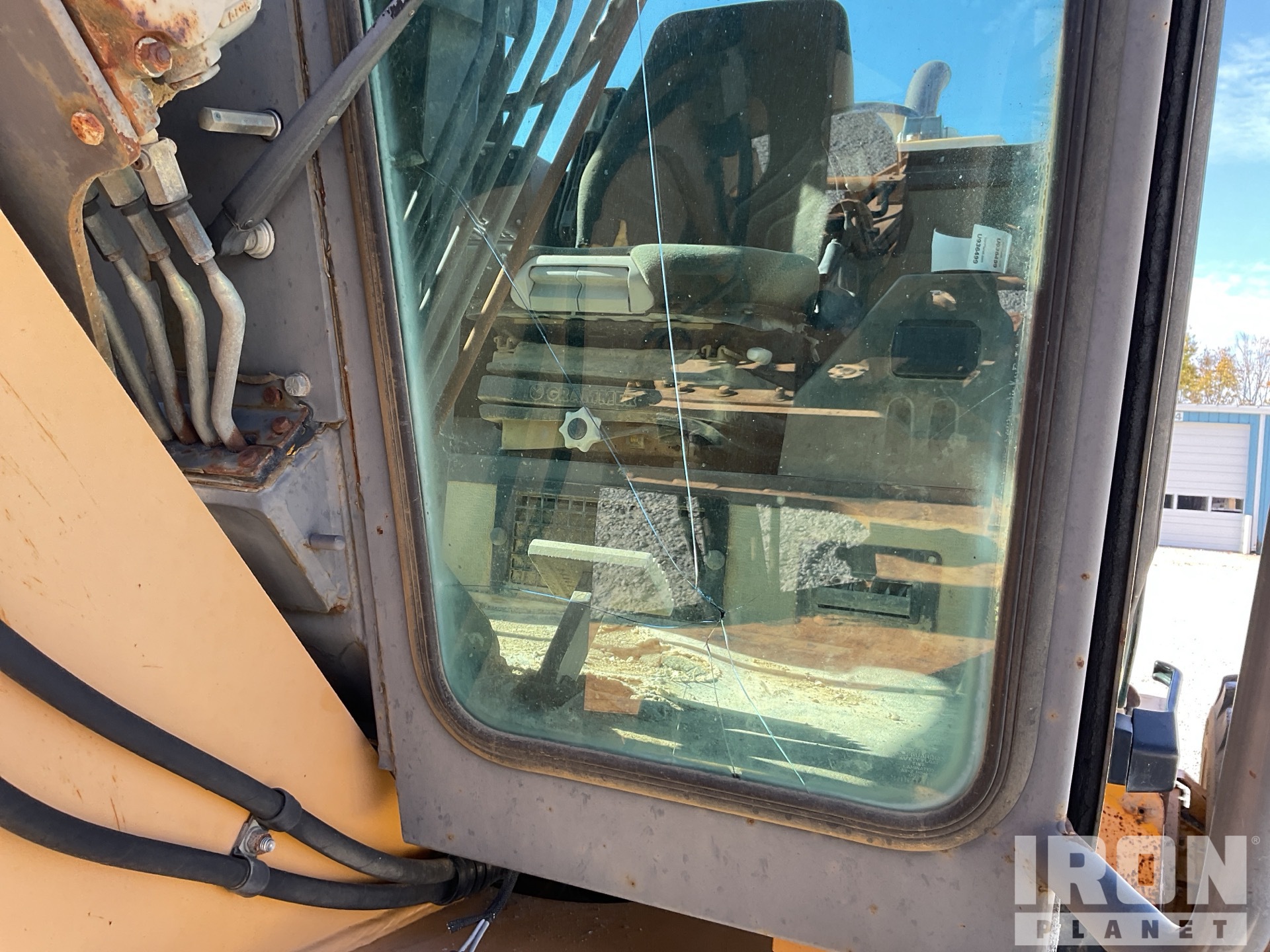

Located in Lane 25 Spot 9, Enclosed Cab, Air Conditioner, US EPA Label, 14 ft / 4.27 m Moldboard, 17.5-25 Tires Closing Time: 2026-05-12 09:47:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	7 degrees
Max Reach Outside Tires - Left	120 in (305 cm)
Max Reach Outside Tires - Right	120 in (304 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	28 ft (9 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	505 cu in (8,271 cu cm)
Engine Model	6C8.3
Max Power	195 hp (145 kw)
Net Power Gears 7-8	195 hp (145 kw)
Net Torque Gears 7-8	636 lbs ft (862 nm)
Number of Cylinders	6
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	51 gpm (191 lpm)
Pump Type	load sensing hydraulic
Relief Valve Pressure	2,500 psi
Moldboard
Blade Down Pressure	16,717 lbs (7,583 kg)
Blade Pull at Max Weight	7,853 lbs (3,562 kg)
Max Depth of Cut	18 in (44 cm)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Cooling System Fluid Capacity	13 gal (47 l)
Fuel Capacity	102 gal (388 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,614 lbs (4,361 kg)
Std Operation Weight - Rear Axle	22,961 lbs (10,415 kg)
Std Operation Weight - Total	32,571 lbs (14,774 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	72 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	28 mph (46 kph)
Max Speed - Reverse	20 mph (33 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Volvo 8400
