Equipment ↠ Volvo ↠ Motor Graders ↠ 2011 Volvo G970

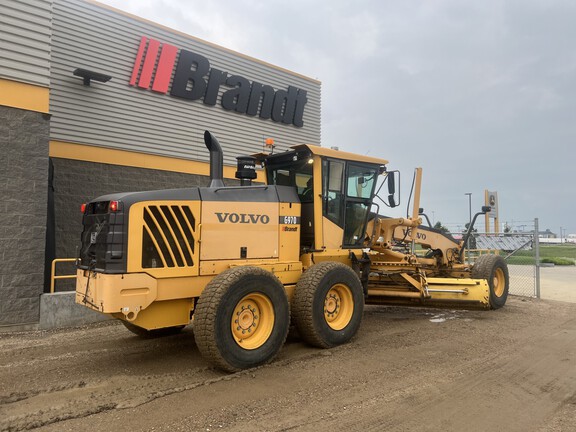

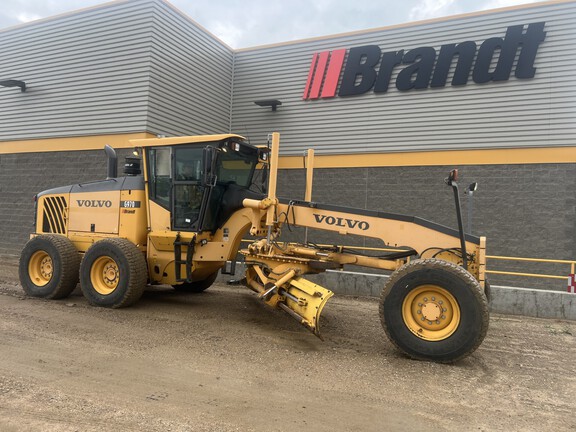

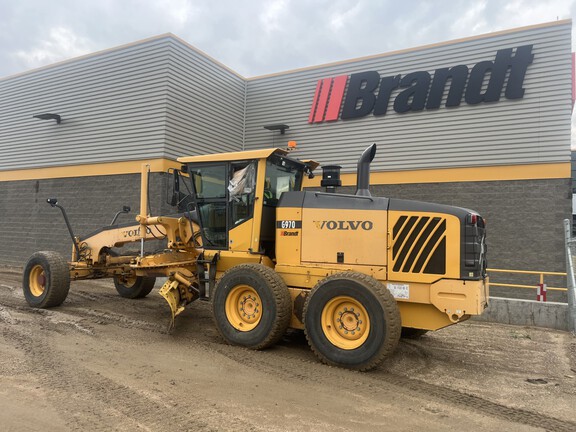

2011 Volvo G970 For Sale in Saskatoon, SK

Name: 2011 Volvo G970
Brand: Volvo
SKU: 73609959
Price: 89900 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $65,831.00 USD
Converted From: 89,900.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

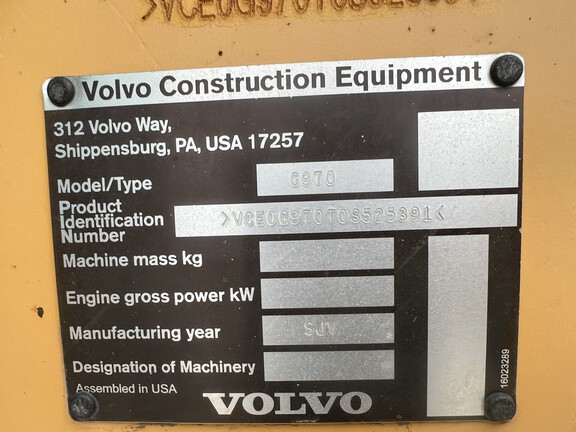

Serial Number:	VCE0G970T0S525391
Stock Number:	0U525391
Machine Location:	SASKATOON, SK

Description:

Cab w/ AC; 4.27 m (14 ft.) Blade, Blade Extension; 17.50 Tires; Aux Hydraulics

Machine Details:

General Specifications

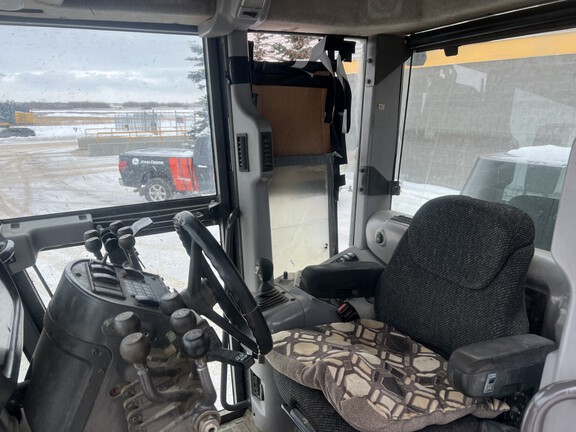

Operators Station	Cab w/ AC
Blades	Blade Extension
Tires	17.50 Tires
Attachments	Aux Hydraulics

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	6 degrees
Diameter	64 in (163 cm)
Max Reach Outside Tires - Left	78 in (198 cm)
Max Reach Outside Tires - Right	77 in (196 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	31 ft (9 m)
Wheelbase	21 ft (7 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged Aftercooled
Displacement	573 cu in (9,390 cu cm)
Engine Model	D9B
Max Power	262 hp (195 kw)
Net Power Gears 7-8	262 hp (195 kw)
Net Torque Gears 7-8	876 lbs ft (1,188 nm)
Number of Cylinders	6
Power Measured @	1,700 rpm
Torque Measured @	1,550 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (208 lpm)
Pump Type	Axial piston pump
Relief Valve Pressure	3,000 psi
Moldboard
Blade Down Pressure	20,420 lbs (9,262 kg)
Blade Pull at Max Weight	30,690 lbs (13,921 kg)
Max Depth of Cut	31 in (77 cm)
Moldboard Height	29 in (74 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	12 gal (47 l)
Fuel Capacity	132 gal (500 l)
Hydraulic System Fluid Capacity	24 gal (91 l)
Max Operation Weight - Front Axle	18,500 lbs (8,391 kg)
Max Operation Weight - Rear Axle	34,100 lbs (15,468 kg)
Max Operation Weight - Total	50,000 lbs (22,680 kg)
Oil System Fluid Capacity	10 gal (39 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	11,680 lbs (5,298 kg)
Std Operation Weight - Rear Axle	29,980 lbs (13,599 kg)
Std Operation Weight - Total	41,660 lbs (18,897 kg)
Tandem Case Fluid Capacity (each)	26 gal (100 l)
Tire Size	14:00 x 24 G-2
Transmission Fluid Capacity	16 gal (61 l)
Steering System
Articulation Angle	21 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	19 mph (31 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	HTE 840 Fully sequential direct drive Volvo powershift transmission
