2005 Volvo A35D For Sale in Chicago, Il

Name: 2005 Volvo A35D
Brand: Volvo
SKU: 87053970
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

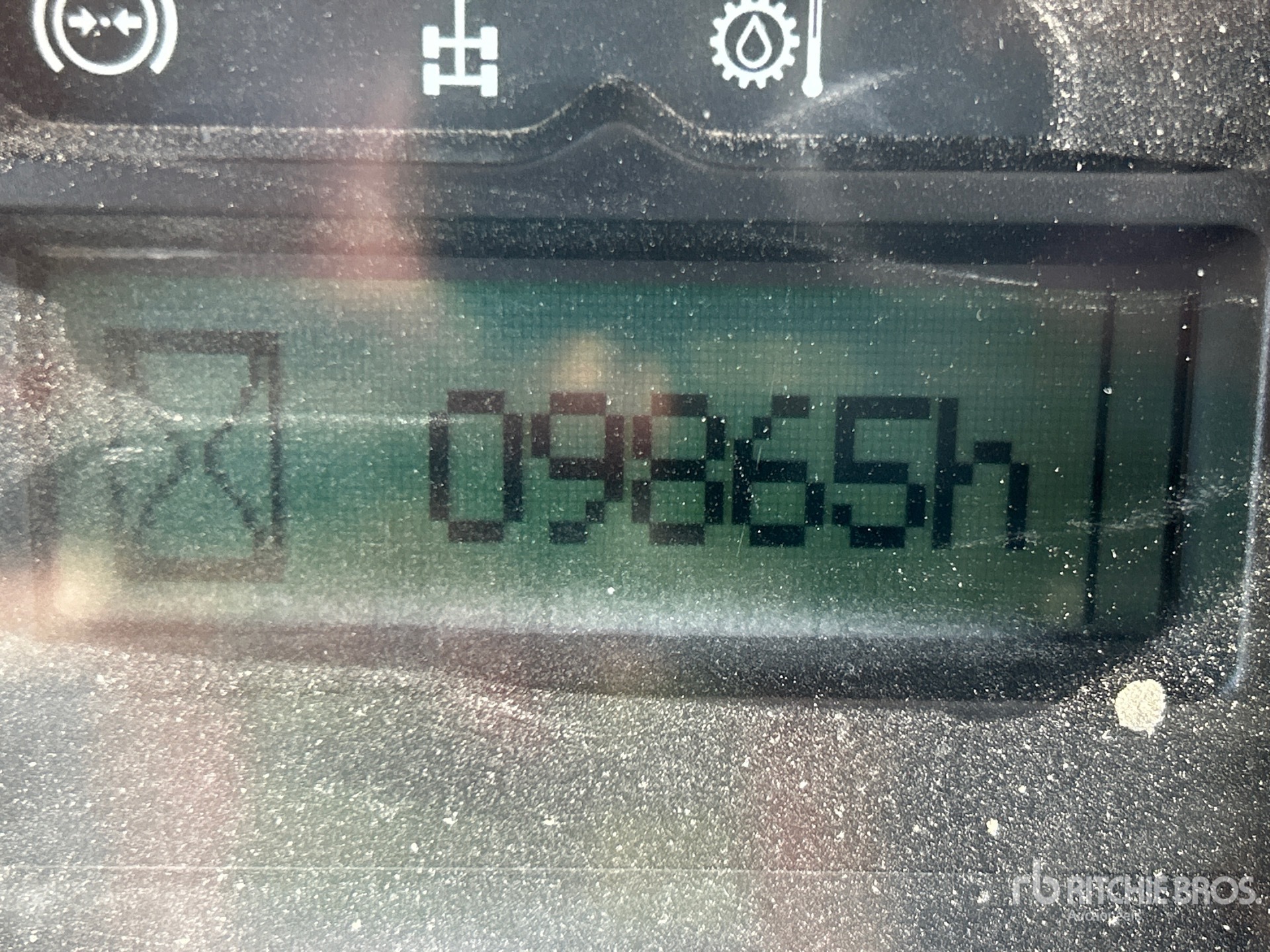

Hours:	9865

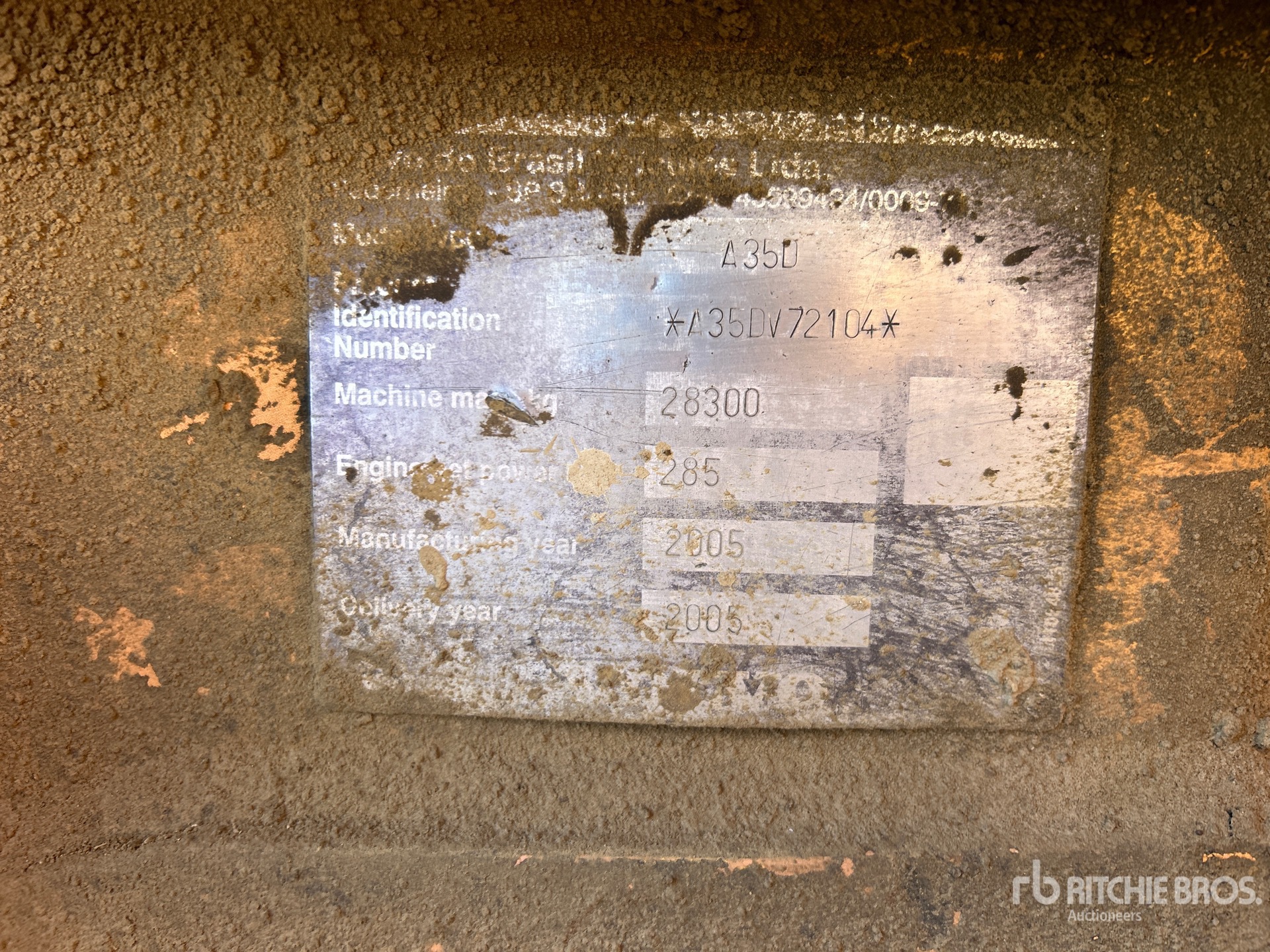

Serial Number:	A35DV72104
Machine Location:	CHICAGO, IL

Description:

Located in Lane 25 Spot 12, Retarder, 26.5R25 Tires Closing Time: 2026-05-12 09:50:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo A35D is a rigid-frame articulated off-highway truck designed for hauling material in construction, quarry, mining, and earthmoving applications. It is part of Volvo Construction Equipment's A35 series and is commonly used for transport on rough terrain where traction, stability, and load capacity are required. The A35D features articulated steering, all-wheel drive, and a dump body configured for bulk material handling. Typical applications include site development, road building, and aggregate operations. As an off-highway truck, the Volvo A35D is built for unpaved work environments and continuous material movement in demanding conditions.

Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Height	24 ft (7 m)
Ground Clearance	2 ft (1 m)
Overall Height	12 ft (4 m)
Overall Length	37 ft (11 m)
Overall Width	10 ft (3 m)
Wheelbase	15 ft (5 m)
Dump
Capacity - Heaped	26 cu yd (20 cu m)
Capacity - Struck	20 cu yd (15 cu m)
Dump Angle	70 degrees
Lower Time	10 seconds
Rated Payload	71,650 lbs (32,500 kg)
Engine
Aspiration	Turbocharged
Displacement	732 cu in (12,000 cu cm)
Engine Model	D12C ABE2*
Gross Power	393 hp (293 kw)
Max Torque	1,413 lbs ft (1,915 nm)
Net Power	388 hp (289 kw)
Operating Specifications
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	31 gal (117 l)
Engine Oil Capacity	13 gal (50 l)
Fuel Capacity	127 gal (480 l)
Hydraulic System Fluid Capacity	66 gal (250 l)
Operating Voltage	24 volts
Tire Size	26.5 R 25*
Transmission Fluid Capacity	13 gal (49 l)
Transmission
Max Speed	35 mph (56 kph)
Number of Forward Gears	6
Number of Reverse Gears	2
Transmission Type	Fully Automatic
Weights
Front Axle - empty	33,775 lbs (15,320 kg)
Front Axle - loaded	39,176 lbs (17,770 kg)
Rear Axle - empty	28,616 lbs (12,980 kg)
Rear Axle - loaded	94,865 lbs (43,030 kg)
Total Empty	62,391 lbs (28,300 kg)
Total Loaded	134,041 lbs (60,800 kg)
