Equipment ↠ Volvo ↠ Off-Highway Trucks ↠ 2012 Volvo A40F

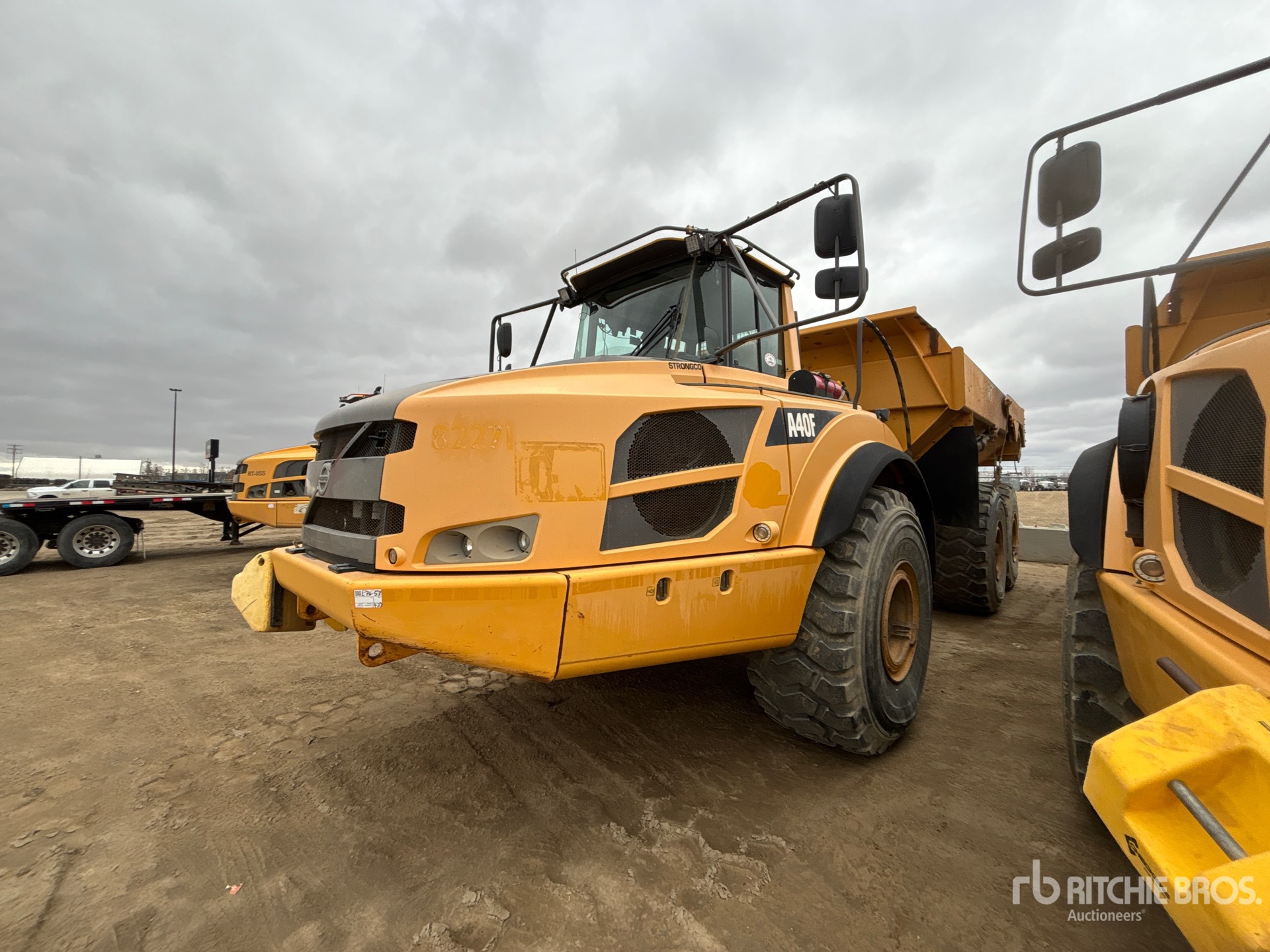

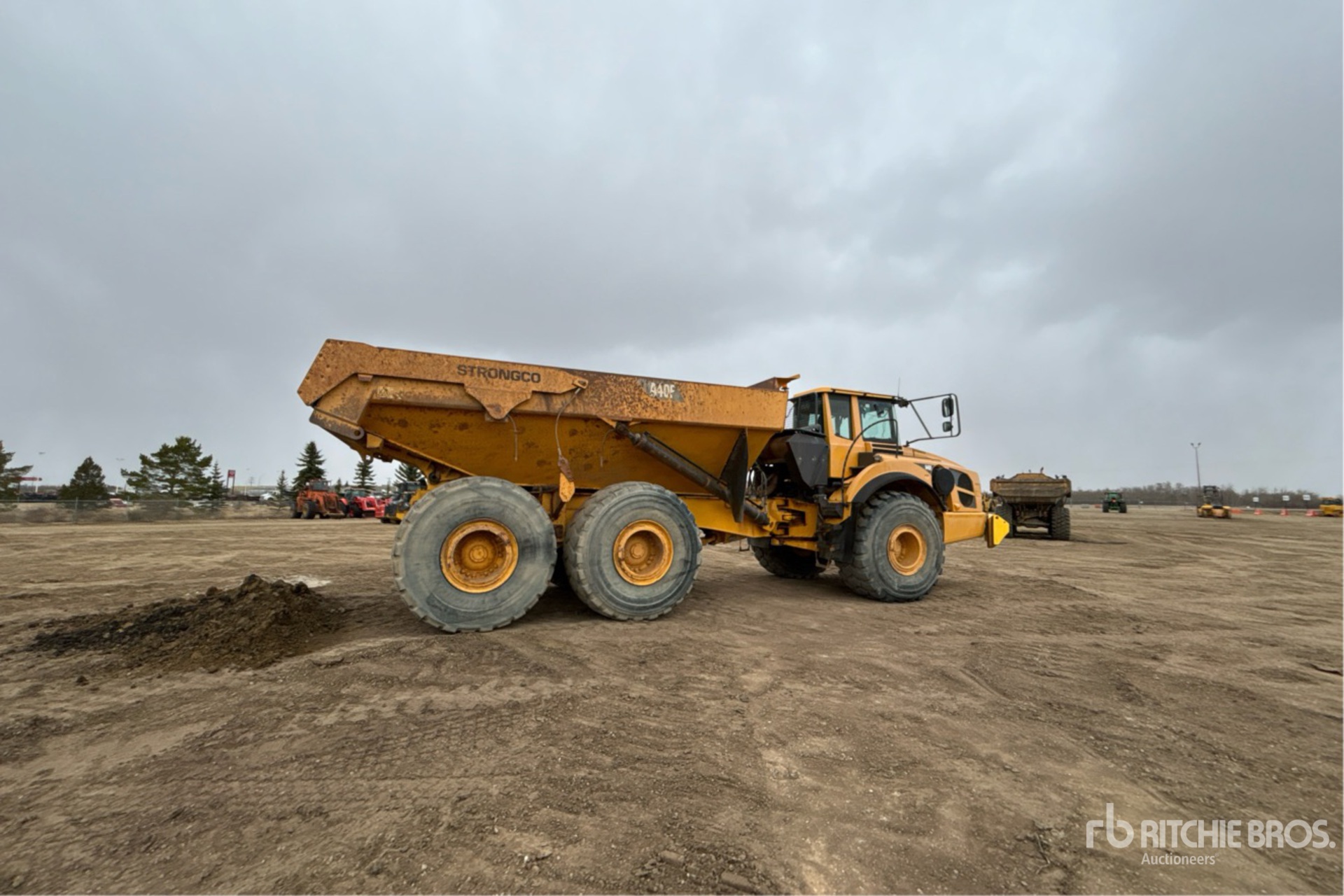

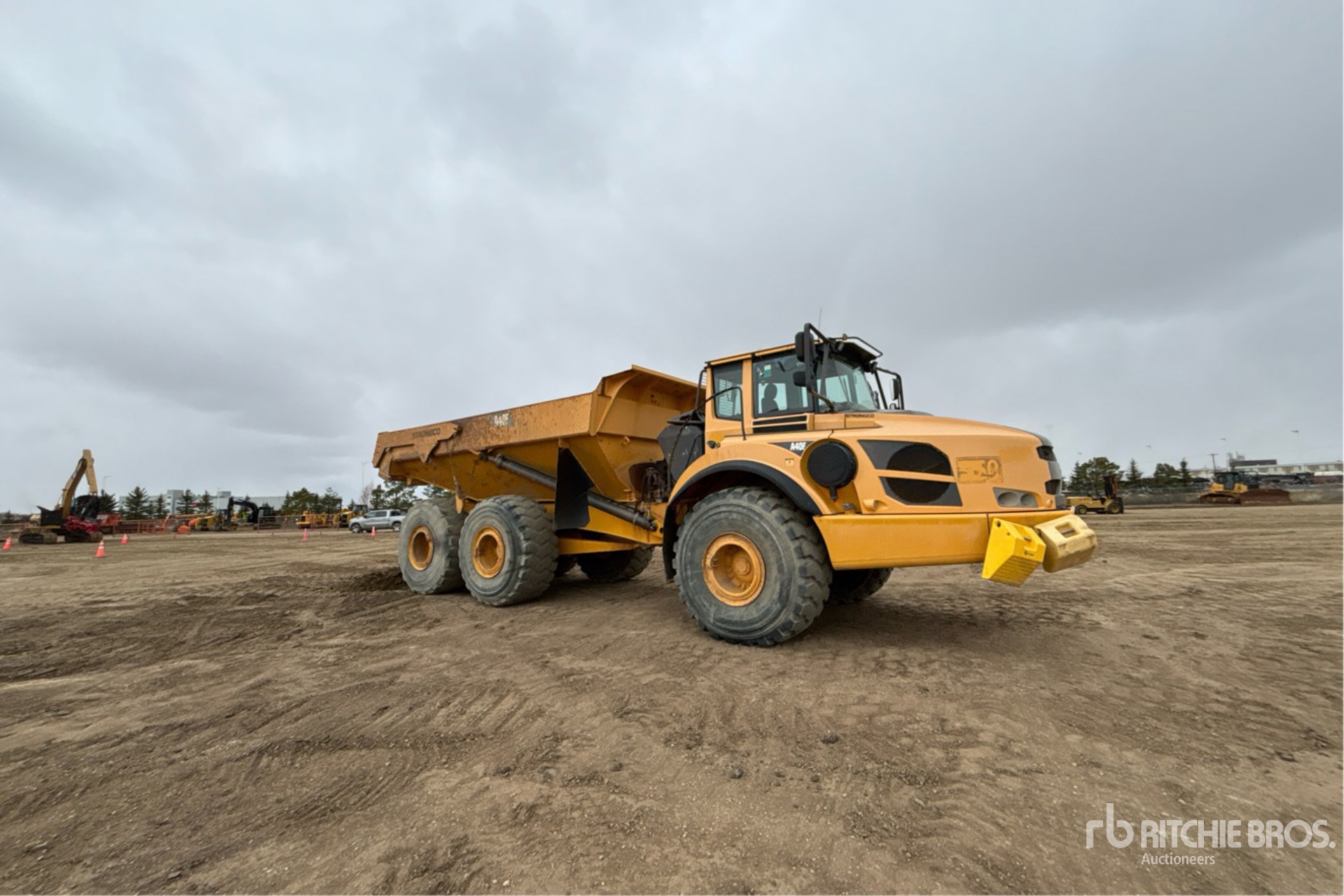

2012 Volvo A40F For Sale in Edmonton, Ab

Name: 2012 Volvo A40F
Brand: Volvo
SKU: 87232180
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

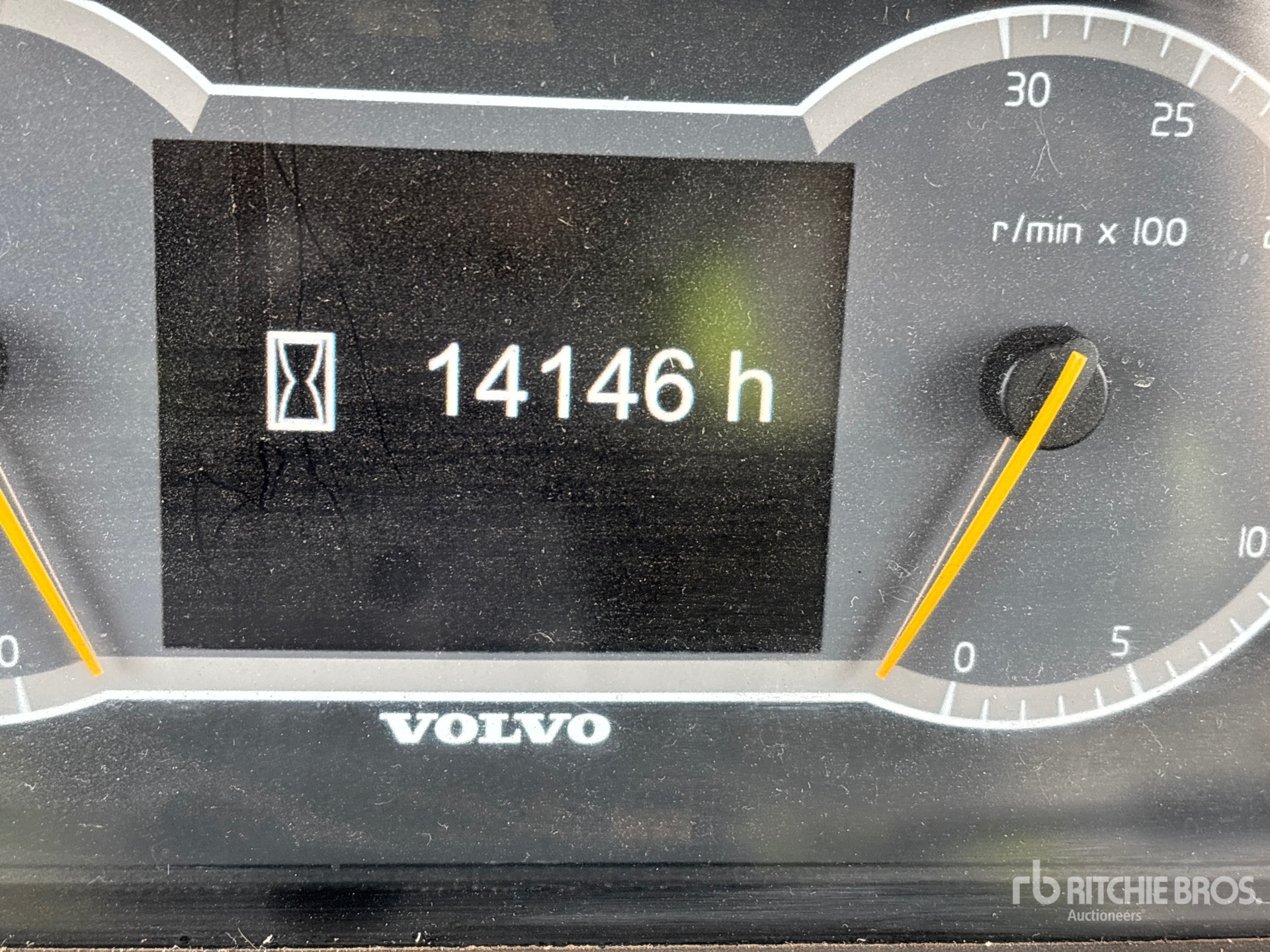

Hours:	14146

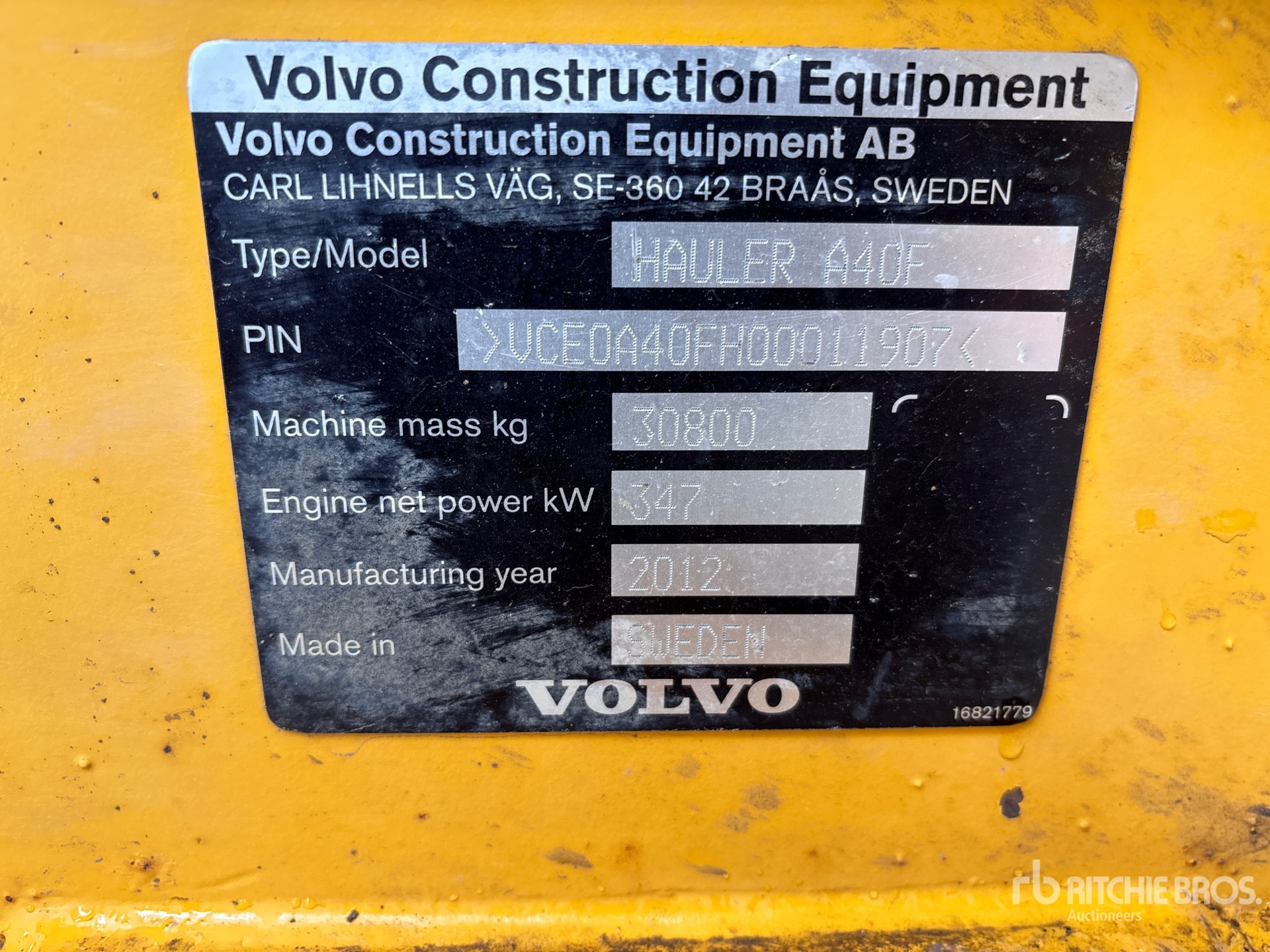

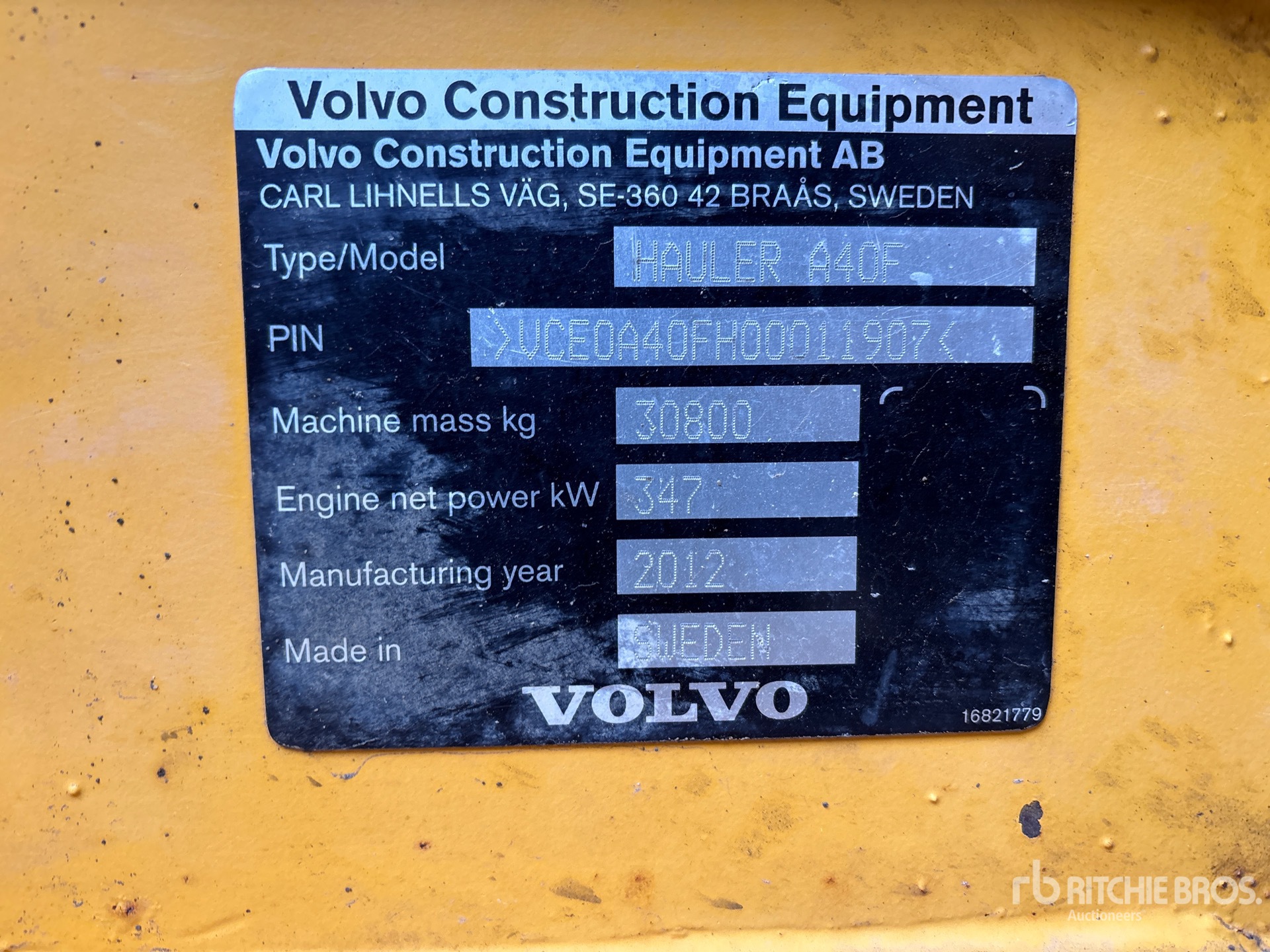

Serial Number:	VCE0A40FH00011907
Machine Location:	EDMONTON, AB

Description:

Located in Lane 55 Spot 33, Air Conditioner, Rear View Camera, 2012 US EPA Label, CARB Compliant, Heated Body, Tailgate, Steel Body Liner, 29.5R25 Tires Closing Time: 2026-05-11 12:14:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo A40F is a robust off-highway articulated dump truck designed for heavy-duty construction and mining applications. Featuring a powerful Volvo engine, the A40F delivers high torque and fuel efficiency, optimizing performance in challenging terrains. Its articulated frame enhances maneuverability and stability on rough surfaces, while the advanced suspension system improves operator comfort and load handling. Equipped with a spacious cab and user-friendly controls, the Volvo A40F supports extended operation periods. This model offers a high payload capacity, durable chassis, and reliable drivetrain, making it suitable for transporting large volumes of materials in demanding off-road environments.

Articulating/Rigid
Articulating/Rigid	Articulated
Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Height	24 ft (7 m)
Ground Clearance	2 ft (1 m)
Overall Length	37 ft (11 m)
Overall Width	11 ft (3 m)
DRIVE SYSTEM
Drive Config	6x6
Dump
Capacity - Heaped	31 cu yd (24 cu m)
Capacity - Struck	24 cu yd (18 cu m)
Dump Angle	70 degrees
Lower Time	10 seconds
Raise Time	12 seconds
Rated Payload	85,980 lbs (39,000 kg)
Engine
Aspiration	Turbocharged
Engine Model	D13H-A
Make	Volvo
Number of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,050 rpm
Operating Specifications
Alternator Supplied Amperage	80 amps
Engine Oil Capacity	14 gal (54 l)
Operating Voltage	24 volts
Transmission
Max Speed	35 mph (56 kph)
Number of Forward Gears	9
Number of Reverse Gears	3
Transmission Type	PT2519
Weights
Front Axle - empty	36,487 lbs (16,550 kg)
Front Axle - loaded	45,195 lbs (20,500 kg)
Operating Weight	153,880 lbs (69,799 kg)
Rear Axle - empty	31,416 lbs (14,250 kg)
Rear Axle - loaded	108,688 lbs (49,300 kg)
Total Empty	67,902 lbs (30,800 kg)
Total Loaded	153,883 lbs (69,800 kg)
