Equipment ↠ Volvo ↠ Wheel Loaders ↠ 2019 Volvo L110H

2019 Volvo L110H For Sale in Maltby, Gbr

Name: 2019 Volvo L110H
Brand: Volvo
SKU: 87403957
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

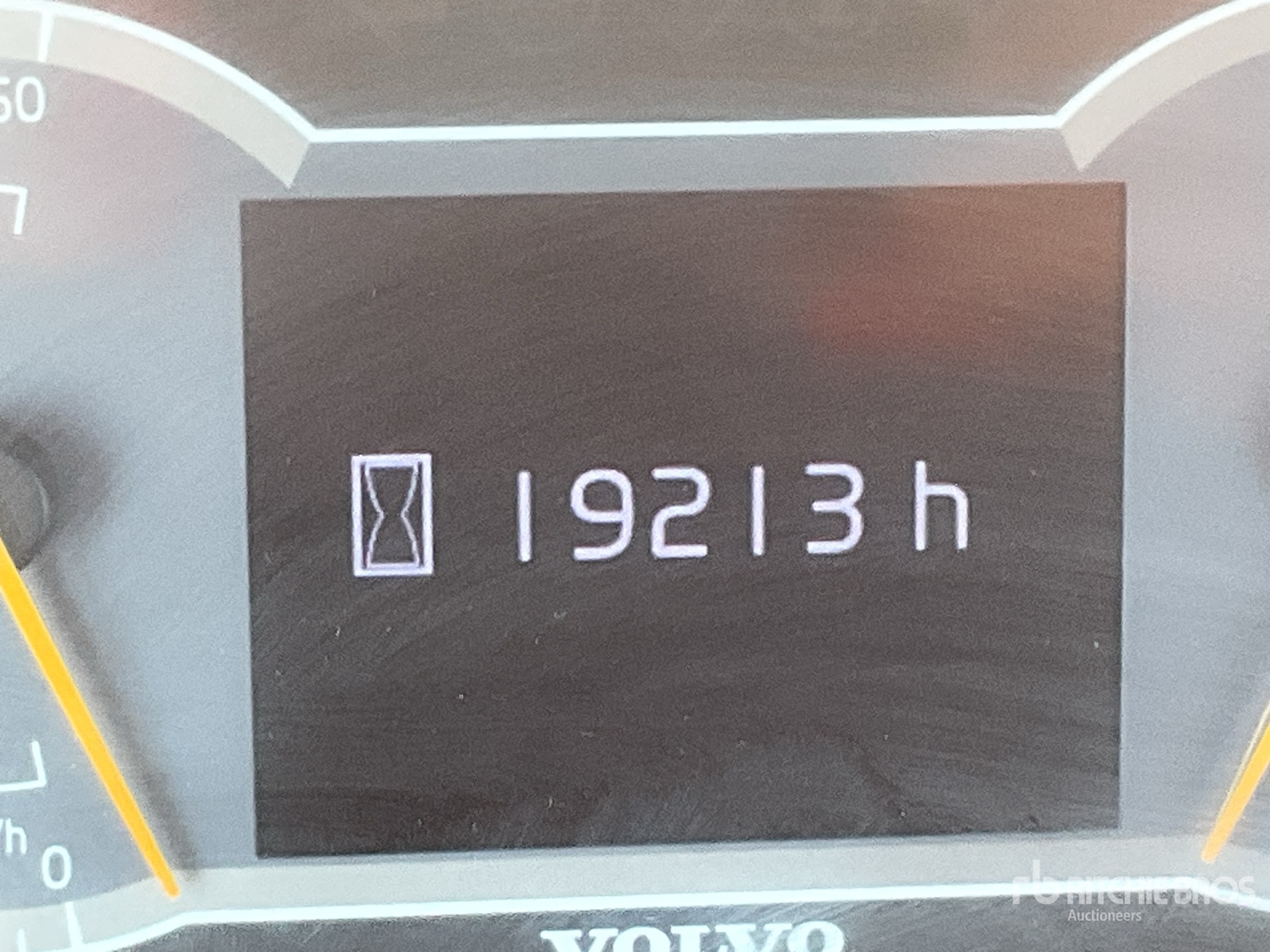

Hours:	19213

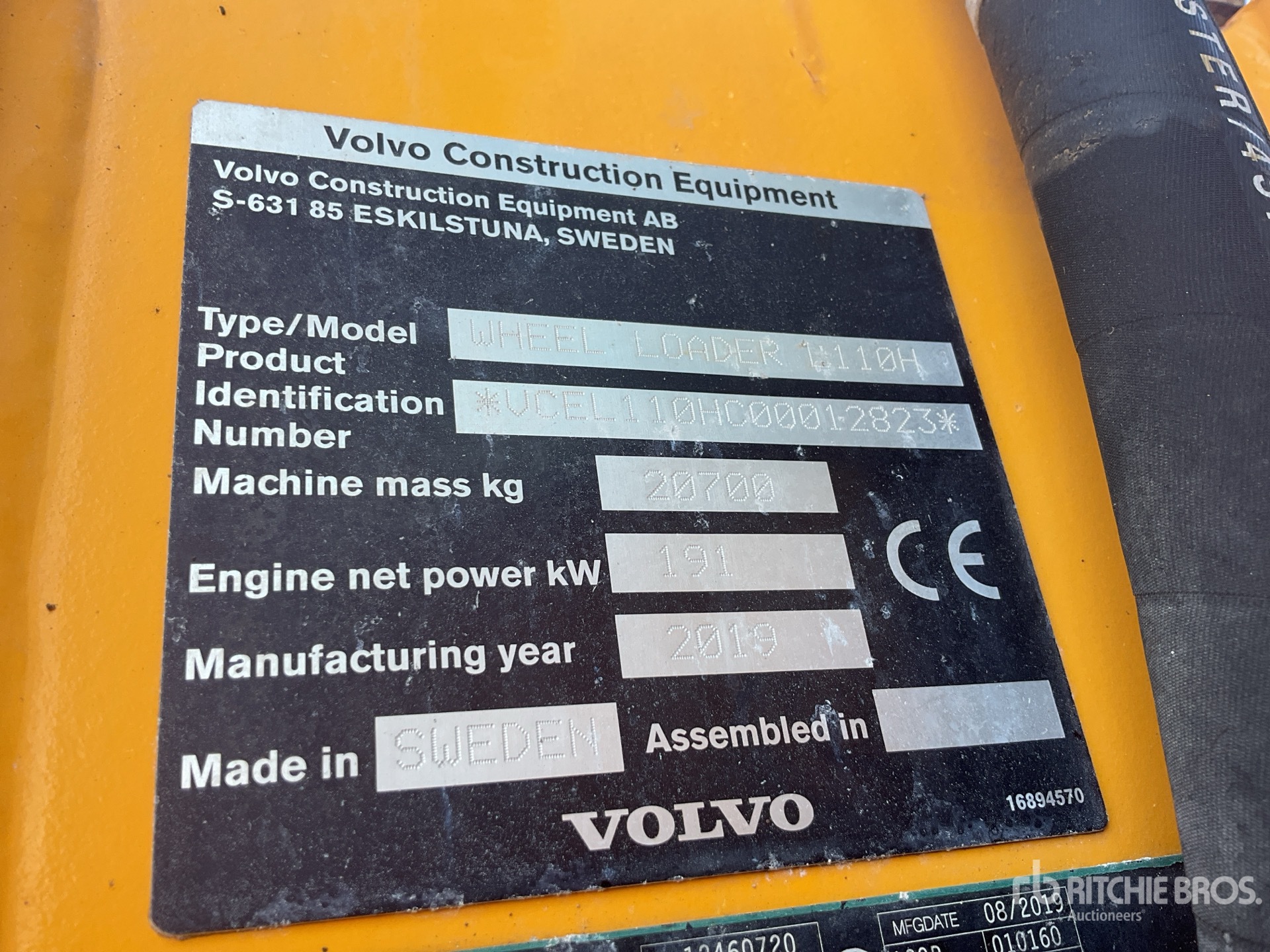

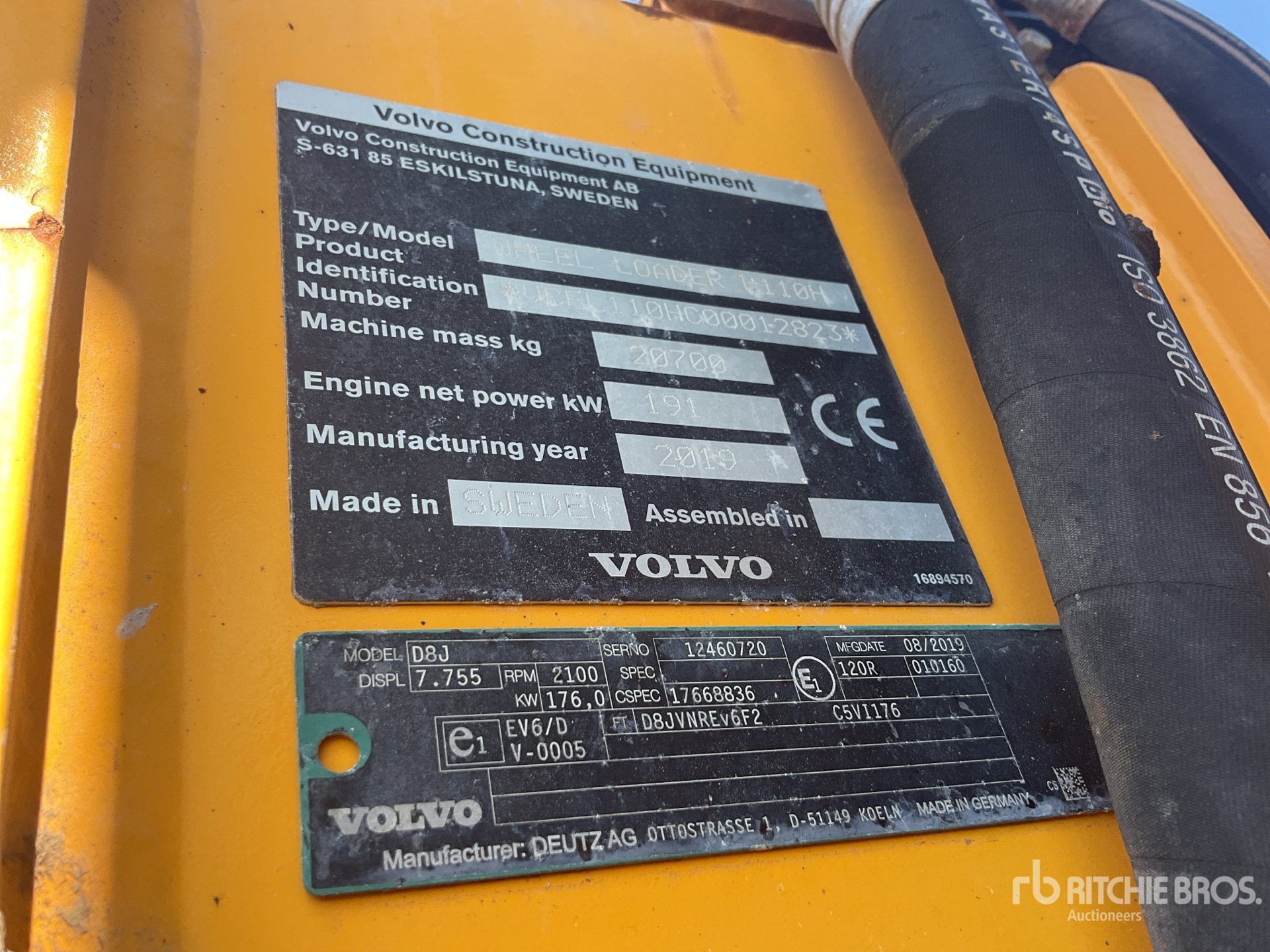

Serial Number:	VCEL110HC00012823
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Autoshift, LoadRite On-Board Scale, Auxiliary Hydraulics, Manual Quick Coupler, Roll-Out Bucket, Auto Lube, 23.5R25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo L110H is a medium-size wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Volvo Construction Equipment's H-series and is commonly used in aggregate yards, quarries, recycling facilities, and industrial sites. The L110H features a fuel-efficient Volvo engine, load-sensing hydraulics, and a reinforced loader frame for durability in demanding conditions. Operator comfort, visibility, and service access are key design elements. The machine is typically paired with a range of buckets and attachments for versatile site use. The Volvo L110H is recognized for balanced performance, productivity, and reliability in wheel loader operations.

Axles
Axle oil front	10 gal (36 l)
Axle oil rear	11 gal (41 l)
Front	Volvo AWB 31
Rear	Volvo AWB 30
Rear axle oscillation	13 degrees
Bucket
Breakout Force	40,893 lbs (18,549 kg)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	27 ft (8 m)
Wheelbase	2 ft (0 m)
Width Over Tires	9 ft (3 m)
Drive System
Torque multiplication, stall ratio	2.47:1
Transmission	Volvo HTL 206C
Transport speed, maximum	25 mph (40 kph)
Electrical System
Alternator rating	2280/80 (W/A)
Battery capacity	2 x 170 Ah
Cold cranking capacity	1000 A
Starter motor output	7 hp (6 kw)
Voltage	24 V
Engine
Aspiration	Turbocharged
Displacement	476 cu in (7,800 cu cm)
Engine Model	Volvo D8J
Gross Power	256 hp (191 kw)
Number of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,450 rpm
General Specifications
Bucket Capacity (Since 2016)	3.2 - 12.4 (2.4 - 9.5)
Bucket Capacity (Since 2017)	3.5 - 12.4 (2.7 - 9.5)
Bucket Capacity (Since 2019)	3.25 - 12.5 (2.5 - 9.5)
Bucket Capacity (Since 2020)	7.8 (6)
Bucket Capacity (2021)	7.8 (6)
Bucket Capacity (Since 2022)	4.6 (3.5)
Bucket Capacity (2023)	4.6 (3.5)
Bucket Capacity (2024)	4.6 (3.5)
Engine Power (Since 2016)	258 192)
Engine Power (Since 2017)	254 (189)
Engine Power (Since 2019)	256 (191)
Engine Power (Since 2020)	254 (189)
Engine Power (2021)	254 (189)
Engine Power (Since 2022)	256 (191)
Engine Power (2023)	256 (191)
Engine Power (2024)	256 (191)
Engine type (Since 2016)	D8J
Engine type (2017)	D8J
Engine type (Since 2019)	Volvo D8J
Engine type (2020)	Volvo D8J
Engine type (2021)	Volvo D8J
Engine type (2022)	Volvo D8J
Engine type (2023)	Volvo D8J
Engine type (Since 2024)	Volvo D8M
Max Dump Height (Since 2016)	9.2 (2.8)
Max Dump Height (2017)	9.2 (2.8)
Max Dump Height (Since 2019)	9.5 (2.8)
Max Dump Height (Since 2020)	9.3 (2.8)
Max Dump Height (2021)	9.3 (2.8)
Max Dump Height (Since 2022)	9 (2.7)
Max Dump Height (2023)	9 (2.7)
Max Dump Height (2024)	9 (2.7)
Operating Weight (Since 2016)	40,920 (18,561)
Operating Weight (2017)	40,920 (18,561)
Operating Weight (Since 2019)	39,680 - 45,635 (17,999 - 20,700)
Operating Weight (Since 2020)	40,920 (18,561)
Operating Weight (2021)	40,920 (18,561)
Operating Weight (Since 2022)	43,030 (19,510)
Operating Weight (2023)	43,030 (19,510)
Operating Weight (2024)	43,030 (19,510)
Hydraulic cycle times (unloaded)
Lift	5 seconds
Lower	3 seconds
Tilt	2 seconds
Total cycle time	10 seconds
Hydraulic System
Engine speed	1,900 rpm
Working pressure	Pump 1 - 27 MPa Pump 2 - 29 MPa Pump 3 - 21 MPa
Operating Specifications
Cooling System Fluid Capacity	11 gal (43 l)
DEF tank capacity	7 gal (25 l)
Engine Oil Fluid Capacity	6 gal (22 l)
Fuel Capacity	71 gal (270 l)
Hydraulic System Fluid Capacity	35 gal (133 l)
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation angle	40 degrees
Cylinder bore	3 in (8 cm)
Maximum flow	32 gpm (120 lpm)
Rod diameter	2 in (5 cm)
Steering cylinders	2
Stroke	2 ft (0 m)
Working pressure	21 MPa 210 bar
Weights
Operational Weight	40,920 lbs (18,561 kg)
