2019 Volvo L50H For Sale in Ocana, Esp

Name: 2019 Volvo L50H
Brand: Volvo
SKU: 87417284
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

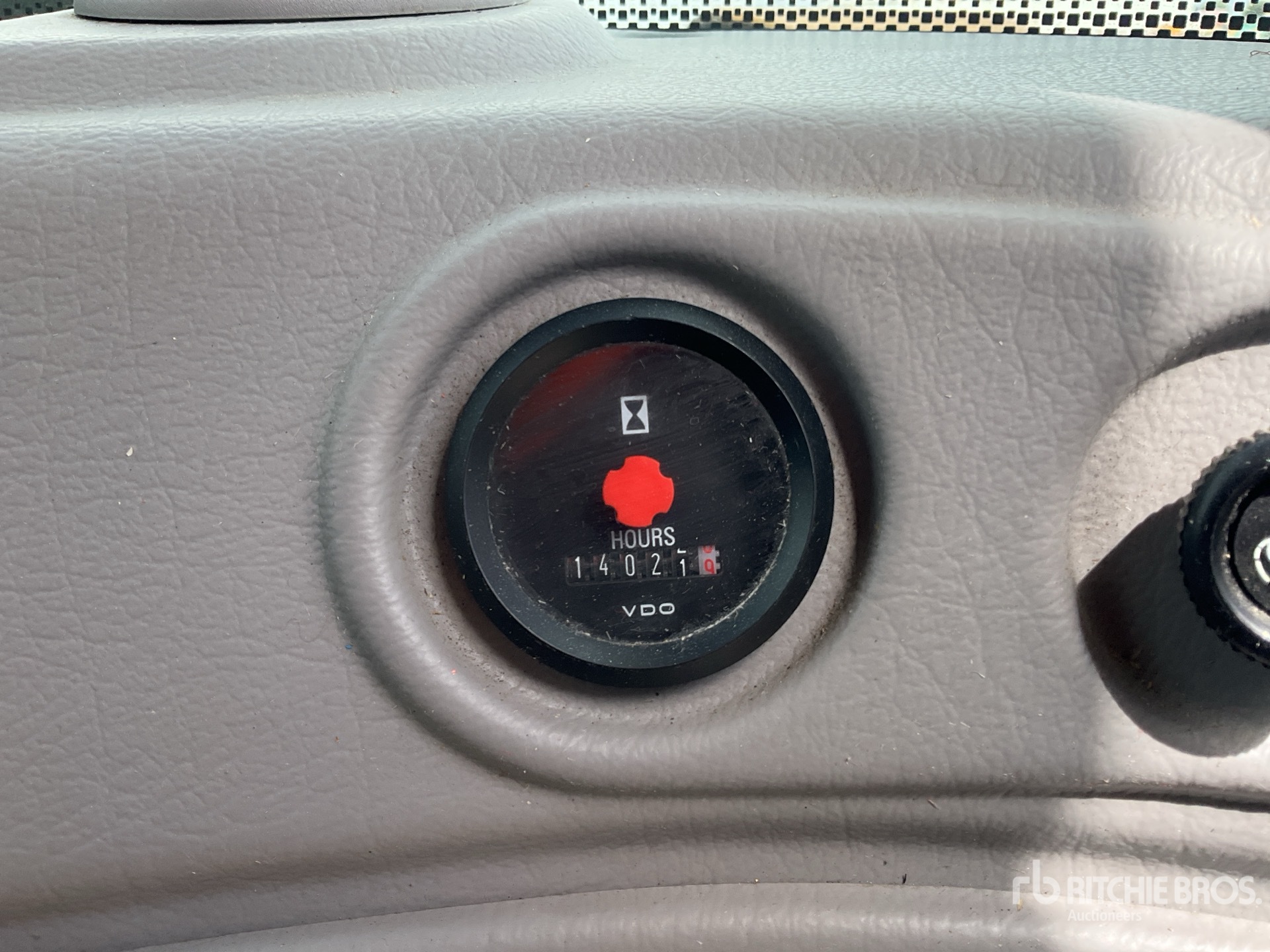

Hours:	14021

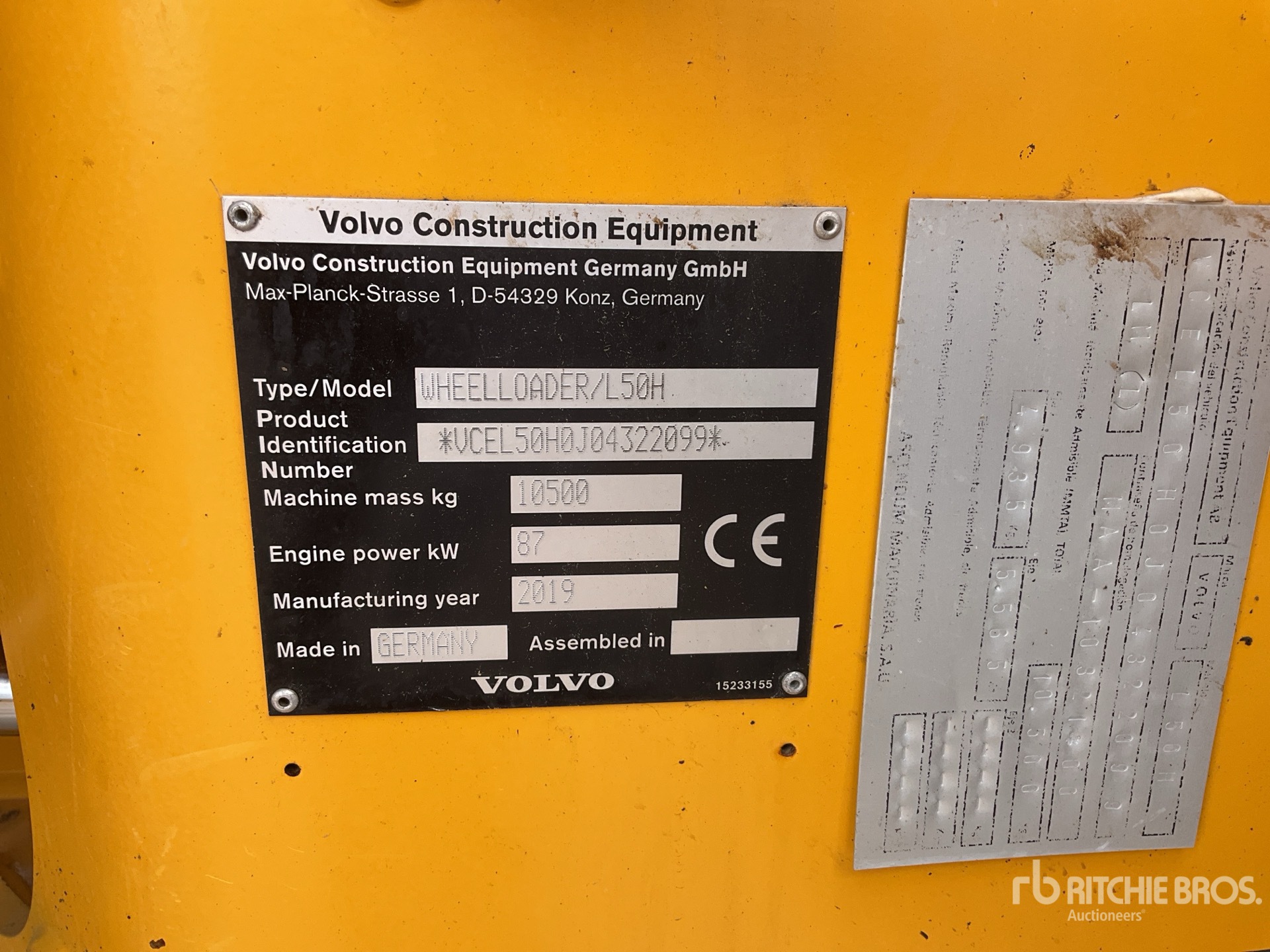

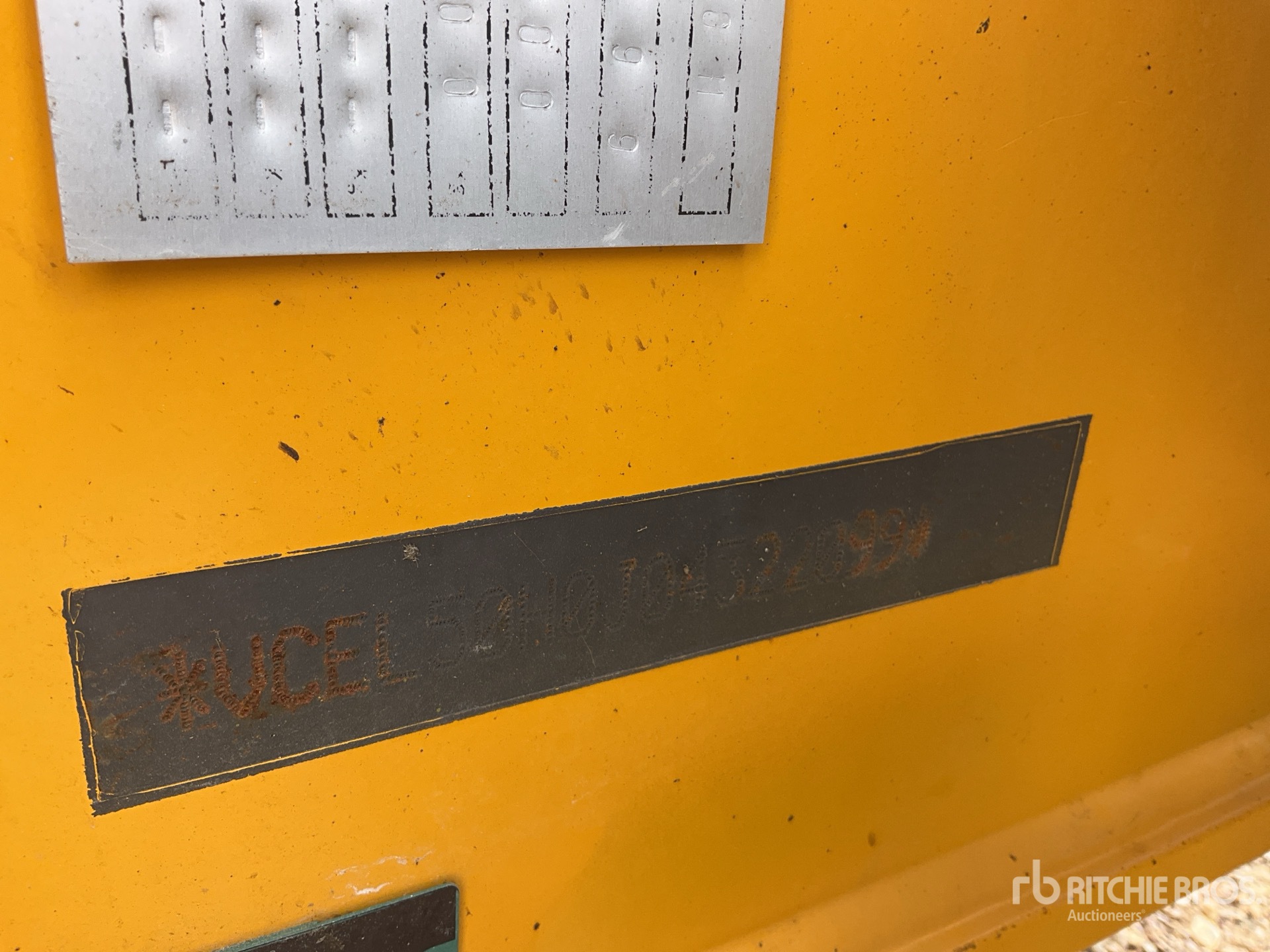

Serial Number:	VCEL50H0J04322099
Machine Location:	OCANA, ESP

Description:

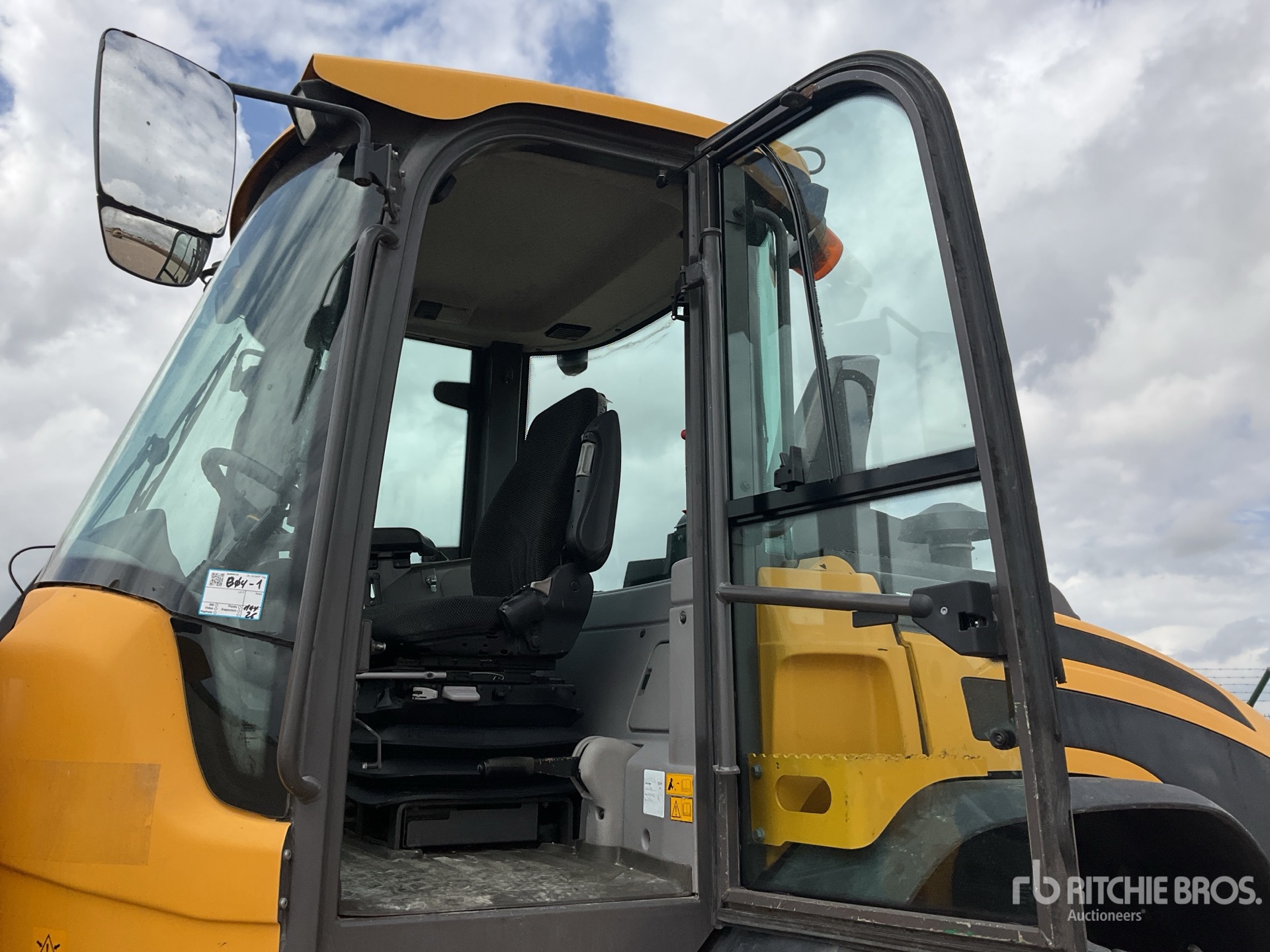

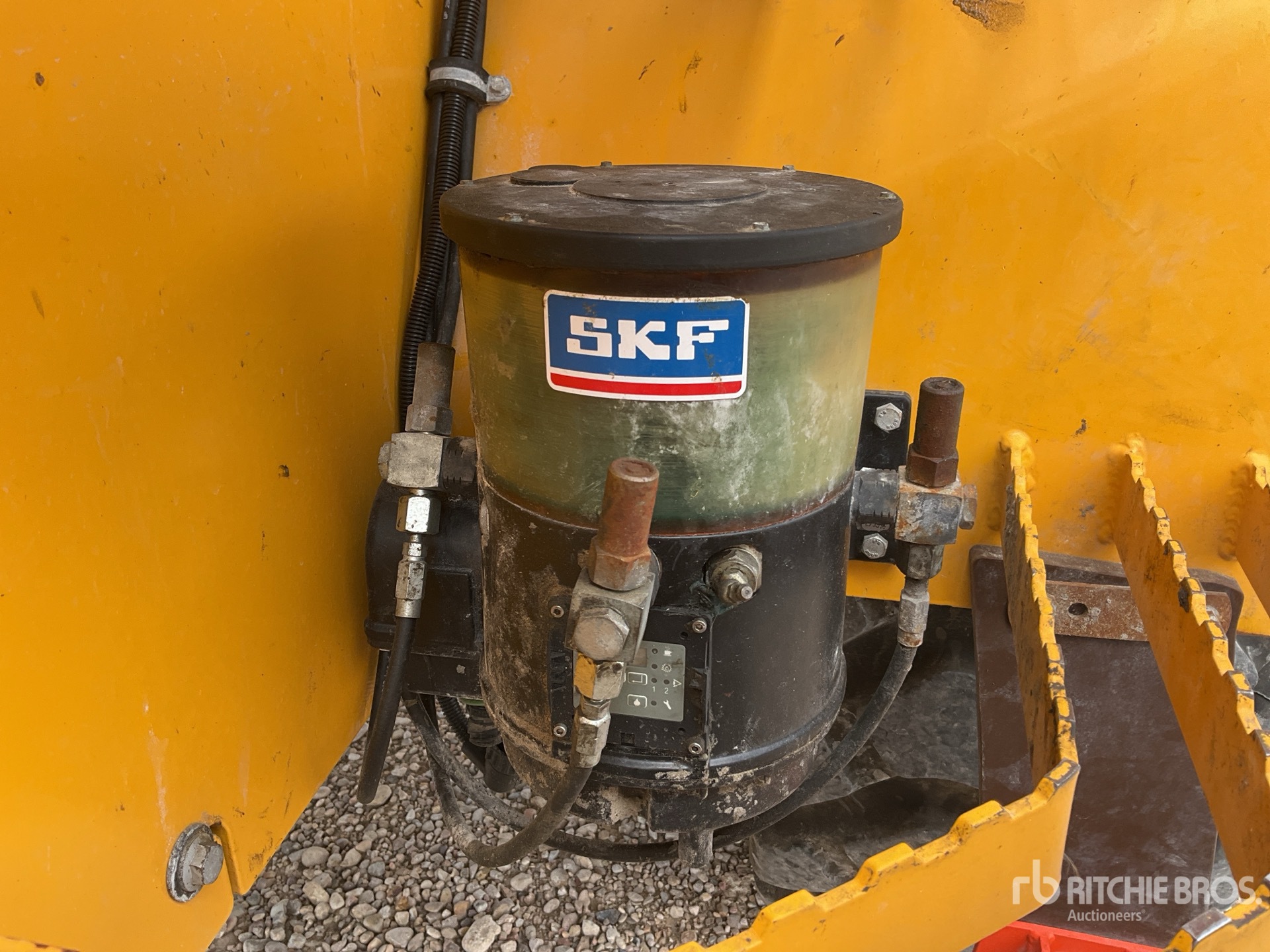

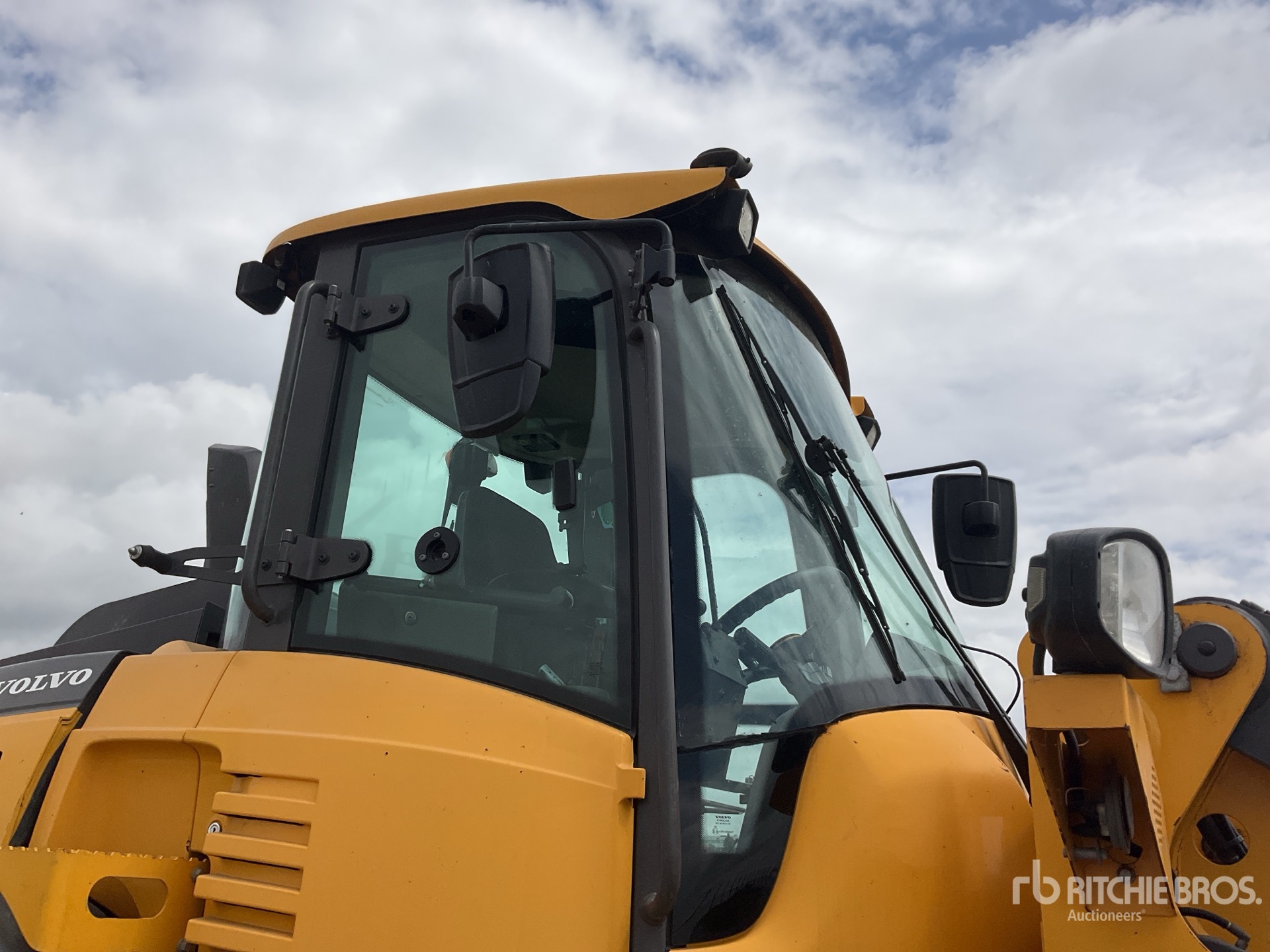

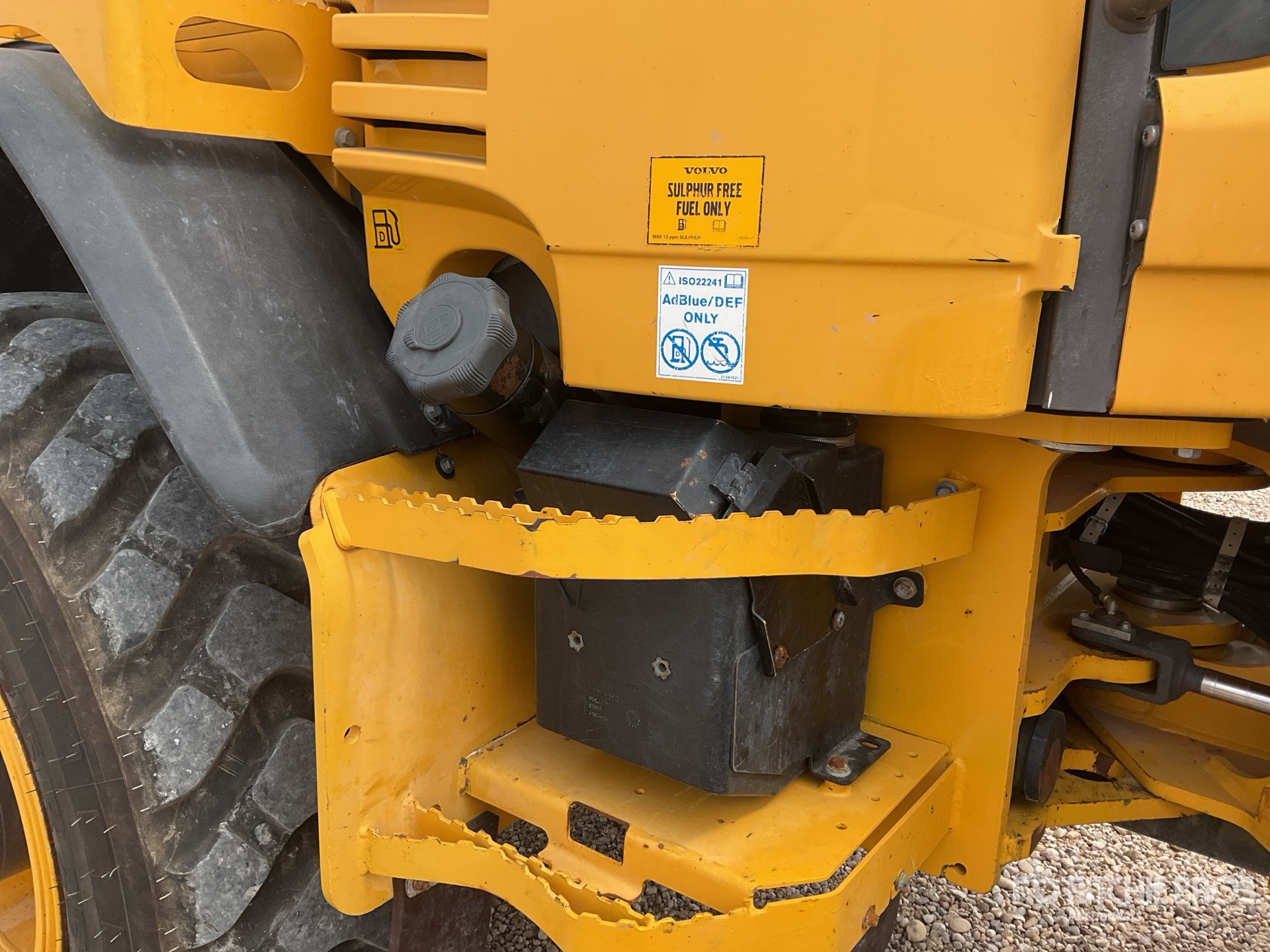

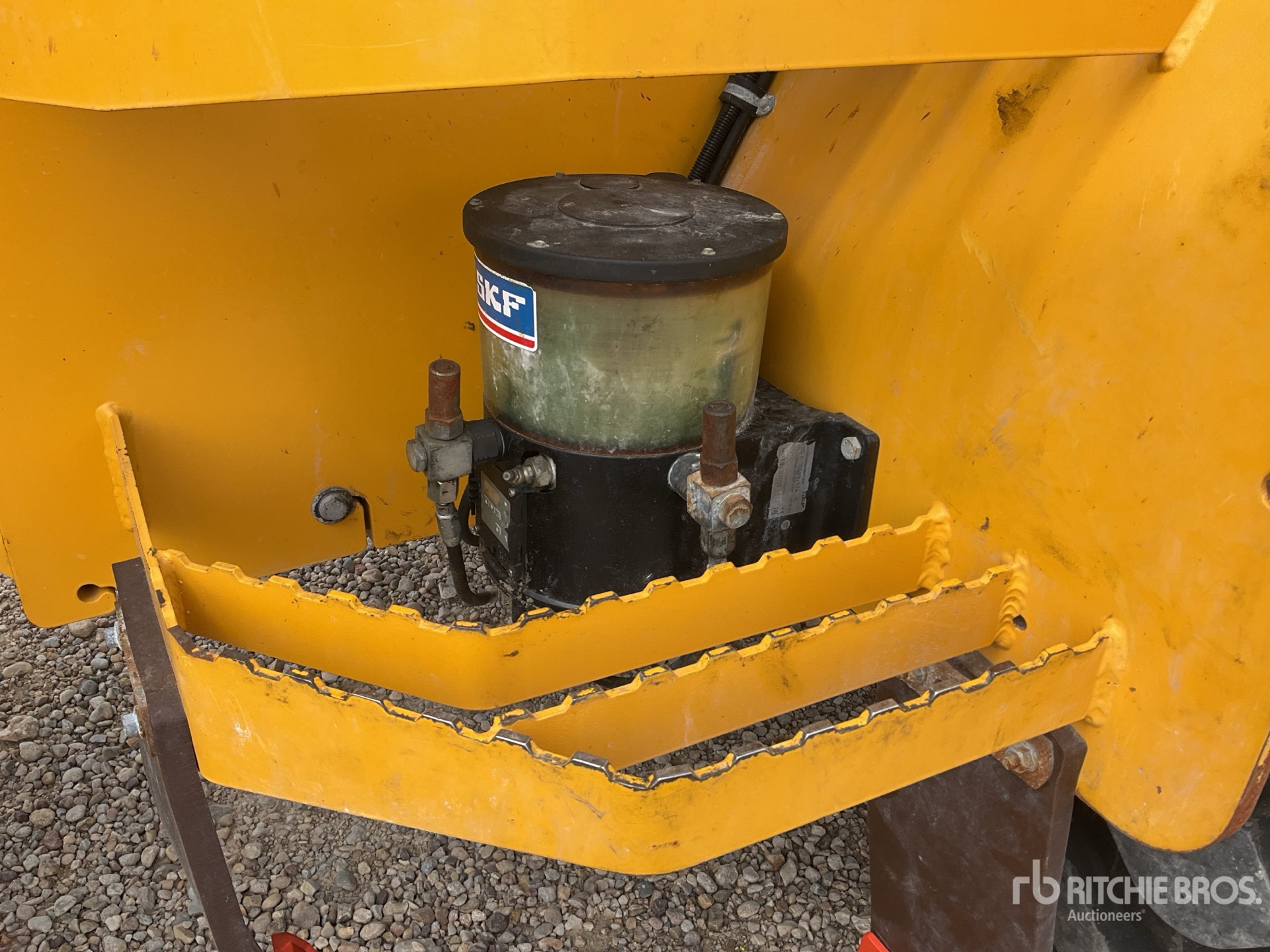

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Requires AdBlue, Auxiliary Hydraulics, Hydraulic Coupler, Auto Lube, 17.5-25 Tires, AdBlue Pre-matricula/ Pre-registration**COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-05-12 10:10:50 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo L50H is a compact wheel loader designed for material handling, loading, and site support applications. It is part of Volvo Construction Equipment's H-series wheel loader lineup and is commonly used in construction, agriculture, landscaping, and municipal work. The L50H features articulated steering, a hydraulic loader arm, and a cab designed for operator visibility and control. Typical uses include stockpile work, truck loading, and general earthmoving. The model is known for its balanced size, maneuverability, and compatibility with a range of buckets and attachments. It is classified as a wheel loader in the mid-size compact equipment category.

Axles
Axle oil front	5 gal (18 l)
Axle oil rear	5 gal (18 l)
Rear axle oscillation	12 degrees
Bucket
Breakout Force	16,186 lbs (7,342 kg)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	21 ft (6 m)
Wheelbase	9 ft (3 m)
Width Over Tires	7 ft (2 m)
Drive System
Transport speed, maximum	19 mph (30 kph)
Electrical System
Alternator rating	3080/110 (W/A)
Battery capacity	2 x 100 Ah
Cold cranking capacity	830 A
Starter motor output	7 hp (6 kw)
Voltage	24 V
Engine
Aspiration	Turbocharged
Displacement	244 cu in (4,000 cu cm)
Engine Model	Volvo D4J
Gross Power	117 hp (87 kw)
Make	Volvo
Net Power	114 hp (85 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,450 rpm
General Specifications
Bucket Capacity (Since 2017)	2.0-2.6 (1.5 - 2)
Bucket Capacity (2019)	2.0-2.6 (1.5 - 2)
Bucket Capacity (Since 2020)	2.3 (1.8)
Bucket Capacity (Since 2023)	2.1 (1.6)
Bucket Capacity (2024)	2.1 (1.6)
Engine Power (Since 2017)	114 (85)
Engine Power (2019)	114 (85)
Engine Power (Since 2020)	85 (63)
Engine Power (Since 2023)	117 (87)
Engine Power (2024)	117 (87)
Engine type (Since 2017)	Volvo D4J
Engine type (2019)	Volvo D4J
Engine type (2020)	Volvo D4J
Engine type (2023)	Volvo D4J
Engine type (2024)	Volvo D4J
Max Dump Height (Since 2017)	9.3 (2.8)
Max Dump Height (2019)	9.3 (2.8)
Max Dump Height (2020)	9.3 (2.8)
Max Dump Height (2023)	9.3 (2.8)
Max Dump Height (2024)	9.3 (2.8)
Operating Weight (Since 2017)	20,900 (9,480)
Operating Weight (Since 2019)	20,944 (9,500)
Operating Weight (Since 2020)	20,900 (9,480)
Operating Weight (Since 2023)	20,944 (9,500)
Operating Weight (2024)	20,944 (9,500)
Hydraulic cycle times (unloaded)
Dump time	1 seconds
Lift	5 seconds
Lower	4 seconds
Hydraulic System
Engine speed	2,200 rpm
Pump Flow Capacity	42 gpm (158 lpm)
Working pressure	26 MPa 3771 psi
Operating Specifications
Cooling System Fluid Capacity	5 gal (20 l)
DEF tank capacity	5 gal (20 l)
Engine Oil Fluid Capacity	4 gal (14 l)
Fuel Capacity	40 gal (150 l)
Hydraulic System Fluid Capacity	25 gal (95 l)
Rated Bucket Capacity	2 - 3 cu yd (2 - 2 cu m)
Transmission Fluid Capacity	0 gal (2 l)
Steering System
Articulation angle	40 degrees
Maximum flow	19 gpm (70 lpm)
Steering cylinders	2
Working pressure	17.5 MPa 2538 psi
Weights
Operational Weight	20,900 lbs (9,480 kg)
